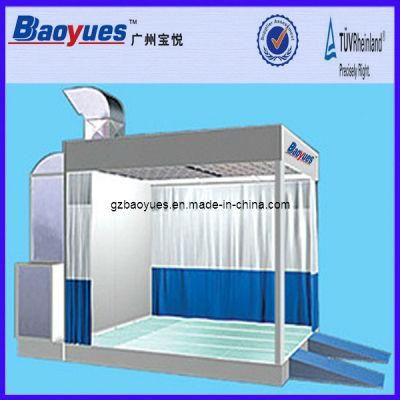

Car Spray Paint Tools, Tool for Car Body Drying and Spraying
Luminous Optical Technology Co., Ltd.- Certification：CCC, CE, SGS
- Substrate：Steel
Base Info
- Model NO.：non-standard
- Brand：Baoyue
- Coating：Painting
- Airflow Direction：Cross-flow Type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Optional
- Purification：≥95%
- Noise Decibels (a)：≤75
- Safety：with Pressure Emergency Door
- Free Air Speed：≥0.3m,S
- Frequency Air Change：294 Time ,H
- Air Capacity：21000m3,H
- Max Operating Temprature：80
- Illumination：≥1000lux
- Warranty：1 Year
- Transport Package：Standard Export Package
- Specification：CE
- Trademark：Bauyues
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：50set,Month
Description
| Item | Detailed Specification |
| Inside dimension | 6900× 3900× 2 7 50 mm ( L× W× H ) |
| Outside dimension | 7000× 5 70 0× 3 5 00 mm ( L× W× H ) |
| Front door | F olding door, 3 folds, 3000× 2 7 00 mm (W× H), without any frame, color: white |
| Emergency door | 1 unit, 800 × 20 00mm (W× H), colour: white. |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support, with adjustable bolt, full grilles made by flat bar 30× 4 & 10× 4, hot galvanized, 2 ramps, 750× 2000mm |
| Wall panel | Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.426mm colour steel with EPS insulation inside, colour: white. |
| Light | Ceiling Lights: 8Units× 4Pcs=32Pcs× 36W, side ligh: 8Units× 4Pcs=32Pcs× 36W, with electronic ballasts. |
| Generator cabinet | Intake from side upper, exhaust from back upper, aluminium alloy frame; machine-made panel covered, filled with heat preservation material in the middle. |
| Intake and Exhaust system | Inlet: 2× 4KW centrifugal fan, motor outside, belt drive, Model: TAE-400H, air capacity for each fan: 12500m 3 /h |
| Outlet: 1× 7.5KW centrifugal fan, motor outside, belt drive, Model: TAE-560H, air capacity for each fan: 23000m 3 /h, with manual damper | |
| Heating system | RIELLO G20 diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 2 0 0000kcal/h, maximum temperature: 80 degree |
| Purification system | Pre-filter, ceiling filter, fibreglass filter, activated carbon filter. |
| Roof | Galvanized steel. |
| Control system | Spraying, heat spraying, baking, time setting, lighting switch, thermostat, temperature limit controller, failure indicator, power supply switch, emergency stop. |
| Total power | 18 KW |
