• Model NO.：RB-FLL-200WF4
• Application：Square, Garden, Park, Factory
• Operating Voltage：85-265V
• Certification：CE, RoHS, SAA
• Grade：IP65
• Transport Package：Strong Carton with Foam
• Specification：CE, ROHS, EMS, SAA
• Trademark：Rayborn
• Origin：China
• HS Code：94054090
• Production Capacity：20000PCS,Month

Item No.:RB-FLL-200WF4Input Voltage:AC90-277VFreqency Range:50Hz~60HzPower Factor:>0.98Power Efficiency:>90%Lamp DriverMeanwellLED Chip:Bridgelux ledLED Power200WLED QTY:4pc*50WLED Working Voltage:DC 30~36VSystem Consumption:210WLED Luminous FluxWarm White17500LMPure White18300LMCool White18500LMCenter Illuminance7 Meter150lux10 Meter74 lux12 Meter52 luxViewing Angle:120 degreeIlluminance Uniformity:>0.6Color TemperatureWarm White3000K~3300KPure White5500K~5700KCool White6000K~6500KColor Rendering IndexRa>78Light Distribution:LED points visibleLight Design:LED+Reflectors secondary light distributionLED Junction Temperature:≤115ºCWorking Temperature:-40ºC~50ºCIP Grade:IP65Working Life-span:50000 HPower Line:1.0 m three lineConnect WireBrownLBlueNYellow / GreenGThe color of the lamp shellBlack is availableNet Weight:17.5KG



200W LED FLOOD LIGHTING Features:

Using specialized heat-dispersion design of the lamp, use aerometal material of the housing with high heat conduction and well formed
Convection with surrounding air; The temperature of lamp holder will less than 65 even if continue work with a long-term.
Using single powerful LED(30-100W)as the light source, with unique lighting design of Multi-chip integrated single-module; Select for excellent
Imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
Adopted the unique Secondary light distribution, with average llluminance;
With high color rendering index which can show a true color of things for people and meet the requirement of different invironment; Clear up
The depressive mood caused by lower or higher color temperature compared with conventional lamp, make more comfortable for people's
Eyes.
Wide voltage range available and global universal; Adopted advanced constant-current controlling techniques, can fast turn on, no warn-up.
Using build-in power systems, easy to install and preserve.


Applications:

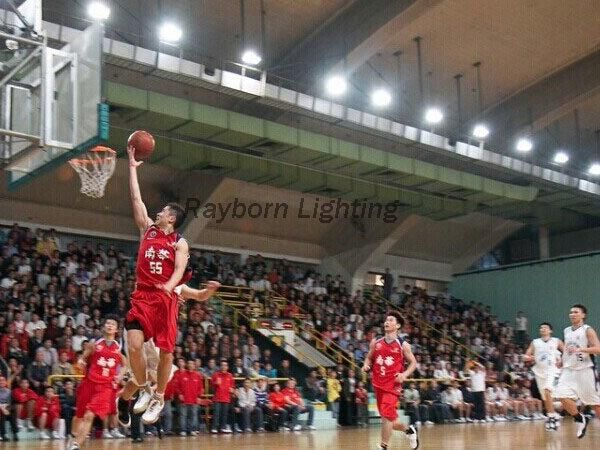

The lights could be used in many places such as: The tunnel, underground passage, underground parking, railway, building lighting, large area flood lighting, public spaces, squares and other places.

Company Information:

As a big led manufacturer with years of experiences,we Rayborn led lghting would very like to be your reliable lighting specialist. We ensure that:
1.Offering you the competitive price with good quality led lights.
2.Delivery the goods to you with speed and precision wherever you are.
3.Reply your inquiry and request in 8 hours during workdays.
4.Keep on researching and developing news prodcuts to satisfy your various needs


Trade Terms:
1. Payment: T/T, L/C at sight, Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discouts are offered based on order quantities
6. MOQ: 1pcs
