13 Tons Air Suspension for 120mm and 150mm Square Axle Beam
Fujian Xinmei Packaging Co., Ltd.- Material：Steel
- Certification：ISO9001
- Car Make：Volkswagen, Benz, Toyota, Ford, Buick, Volvo
- Position：Front
- OEM：Yes
- Type：Shock Absorber
Base Info
- Model NO.：UT13T
- Truck Model：Volkswagen, Benz, Hyundai, Honda, Toyota, Jeep, Ni
- Applicable Type：Truck and Trailer
- Design：Hendrickson, Watson Chalin, Ush, Raydan, Chalmers
- Transport Package：Seaworthy Packing
- Trademark：UT
- Origin：China
- Production Capacity：600PCS,Month
Description

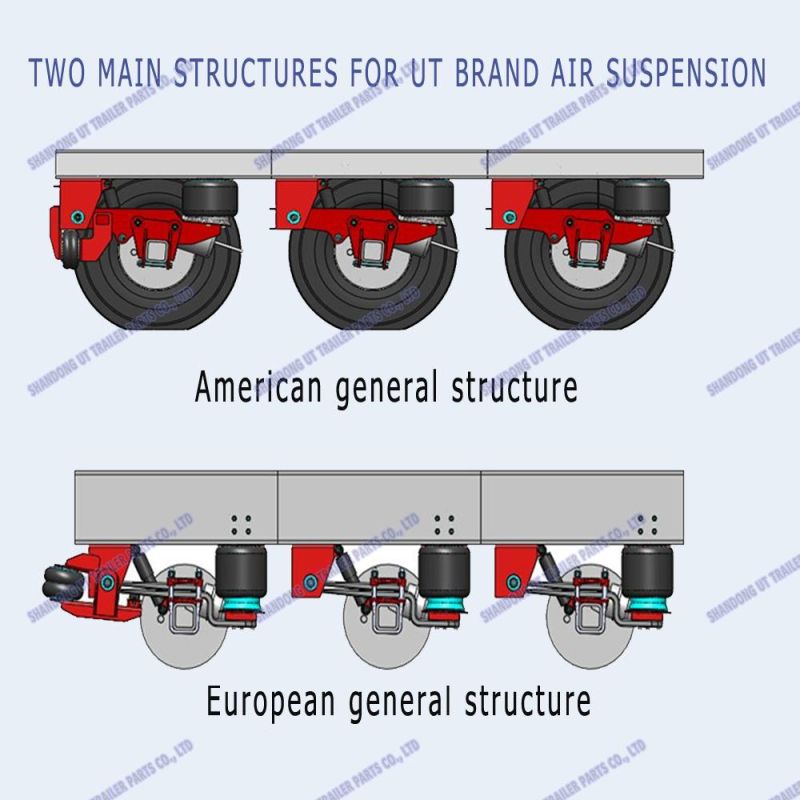

BrandUTSuitable truck brands FOTON, FAW, AUTOMAN, HOWO, MAN, VOLVO, SCANIA, MACK, NORTH BENZ etc.Suitable trailer typeFlatbed trailer, low-bed trailer, van semi-trailer, oil tanker trailer, van semi-trailer, skeleton trailer etcTypeBoth American type and Germany type
Top Mount/under slung
One bag, two bag, three bag and four bag are availableLoading capacity9000-20000 kgsRide height180-510mmApplicable axleRound beam and square beam, 127mm,133mm,146mm,150mmFactory pre-assembledacceptedCompact in designwholeBuyer's designacceptedPackageWooden case or as requestDeliveryAbout 20 working daysMOQ5 SETPaymentT/T or L/COthersAs request The features for this type air ride suspension:
• Maximum axle load: 13ton
• Twin leaf trailing arm: 100x45+100x45
• Suitable for Ø127mm, Ø146mm, square 120mm and sqaure150mm drum and disc brake axles
• Ride height range:
- underslung: 210-330mm
- Overslung: 390-560mm
• Air spring: Ø350mm
• Air Spring offset options:
30mm/ 50mm /95mm
• Optional Bolt-On axle lift

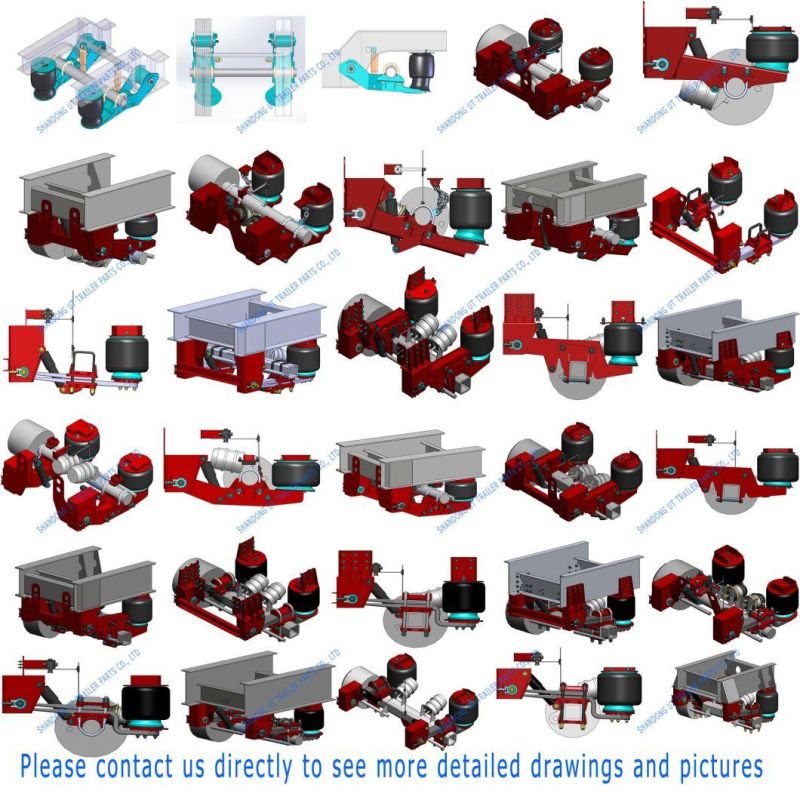

The following is some type of our air suspensions, we can design according with your trailer and truck.
Top Mount/under slung
One bag, two bag, three bag and four bag are availableLoading capacity9000-20000 kgsRide height180-510mmApplicable axleRound beam and square beam, 127mm,133mm,146mm,150mmFactory pre-assembledacceptedCompact in designwholeBuyer's designacceptedPackageWooden case or as requestDeliveryAbout 20 working daysMOQ5 SETPaymentT/T or L/COthersAs request The features for this type air ride suspension:
• Maximum axle load: 13ton
• Twin leaf trailing arm: 100x45+100x45
• Suitable for Ø127mm, Ø146mm, square 120mm and sqaure150mm drum and disc brake axles
• Ride height range:
- underslung: 210-330mm
- Overslung: 390-560mm
• Air spring: Ø350mm
• Air Spring offset options:
30mm/ 50mm /95mm
• Optional Bolt-On axle lift
The following is some type of our air suspensions, we can design according with your trailer and truck.
