UL Ce High CRI UL 5630 Osram LED Strip Lighting

Foshan Nanhai Xinqiguang Metal Cap Co., Ltd.
  • Certification：UL, RoHS, CE
  • Power：Max 24W,M
  • Emitting Color：4000k
  • Voltage：12,24VDC

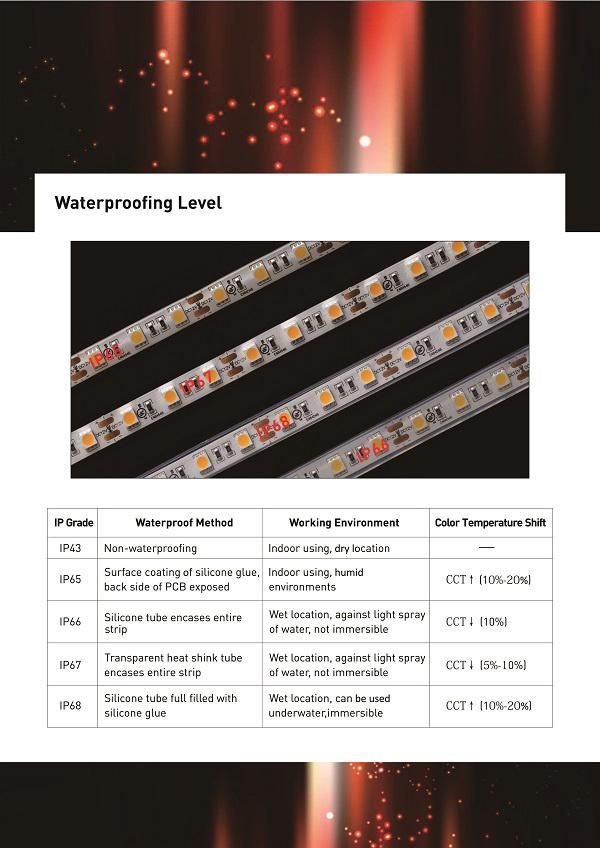

  • IP Rating：IP65 (Silicone Filling)
  • LED Chip Brand：Osram

Base Info

  • Model NO.：OL-5630FPW5-6012,24-NW
  • LEDs/M：60 PCS,M
  • Lumens：2090-2560lm,M
  • Color Rendering Index：>80
  • PCB Width：12mm
  • Beam Angle：120 Degree
  • Back Tape：Tesa 4965
  • Connection：DC Connector , 20AWG 2-Pin Bare Wire
  • MOQ：5m,Roll
  • Warranty：5 Years
  • Transport Package：50 Rolls,Carton
  • Specification：UL, CE, RoHS
  • Trademark：Venus
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：10, 000m,Day

Description

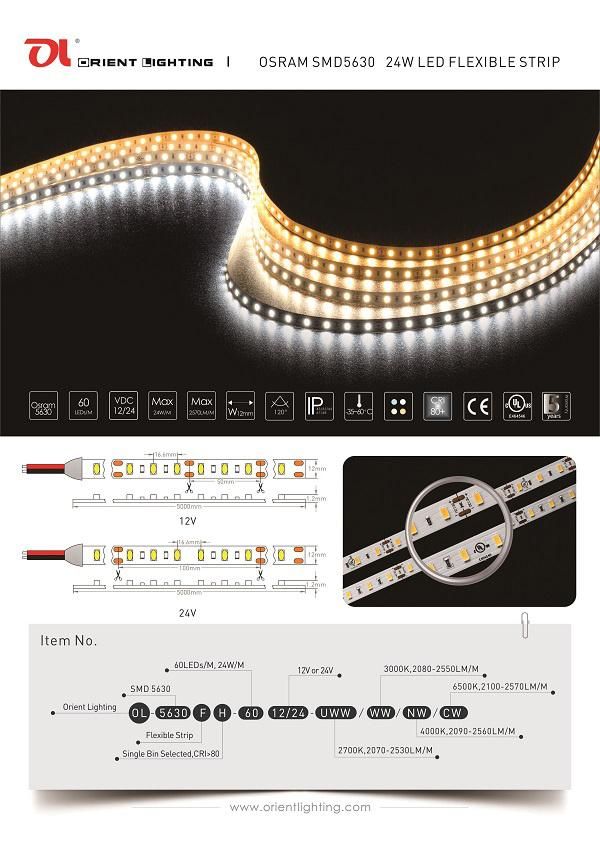

OSRAM SMD 5630 Flexible Strip, 60 LEDs/M, 24VDC input, Max.24W/M, 108W/Roll, 5M/Roll, 2100-2300lm/M, 12mm width 4.0 oz White copper PCB, IP43/65/66/67/68, 15cm 2-pin AWG20 bare wires, TESA 4965 back tape, CRI>80.  OL-5630FH-6024-WW3000K OL-5630FH-6024-NW4000K OL-5630FH-6024-CW6000K
