• Model NO.：SMLN-30W

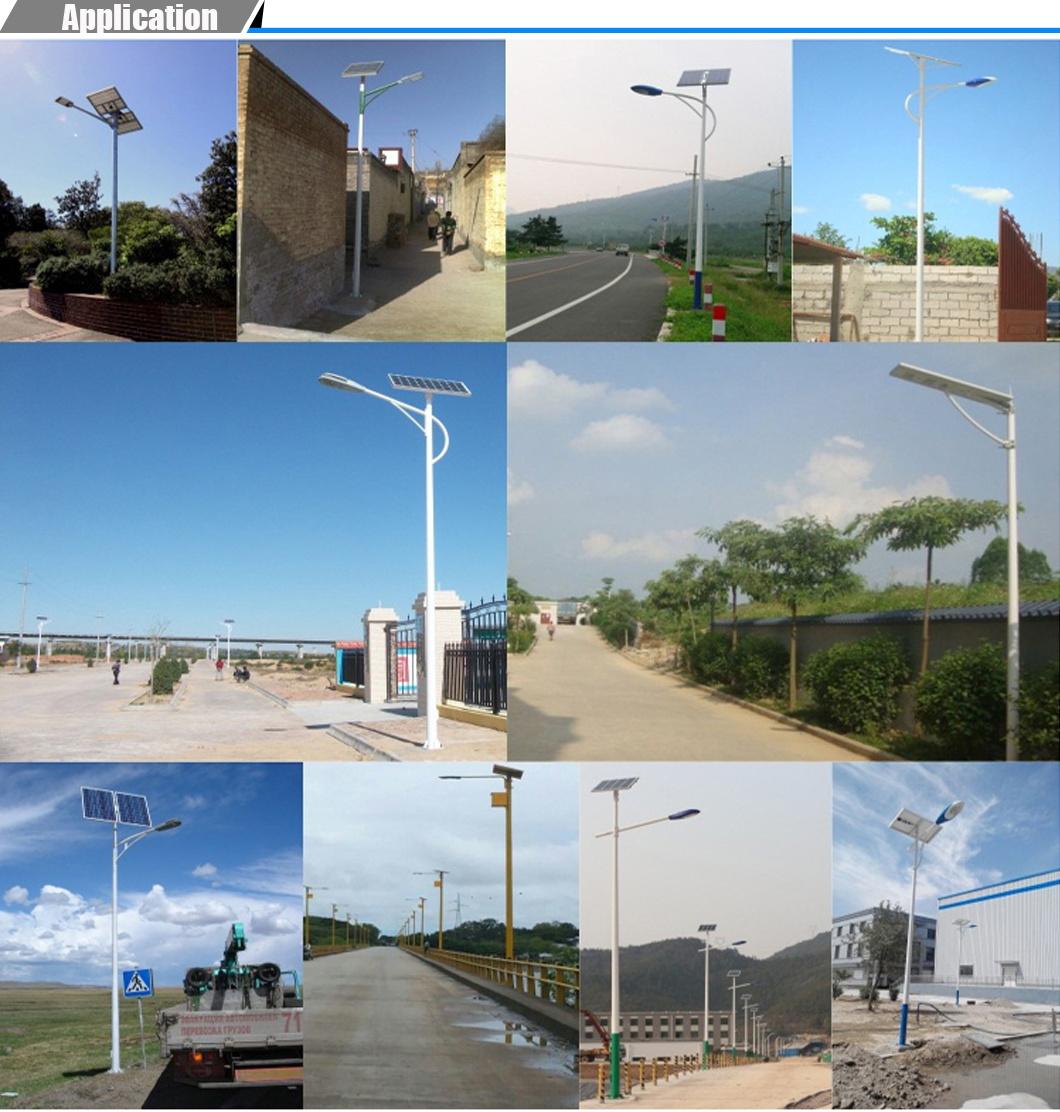

• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• Solar Cells：Mono or Poly High Efficiency A Grade
• Dim/Non-Dim：Both Can Do
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• CRI (Ra>)：80
• Working Lifetime(Hour)：50000
• Beam Angle：145*100°
• Working Mode：Full Power and PIR Sensor
• Lighting Area：100m²
• Lighting Time：Over 4 Nights
• Controller：Available
• Back up Days：3 Days
• Transport Package：Carten
• Specification：886x450x140mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-30W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Solar Cells Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do OEM/ODM/Customized Available Warranty(Year) 10 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC CRI (Ra>) 80 Working Lifetime(Hour) 50000 Beam Angle 145*100° Working Mode Full Power and PIR Sensor Lighting Area 100m² Lighting Time Over 4 Nights Controller Available Back up Days 3 Days Transport Package Carten Specification 886x450x140mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

Product Description

1.Pre-assembled solar power street light ,easy installation.

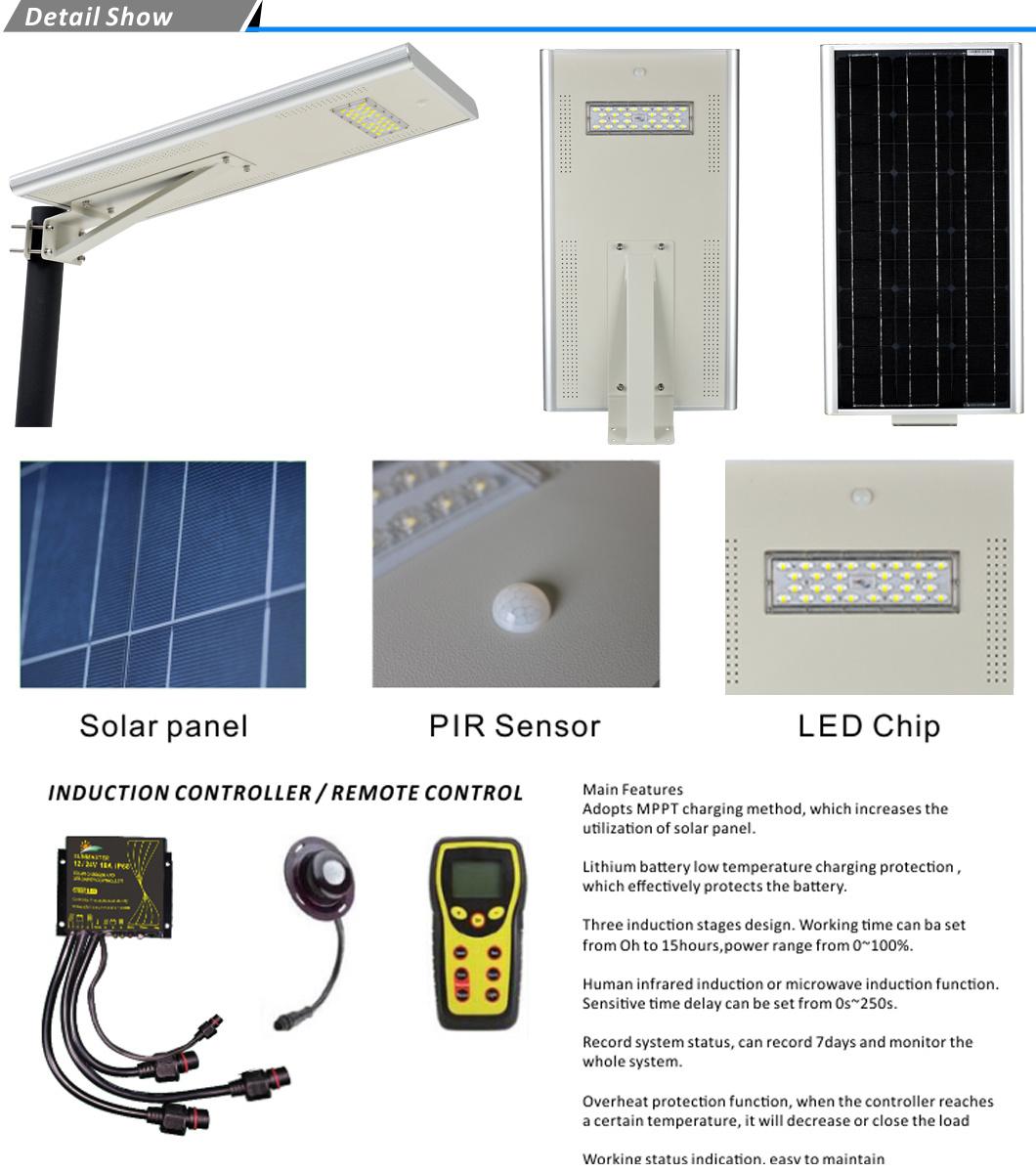

2.The solar lighting system consists of LED street lamp,solar panel,lithium battery,solar controller and lamp housing,OEM and customized production available
3.High efficiency monocrystalline solar cells to achieve more efficient photoelectric conversion.
4.Light pole made of hot dip galvanized steel,anti corossion,solid and reliable.

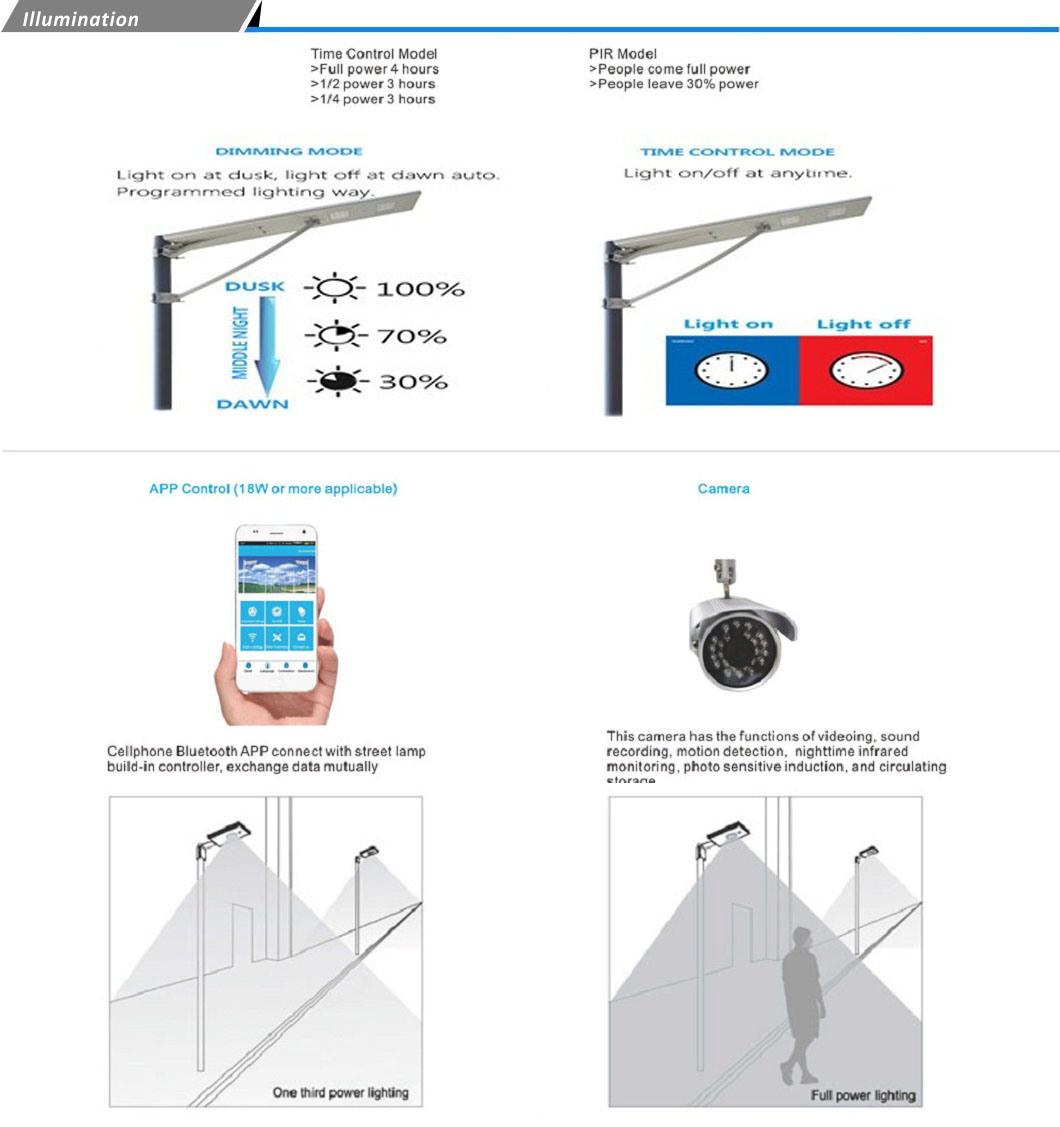

5.Intelligent light-control and time-control with motion sensor option.

Model NO.	SMLN-30W	Battery Type:	LiFePO4 24Ah/12.8V
Power:	30W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	886*450*140mm
Viewing Angle:	120	Packing Dimension:	940*510*200mm
Working temperature :	,-20 ~ +70	Product Weight	17KG
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	6-7 m
Solar Panel:	18V 60W Mono-crystalalline	Warranty:	3 years
