Commercial Vehicle Spray Booth for Auto Body Shops

1.HIGHLIGHTS

1. CE certified
2. Full downdraft airflow
3. Efficient heat exchanger unit
4. Premium control box, high ease of use
5. Long lifecycle
6. Lower operating costs

2.SPECIFICATIONS

ITEMS	SPECIFICATIONS
Model	IT-SUPER-701 spray booth
Design standard	BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009
Internal dimensions	7000 X 4000 X 2800mm (L X W X H)
External dimensions	7110 X 5560 X 3810mm (L X W X H)
Airflow	Full Downdraft
Plenum (height)	600mm
Extraction	Through 350mm high raised basement
Extraction area	28m2
Grids carrying capacity	900kg/wheel
Entrance door	3400x2700mm (WxH), 1 set
Service door	800x2000mm(WxH), 1 set
Walls	50mm rock wool walls
Ceiling lights (LED)	8 sets, each 6 X 18W, 864W total
Sidewall lights (LED)	6 sets, each 2 X 18W, 216W total
Brightness	>1,000LUX
Filters	Bag filter, high efficiency ceiling filter, floor filter, exhaust filter
Intake/Exhaust unit	Direct-type turbine fan, 2x7.5KW, SIEMENS motor
Air volume	28,000m3/h
Empty loaded air speed	0.28m/s
Heats	232kw heat exchanger, RIELLO diesel burner RG5D
Maximum working temperature	80ºC
Controls	CE standard control box
Inverter	SCHNEIDER inverter as option
Rated power	20KW

3.FEATURES & APPLICATION
Full downdraft booth provides optimal airflow, and is the preferred booth style for achieving high quality paint finish.
With four-leaf door set for wide opening, 350mm high basement, facilitating assembly above the floor, and requiring no concrete work, the booth suits all models of cars, and fits every auto body shop.

4.DETAILS
AIRFLOW & BOOTH STRUCTURE

• Downdraft airflow
• 600mm high plenum allows for even air distribution from plenum to workspace
• 350mm basement balances the air from one end to the other end

OPTION
The basement can be catered to meet different installation fields' requirements. Welcome to contact us for advice.

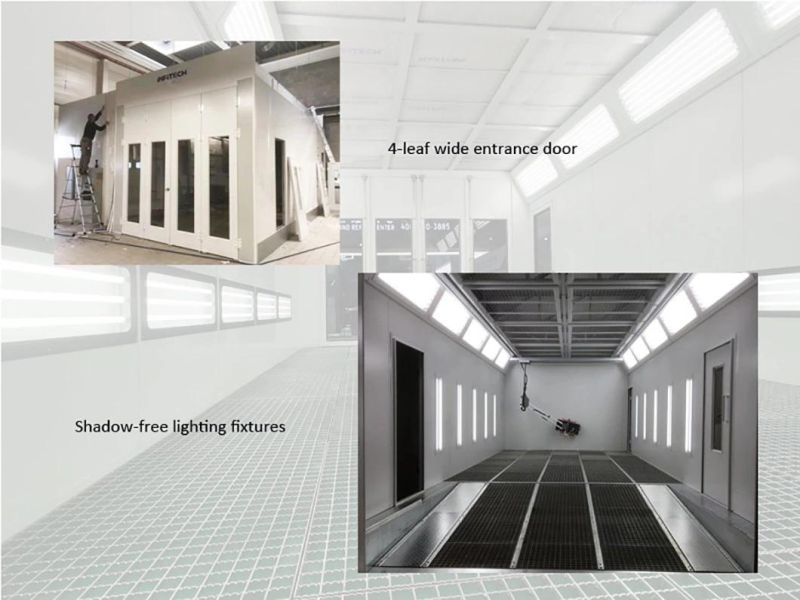

ENTRANCE DOOR & LIGHTS

• 4-wing entry door with large safety glass windows and panic latch
• IP55 protection grade lighting fixtures with LED lamps
• Ceiling and sidewall lights create shadow-free workspace

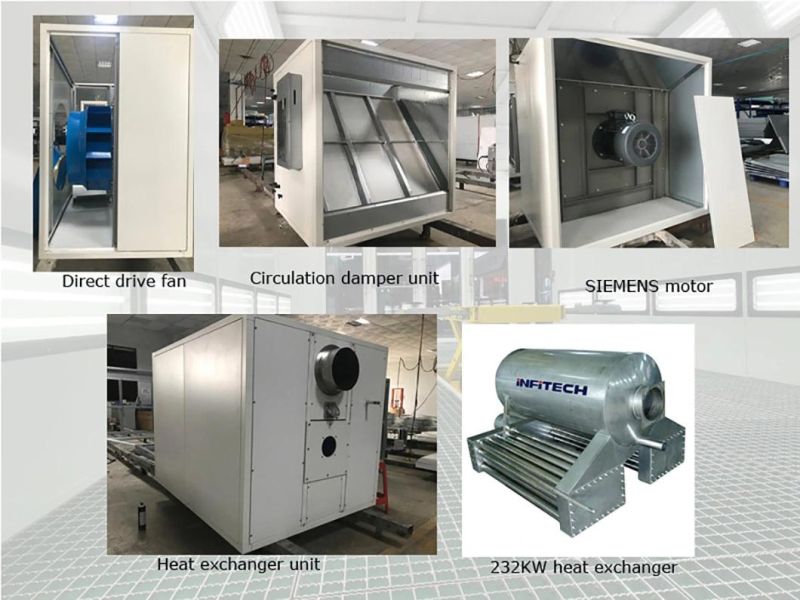

AIR HANDLING UNIT

• Direct-drive fan unit, non-spark fan
• Cylinder-drive paint-bake conversion damper
• High efficiency heat exchanger unit

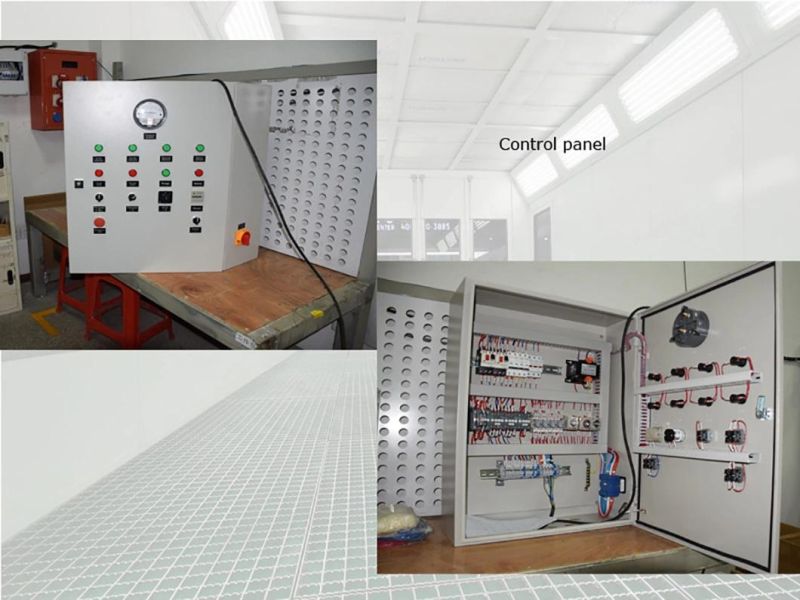

CONTROL

• Spray, bake, and cooling cycle
• SCHNEIDER brand electric components

UPGRADE

• SCHNEIDER inverter
• Touch screen control panel

FILTERS

Item	Specification
Inlet filter	Bag filter
Micro-dust filter	High efficiency SP-600G
Floor filter	Fiberglass paint arrestor filter
Exhaust filter	Activated carbon filter mat

5.FAQQ: Are you manufacturer?
A: We are professional manufacturer of spray booths for the automotive and industrial manufacturing industry. Q: What certificate do you have for spray booths?A: CE certificate.
 Q: Can I put my brand on spray booth?A: Certainly.
 Q: What is the production lead time?A: Standard spray booths: 20 days after receiving deposit.
  Non-standard spray booth projects: depending on the project.
 Q: What is the warranty?A: Infitech offers 2-year warranty for main components of spray booths after commissioning.
 Q: How to install and maintain the spray booths?A: Infitech spray booths are designed for easy installation and maintenance. Customers are always provided with full set of installation and maintenance instructions specifying how to assemble the booths, and the maintenance schedule. Infitech can also offer on-site installation guidance upon customers' requests.
 Q: What about the availability of the electrical components and consumables?A: Infitech use international standard electrical components and consumables, so customers can get parts locally for maintenance. In addition, Infitech keeps stock of spare parts and can effect shipment shortly upon receiving your requests.
