• Model NO.：098
• Color：Chrome
• Max. Working Pressure：120 Psi
• Max. Flow Rate：36L,Min (1.03cfm)
• Duty Cycle：9% @ 100 Psi
• Ingress Protection Rating：IP54
• Transport Package：Box
• Trademark：CARTEEAIR
• Origin：China

Basic Info.

Model NO. 098 Color Chrome Max. Working Pressure 120 Psi Max. Flow Rate 36L/Min (1.03cfm) Duty Cycle 9% @ 100 Psi Ingress Protection Rating IP54 Transport Package Box Trademark CARTEEAIR Origin China

Product Description

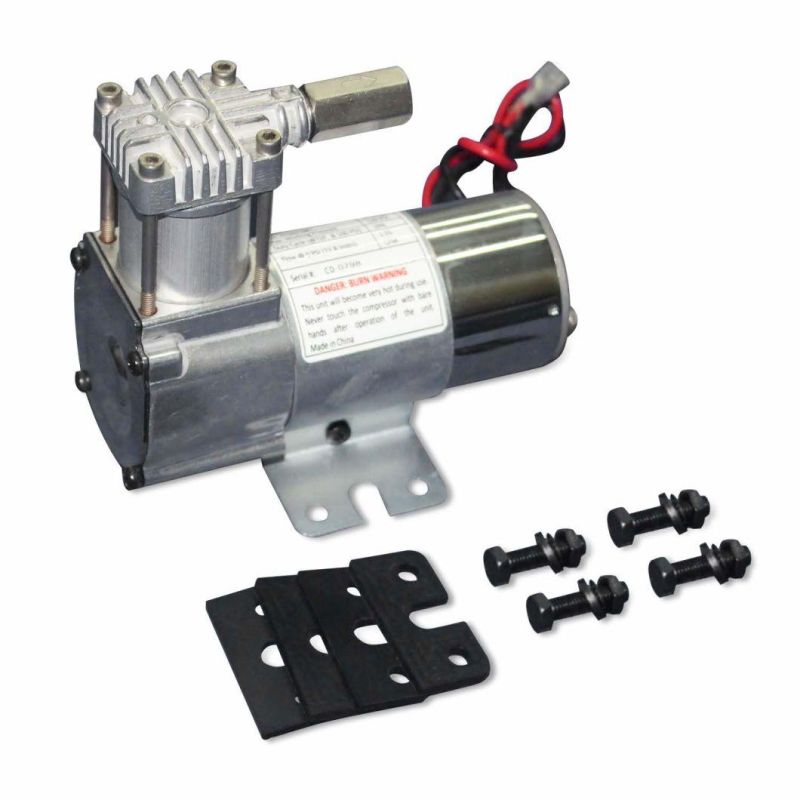

X098 air compressor offer a light duty solution for smaller air requirements and are meant to fill no larger than a one-gallon air tank.

SPECIFICATIONS:
duty cycle: 10% @ 100 psi
flow rate: 1.53 cfm @ 0 psi
max working pressure: 130 psi
intermittent pressure: 220 psi
volt: 12v
amp: 13a
ingress protection rating: ip54
cylinder: Φ30mm
Max. Ambient Temp: +158°F
Min. Ambient Temp: -4°F
Dimensions: 5.6″L x 3.1″W x 4.7″H
Net Weight: 2.55 lbs

Accessories:
inline check valve
vibration isolators
mounting hardware
Omega bracket

PERFORMANCE DATA

PSI	CFM	A	BAR	LPM	A
0	1.53	7	0	43.5	7
10	1.00	9	1.0	28.0	9
20	0.95	10	2.0	25.5	11
30	0.90	11	3.0	22.7	11
40	0.85	11	4.0	20.7	12
50	0.77	12	5.0	18.3	12
60	0.72	12	6.0	16.3	12
70	0.65	12	7.0	13.7	12
80	0.60	12	8.0	11.7	12
90	0.54	12	9.0	10.0	11
100	0.48	12
110	0.44	12
120	0.39	12
130	0.35	11

* Supply Voltage: 13.8 Volts

MAINTENANCE & REPAIRS

Periodically check all electrical and fitting connections.  Clean and tighten as needed.
Periodically check all mounting screws.  Tighten as needed.
Replace air filter element periodically. Replacement frequency depends on operating frequency and operating environment. For frequent use in dusty environment, we recommend that you replace air filter element at least once a month.
Regularly clean dust and dirt from compressor cooling fins and motor housing.
Your air compressor is equipped with a permanently-lubricated, maintenance-free motor. Never try to lubricate the compressor.
All repairs should be performed by Manufacturer or Manufacturer's Authorized Service Agencies only.

CAUTION: Never touch the air compressor or fittings connected to the air compressor, with bare hands during or immediately after usage. It will become very hot during and after use. If necessary, wear heat resistant gloves.
