4 Inch 7 Segment Display with 8 LEDs Per Seg with RoHS From Expert Manufacturer
Dandong Dedan Trade Co., Ltd.- Tube Chip Color：Single Color
- Display Function：Numbers and Some Alphabets
- Pixel Pitch：4mm
- Pixel Configuration：7 Segments and Dp
- Pixel Density：7 Segments,PC
- Scanning Mode：Static Scan
Base Info
- Model NO.：LD40011C,D
- System Operating Platform：Win
- Display Type：Segment LED Display
- Application：Shopping Guide, Meters and Instruments
- IP Rating：IP0
- Certification：RoHS, Reach

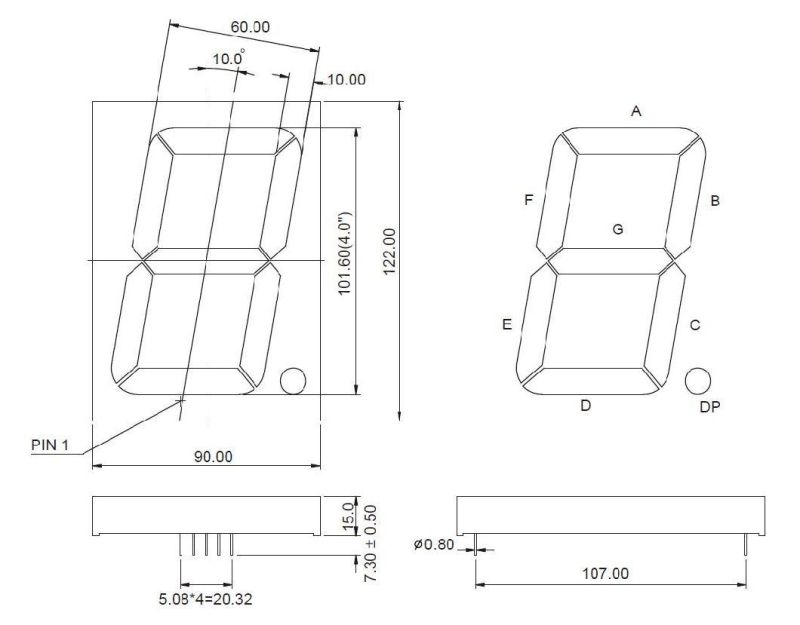

- Outline Dimensions：90.00X122.00X15.00mm
- Digit Height：4 Inch(101.6mm)
- Emitting Color：Single Color
- Dp Number：1PC
- Digit Number：1 Digit
- Chip Matrial：4-Element
- Transport Package：EPE Foam and Carton
- Specification：RoHS, REACH
- Trademark：LIGHTKEY
- Origin：China
- HS Code：8531200000
- Production Capacity：1000000PCS,Year
Description
Overview
Product NameSingle Digit 7 Segment LED Display, Digit Height: 101.60mm(4.00inch), External Dimensions: 90.00x122.00x15.00mm (L x W x H ) Part No. Chip Iv@IF=20mA Iv@IF=20mA CC CA Material Color WLD One Seg One DP Min. Typ. Min. Typ. LD40011CR LD40011DR GaAlAs Super Red 640 48 60 12 15 LD40011CD LD40011DD GaAlAs Hi-Red 640 108 150 27 37.5 LD40011CO LD40011DO GaAsP Orange 625 42 54 10.5 13.5 LD40011CY LD40011DY GaAsP Yellow 588 48 60 12 15 LD40011CG LD40011DG GaP Green 568 42 54 10.5 13.5 LD40011CUR LD40011DUR AlGaInP Ultra Red 640 180 270 45 67.5 LD40011CUO LD40011DUO AlGaInP Ultra Orange 625 270 360 67.5 90 LD40011CUA LD40011DUA AlGaInP Ultra Amber 605 180 270 45 67.5 LD40011CUY LD40011DUY AlGaInP Ultra Yellow 595 180 270 45 67.5 LD40011CUG LD40011DUG AlGaInP Ultra Green 573 180 270 45 67.5 LD40011CPG LD40011DPG InGaN Pure Green 525 720 1800 180 450 LD40011CUB LD40011DUB InGaN Ultra Blue 470 180 270 45 67.5 LD40011CUW LD40011DUW SMD Ultra White 600 720 150 180 Unit: nm mcd mcd mcd mcd
Application
Our Services/Why choose Us
1. Professional service: replied within 24 hours(at workdays).
2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.

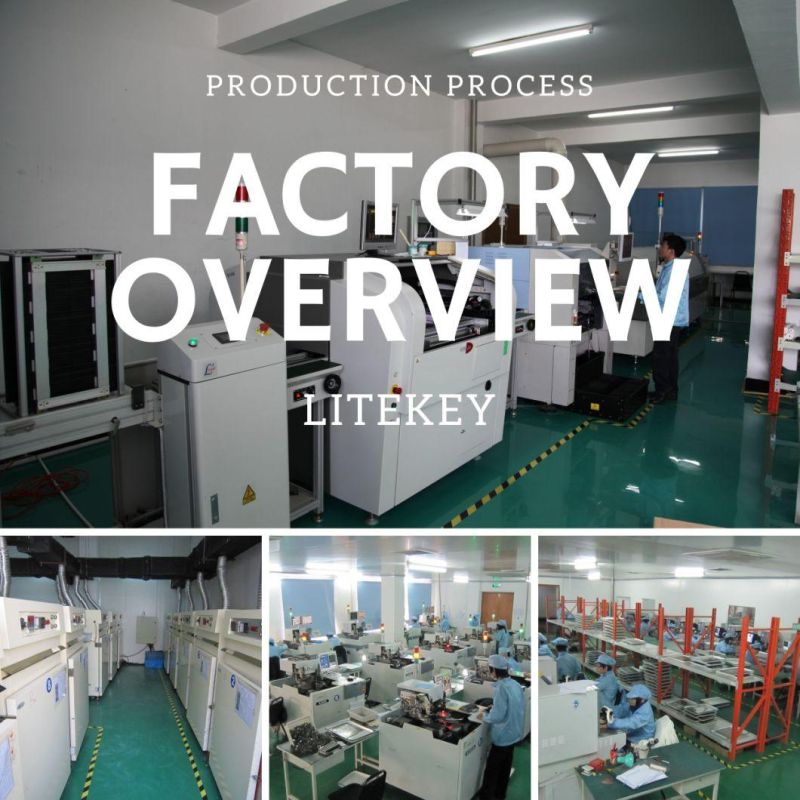

4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.

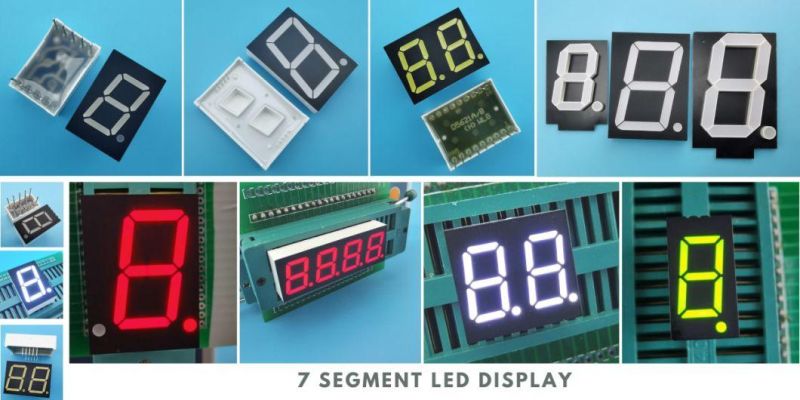

Detailed PhotosFeatures

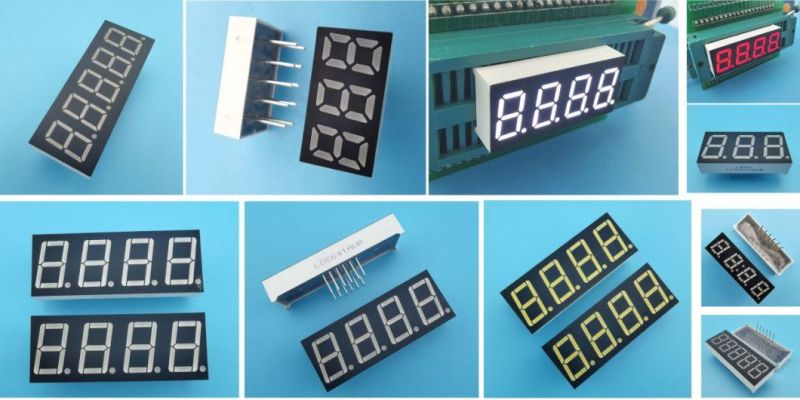

Available Options
Selection Guide
Application
