Indoor P3 LED Ultra Light Digital Billboard Display Panel
Hangzhou Awesome Imp&Exp. Co., Ltd.- Tube Chip Color：Full Color
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch：3mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：111111 Dots,M2
- Scanning Mode：1,16 Scan
Base Info
- Model NO.：UX-P3
- System Operating Platform：Windows
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP31
- Certification：CE, RoHS, UL, CCC, ETL
- Cabinet：Aluminium
- Brightness：1000nits
- Refresh Rate：>1920Hz
- Contrast Rate：3000:1
- Voltage：AC110-240V
- IP Rate：IP31
- Viewing Distance：3meters

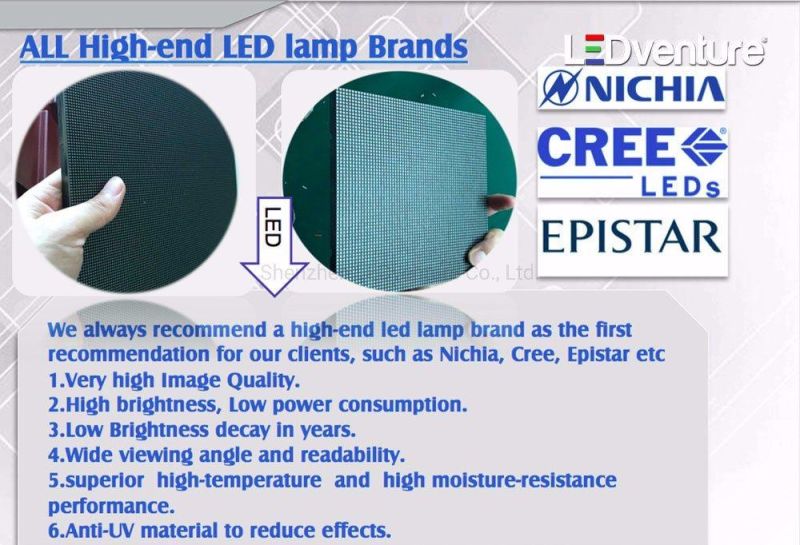

- LED Lamps：Epistar
- Driver IC：Mbi
- PSU：MW
- Service Solution：Front Service
- Installation：Back Bolted Hanging
- System：Nova
- Software OS：Windows
- Transport Package：Plywood Cases
- Specification：576x576mm
- Trademark：LEDventure
- Origin：China
- Production Capacity：2000sqm,Month
Description
Detailed Photos
Material Quality Level
All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.
Item
Indoor P3 LED Ultra Light Digital Billboard Display PanelModel Number
P3mmPixel Pitch
3mm
Pixel Density
111111 pixels/M2
Pixel Configuration
1R1G1B
LED Type
Epistar, SMD
Module Size
192x192mm
Module Resolution
64*64pixels
Min.Viewing Distance
3 meters
Brightness
1000nits
Viewing Angle(degree)
≤140°
Average Power Consumption
350 W/M2
Scan Mode
1/16 Scan
Protection Level
IP31
Cabinet Size
576x576mm
Color Temperature
The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements
Input Voltage
AC110-240V, 50HZ/60HZ
Refresh Rate
> 1920hz
Color
65535 Levels
Horizontal/Vertical Viewing Angle
<140°
Gray Scale
16 bits
Effective Communication Distance(without relay)
<100 metersLifespan
≥100,000 hours
Environment Temperature
Storage: -40°C~+85°C , Operation: -20 °C~+45°C
Blind Spot Rate
<0.0001(led display industry standard is less than 0.0003)
Control Mode
Video frequency synchronization

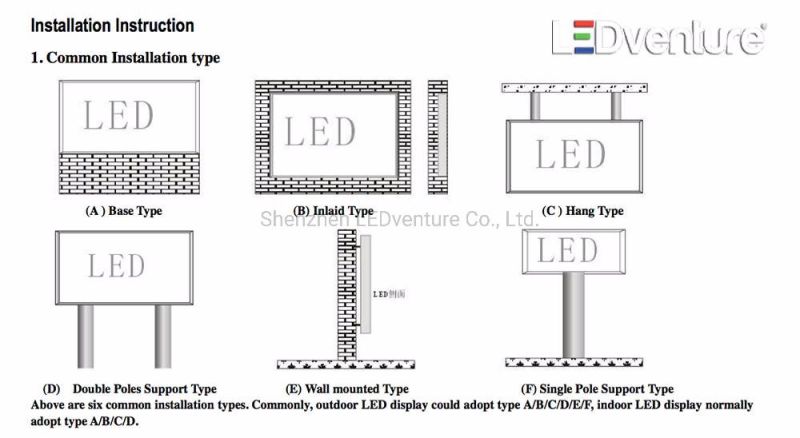

Installation Methods

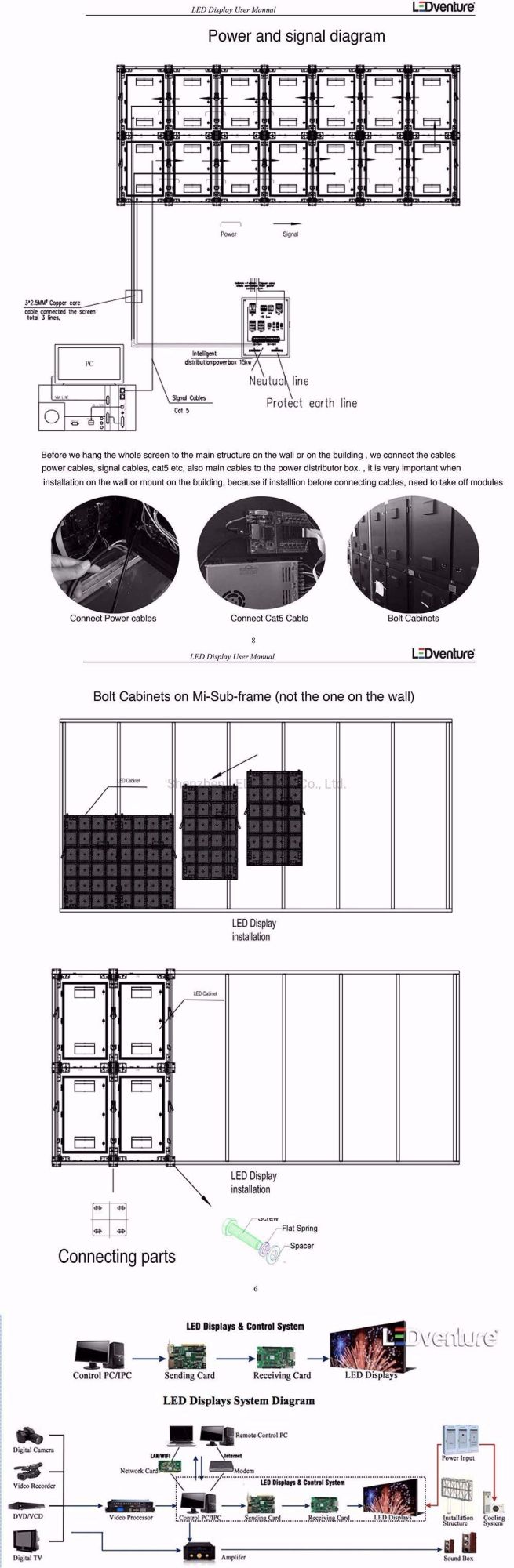

Indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.
By plywood cases, packing well and easy to load.
ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
