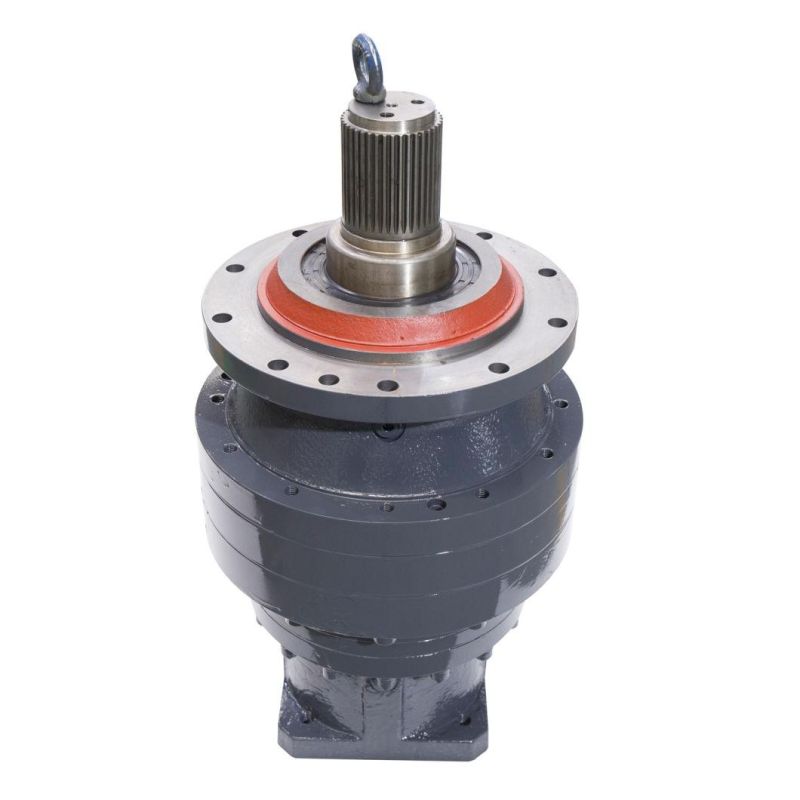

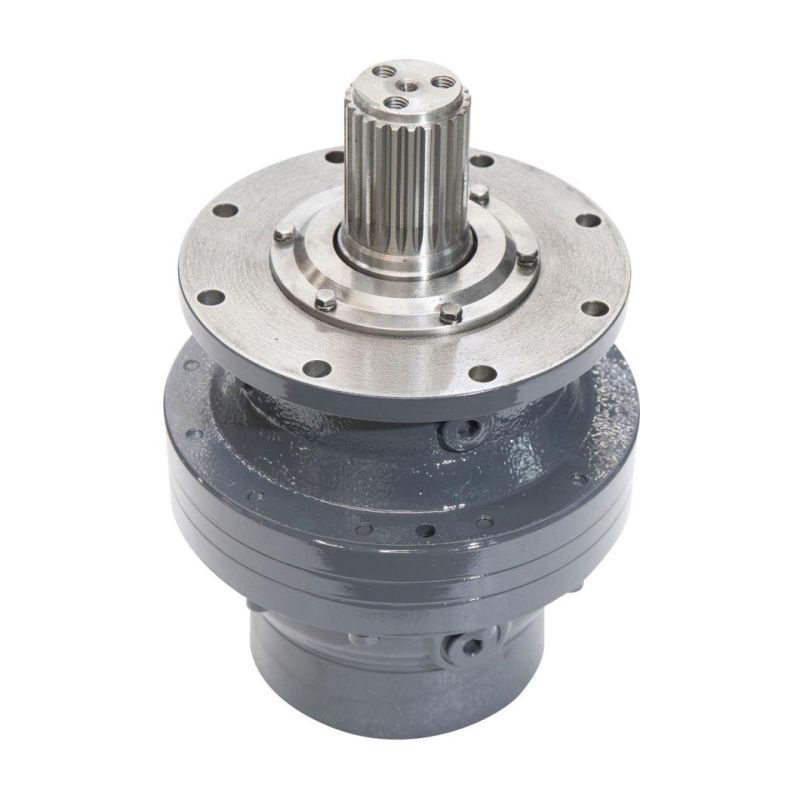

• Type：Planetary Gear Box
• Warranty：One Year
• Application for：Construction Machinery
• Delivery：45days
• Input：Motor

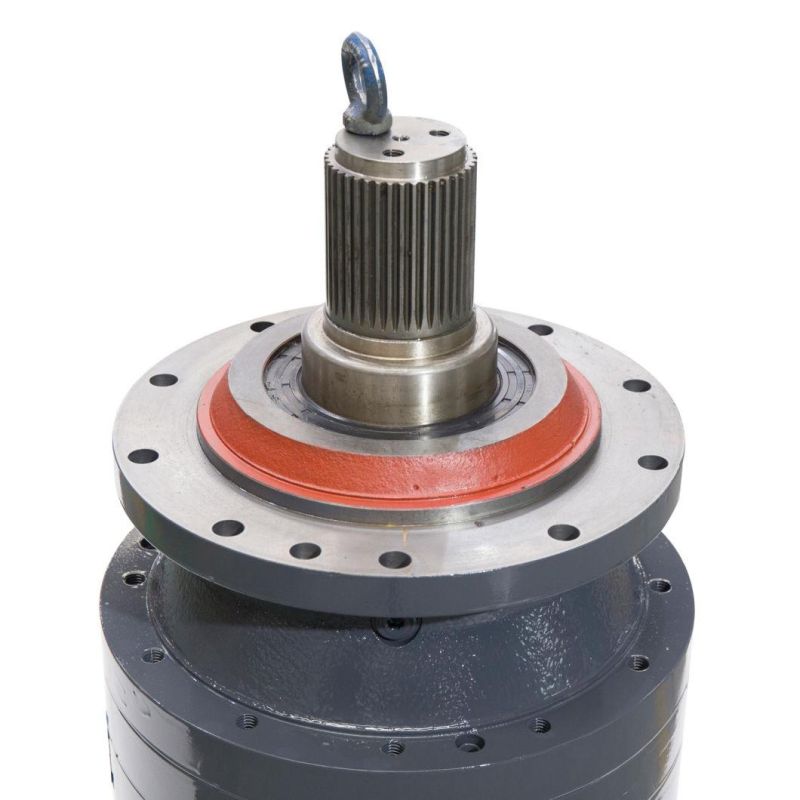

• Output：Solid,Hollow Shaft
• Model：200-885mm
• Transport Package：Wooden Case
• Origin：Shanghai, China
• HS Code：8483409000
• Production Capacity：400PCS,Month



Equivalent To Other Brand :



 Bonfiglioli

 300 Series

 Brevini

 EM/ED/ET/ET

Dynamic oil

RE Series

REGGIANA RIDUTTOR

RR Series



How To Select a Complete SGR planetary gearbox:
Complete planetary gearbox made up of 4 parts :AInput Component 1:AC electric motor 2: NEMA or IEC motor 3: NEMA or IEC motor adapter flange 4: the Solid input shaft 5: Solid input shaft with the fanBGear Reductions (co-axial stage 1-5 ,right angle 1-4 . ) 6:Right angle reduction stage 7: Planetary reduction stage 8: Worm/planetary combination 9: Bevel helical planetary combination  COutput Component  10: Flanged output/ Footed output-Solid shaft 11: Flanged output/ Footed output-Male spline shaft 12: Flanged output/ Footed output- Female spline shaft 13: Flanged output/ Footed output- 14: Flanged output/ Footed output-Pinion 15: Shaft Mount output for shrink discD Fittings 16: Flange 17: Pinion gear 18: Sleeve coupling 19: Endplate 20: Splined bar 21: Shrink disc
