10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen

Danyang Yun Kai Metal Products
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：16mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption：220W , m²

Base Info

  • Model NO.：16mm
  • Pixel Density：3906dots,Sqm
  • Scanning Mode：Static Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • Module Size：256X256mm
  • Module Resolution：16X16dots
  • Cabinet Size：1024X1024X150mm
  • Cabinet Resolution：64X64dots
  • Protection Grade：IP65
  • Screen Brightness：7500nits
  • Ave. Power Consumption：230W,Sqm
  • Certificates：Ce
  • Service：Rear, Front
  • Controller：Nova,Linsn
  • Transport Package：Wooden Case
  • Specification：1024x1024mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

Parameter1ModelF162Pixel Pitch(mm)163LED Configuration1R1G1B4LED TypeDIP3465Screen Resolution3906dots/sqm6Module size(mm)256x2567Module resolution(dots)16x168Scan methodStatic constant current drive9Cabinet size(mm)1024x102410Cabinet resolution(dots)64x6411Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥750013Viewing angleH:120°/  V:50°14Grey Scale16bit15Refresh rate(Hz)≥350016Ave. power consumption (W/sqm)23017Max. power consumption(W/sqm)75018IP gradeF:IP65 / R:IP5419ControllerNovastar / Linsn20MaintenanceRear service21Color(T) >28122Input Voltage(V) AC 110V-220V +/-10%23Frame frequency(Hz) 6024Working humidity 10~95%RH25Working temperature -30ºC~60ºC26Certificates RoHS / CE / CCC

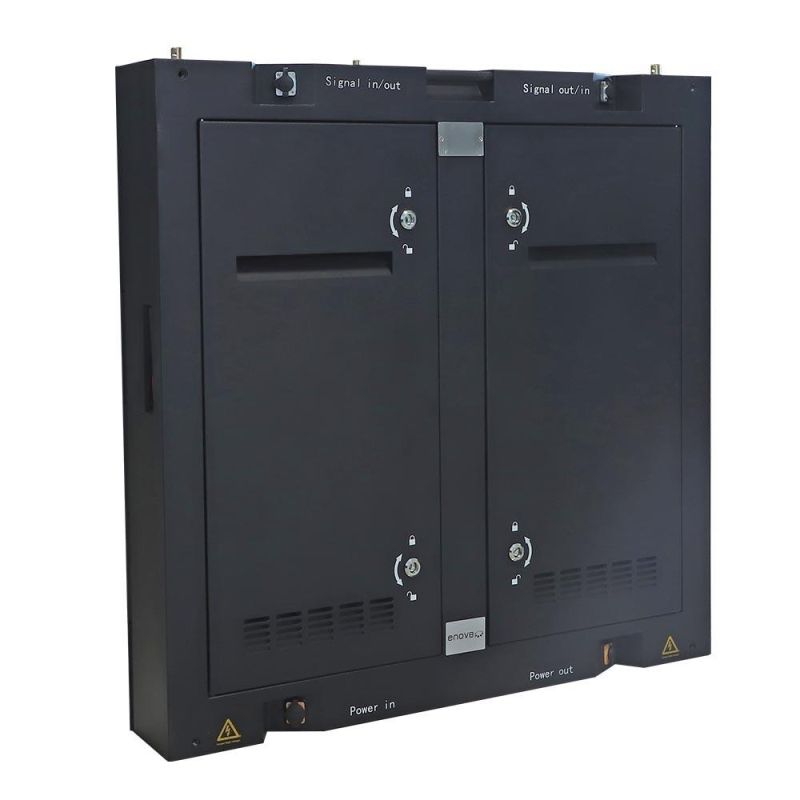

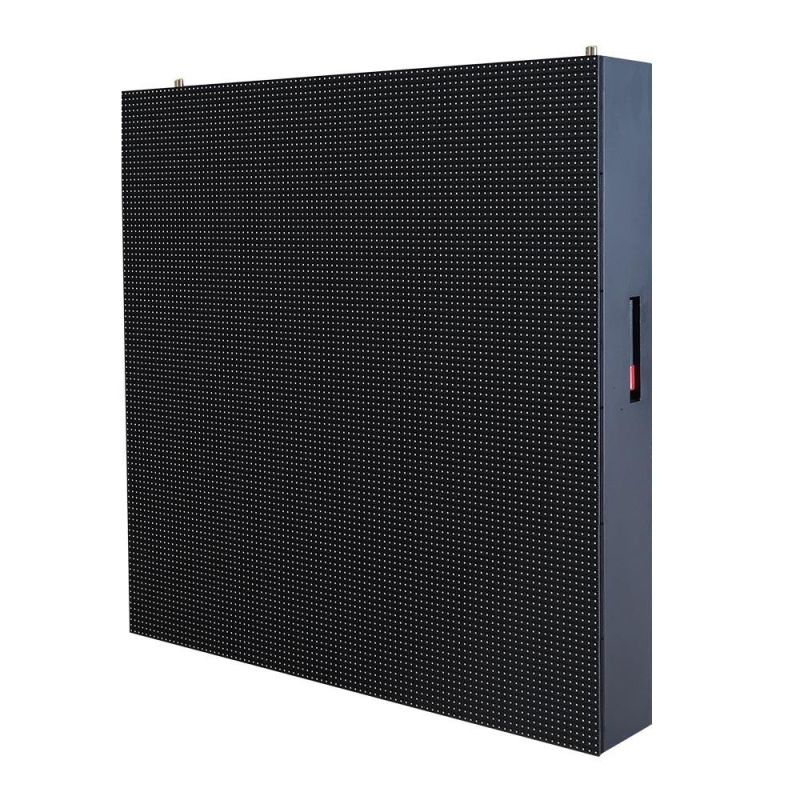

LED panels: can be customized
10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen
10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen

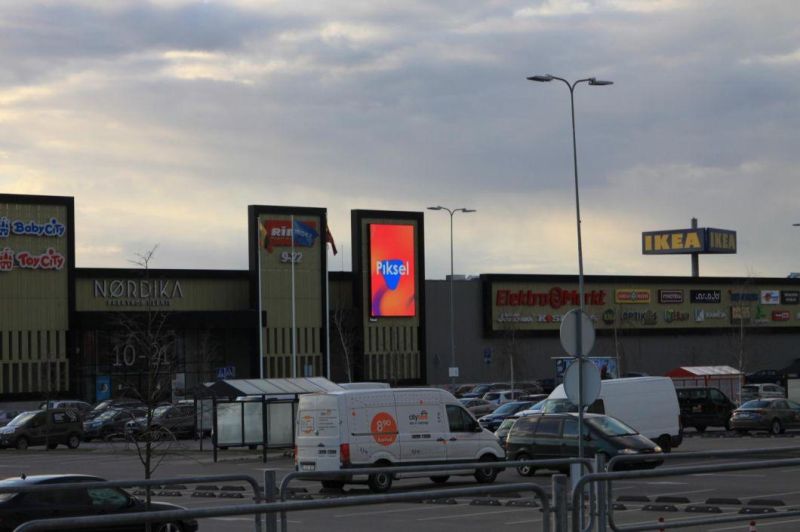

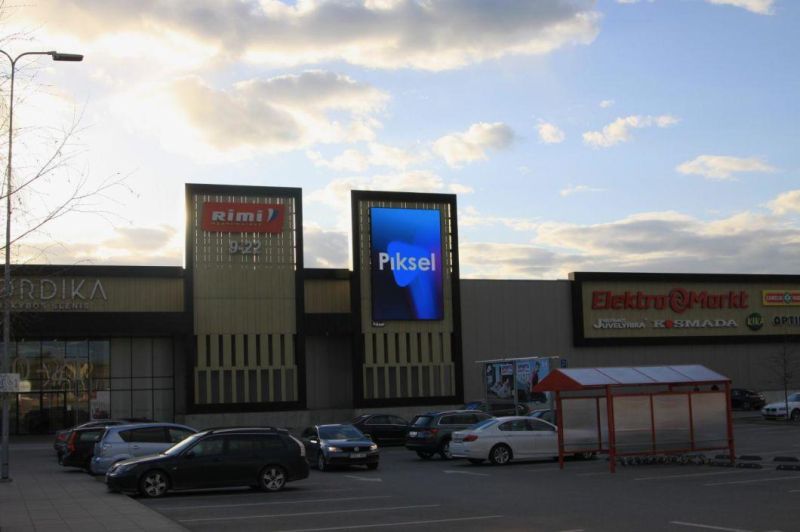

Wall -mounted on the building :

10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen
10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen

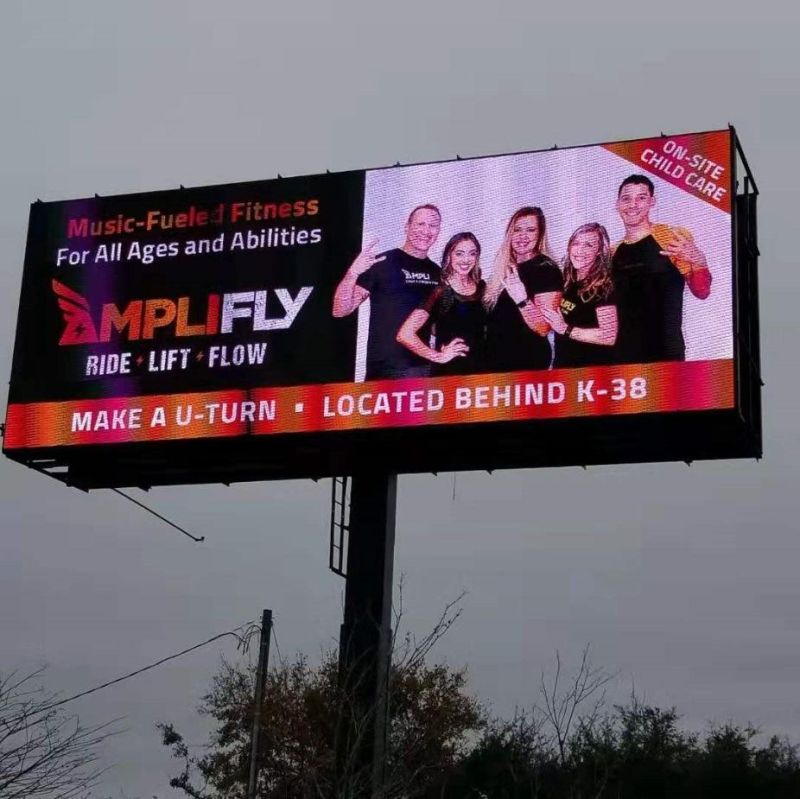

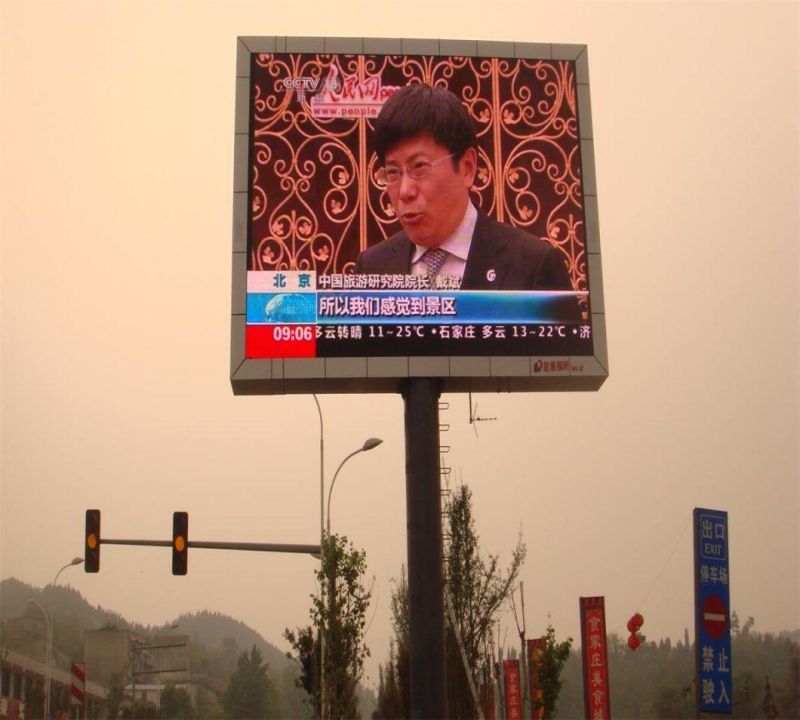

Unipole standing on the roadside:

10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen

10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen

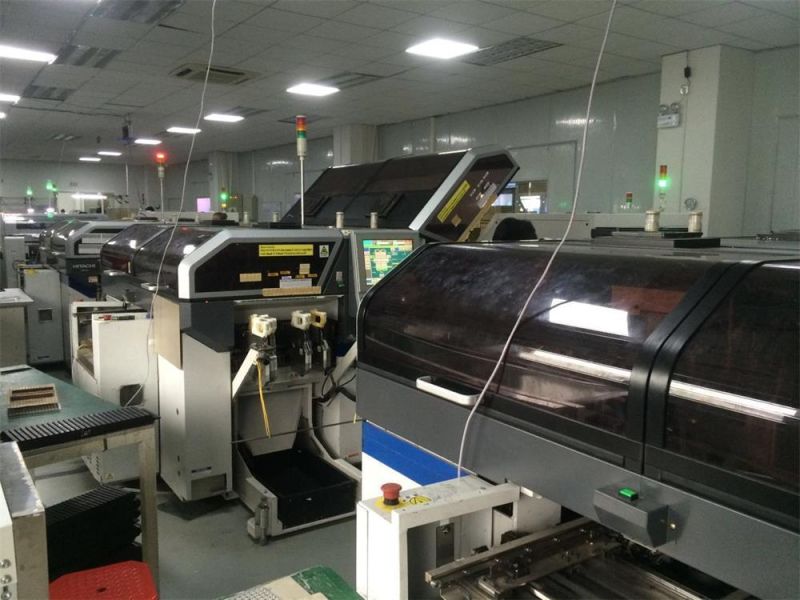

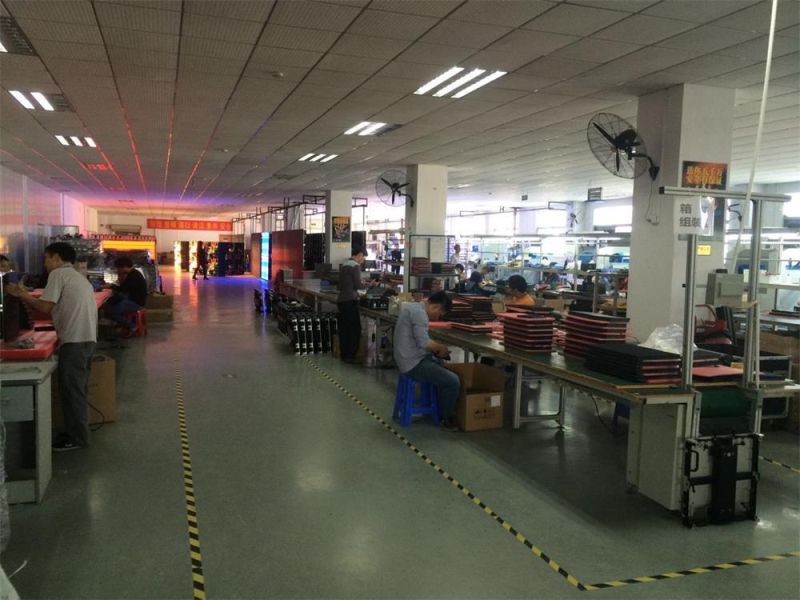

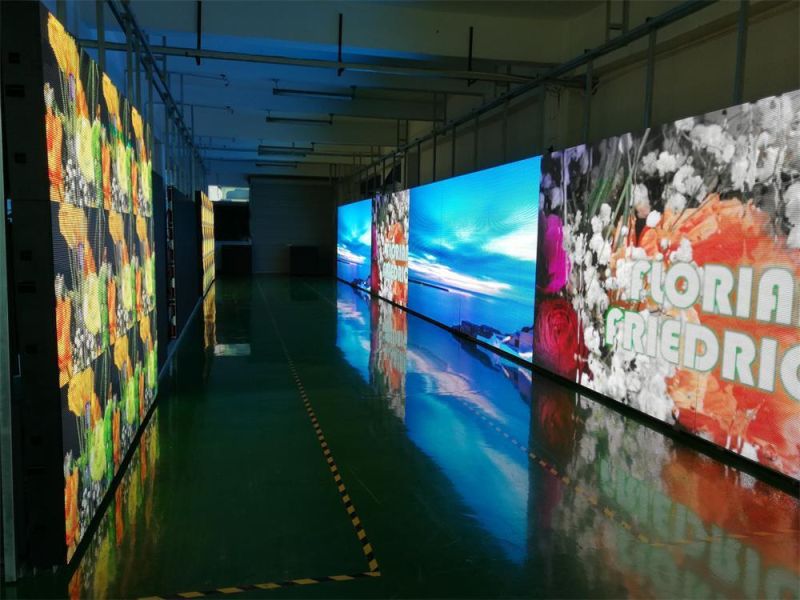

Factory photos :


10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen
10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen
10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen

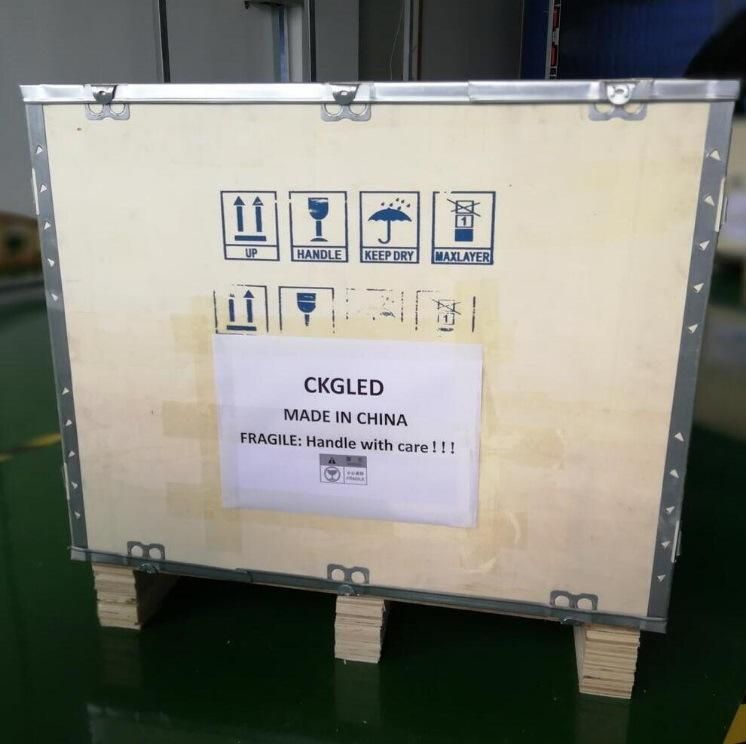

Wooden Case Package:

10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen


Certificates:

10000CD/Sqm P16mm RGB DIP LED Advertising Display Screen


SERVICE:

Pre-producing:

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design


In Producing:

1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients

After-service:

1. 2 years warranty
2. 1%  spares Will be freely provided
3. 7 days a week, 24 hours a day on-line service for any technical support for any customers
4. Free training for customers in factory
5. Local Partner Installation Service
