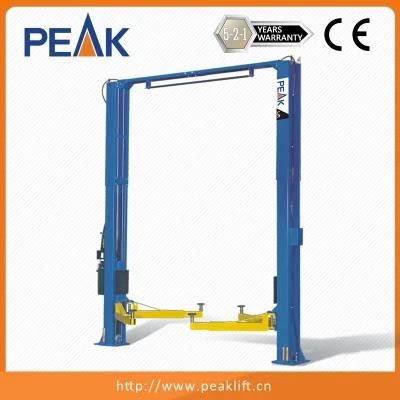

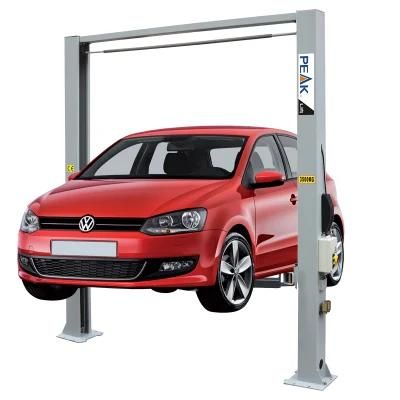

2 Post Lift Car Diagnostic Repair Car Lift (208C)

Octopus Packing Material Technology (Changzhou) Co., Ltd
  • Type：Double Cylinder Hydraulic Lift
  • Lifting Capacity：4T
  • Driving Type：Hydraulic
  • Certification：CE
  • Driving Motor Number of Mechanical Lift：1
  • Double Cylinder Lift Type：Planer-type

Base Info

  • Model NO.：208C
  • Condition：New
  • Brand：Peak
  • Design：Two Post
  • Lifting Time：45 Seconds
  • Lifting Height：1815-1917mm(71 1,2" -75 1,2")
  • Motor：2.0,3.0HP
  • Gross Weight：630kg(1, 338lbs)
  • Color：Blue
  • Surface Treatment：Spray-Paint
  • Transport Package：Iron Bracket
  • Specification：9000LBS
  • Trademark：PEAK
  • Origin：Foshan, China
  • HS Code：8425429000
  • Production Capacity：30000sets,Year

Description

ModelLifting Capacity208C4.0T (9,000 lbs)2083.5T (8,000 lbs)2094.0T (9,000 lbs)209X4.0T (9,000 lbs)* "C" is Clearfloor style.
* 209X is stronger, wider and higher than 209 in construction.

Feature
• 9,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 5/16" aircraft quality cable is used for synchronization.
• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5" and 2.5" extension adaptors.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).


2 Post Lift Car Diagnostic Repair Car Lift(208C)Model208CStyleCleanfloor Chain-drivedLifting Capacity4.0T (9,000lbs)Lifting Time45 SecondsALifting Height1815-1917mm (71 1/2" - 75 1/2")BOverall Height3602mm(141 3/4")COverall Width3390mm(133 1/2")DDrive-Thru Clearance2554mm(100 1/2")EWidth Between Columns2780mm(109 1/2")FMinimum Pad Height90mm(3 1/2")Gross Weight630kg(1,338lbs)Motor2.0/3.0HPPacking Dimension3655 X 450 X 750 mmQTY of Container15 Units/20'GP40 Units/40'GP



EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
