Plastic Ball Bearing Pulley Wheel 626 608, Nylon Coated Ball Bearing for Sliding Door and Windows Roller Pulley New Design Deep Groove Ball Bearings 6*19*6 mm
Hangzhou Xunda Packaging Co., Ltd.- Contact Angle：Nmn
- Aligning：Non-Aligning Bearing
- Separated：Unseparated
- Rows Number：Single
- Load Direction：Radial Bearing
- Material：Bearing Steel
Base Info
- Model NO.：626
- Cage：Steel Brass Nylon
- Weight：0.0081kg
- Clearance：C2 C0 C3 C4 C5
- Load Rating(Kn)：Cr:2.34 Cor:0.885
- Limiting Speed：Oil:36000 Grease:28000
- Transport Package：Ours or According to Customer′s Requirements
- Specification：6*19*6
- Trademark：nmn
- Origin：Hebei, China
- HS Code：848210200
- Production Capacity：20000000
Description
Overview
Product Parameters Product Name NMN Material 0.0081 OEM Sample Available Port Qingdao/Tianjin Number Specifiction Load Rating (KN) Limiting Speed (r/min) Weight(Kg/pc) d(mm) D(mm) B(mm) r(mm) Cr Cor Grease Oil 604 4 12 4 0.2 0.9 0.36 43000 51000 0.002 605 5 14 5 0.2 1.33 0.505 39000 46000 0.0035 606 6 17 6 0.3 2.19 0.865 30000 38000 0.006 607 7 19 6 0.3 2.24 0.91 28000 3600 0.008 608 8 22 7 0.3 3.35 1.4 26000 34000 0.012 609 9 24 7 0.3 3.4 1.45 22000 30000 0.014 6000 10 26 8 0.3 4.55 1.96 20000 28000 0.019 6001 1 28 8 0.3 5.1 2.39 19000 26000 0.021 6002 15 32 9 0.3 5.6 2.84 18000 24000 0.03 6003 17 35 10 0.3 6.8 3.35 17000 22000 0.039 6004 20 42 12 0.6 9. 5.05 1000 19000 0.069 6005 25 47 12 0.6 10.1 5.85 13000 17000 0.08 6006 30 55 13 1.0 13.2 8.3 12000 15000 0.116 6007 35 62 14 1.0 16 10.3 10000 13000 0.155 6008 40 8 15 1.0 16.8 11.5 8000 11000 0.185 6009 45 5 16 1.0 21 15.1 7200 9000 0.231 6010 50 80 16 1.0 21.8 16.6 6400 7800 0.25 6011 55 90 18 1.1 28.3 21.2 5700 7000 0.362 6012 60 95 18 1.1 29.5 23.2 5000 6300 0.385 6013 65 100 18 1.1 31.9 25 4800 6100 0.44 6014 70 110 20 1.1 39.7 31 4600 5800 0.6 6015 75 115 20 1.1 41.6 33.5 4400 5600 0.64 6016 80 125 22 1.1 47.5 40 4300 5500 0.854 6017 85 130 22 1.1 49.5 43 200 5300 0.89 6018 90 140 24 1.5 58 49.5 4000 5100 1.02 624 4 13 5 0.2 1.31 0.49 36000 45000 0.0032 625 5 16 5 0.3 1.76 0.68 32000 40000 0.0048 626 6 19 6 0.3 2.34 0.885 28000 36000 0.0081 627 7 22 7 0.3 3.35 1.40 26000 34000 0.013 628 8 24 8 0.3 4.00 1.59 24000 32000 0.017 629 9 26 8 0.3 4.55 1.96 22000 40000 0.0048

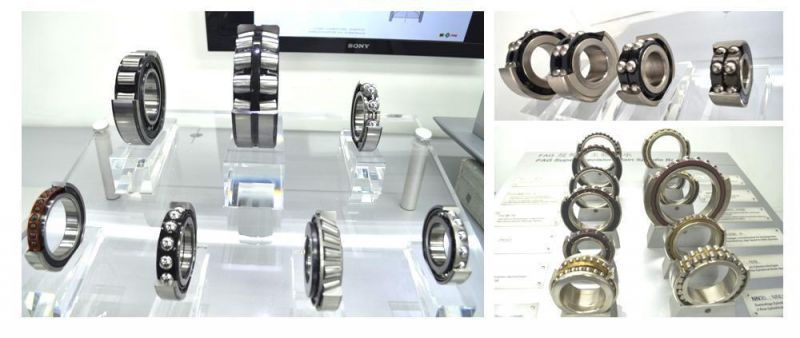

Bearing Models

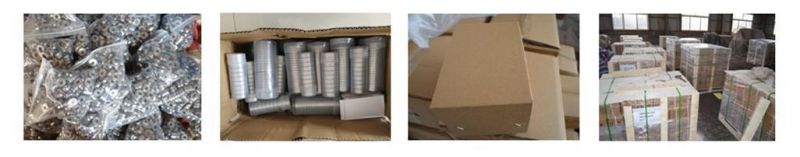

Packaging & Shipping
Applications

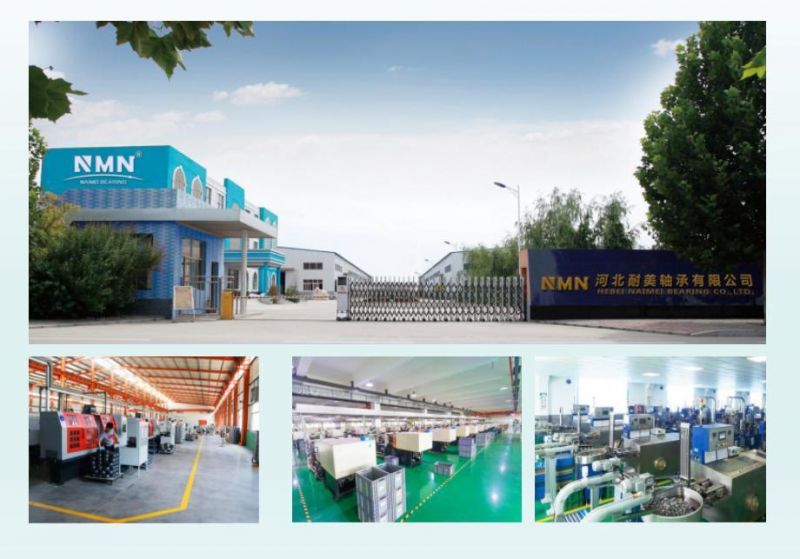

Company Profile
1.Q:Could you supply free sample of bearing for our test?
A:Yes. Please afford the express fee and we will send you the sample within your first order.
2.Q:Sample time?
A:Within 3-4 days.
3.Q:Are you a factory or a Trade Company for Bearing ?
A:We are the factory.
4.Q:Whether you could make your products by our color?
A:Yes, The color of products can be customized if you can meet our MOQ.
5.Q:Could you accept OEM and customize?
A:Yes, OEM and ODM are accepted and we can customize for you according to sample or drawing.
6.Q:Do you have stocks?
A:Yes, most of the bearings showing on alibaba are in stock,especialy big bearings.
