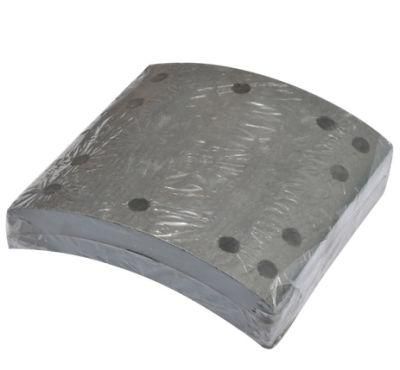

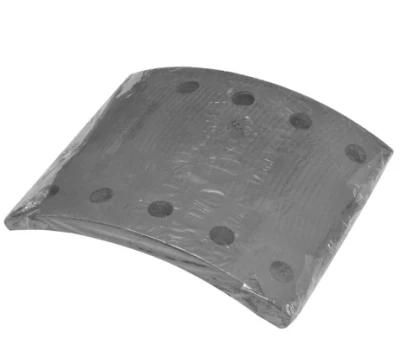

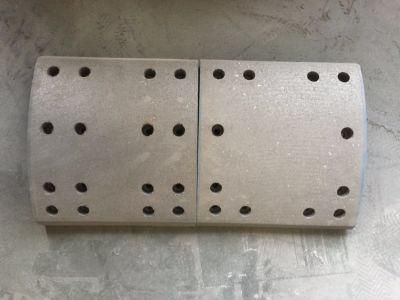

Brake Lining (WVA: 19063/19064 BFMC: DF/48/49/1) for Japanese Truck
Yuyao Shinri Sprayer Co., Ltd.- Type：Brake Lining
- Material：Non-Asbestos
- Position：Front
- Certification：ISO,TS16949, IATF-16949, AMECA, ECE, Greening, SABS Vc8053
- Classification：Drum
- Drum Brakes Classification：Brake Shoe
Base Info
- Model NO.：19063-19064
- Main Market：South America, North America, Eastern Europe, Western Europe, Northern Europe, Southern Europe, Central America
- Application：BPW, Cardi, Gigant, Saf
- Size：179.2,175.6*200*21.2,12.9-21.3,17.8
- Color：Shining Black
- Deliver Time：25-40days After Receving The Deposit
- Transport Package：Shrink Bag in Carton, Pallet
- Specification：179.2,175.6*200*21.2,12.9-21.3,17.8
- Trademark：CHANGDA
- Origin：Zhejiang, China
- HS Code：87083010
- Production Capacity：500000PCS Per Month
Description
Basic Info.
Model NO. 19063-19064 Main Market South America, North America, Eastern Europe, Western Europe, Northern Europe, Southern Europe, Central America Application BPW, Cardi, Gigant, Saf Size 179.2/175.6*200*21.2/12.9-21.3/17.8 Color Shining Black Deliver Time 25-40days After Receving The Deposit Transport Package Shrink Bag in Carton, Pallet Specification 179.2/175.6*200*21.2/12.9-21.3/17.8 Trademark CHANGDA Origin Zhejiang, China HS Code 87083010 Production Capacity 500000PCS Per MonthProduct Description
| Product Type: | Brake Linings |
| Material: | Asbestos; Semi-metallic; Non-asbestos; Ceramic etc. |
| Model: | 19063/19064 |
| Specification: | Inner Arc:179.2/175.6mm Width: 200mm Thickness:21.2/12.9mm,21.3/17.8mm |
| Material span life: | Asbestos: 30000 to 40000 kilometers Non asbestos: 70000 to 80000 kilometers Ceramic: 100000 kilometers up |
| Packing: | 4 pieces per sealed ploybag,export carton standard pallet . Can be packed as per your requirement. |
| Sample: | Free of charge |
| MOQ: | 2000 pcs |
| Delivery time: | 25 -60 days as per order quantity |
| Delivery port: | Ningbo Port |
| Production capacity: | 300000 pieces per month |
| Applicatation | SCANIA |
2. Featurers:
1) Good heat dissipation
2) Do not damage the drum
3) Low noise
4) High temperature resistant
5) Environment-friendly
3. Testing Result
| Inspection Item | Test Result |
| NormalTemperature Friction Coefficient(100-150ºC) | 0.42±0.02 |
| Hot Friction Coefficient(250ºC-300ºC) | 0.42±0.01 |
| Wear Rate(×10-7m3/Nm150ºC) | 0.26-0.53 |
| Density(g/cm3) | 2.22 |
| Impact Force(J/cm2) | 0.46 |
| Los's strength(HRM) | 51 |
| Shear strength in(MPa) | 20.52 |
| Compression strength(N/mm2) | 84.49 |
| Thermal Expansivity/% | 0.89 |
