• Model NO.：LM3528-WN120-12V
• LEDs Suppliers：Honglitronic,Osram,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：8mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz (front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll with Static-Resistant Bag
• Specification：5000*8mm
• Trademark：Leomay
• Origin：Zhongshan Guangdong China
• HS Code：940540900
• Production Capacity：100000meters,Month

Basic Info.

Model NO. LM3528-WN120-12V LEDs Suppliers Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 8mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll with Static-Resistant Bag Specification 5000*8mm Trademark Leomay Origin Zhongshan Guangdong China HS Code 940540900 Production Capacity 100000meters/Month

Product Description

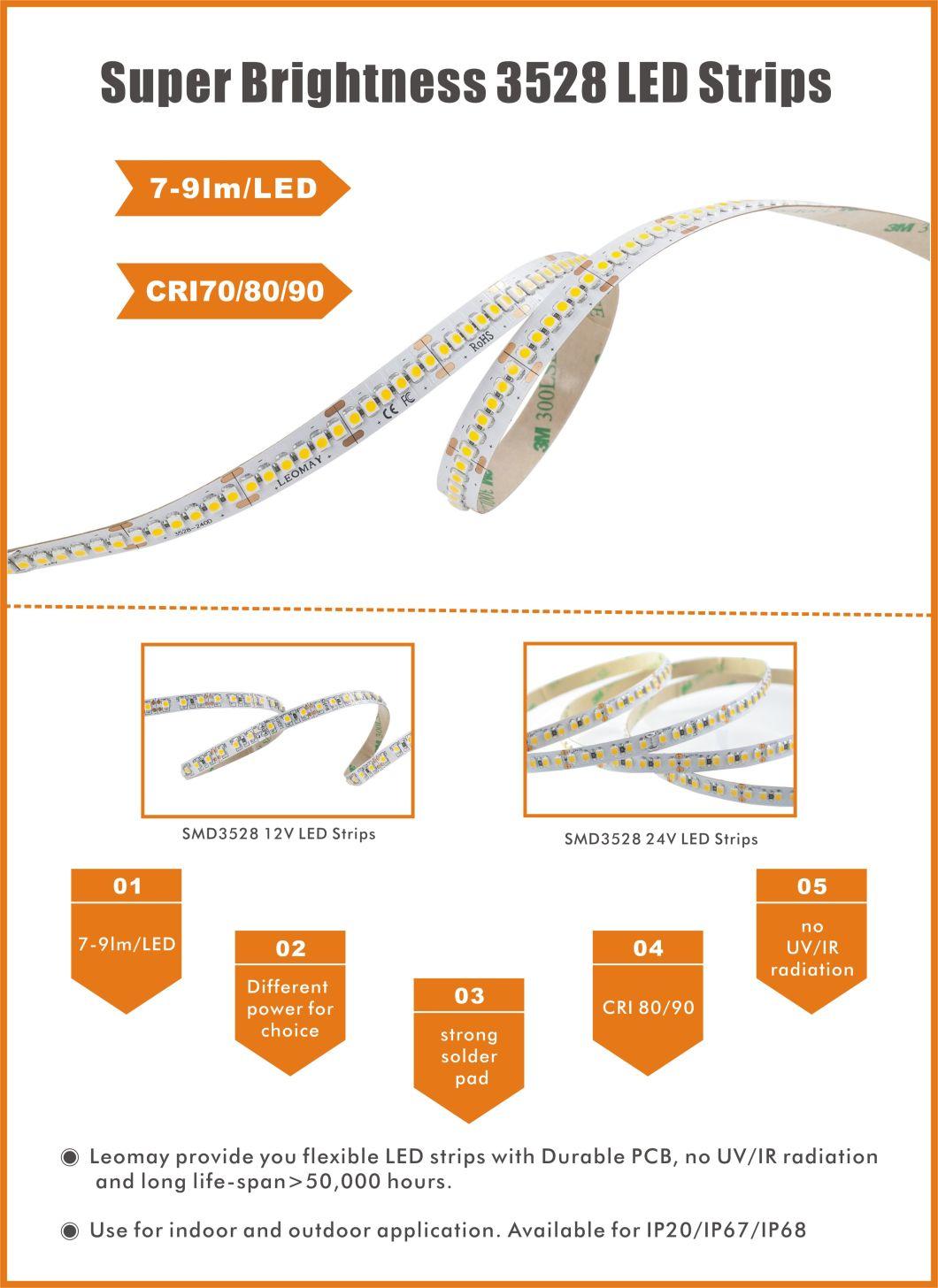

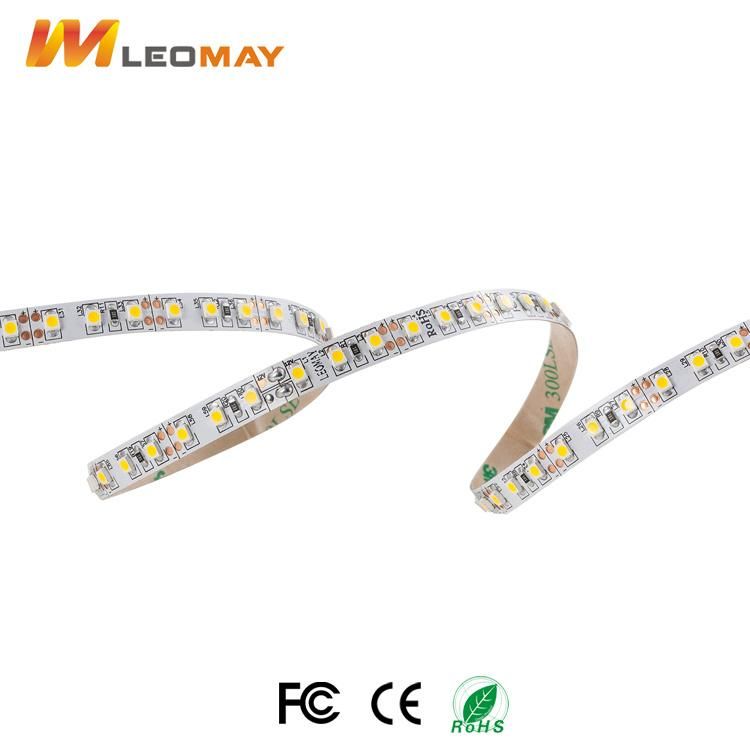

9.6w/m Single Color 3528 LED Strip with Silicon Tube IP68






Product Specification:

Model NO	LM3528-WN120-12V-8MM
Product Name	SMD3528  120LEDS/M  LED strips
PCB Width	8MM
LED Qty/m	120leds/m 3528

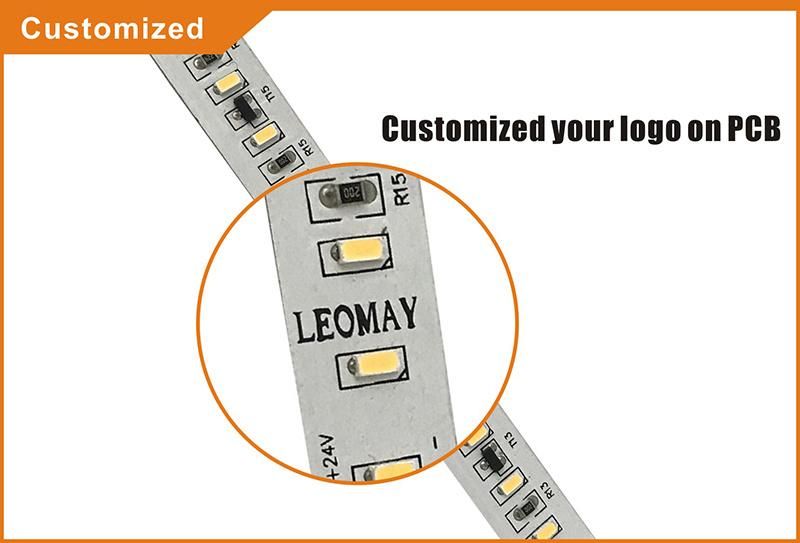

PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	12V DC
Rated Power(W)	9.6W/M, 48W/5M
Luminous(lm/m)	720lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K

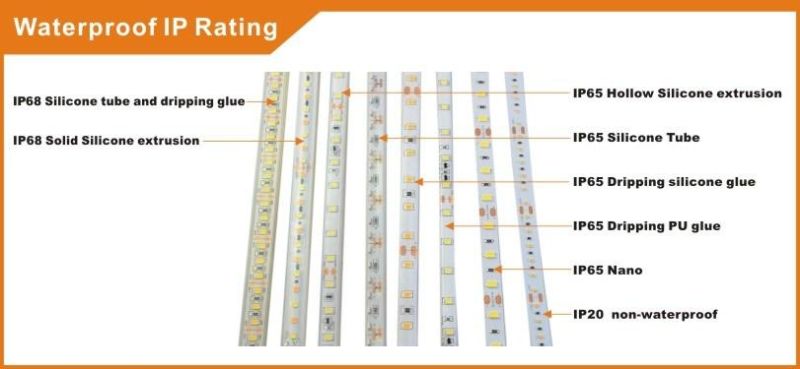

IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Product Features:

1. We have CE, RoHs, UL, DVE, GS and FCC certifications.
2.Low power consumption and long lifespan for 50000 hours.
3. High CRI. 75-80 CRI.
4. High Lumen. 7-9 lumen per led lights.
5. We use 9495 3M Tape.
6.We offer OEM services.

Application of LED Strip:

The product can be used for decorate shopping mall, super market, showroom, club, store, hotel, restaurant, school,library, art gallery, museum, office building and also use for indoor and outdoor lighting and for festival decorations.


Model	LED QTY	Volt	Power	Lumen/m	CRI	PCB  Width	IP Rate	Color
LM3528-WN30	30 leds/m	12V/24V	2.4w/m	180 lm/m	75-80	8mm	IP20/IP65/IP67/IP68	W/WW/R/G/B/Y
LM3528-WN60	60 leds/m	12V/24V	4.8w/m	360 lm/m	75-80	8mm	IP20/IP65/IP67/IP68	W/WW/R/G/B/Y
LM3528-WN60-RGB	60 leds/m	12V	4.8w/m	360 lm/m	75-80	8mm	IP20/IP65/IP67/IP68	RGB
LM3528-WN96	96 leds/m	12V	7.68w/m	576 lm/m	75-80	8mm	IP20/IP65/IP67/IP68	W/WW/R/G/B/Y
LM3528-WN120	120 leds/m	12V/24V	9.6w/m	720 lm/m	75-80	8mm	IP20/IP65/IP67/IP68	W/WW/R/G/B/Y
LM3528-WN240 Single Row	240 leds/m	24V	19.2w/m	1440 lm/m	75-80	10mm	IP20	W/WW/R/G/B/Y
LM3528-WN240 Double Row	240 leds/m	24V	19.2w/m	1440 lm/m	75-80	15mm	IP20/IP65	W/WW/R/G/B/Y

 Our Service:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-trained and professional sales and after-sales who can speak English frequently.
3. We offer OEM services. Can print you logo on product, can customize the retail box packing and the other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM.

After-sales Service:

All led strips come with 2 years warranty. If the strip lights are operated properly and got quality issue during warranty period, we repair and replace the light at our our cost(including shipping cost).

Frequently Asked Questions:
Q: Are you a factory?
A: Yes, we are LED lights manufacturer in Zhongshan, China.

Q: Do you attend the Exhibitions?
A: Yes, we attend Canton Fair; HK Lighting Exhibition, International Exhibitions etc.

Q: Can I have samples to test?
A: Yes, sample test is available and welcome.

Q: Can our logo or a simple parameter printed on the label of the led flexible strip?
A: Sure, if you like, we can print for you. Just telling us your requirements.

Q: Can you make the lamps using other brand led chip, e.g. CREE, OSRAM?
A: Yes, it is ok for other brand chips, we can produce the products according to your demands.

Q: What is Delivery Time?
A: 5~7 days for normal orders; fast shipping for exact delivery time needs to discuss according to your order list; We keep our regular products in stock, you can consult with us about the shipping date.

Q: How about the warranty?
A: 2 years.

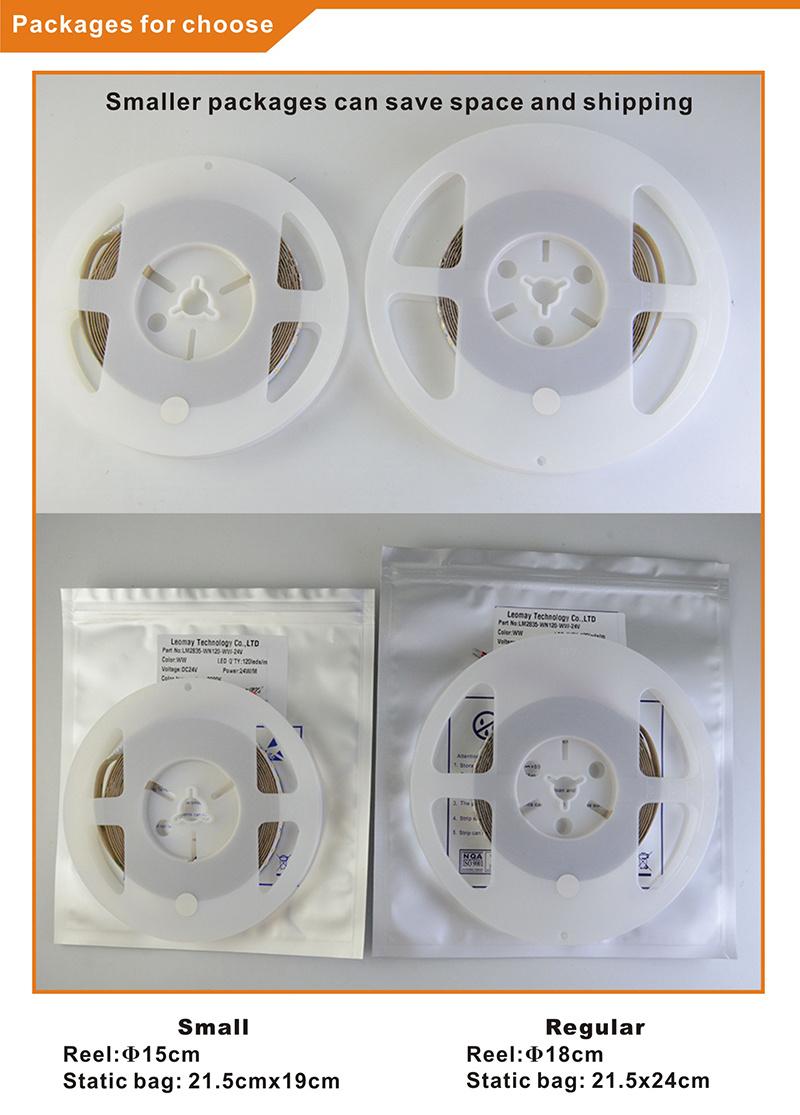

Q: What is the package?
A: Anti-static Package, 5M/roll. Also you can offer your own designs, you can also come to us for exact pictures for packing.
