Big Shear Under-Ground Alignment Scissor Lift Use for Car Lifting in Auto Repair Shop
Guangzhou Haojing Glassware Co., Ltd.- Type：Double Cylinder Hydraulic Lift
- Lifting Capacity：3.5T
- Driving Type：Hydraulic
- Certification：CE, ISO
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Planer-type
Base Info
- Shearing Lift Type：Big Shear Type
- Condition：New
- Brand：Jnspring
- Design：Scissor
- Transport Package：Steel
- Trademark：JNSPRING
- Origin：Jinan
- HS Code：8425429000
- Production Capacity：5000set,Month
Description
Basic Info.
Shearing Lift Type Big Shear Type Condition New Brand Jnspring Design Scissor Transport Package Steel Trademark JNSPRING Origin Jinan HS Code 8425429000 Production Capacity 5000set/MonthProduct Description

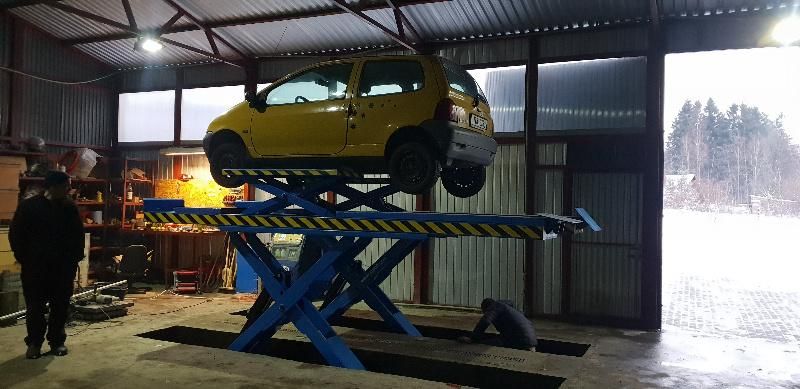

Big shear under-ground alignment scissor lift use for car lifting in auto repair shop

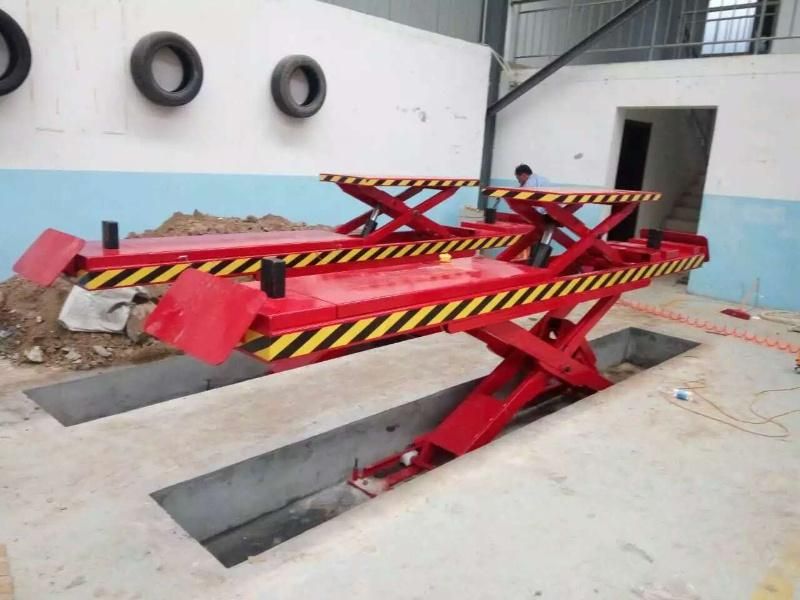

1.In-ground mounted,occupied small space.
2.Electric air lock.safety and reliable.

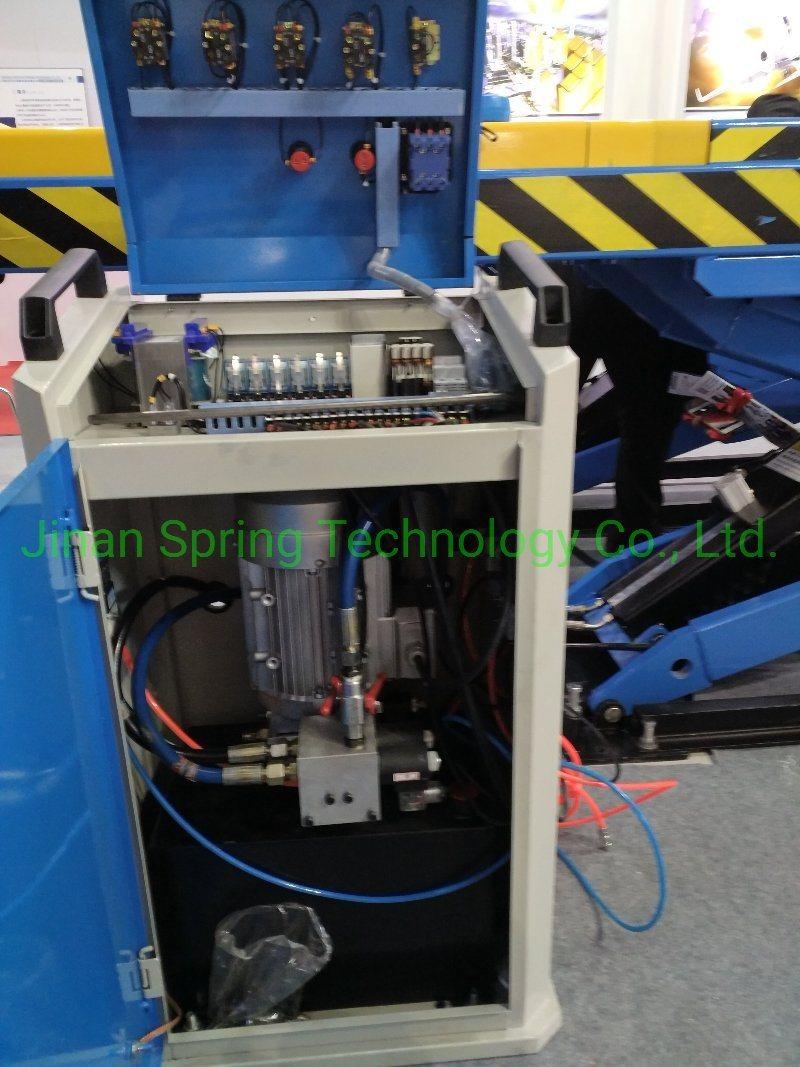

3.Hydraulic system adopts the advanced imported valve plate oil and imports of seal parts.
4.Power failure can adopt manually will the car drop out.
The following is our standard model size,if you have special requirements for the specification,free to tell us your requirements.
| Model | SP-M3500 |
| Lifting capacity | 3500kg |
| Platform length | 4500mm |
| Runway width | 625mm |
| Lift height | (Main )360-1850mm,(Jack)450mm |
| Lift speed | (Main )1.2m/min,(Jack)1.2m/min |
| Motor | 3.0KW-380V/50HZ,3phase |
| Air supply pressure | 0.6-0.8Mpa |
| Weight | 2002kg |
