• Model NO.：RS180
• Condition：New
• Product Name：Automatic Tyre Changing Machine
• Rim Size：10-30inch
• Max Wheel Diameter：1300mm
• Tire Width：3-13inch
• Working Pressure：8-12bar
• Voltage：380V,50Hz,3pH
• Bead Breaker Force：1400kgs
• Packing：1680*1150*1900mm,3.68cbm,692kgs
• Color：Red,Blue,Grey,Customised
• Certificate：Ce,TUV, ISO
• Transport Package：1680*1150*1900mm, 3.68cbm, 692kgs
• Specification：automatic tyre changing machine
• Trademark：Rising Sun
• Origin：China
• HS Code：84798999
• Production Capacity：400sets,Month

Basic Info.

Model NO. RS180 Condition New Product Name Automatic Tyre Changing Machine Rim Size 10-30inch Max Wheel Diameter 1300mm Tire Width 3-13inch Working Pressure 8-12bar Voltage 380V/50Hz/3pH Bead Breaker Force 1400kgs Packing 1680*1150*1900mm,3.68cbm,692kgs Color Red,Blue,Grey,Customised Certificate Ce,TUV, ISO Transport Package 1680*1150*1900mm, 3.68cbm, 692kgs Specification automatic tyre changing machine Trademark Rising Sun Origin China HS Code 84798999 Production Capacity 400sets/Month

Product Description

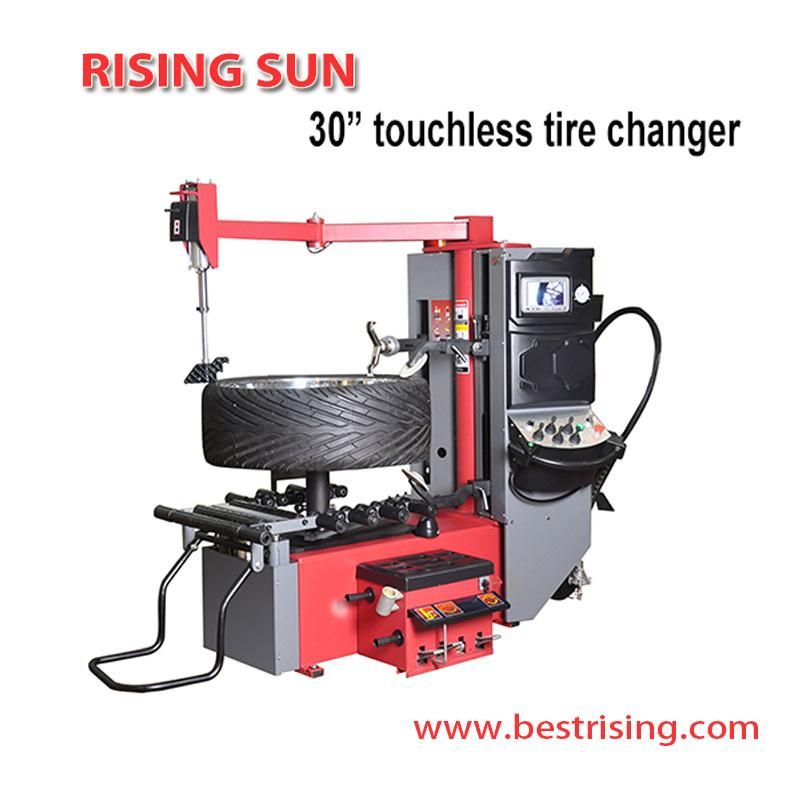

30inch Full Automatic Tyre Changing Machine for Garage Equipment

Sincerely looking for contracted distributor in different country ,thanks for kind contacting !

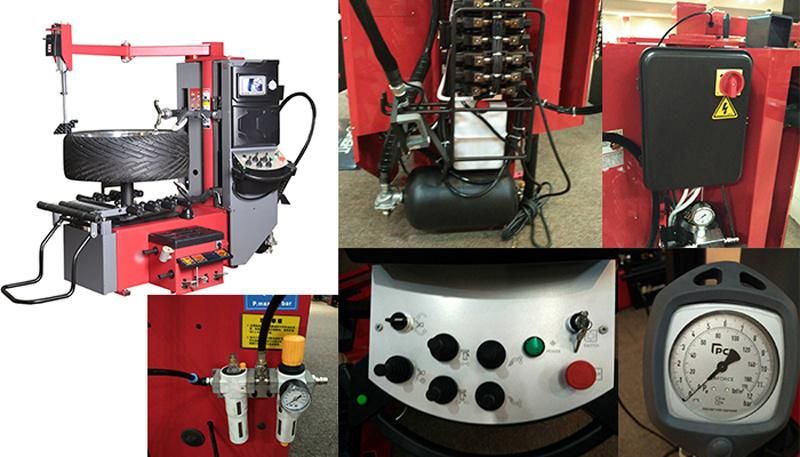

Product feature

1. The bead breaker disc can bead break up and down having fast speed and strong power to increase the mounting efficiency . The bead break power is up to 1400kg.
2. The demounting head can shift automatically to increase the mounting speed.
3. The automatic lifting device with lifting power 80kg can assist people to turn the tire.
4. The main shaft can move in order to adapt different diameter of rims and keep align with the demounting hook forever .
5. The main shaft has two step to adjust to increase the demounting tire width .

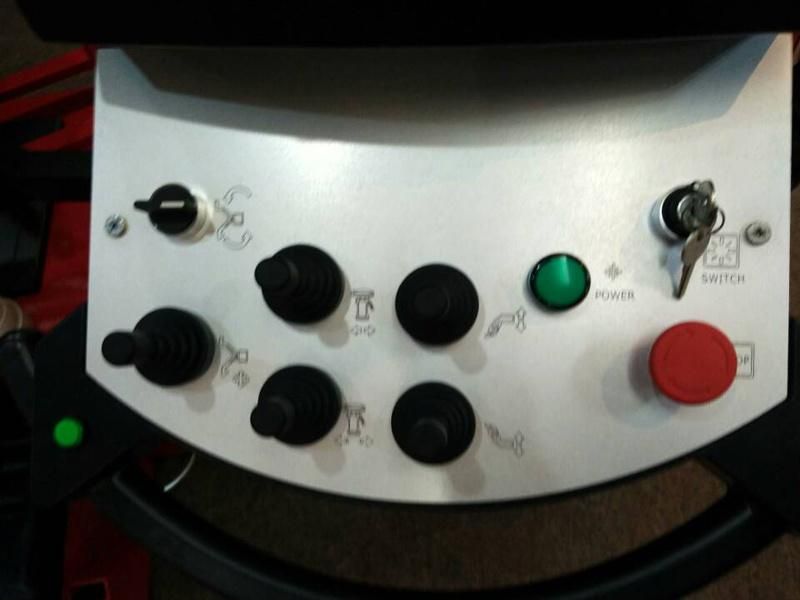

6. The bead break disc and main shaft can achieve to move at the same time through the switch control to increase the demounting efficiency greatly .
7. LCD monitoring system as standard makes the tire moving position more intuitively.

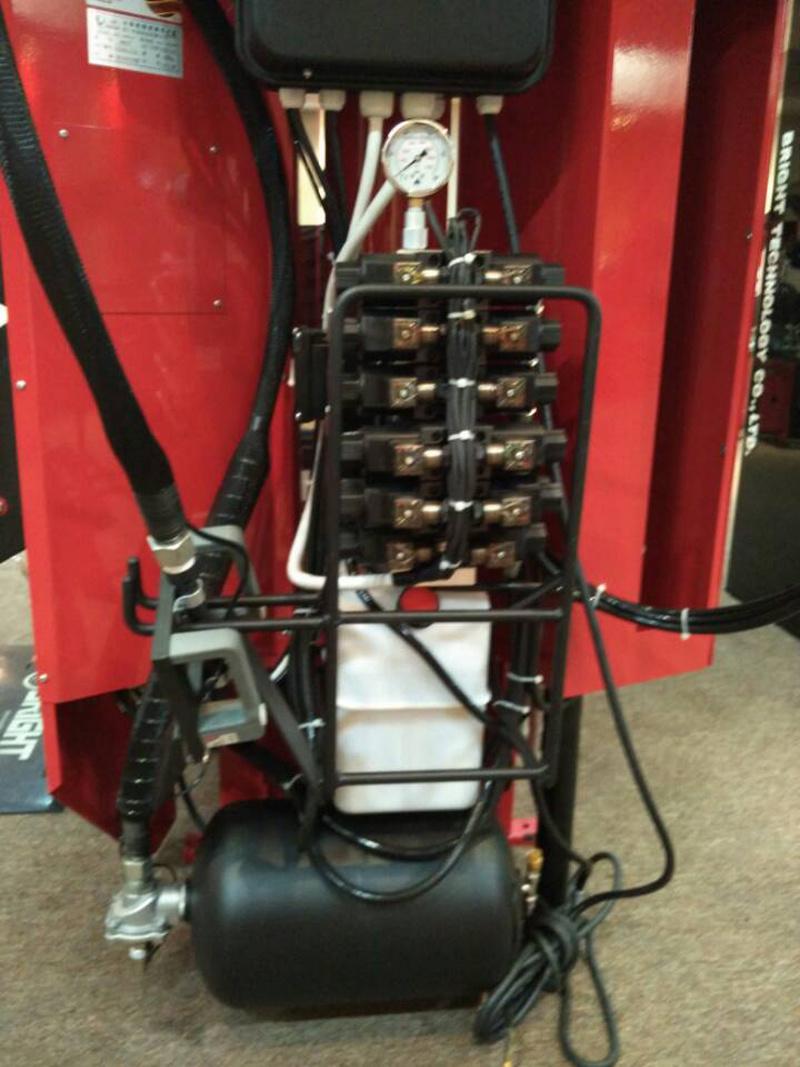

8. The pump has the stand-by function and sets up to 5 minutes to save energy source.
9. Suitable for various run-flat and special hard and modified car wheels,safe and reliable , without damaging tire & rim .

Technic data

Model	RS180
Rim diameter	10"-30"
Max wheel diameter	1300mm
Wheel width	3"-13"
Pressing force	1400kg
Max lifting weight	80kg

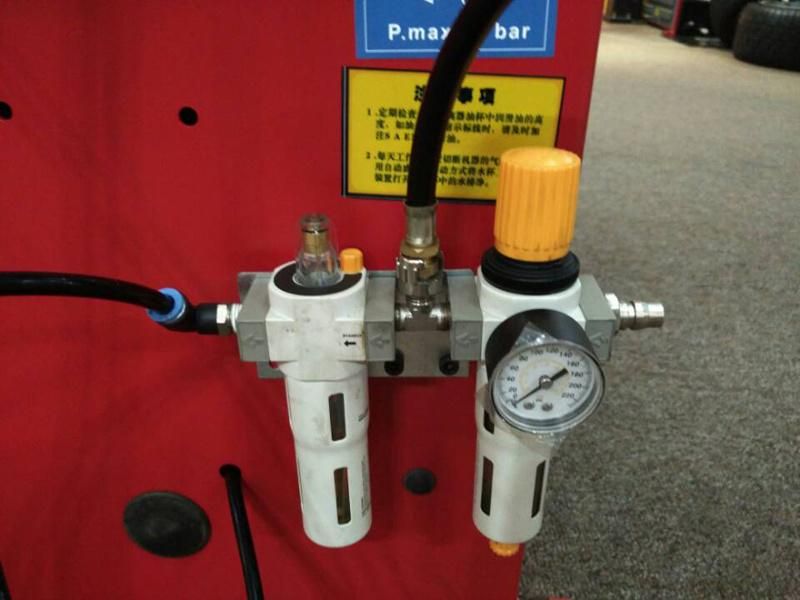

Working pressure	8-10bar
Rpm	6.5/13rpm
Voltage	380V/50HZ/3PH
Power	0.8-1.2kw
Noise	Less than 70db
Packing	One ctn,3.7cbm,692kgs
Qty / 40ft container	14sets

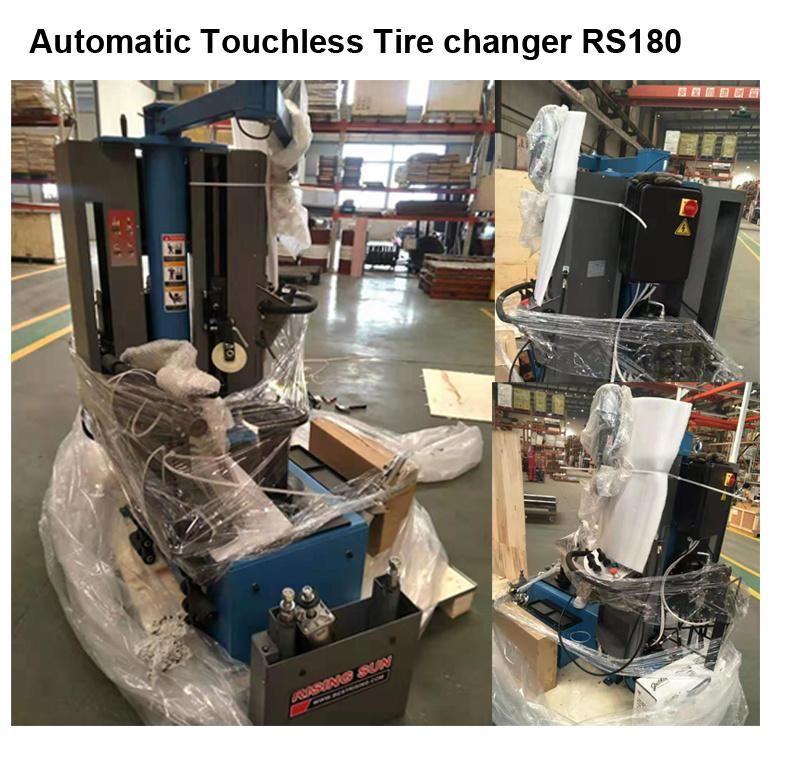

Packing and Shipping
It is sea shipping suggested for international delivery if order with LCL or FCL .

Packing	One ctn,3.7cbm,692kgs
Quantity / 20ft container	7pcs
Quantity / 40ft container	14pcs

Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.
1) Warranty : 12months
    Free parts will be sent by courier or post  if machine goes wrong during 12months .
2) Delivery time : 10days after payent received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL ,
5) Certificate : ISO , CE

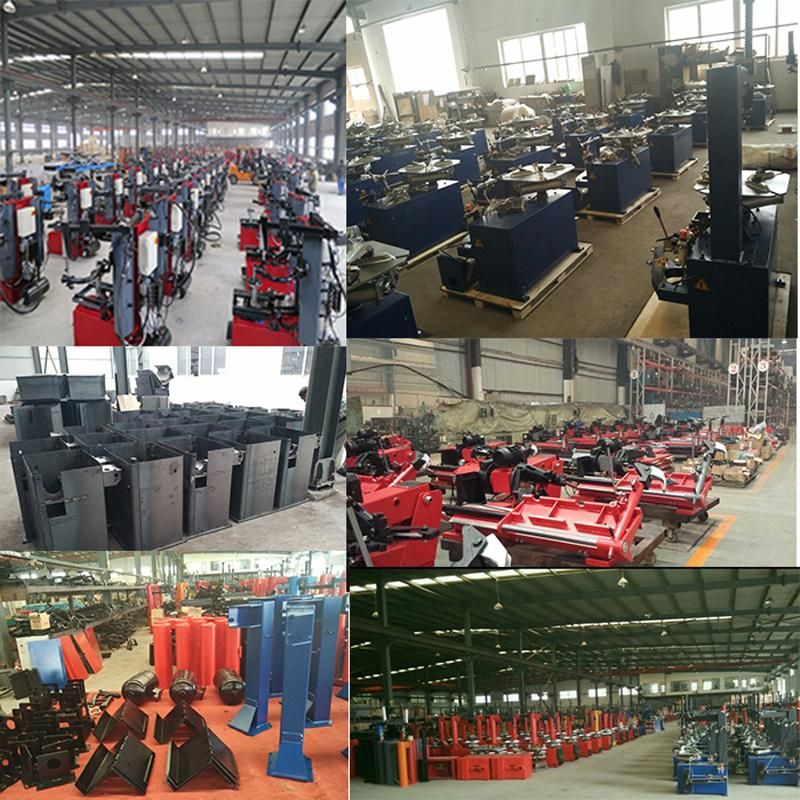

Company information
Rising Sun - Professional quality you can rely on !
This brand was founded aims for providing one-stop solution for vehicle works.


Our advantages
1) Products meet different quality standard all over the world,no worry about the reselling .
2)18years export experience , well known about various of trade term .
3)Stronger shipping supported ,ensure reasonable cost and delivery in time .
4) 7 x 24 online customers service
5) Various payment way can be accepted

Honestly , we can give more safe of your business and money.

Contact details
You can press " CONTACT NOW " or " CHAT WITH SUPPLIER " to get more details.
Also by other contact ways ,
