• Model NO.：HM24V-SMD352860
• Specification：10mm Width
• Trademark：OEM
• Origin：China
• Production Capacity：50000meters,Year

Basic Info.

Model NO. HM24V-SMD352860 Specification 10mm Width Trademark OEM Origin China Production Capacity 50000meters/Year

Product Description

Features

High Quality products with full range of colors from 1800K-6500K; Provide 1BIN/2BIN, SDCM<3/ SDCM<5; CRI80, CRI90, CRI95+Branded 3M Tape for installation.

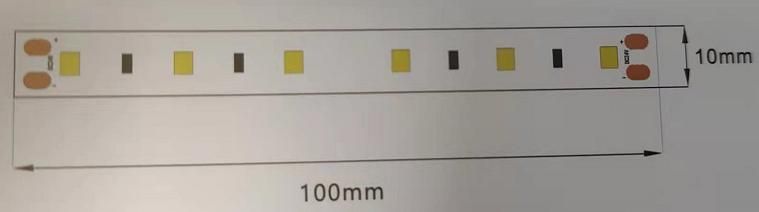

Product Dimension




Optical parameter
LED Type: SMD3528
Color Rendering Index: 80
CCT Range:  2700K, 3000K, 4000K, 6000K
Beam Angle: 120°
Light Efficiency: 83.3/85.4/87.5/89.6Lm/w
Lumen Output/meter: 400Lm/m (133Lm/ft)
                                   410Lm/m (137Lm/ft)
                                   420Lm/m (140Lm/ft)
                                   430Lm/m (143Lm/ft)



Electric parameter

Input Current/m: 0.2A/m
Input Voltage: DC24V
Power/M: 4.8W/m
Static Electricity: 1000V(ESD)
LEDs/Meter: 60LEDs/m
Size of Section:  100mm
LEDs of Section: 6 LEDs

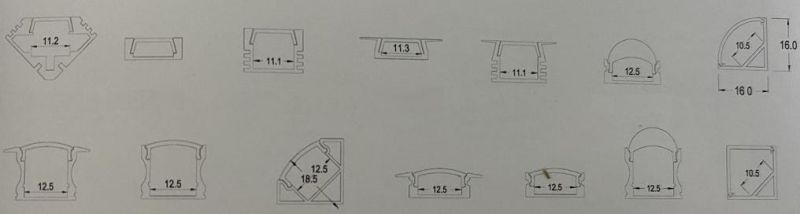

Recommended Profiles
