Auto Painting Spray Booth Bake Oven for Car with Gas Diesel Oil Italy Burner
Yumyth Electronic Tech Co., Limited- After-sales Service：Available
- Warranty：12months
- Type：Auto Painting Spray Booth Bake Oven for Car
- Certification：CCC, CE, GS, SGS
- Substrate：Steel
- Brand：Hongyuan
Base Info
- Model NO.：HY-CB55B
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50,75mm EPS Foam Panel
- Grate：2rows
- Ramp：2pieces
- Heating System：Gas, Diesel, Oil, Used Oil, Electric
- Filter System：4-Stage Filtration System
- Upper Light：Available
- Side Light：Optional
- Control Box：English Panel
- Standard Voltage：380V,3f&220V,1f@50Hz
- Drawing：Available
- User Manual：Available
- Installation Video：Available
- Related Product 1：Car Lift
- Related Product 2：Car Paint Spray Booth
- Transport Package：Proper Packing Suitable for Sea Shipment
- Specification：25cbm for a 20ft container loading.
- Trademark：N,A
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 2rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Drawing Available User Manual Available Installation Video Available Related Product 1 Car Lift Related Product 2 Car Paint Spray Booth Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark N/A Origin Shandong, China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Auto Painting Spray Booth Bake Oven for Car with gas diesel oil italy burner1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Auto Painting Spray Booth Bake Oven for Car with gas diesel oil italy burner
| Model | HY-CB55B |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*2000(W*H) |
| Total power | <17kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 2rows of grid plates, 3rows of diamond plates. |
| Intake | TWO set of fan, motor: 4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Italy Riello one-stage oil burner/electric heaters/Gas burner. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |
Picture of the Auto Painting Spray Booth Bake Oven for Car with gas diesel oil italy burner

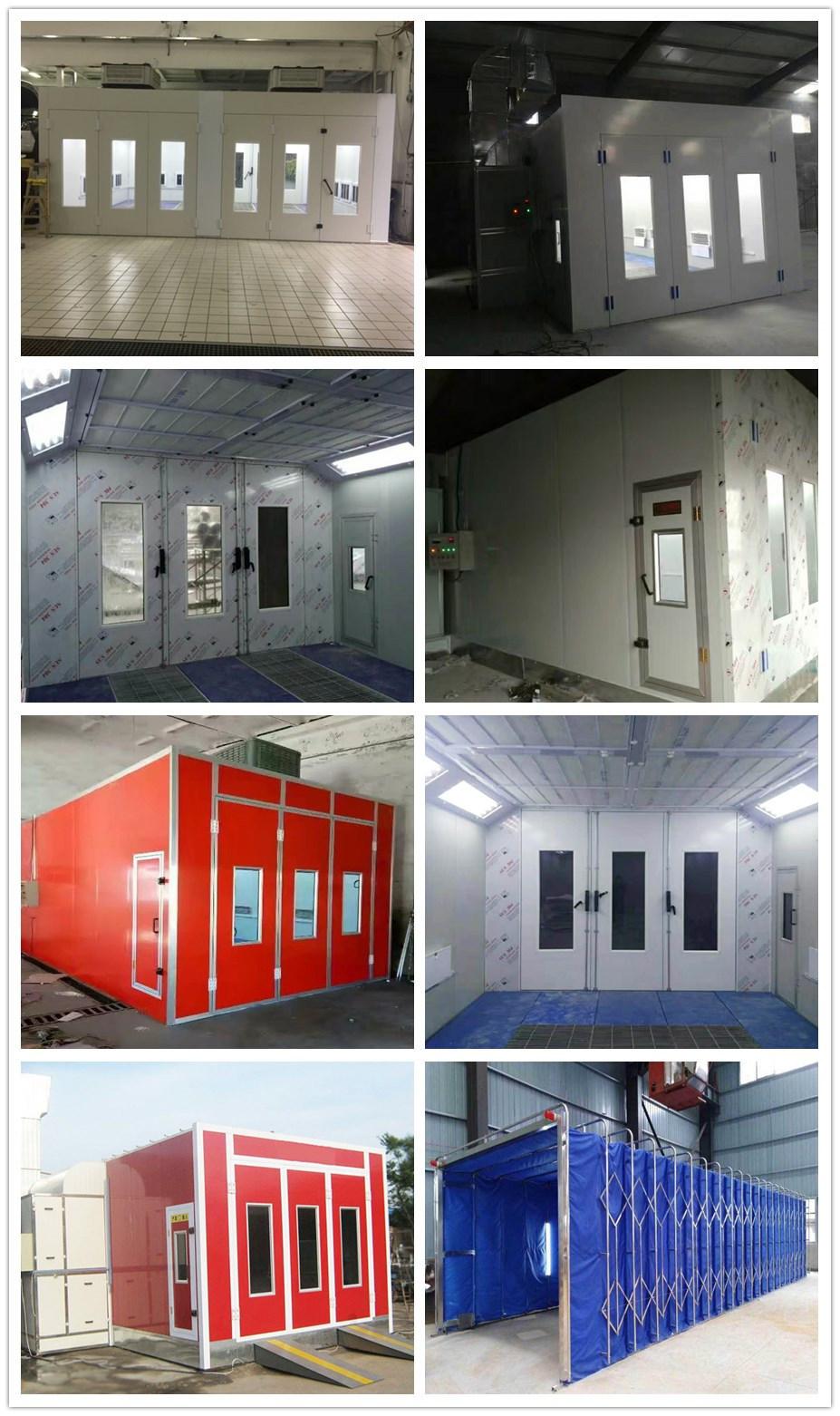

Project case for paint booth/Auto Painting Spray Booth Bake Oven for Car with gas diesel oil italy burner
