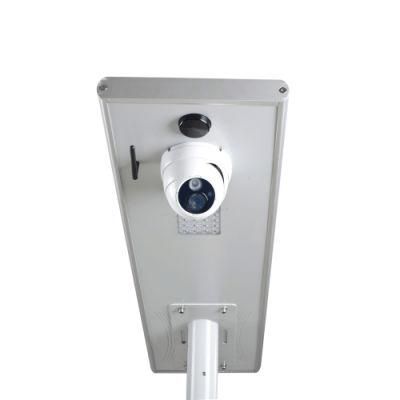

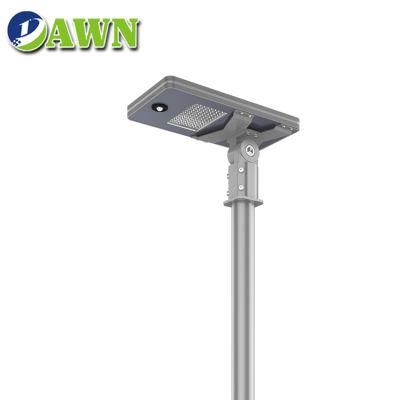

• Model NO.：DL-ISSL1-20W
• Illumination Time：12h
• Cell Type：LiFePO4 or Ternary Lithium
• Charging Time (H)：6

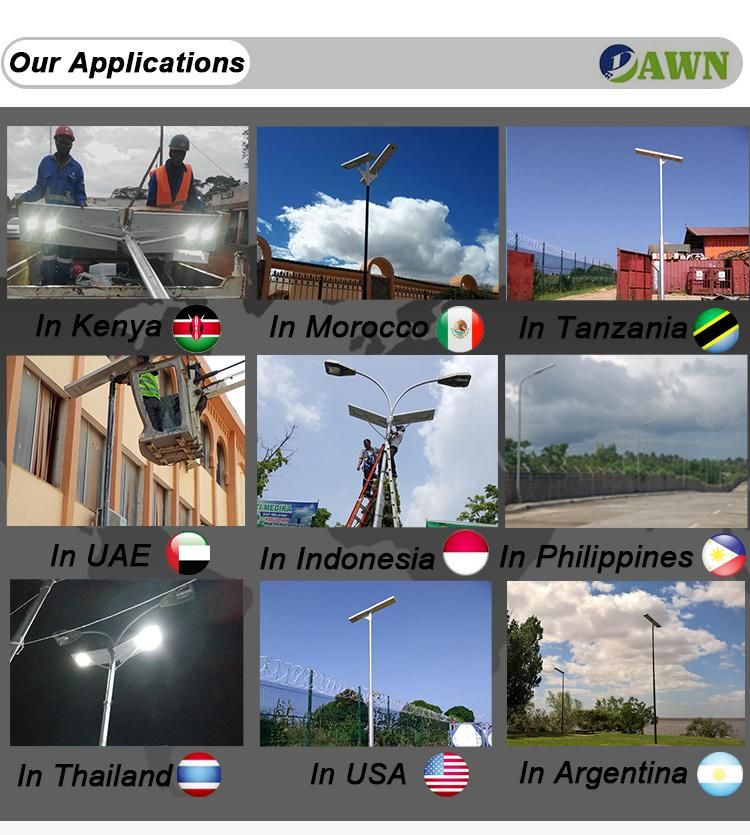

• Usage：Garden, Street, Highway
• IP Rating：IP65
• Certification：CE, RoHS, ISO
• Voltage：12,24V
• With Light Source：With Light Source
• Solar Panel：18V 35W Monocrystalline Silicon
• Battery：12.8V 18ah LiFePO4,12V 18ah Ternary Lithium Batter
• LED Chips：Bridgelux From USA
• Lumen：2800-3200lm
• Viewing Angle：60*120
• Charge Time：6 Hours in Strong Sunshine
• Working Time：3-5 Continuous Rainy and Cloudy Days
• Working Temperature：-30-60 Celsius
• Colour Temperature：6000-6500K(Standard),2800-3300K,4000-4500K
• Certificate：Ce(EMC&LVD) & RoHS & IP65
• Height of Pole：5-6m
• Distance of Lights：15-18m
• Lamp Size：92*30*14(Cm)
• Net Weight：9.5kg
• Gross Weight：10.6kg
• Transport Package：Carton,Wooden Frame
• Specification：92*30*14cm
• Trademark：DAWN
• Origin：China
• HS Code：9405409000
• Production Capacity：60000units,Year

Model NO.

DL-ISSL1-12W

DL-ISSL1-15W

DL-ISSL1-20W

DL-ISSL1-30W

DL-ISSL1-40W

DL-ISSL1
-50WDL-ISSL1-60W

LampPower

12W15W20W30W40W50W60WLumen1680-1920lm2100-2400lm2800-
3200lm4200-
4800lm5600-
6400lm7000-
8000lm8400-
9600lmSolar Panel Power18V 18W18V 30W18V 35W18V 40W18V 50W18V 70W18V 80WModel NO.DL-ISSL1-70WDL-ISSL1-80WDL-ISSL1-100WDL-ISSL1-120WDL-ISSL1-150WDL-ISSL1-180WDL-ISSL1-200W

LampPower

70W80W100W120W150W180W200WLumen9800-
11200lm11200-12800lm14000-
16000lm16800-19200lm21000-
24000lm25200-
28800lm28000-
32000lmSolar Panel Power18V 90W18V 100W18V 120W36V 140W36V 220W36V 240W36V 240WSolar Panel Type High Efficiency Mono SiliconLED ChipsBridgelux/or other brandsSolar Panel Lifetime25 YearsBattery TypeLiFePO4 Battery with 5-8 Years LifetimeWarranty Years3-5 Years
