• Model NO.：XIP-2
• Max.Torque on The Motor：5.5ncm
• Motor Speed Range：300-40000
• Warranty：One Year
• Transport Package：Metal and Carton Box
• Specification：43*34*27cm 7.8KG
• Trademark：Venton
• Origin：Henan
• HS Code：90184990
• Production Capacity：5000 Pieces,Year

Basic Info.

Model NO. XIP-2 Max.Torque on The Motor 5.5ncm Motor Speed Range 300-40000 Warranty One Year Transport Package Metal and Carton Box Specification 43*34*27cm 7.8KG Trademark Venton Origin Henan HS Code 90184990 Production Capacity 5000 Pieces/Year

Product Description

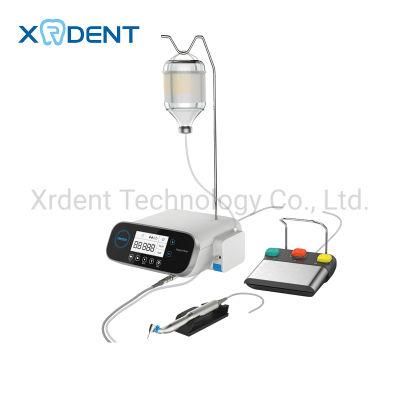

Dental Implant Machine With LED Contra Angel
Motor: Import from German
Quality: Similar with W&H
Contra Angle handpiece: 20:1
Light: LED light
Supply voltage:110V- 230V
Nominal current: 0.1-0.8A
Frequency: 50/60Hz
Max. Mechanical output power:  70W
Max.torque on the motor:  5.5Ncm
Motor speed range:  300-40000

Technical Data

Supply voltage:	230V
Permitted voltage fluctuation	±10%
Nominal current	0.1-0.8A
Frequency:	50/60Hz
Mains fuse	2*250V-T1.25AH
Max. power consumption	170VA
Max. Mechanical output power	70W
Max. torque on the motor	5.5Ncm
Motor speed range in the nominal voltage range:	300-40000
Coolant flow rate at 100%:	>90ml/min
Operation mode	S3[3min/10min]
Dimensions in mm[W*D*H]	428*328*255
Weight control-unit with motor in kg	5.7/7.3
With 20	1 implant handpiece



Physical characteristics
Temperature for storage and transport: -40ºCto +70ºC
Humidity for storage: 8% to 85%(relative), non-condensing at +40ºC
Temperature during operation: +10ºCto +40ºC
Humidity during operation: 15% to 85%(relative), non-condensing at +40ºC
Atmospheric pressure during operation: 50Kpa-106Kpa
Highest Altitude: 3000m
