LED Lane Guiding Red Cross and Green Arrow Traffic Control Sign
Dongguan Sowo Packaging Materials Co., Ltd.- Tube Chip Color：Dual-color
- IP Rating：IP65
- Pixel Configuration：1r, 1g
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：30W
- Scanning Mode：Static Scan
Base Info
- Model NO.：GLG-LCS-600A
- Display Type：Segment LED Display
- Application：LED Lane Control,Message
- Certification：CE, RoHS, CCC
- Product Size：600*600
- Cabinet Material：Aluminum or Iron
- Load：En 12899-1 : 2007
- Flexure：En 12899-1 : 2007
- Color：R: 620 to 630nm G : 500 to 530nm Y : 585 to 595nm
- Visible Flashing Rate：>90Hz
- IP Rate：IP65
- Transport Package：Wooden Carton
- Trademark：GLG-LED
- Origin：China
- HS Code：8531200000
- Production Capacity：50000PCS,Month
Description
Overview
Product Description
PRODUCT FEATURE
High brightness: All adopt Taiwan Epistar chip,take the form of concentrate transportation standard,ultra-high brightness and chroma uniformity.
Low power consumption: low consumption LED is in accordance with Low carbon , environmental protection and energy saving standard.
Long lifespan: Brand Taiwan Epistar Chip could guarantee the quality
Brightness control: automatically controlled by light sensor or manual
voltage stability control: Circuit design for voltage stability, protection of LED light-emitting diodes andinternal circuit
luminance proportion: Has a balanced current circuit and a specially designed optical components, special uniform glow
Aging test: Product shipped after 48-hour aging,Waterproof, vibration test, etc to make the performance more superior
Protection rate: IP54,Waterproof and dust proof design
Material structure: Using high hardness of cold rolled iron, black anti-corrosion paint material, new structure design, beautiful shape
carried standard: in accordance with GB/14887-2003 and related international standard.
Application Area

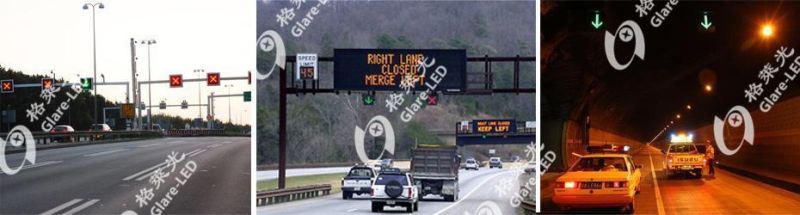

Widely used in expressway, toll gate, tunnel, etc...
Product ParametersPARAMETERS
| product size | 400*400 / 600*600 |
| cabinet material | Aluminum or iron |
| load | EN 12899-1 : 2007 |
| flexure | EN 12899-1 : 2007 |
| impact force | passed |
| vibratory force | passed |
| passive safety | EN12767 |
| brightness | R ≥3100 cd/m² G ≥3700 cd/m² Y ≥7400 cd/m² |
| brightness ratio | R ≥4.2 G ≥5 Y ≥10 |
| color | R : 620 to 630nm G : 500 to 530nm Y : 585 to 595nm |
| visual angle | 30° |
| homogeneity | Uniformity |
| Visible flashing rate | ≥90Hz |
| input voltage | 230Vac±15%, 50Hz |
| electrical safty | HD 60364-4-443 and HD 638 S1 |
| consumption | 30W |
| operating temperature | -25ºC to +60ºC |
| operating humidity | Up to 95% |
| IP rate | IP65 |
| anti-corrosion | D3, D4 |
| conduction | EN50293 |
| radiation | EN50293 |
| interface | RS232, RS485, Ethernet, GPRS, 3G |
| brightness control | 256 level automatic adjustment |
| LED Single point detection | Open circuit and short circuit |
| sensor | Temperature sensor, humidity sensor |
PRODUCT FEATURE
High brightness: All adopt Taiwan Epistar chip,take the form of concentrate transportation standard,ultra-high brightness and chroma uniformity.
Low power consumption: low consumption LED is in accordance with Low carbon , environmental protection and energy saving standard.
Long lifespan: Brand Taiwan Epistar Chip could guarantee the quality
Brightness control: automatically controlled by light sensor or manual
voltage stability control: Circuit design for voltage stability, protection of LED light-emitting diodes andinternal circuit
luminance proportion: Has a balanced current circuit and a specially designed optical components, special uniform glow
Aging test: Product shipped after 48-hour aging,Waterproof, vibration test, etc to make the performance more superior
Protection rate: IP54,Waterproof and dust proof design
Material structure: Using high hardness of cold rolled iron, black anti-corrosion paint material, new structure design, beautiful shape
carried standard: in accordance with GB/14887-2003 and related international standard.
Application Area
Widely used in expressway, toll gate, tunnel, etc...
