• Model NO.：NY-60W
• Illumination Time：6h
• Cell Type：Lithium Battery
• Charging Time (H)：8
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12V
• With Light Source：With Light Source
• LED Light：60W, CREE 40LED
• Battery：432wh,12V Lithium Battery
• Solar Panel：80W,18V, Mono
• Controller：MPPT
• Work Mode：Constant Lighting , Motion Sensor
• Lumen：8400lm
• Material：Die-Casting Aluminum
• Installation Height：7-8m
• Spacing：25-30m
• N.G/G.W (Kg)：16,18
• Product Size(mm)：650X220X200, 670X676X45(Solar Panel)
• Carton Size(mm)：740*270*300, 730*736*80(Solar Panel)
• 20′/40′/40hq Capacity：297,584,669 Units
• Transport Package：Carton
• Specification：650x220x200, 670x676x45(solar panel)
• Trademark：NEWSKY POWER
• Origin：Shenzhen
• HS Code：94054090
• Production Capacity：50000,Month

Basic Info.

Model NO. NY-60W Illumination Time 6h Cell Type Lithium Battery Charging Time (H) 8 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12V With Light Source With Light Source LED Light 60W, CREE 40LED Battery 432wh/12V Lithium Battery Solar Panel 80W/18V, Mono Controller MPPT Work Mode Constant Lighting / Motion Sensor Lumen 8400lm Material Die-Casting Aluminum Installation Height 7-8m Spacing 25-30m N.G/G.W (Kg) 16/18 Product Size(mm) 650X220X200, 670X676X45(Solar Panel) Carton Size(mm) 740*270*300, 730*736*80(Solar Panel) 20′/40′/40hq Capacity 297/584/669 Units Transport Package Carton Specification 650x220x200, 670x676x45(solar panel) Trademark NEWSKY POWER Origin Shenzhen HS Code 94054090 Production Capacity 50000/Month

Product Description

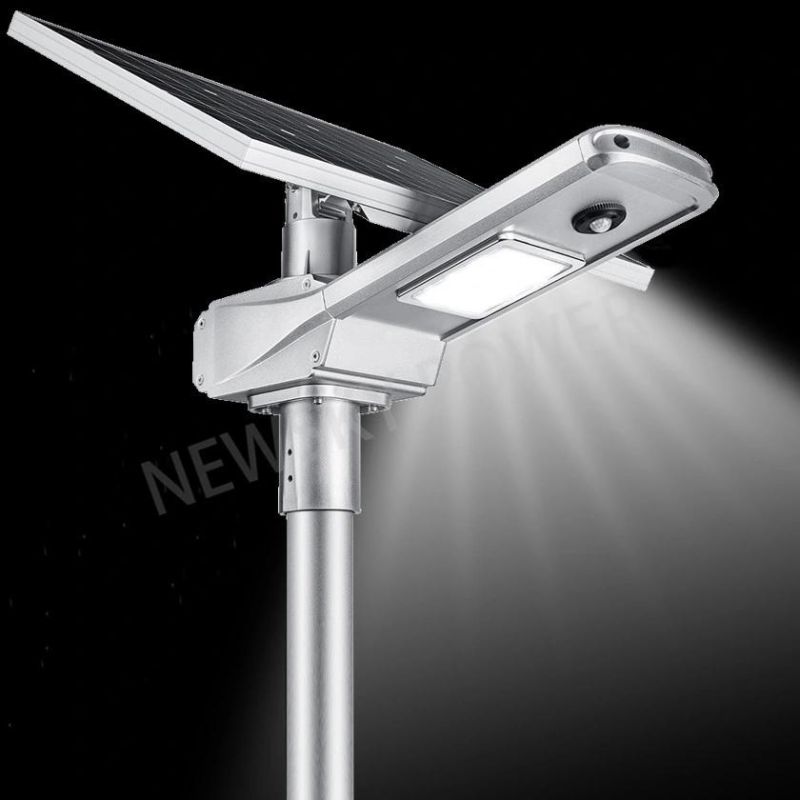

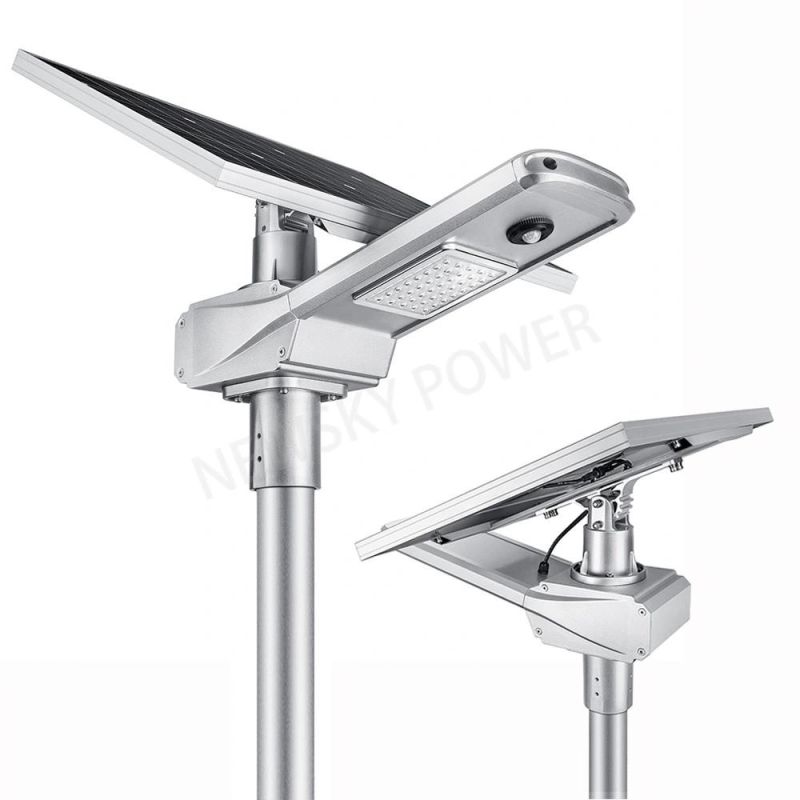

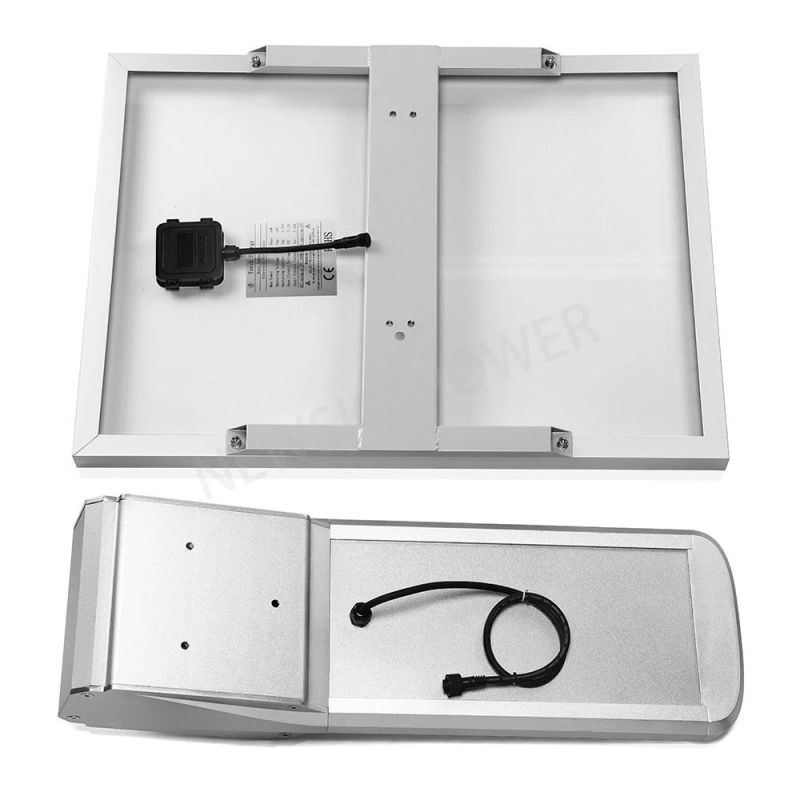

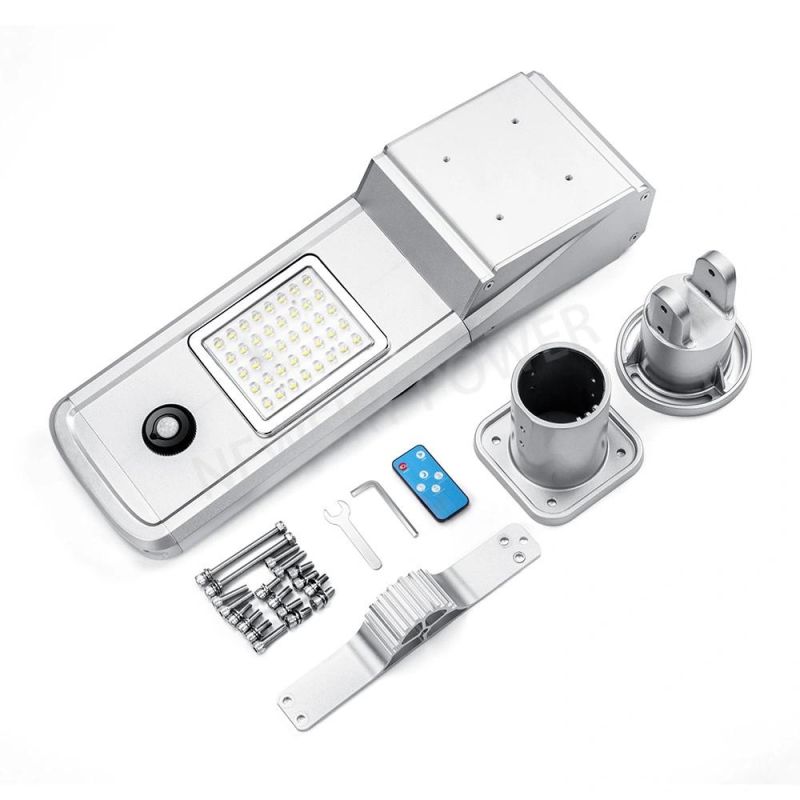

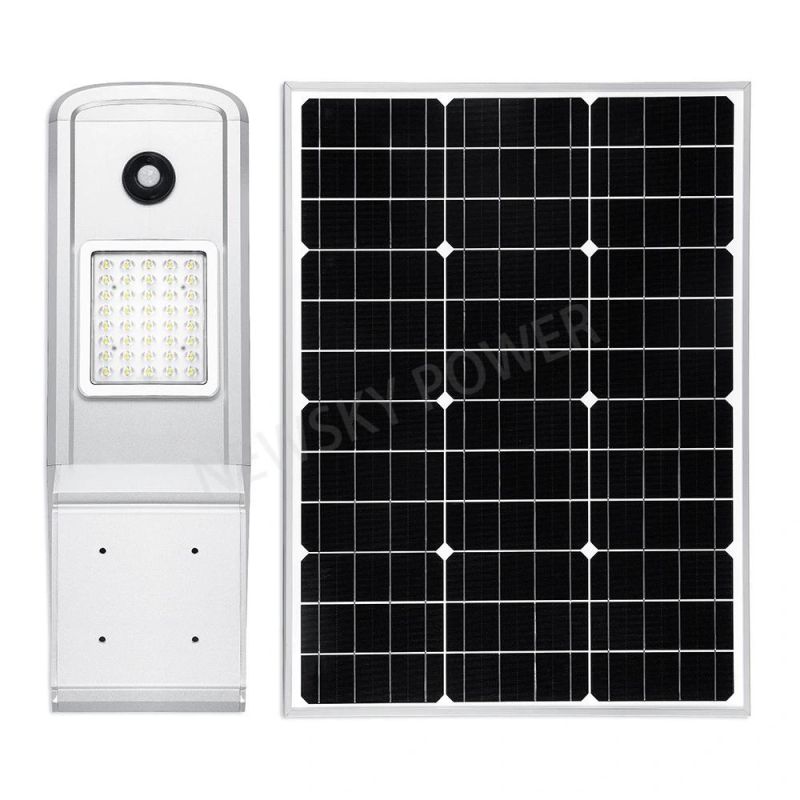

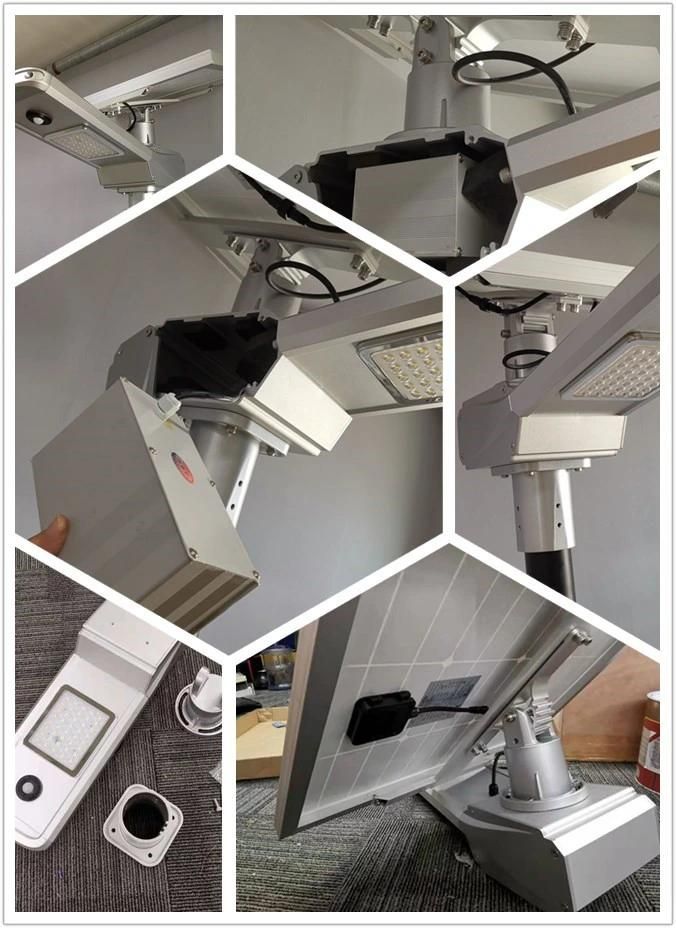

Products show:

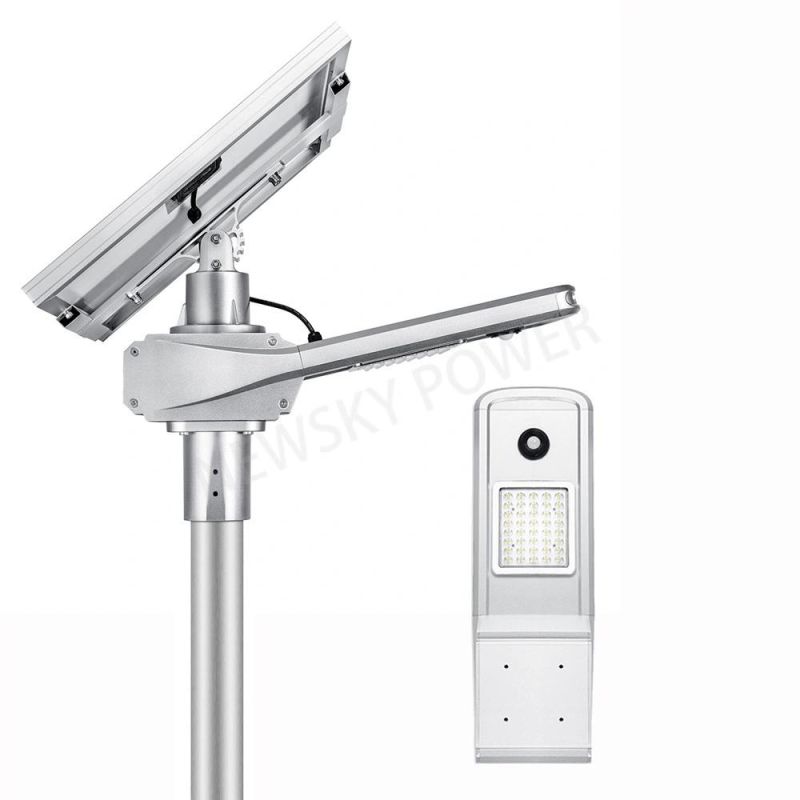

solar powered street light led light outdoor



1. Unique Integration Design,Easy to transport, install and maintain.
2. Rotating Solar Panel, can be adjusted in vertical and horizontal direction.
3. Charge and Discharge Management,Protect battery by software and hardware, supporting battery charge at 0v.
4. Light Efficiency Management,Patent led chip with high efficiency, up to 140lm/w.
   Control Mode Management, 6 work modes for choice.
5. Patent Bat-wing Lens,Lighting area much wider, the maximum of using the lighting all light the road.
6. Battery Program Updated,Embedded single string control technology. More stable and longer lifespan.
7. Enhanced analysis of heat dissipation and heat conduction by EFD.

The specification of NY series split solar led street lights:


Model NY-30W:


LED light	30W, Bridgelux 40LED
Battery	264WH/12V Lithium battery
Solar panel	60W/18V,MONO
Controller	MPPT
Work mode	Constant lighting / Motion sensor
Lumen	4200Lm
Material	Die-casting aluminum
Installation height	6-7m
Spacing	20-25m
N.G/G.W (kg)	13/15
Product size(mm)	650x220x200, 690x520x45(solar panel)
Carton size(mm)	740*270*300, 750*580*80(solar panel)
20'/40'/40HQ Capacity	321/642/756 units

Model NY-40W:



LED light	40W, Bridgelux 40LED
Battery	360WH/12V Lithium battery
Solar panel	70W/18V,MONO
Controller	MPPT
Work mode	Constant lighting / Motion sensor
Lumen	5600Lm
Material	Die-casting aluminum
Installation height	6-7m
Spacing	20-25m
N.G/G.W (kg)	14/16
Product size(mm)	650x220x200, 690x520x45(solar panel)
Carton size(mm)	740*270*300, 750*580*80(solar panel)
20'/40' Capacity	321/642/756 units

Model NY-60W


LED light	60W, Cree 40LED
Battery	432WH/12V Lithium battery
Solar panel	80W/18V,MONO
Controller	MPPT
Work mode	Constant lighting / Motion sensor
Lumen	8400Lm
Material	Die-casting aluminum
Installation height	7-8m
Spacing	25-30m
N.G/G.W (kg)	16/18
Product size(mm)	650x220x200, 670x676x45(solar panel)
Carton size(mm)	740*270*300, 730*736*80(solar panel)
20'/40'/40HQ Capacity	297/584/669 units

Model NY-80W:


LED light	80W, Cree 80LED
Battery	600WH/12V Lithium battery
Solar panel	100W/18V,MONO
Controller	MPPT
Work mode	Constant lighting / Motion sensor
Lumen	11200Lm
Material	Die-casting aluminum
Installation height	9-10m
Spacing	30-35m
N.G/G.W (kg)	20/22
Product size(mm)	850x220x200, 870x670x45(solar panel)
Carton size(mm)	960*270*300, 930*730*80(solar panel)
20'/40'/40HQ Capacity	224/448/502 units

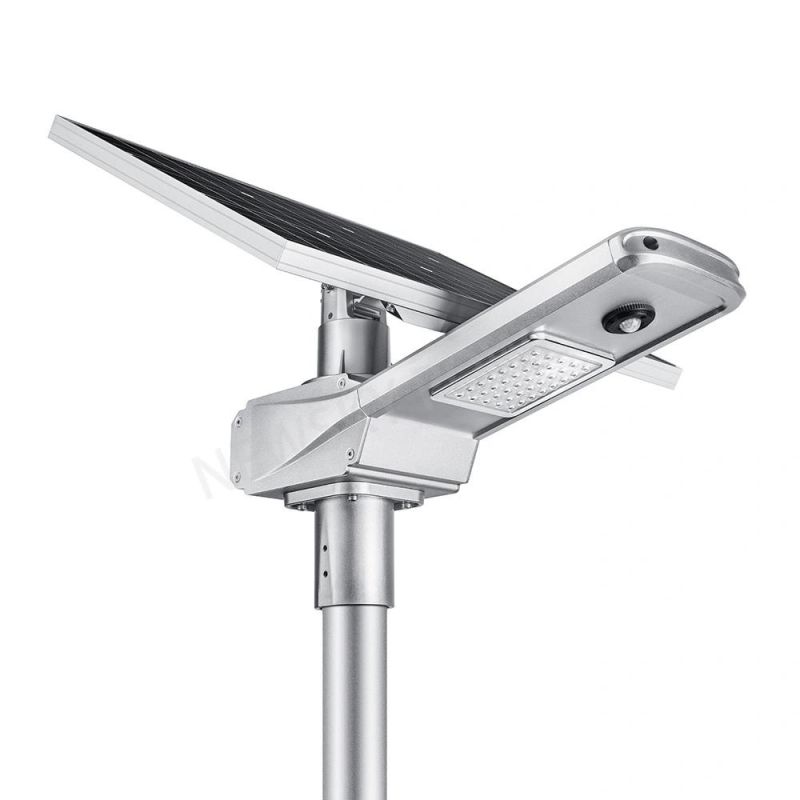

solar led road lamp street for government project

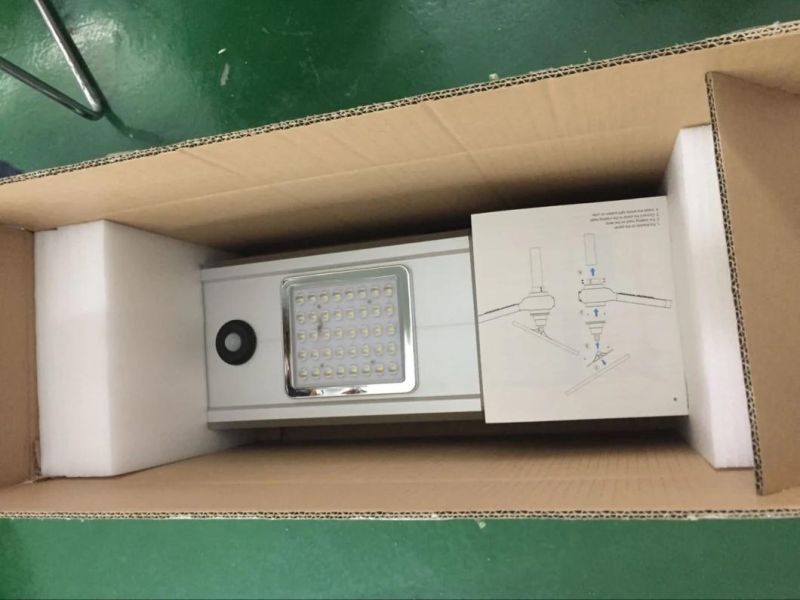

 The packages of solar street lights NY series:
