• Model NO.：YRT100
• Feature：Slewing Bearing
• Mounting Dimension：100mm
• Sealing Type：Seal or Not
• Surface Roughness：0.8
• Housing Nominal Dimension：185mm
• Thickness：38mm
• Mounting Inner Ring Holes Quantity：10
• Mounting Outer Ring Holes Quantity：15
• Transport Package：Cases and Pallets or as Customer′s Requirment
• Specification：customized
• Trademark：ZYS
• Origin：Luoyang, Henan, China

Basic Info.

Model NO. YRT100 Feature Slewing Bearing Mounting Dimension 100mm Sealing Type Seal or Not Surface Roughness 0.8 Housing Nominal Dimension 185mm Thickness 38mm Mounting Inner Ring Holes Quantity 10 Mounting Outer Ring Holes Quantity 15 Transport Package Cases and Pallets or as Customer′s Requirment Specification customized Trademark ZYS Origin Luoyang, Henan, China

Product Description

YRT Turntable Bearing/YRT Rotary Table Bearing /YRT Bearing YRT100
ZYS YRT bearings (rotary table bearings) are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial pre-load. For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy.

ZYS YRT bearings have such advantages as high axial and radial load capacity, high tilted rigidity and high precision. The rotary table bearings are especially suitable for precision machine tools or the rotary worktable or indexing plate of other precision machines, and can also be used to chuck, measuring instruments, test equipment and rotary table configuration. The requirements of the bearing for its matching equipment parts are much high. The tighten torque of mounting screws should be controlled when the bearing is being installed.

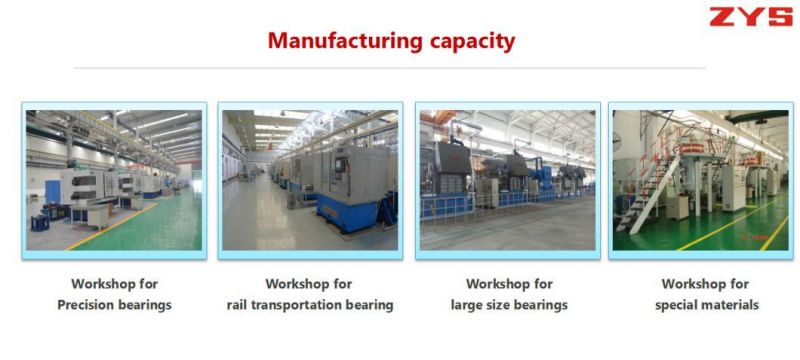

ZYS MANUFACTURING CAPACITY


ZYS Quality assurance

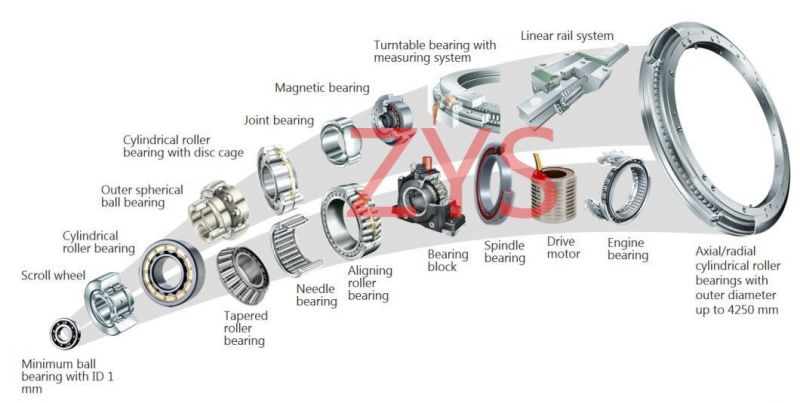

ZYS bearing products


ZYS Packing :




FAQ:

Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.

Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.


Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail  for more information.

Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.

Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.

Q: Is sample avaiable?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
