Metal Halide Construction Trailer Mobile Light Tower Price
Hebei Rongyuan Plastic Products Co., Ltd.- Engine:Kubota D1703-Bg
- Alternator:Sinocox
- Engine Speed:1500rpm,1800rpm
- Power Generation:10kw or 12kw Continuous (DC)
- Voltage:110V, 120V, 220V, 230V, 240V, 250V
- Light Power:6*1000W Mhi
Base Info
- Model NO.:RPLT-6700
- Lumen Output:6*110,000lm
- Guarantee:2000h
- IP Grade:IP54
- Delivery Time:Within 35 Days After Receiving Deposit
- Transport Package:Plywood Pallet,Plwood Case,Cartons
- Specification:4500*1350*1700
- Trademark:Robust Power
- Origin:China
- HS Code:9405409000
- Production Capacity:200set,Month
Description
Basic Info.
Model NO. RPLT-6700 Lumen Output 6*110,000lm Guarantee 2000h IP Grade IP54 Delivery Time Within 35 Days After Receiving Deposit Transport Package Plywood Pallet/Plwood Case/Cartons Specification 4500*1350*1700 Trademark Robust Power Origin China HS Code 9405409000 Production Capacity 200set/MonthProduct Description
Metal Halide Construction Trailer Mobile Light Tower PriceKey Features Include:
8.6m hydraulically operated telescopic mast
360 mast rotation
Available in 6*1000W metal halide lamps
Galvanized mast and powder coated canopy
Electronic controlled hydraulic system with sustaining valves and hydraulic locks
Fault protection
Heavy-duty, weather-protective enclosure
Fully bunded
Technical Data:
Light | |
Housing Material | Aluminium die cast |
Type of lights | LED Lamp/Metal Halide Lamp |
Power of lights | 6*1000W Metal Halide Lamp |
Lumen Output | 6*110,000lm ( total ) |
Voltage | AC 110-240V |
Frequency | 50/60Hz |
Longevity | 3 years/2000 Hrs |
Waterproof grade | IP65/IP54 |
Color temperature | 2100K-5700K |
Mast | |
Material of mast | Galvanized iron |
Mast lifting type | Hydraulic mast |
Mast section | 6-section telescopic |
Mast rotation system | 358° manual operation |
Max. height of mast | 8.6meters |
Engine | |
Engine model | Kubota D1703-BG 3 cylinder, in-line, water cooled |
Start system | Electric (Battery start) |
Alternator | Sinocox |
Engine speed | 50hz/1500rpm, 60hz/1800rpm |
Rated power | 50hz/7.2kw, 60hz/8.0kw |
Insulation | H |
Fuel tank capacity | 100L |
Fuel consumption | 2.0L/hr |
Maximum Working Hours | 50H |
Controller system | Digital control panel |
Waterproof grade | IP54 |
Engine shutdown protection | Low oil pressure, over speed, over current, high-temperature detection, low fuel level |
Trailer | |
Stabiliser Supports | Optional 4*Manual or 4*Hydraulic |
Tow Hitch | Ring/ball hitch |
Tire Size | 13 inch |
Brakes | Manual |
Packing | |
Net weight | 930/890 kg |
Dimension | 4500X1350X1700 MM |
Robust Power Models:
No. | Model | Mast | Power of Lamps | Engine Model |
1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
Factory Brief Introduction:
Fujian Robust Power Co., Ltd. was established in 2007. During 10 years, with a strong research and development team, strictly quality control system and high manufacturing capability, as well as in-depth knowledge of customer requirements, we become one of the favorite suppliers in the market.
Our main products include Mobile Lighting Tower, Generator Set, LED Light. All steps from raw materials to procurement, production, testing, sales and after-sales service are under a very strict quality monitoring system.
Our Company occupies an area of 23,000 square meters. Have more than 100 staffs. There are 3 advanced production lines in the working shop.
See below what we can offer:
1. Strong R&D team, package, and graphics design.
2. Certifications: ISO9002:2000,CE,SGS,SAA,anti-wind testing,46 patients.
Verified on site by world-leading inspection company, TüV Rheinland.
3. 10 QC staff and a line of advanced testing equipment to further ensure quality.
4. Production capacity: 300 unit products per month.

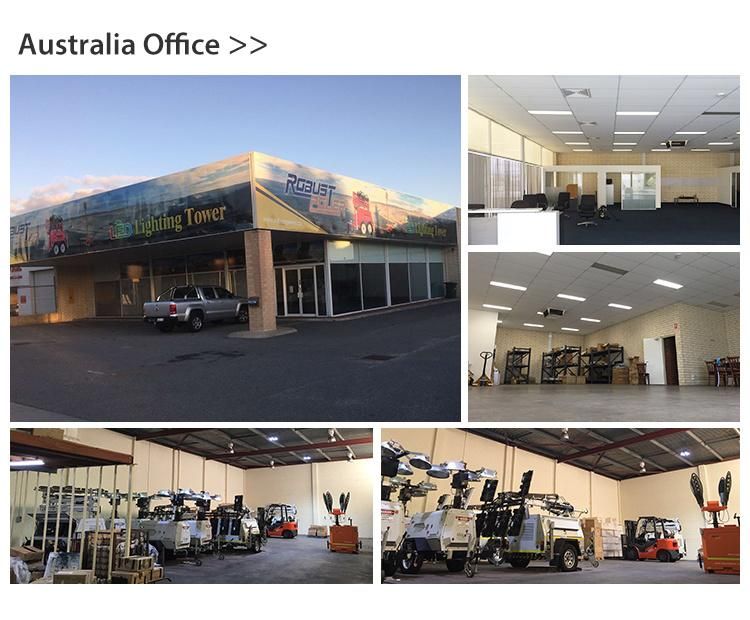

5. Australia branch: Set up a branch, stock and supply spare parts in Australia in 2004.
6. Responses within 12 hours for all your inquiries.
Exhibitions:
Certifications:
