Ce Standard Infitech Preparation Bay (IT CLASSIC 6900-OB)

Hangzhou Mig Packaging Co., Ltd.
  • Type：Spray Booth
  • Certification：CE
  • Substrate：Steel
  • Coating：Powder Coating
  • Paint Mist Treatment：Dry-type
  • Condition：New

Base Info

  • Model NO.：IT CLASSIC 6900-OB
  • Product Name：Ce Standard Preparation Bay (It 6900 Ob)
  • Keyword：Preparation Bay
  • Rated Power：7.5 Kw
  • Warranty：2 Years
  • Transport Package：Polyfoam and Metal Frame
  • Specification：6900 X 4000 X 2800 mm(L x W x H)
  • Trademark：INFITECH
  • Origin：China
  • HS Code：8419899090
  • Production Capacity：500 Sets,Year

Description

Design Standard
 BS EN 13355:2004+A1:2009
BS EN 60204:2006+A1:2009
 BOOTH DIMENSIONS Internal dimensions6900×4000×2800mm  (L×W×H)External dimensions10670×4110×2800mm(L×W×H)Basement

 Base design
 Galvanized sheet bending forming, full grids
Basement(H): 350mmCarrying capacity of the grids
 650kg /wheel
 Filter area
 27.6 m2
 Drive-in-ramp
 2 pieces; size:2000*520mm,diamond structure Grid description
 Size: 997 X 756mm, 40 X 3mm, galvanized pressed steel grates instead of conventional steel grates with twisted bars. Aesthetics, durability, stress resistance are the most important features of pressed steel grates.
 Filtration System
  Pre-filter
 Fiberglass paint plate filters
 Exhaust filter
 Fiberglass paint arrestor filters, with features of big ventilation volume, small resistance and flame resistance, etc.
 Exhaust System
  Exhaust fan
 Direct-type turbine fan
 Power and motor description
 1×7.5KW,970RPM,380V,50HZ;CE
 Parameter of exhaust fan
 28,000 m3/h ;650pa
 DuctworkStraight ducting:4 pieces ; 90° :1 piece ; Reducer: 1 piece
 Control System
  Implementation standards
 Standard Y/Δ step-down start control system
 Features
 Fan start,emergency stop switch, failure indication

Company Introduction

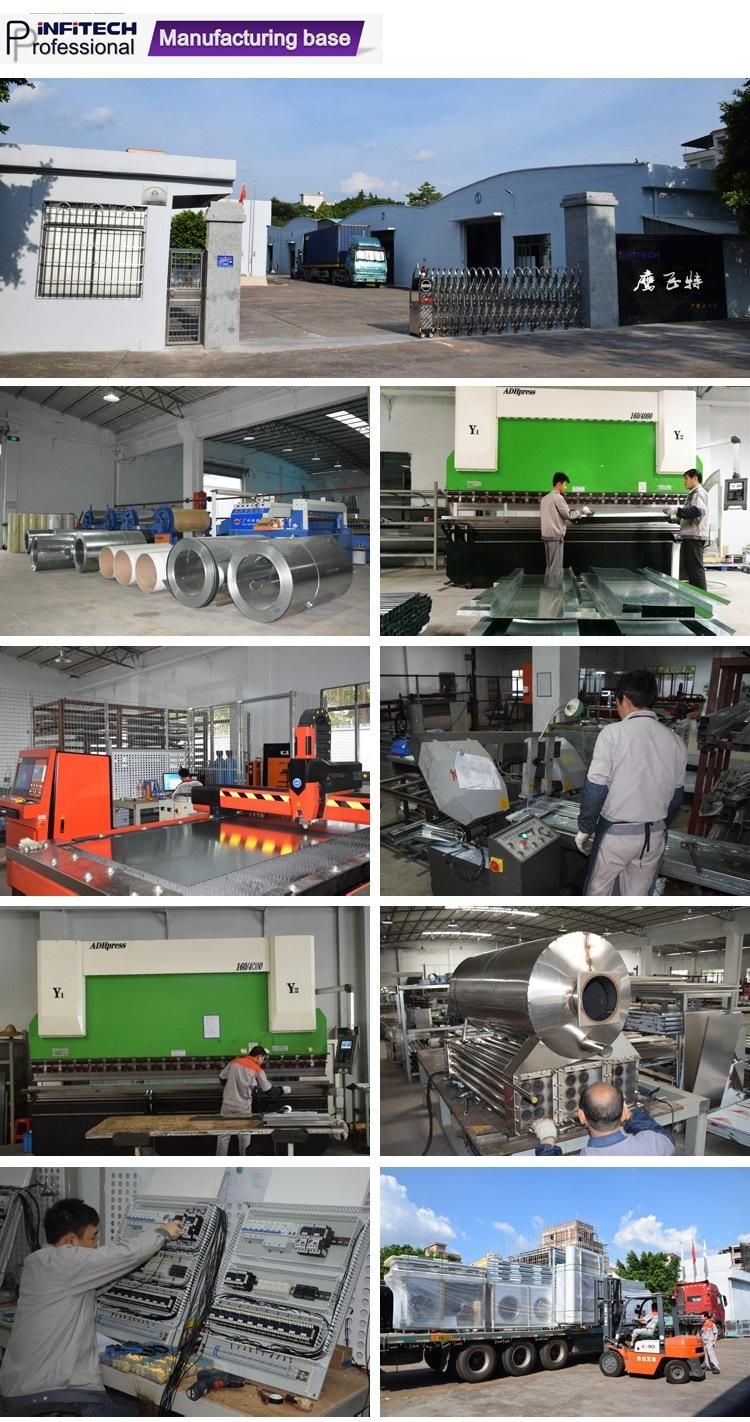

Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
