DIP Outdoor P10 Full Color Waterproof LED Display Billboard
Danyang Yun Kai Metal Products- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：10mm
- Pixel Density：10000 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC, ETL
- Module Size：160mm*160mm
- Cabinet Size：960mm*960mm
- Module Resolution：16*16dots
- Cabinet Resolution：96*96dots
- Screen Resolution：10000dots, Per Sqm
- Cabinet Material：Steel Iron
- Protection Grade：IP65 Waterproof
- Maintenance：Rear Service
- Drive Method：1,4 Scan
- Refresh Rate：1920Hz
- LED Type：DIP346
- Transport Package：Wooden Case
- Specification：4pcs cabinet in one case
- Trademark：CKGLED
- Origin：Shenzhen, China
- HS Code：8528591090
- Production Capacity：6000sqm,Per Month
Description
Screen Drive Mode: 1/4 Constant Current Drive / Horizontal Viewing Angle 120 Deg Vertical Viewing Angle 50 Deg Brightness ≥7500 cd//m2 Grey Scale: 14 bits Refresh Rate ≥1920 Hz Cabinet Resolution 96x96 dots Max. Power Consumption 650 W/m2 Ave. Power Consumption 220 W/m2 Cabinet Size 960x960 mm Cabinet Thickness 150 mm Cabinet Material: Steel/Aluminum Color >16.7 M Input Voltage AC 110V~220V+/-10% V Refresh Frame Frequency 60 Hz Protection Level: IP65 / Working Environment: Outdoor / Working Temperature -30- +60 ºC Operation humidity 10%-95% RH Certificates: CCC, CE,RoHS /

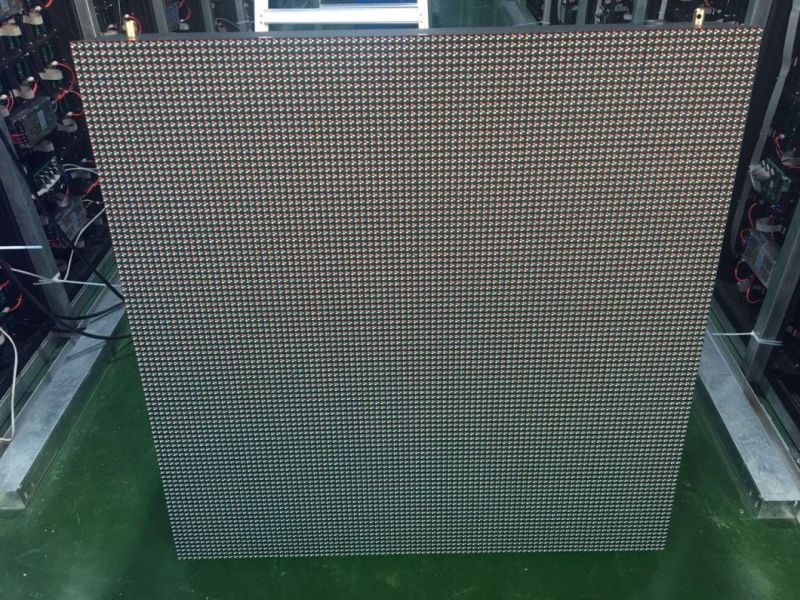

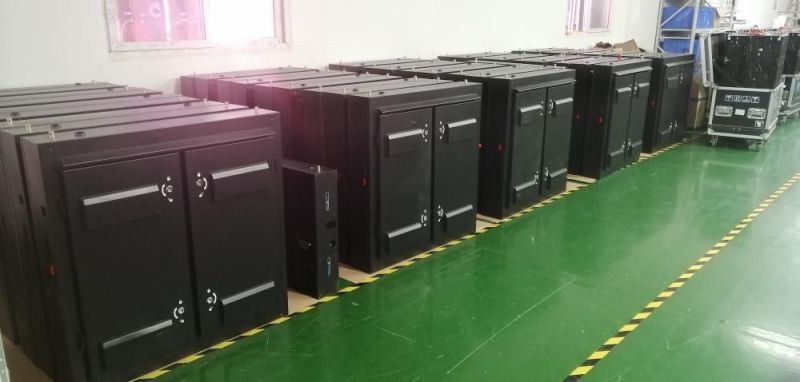

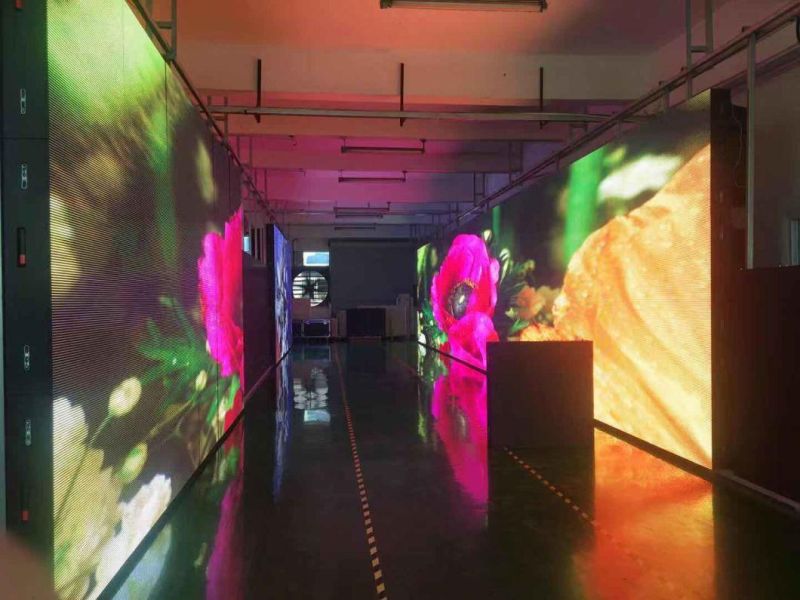

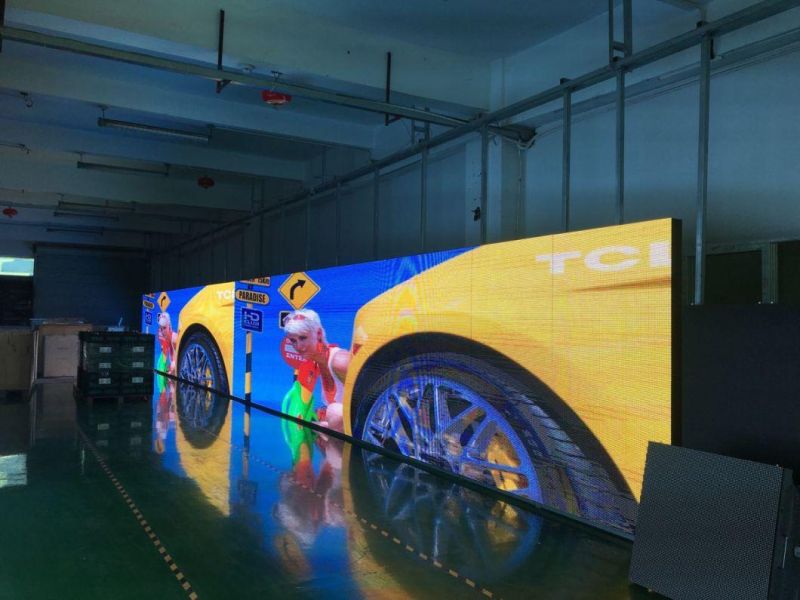

Cabinet Photos:

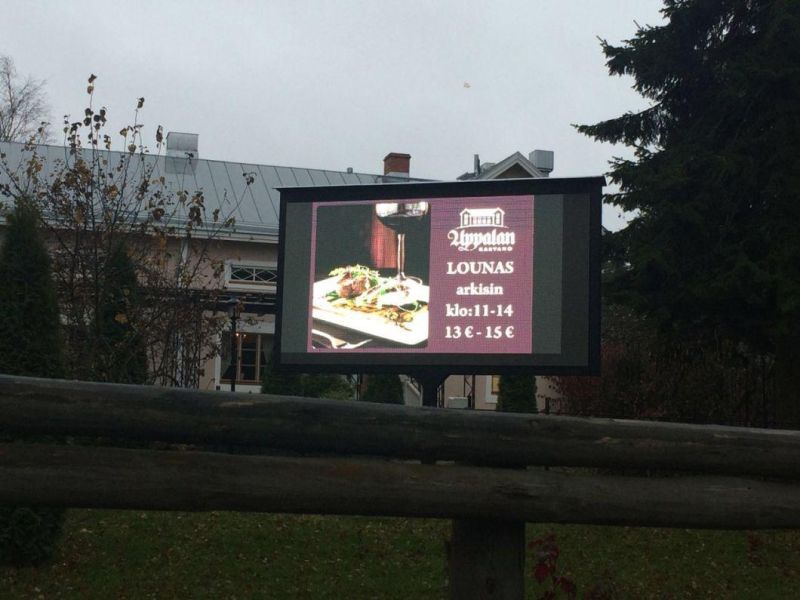

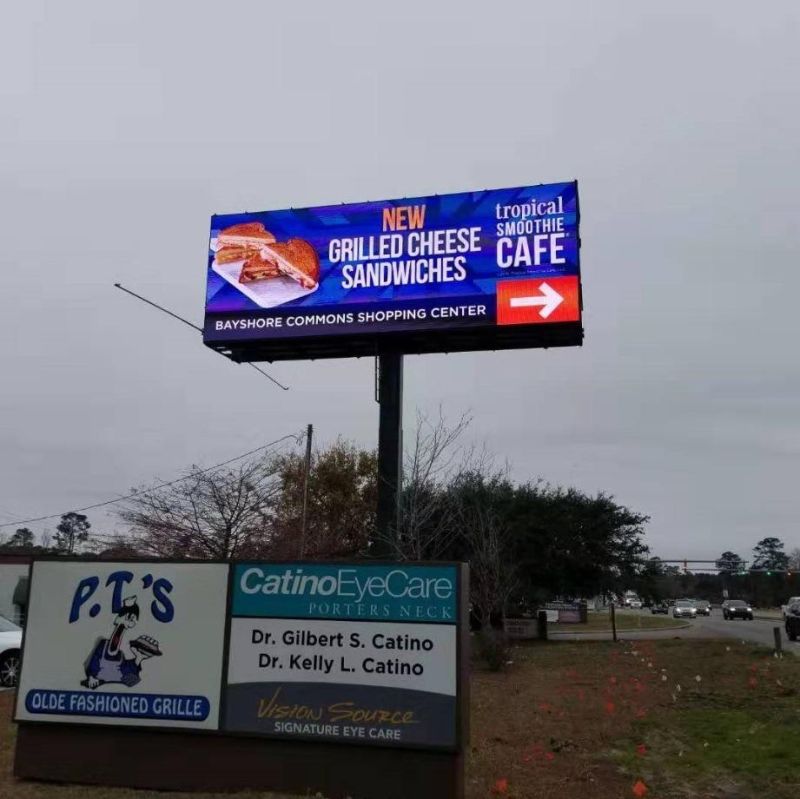

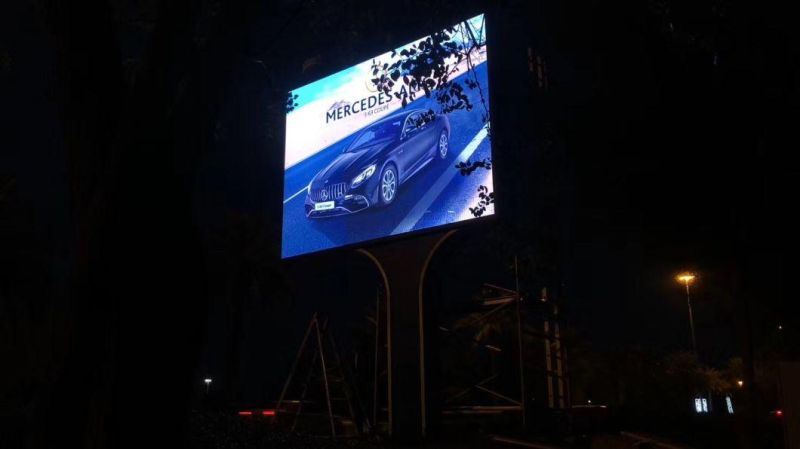

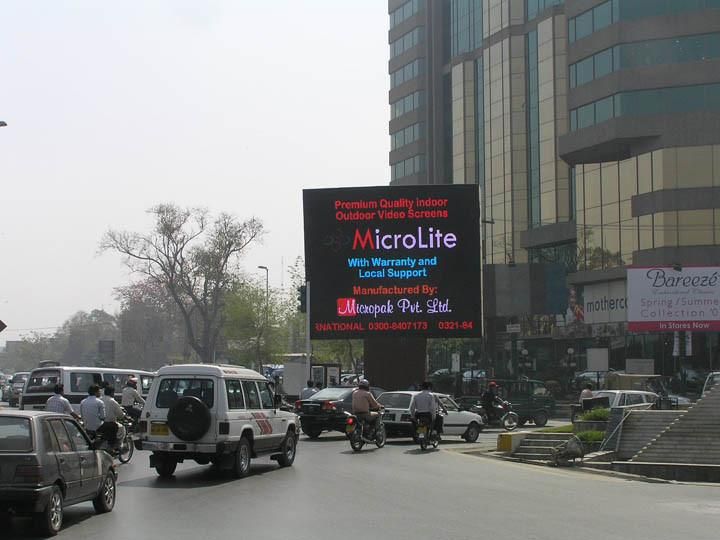

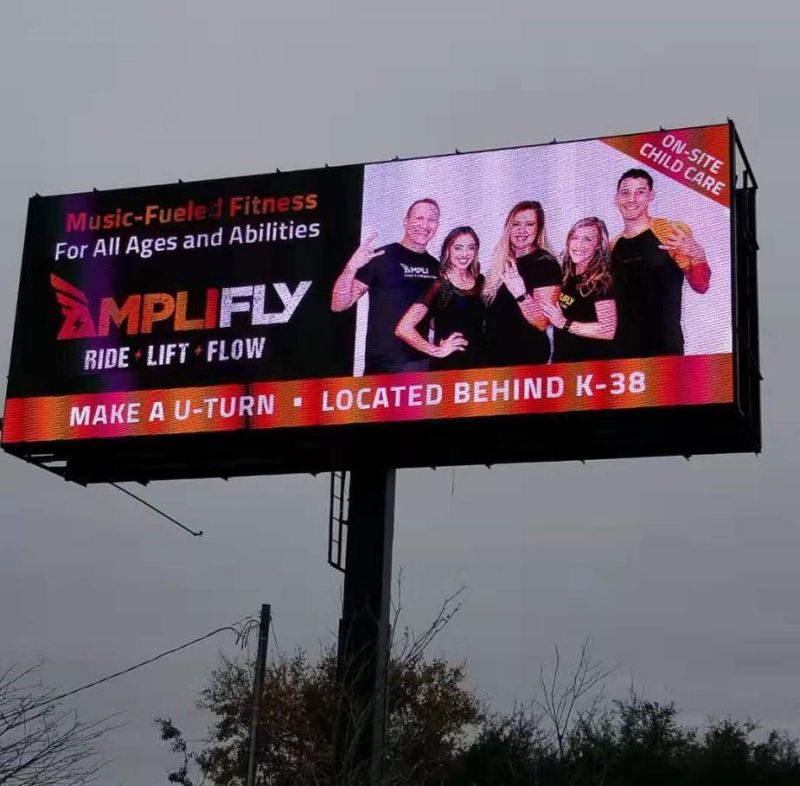

CKGLED Project Case:

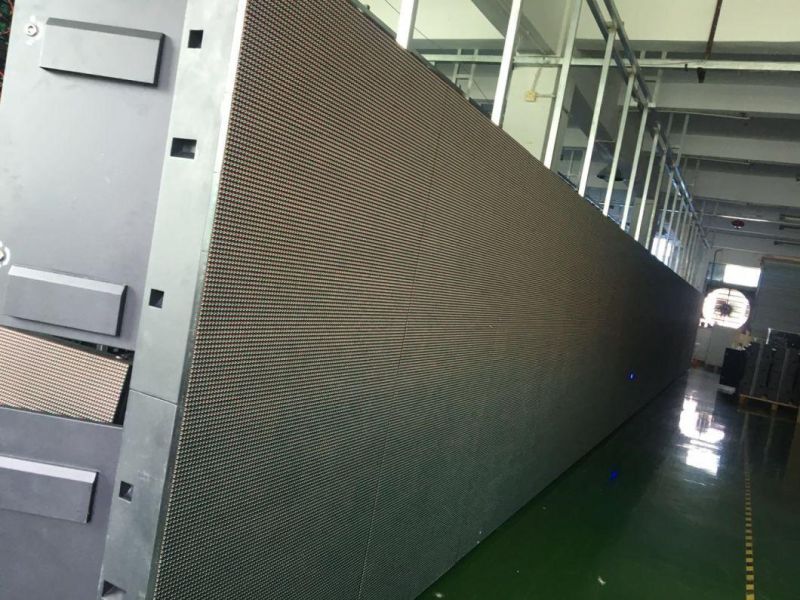

Cabinet Photos:
CKGLED Project Case:
