• Model NO.：6mm
• Pixel Density：27777dots,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：192X192mm
• Module Resolution：32X32mm
• Cabinet Size：960X960mm
• Cabinet Resolution：160X160dots
• Screen Brightness：6000nits
• Protection Grade：IP65
• Compliance：Ce
• Service：Rear Service, Front Service
• Controller：Nova, Linsn
• Transport Package：Wooden Case
• Specification：960x960mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Pixel pitch6mmModule size192mm*192mmModule pixel32dots*32dotsDriving method1/8 scan method drivingPixel configurationSMD 1R1G1BPixel density27777 dots/sqmModule resolution1024 dots


Cabinet specifications:Cabinet size960mm*960mm*150mmCabinet resolution160dots*160dotsCabinet weight46kgModule Qty25pcsCabinet pixel25600dotspower consumption(w/sqm)AVE.200 / MAX.600

Screen parameters:No.ParameterSpecification1Pixel Pitch6mm2Pixel Density27777pix/sqm3LED TypeSMD35354Viewing Angle(H)140°,(V)140°5Brightness≥6000cd/sqm6Drive Method1/8 scan 7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤50kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption200W/sqm16Max. Power Consumption600W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance/Front maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

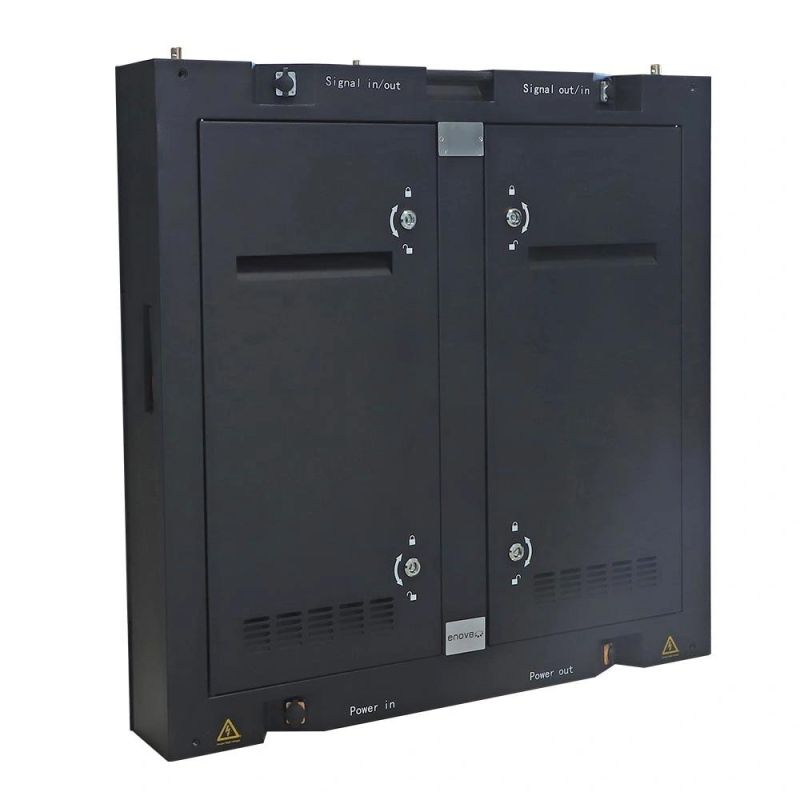

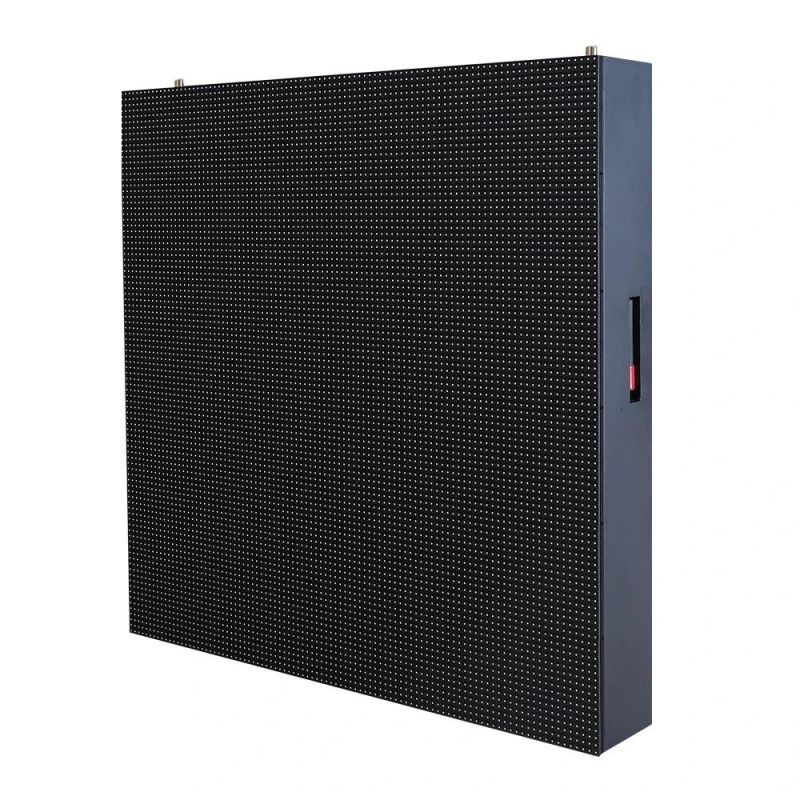

LED Display Panel photos:

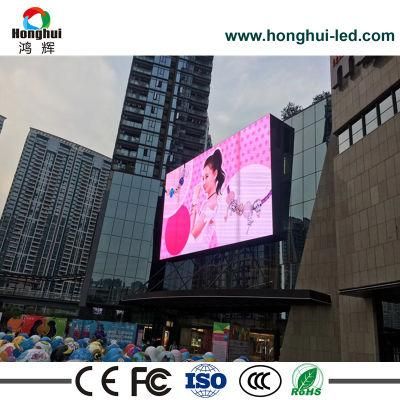

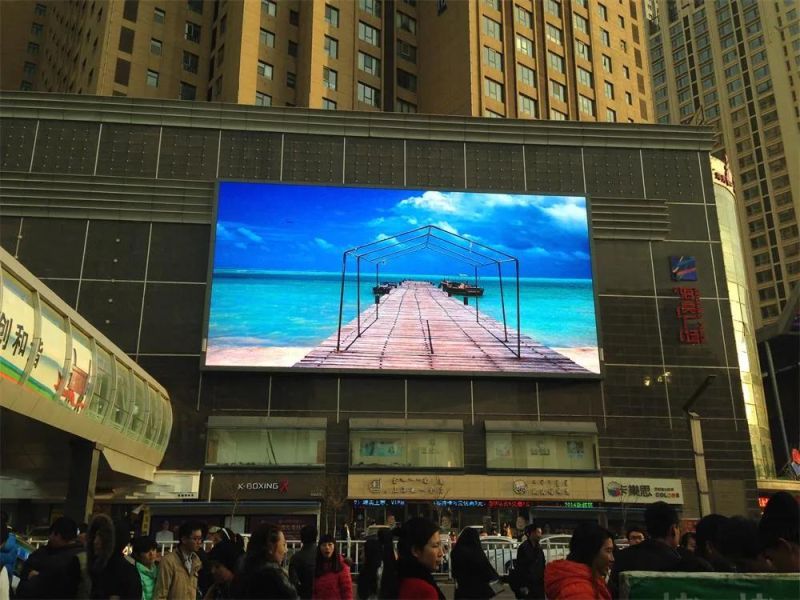

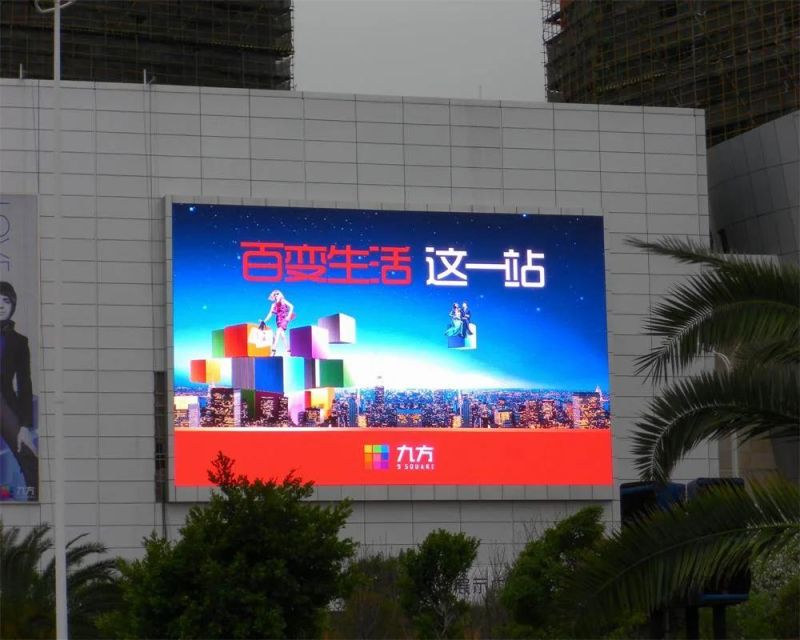

Wall mounted on the building

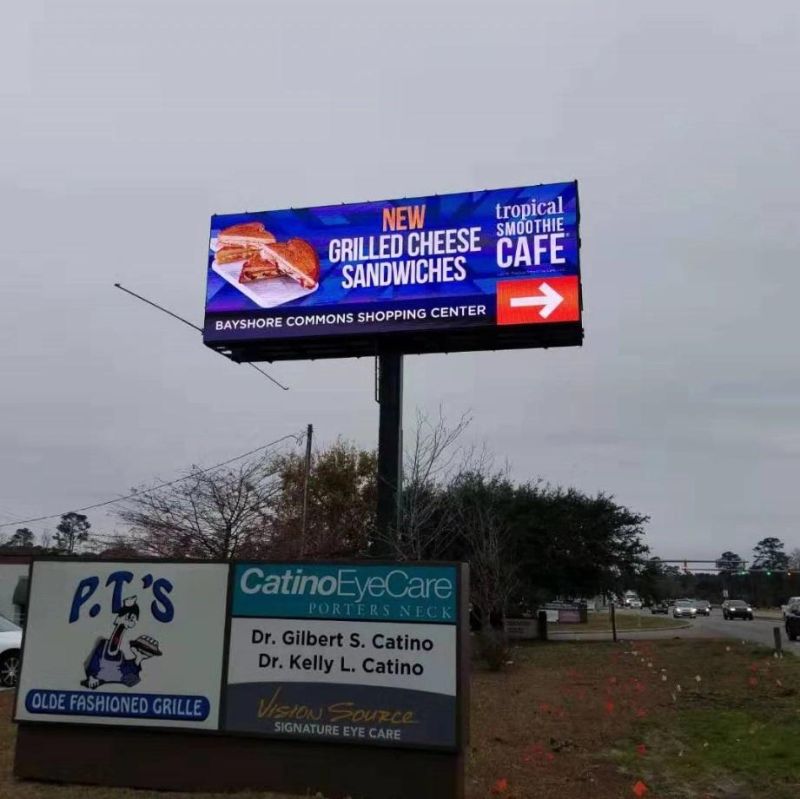

Unipole standing on the roadside :

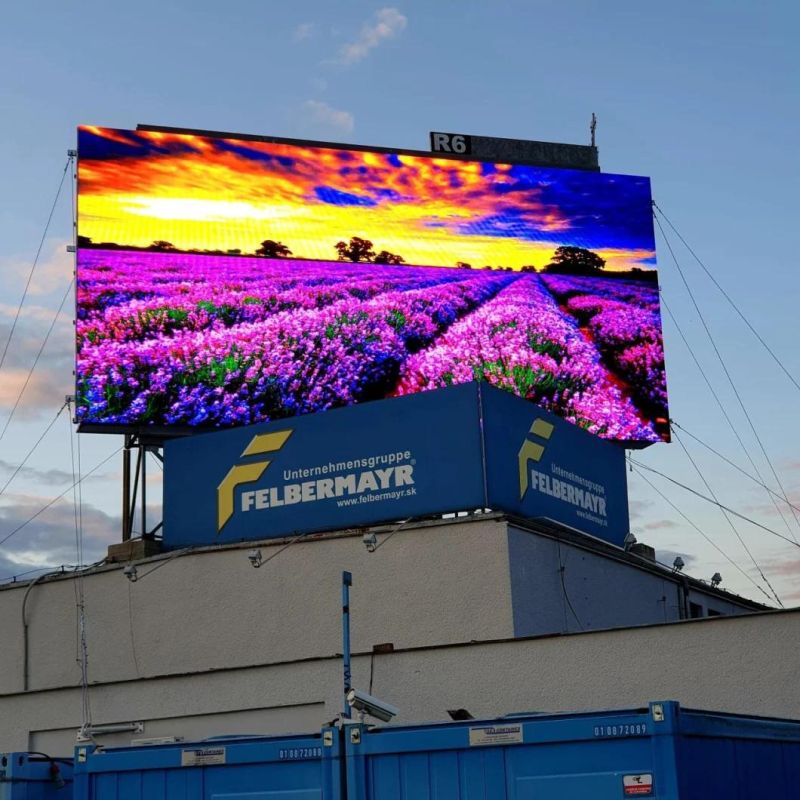

Installed on the roof :

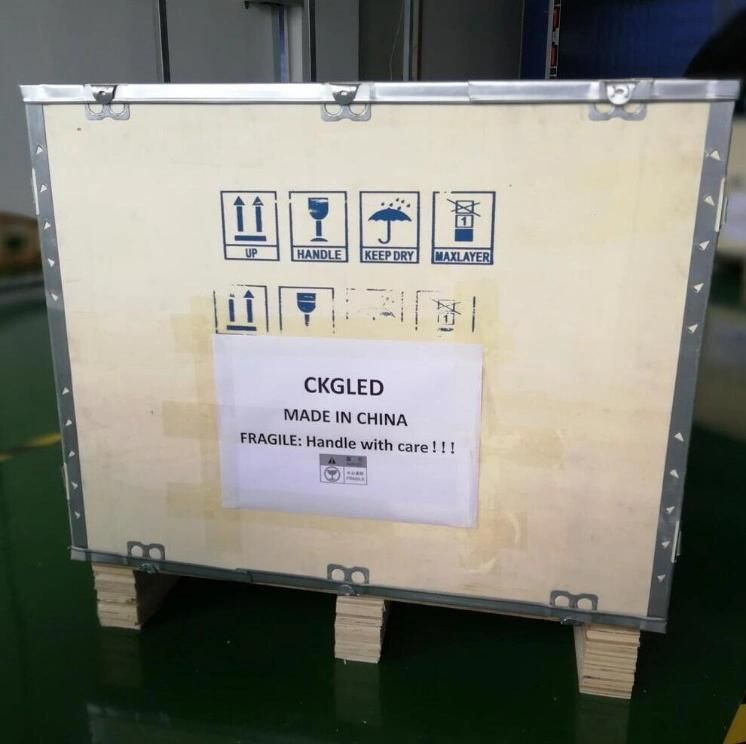

Package:
