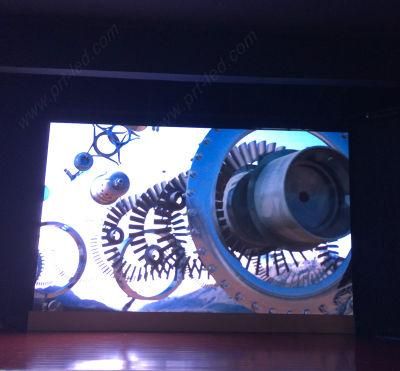

High Definition P5 Full Color LED Video Display for Indoor

Xuzhou Whuchan Co., Ltd
  • Tube Chip Color：Full Color
  • Display Function：Video Display
  • Pixel Pitch：5mm
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：40,000 dots , m²
  • Scanning Mode：1,16 Scan

Base Info

  • Model NO.：P5 board
  • System Operating Platform：Win XP,Win 2000,Win7,8
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide
  • IP Rating：IP43
  • Certification：CE, RoHS, CCC, FCC
  • Cabinet Size：640X640mm
  • LED Encapsulation：SMD3528
  • Module Size：160X160mm
  • Module Resolution：32X32dots
  • Transport Package：Wooden Case
  • Specification：CE, FCC. ROHS, 3C
  • Trademark：PRT
  • Origin：Shenzhen
  • HS Code：8528591090
  • Production Capacity：3000sq. M,Month

Description

P5 SMD3528 Indoor full Color LED Screen SpecificationPixel pitch5mmPixel Configuration1R1G1BLED componentSMD3528Size of module160mm x 160mmResolution of module32x32Size of cabinet640mm x 640mm x 150mmResolution of cabinet128x128Material of CabinetIron/AluminumWeight of Cabinet13KGSBrightness>1500cd/sq.mDensity40000dots/sq.mBest viewing angle140 /140Pixel Configuration1R1G1BBest viewing distance5-60MMaximum power consumption1000W/sq.mAverage power consumption300W/sq.mDriving method1/16 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>1920HzIP gradeIP43Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
