• Model NO.：IT-SUPER 1101
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Plenum (Height)：600mm
• Extraction：350mm
• Walls：50mm Rock Wool Walls
• Brightness：>1, 000lux
• Empty Loaded Air Speed：0.69m,S
• Burner：Riello Diesel Burner Rg5d
• Noise：<78dB
• Maximum Working Temperature：80 Degrees Celsius
• Inverter：Schneider
• Grids Carrying Capacity：900kg,Wheel
• Extraction Area：28m2
• Air Volume：28, 000m3,H
• Voltage：415V,3pH,50Hz
• Rated Power：20kw
• Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
• Specification：7000 X 4000 X 2800mm (L X W X H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. IT-SUPER 1101 Coating Powder Coating Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Plenum (Height) 600mm Extraction 350mm Walls 50mm Rock Wool Walls Brightness >1, 000lux Empty Loaded Air Speed 0.69m/S Burner Riello Diesel Burner Rg5d Noise <78dB Maximum Working Temperature 80 Degrees Celsius Inverter Schneider Grids Carrying Capacity 900kg/Wheel Extraction Area 28m2 Air Volume 28, 000m3/H Voltage 415V/3pH/50Hz Rated Power 20kw Transport Package Cargo Loaded on Steel Frame Handled by Forklifts Specification 7000 X 4000 X 2800mm (L X W X H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

auto painting equipment/auto spray booth/Spray Booths For Auto Painting
1.HIGHLIGHTS

1. AS/NZS 4114.1:2003 compliance
2. Full downdraught airflow
3. Premium lighting
4. 2*7.5kw air handling unit, high performance and low noise
5. High ease of use control
6. Less operating costs
7.

2.FEATURES
Infitech auto spray booth IT-701A is designed for the Australian and New Zealand market. It is AS/NZS 4114.1:2003 code compliance.
Spray booth IT-701A comes standard with downdraft airflow, rigid booth structure, metal base (requiring no floor excavation), wide opening main door, high efficiency air handling unit and easy-to-use control. All these make the booth meet the demanding requirements of the market.

3,Spray Booths SPECIFICATIONS

ITEMS	SPECIFICATIONS
Model	IT- 701A Downdraught Automotive Spray Booth
Design standard	AS/NZS 4114.1:2003
Internal dimensions	7000 X 4000 X 2800mm (L X W X H)
External dimensions	7110 X 5870 X 3810mm (L X W X H)
Airflow	Full downdraft
Plenum (height)	600mm
Extraction	Through 350mm high raised base
Grids carrying capacity	900kg/wheel
Extraction area	28m2
Entrance door	3200x2700mm (WxH), 1 set
Service door	800x2000mm(WxH), 2 sets
Walls	50mm rock wool walls
Ceiling lights (LED)	8 sets, each 4 X 18W, 576W total
Sidewall lights (LED)	6 sets, each 2 X 18W, 216W total
Brightness	>1,000LUX
Filters	Bag filter, high efficiency ceiling filter, filter at exhaust plenum chamber, exhaust filter
Intake/Exhaust unit	Direct-type turbine fan, 2x7.5KW, ABB motor
Air volume	28,000m3/h
Empty loaded air speed	0.69m/s
Heats	232kw heat exchanger, RIELLO diesel burner RG5D
Maximum working temperature	80ºC
Controls	CE standard control box
Inverter	SCHNEIDER inverter control
Voltage	415V/3ph/50Hz
Rated power	20KW

4.DETAILS

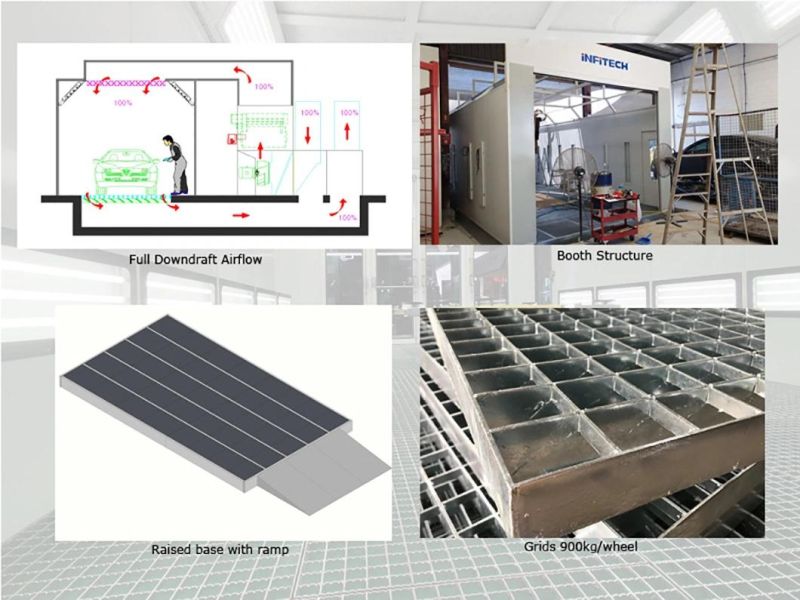

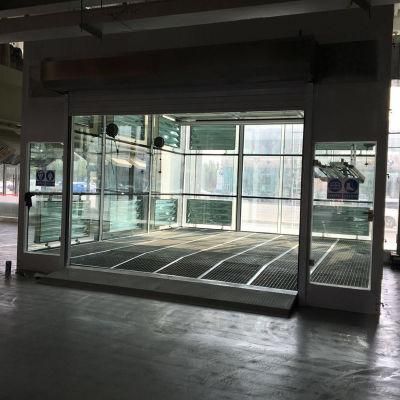

AIRFLOW & BOOTH STRUCTURE

• This auto painting equipment with downdraught airflow
• Ceiling plenum (600mm high, i.e. 2 feet)
• Metal base (350mm high) with adjustable support which can adapt to less than 30mm floor unevenness
• Hot galvanized grids: 900kg/wheel carrying capacity, G2 grade fiberglass filter, paint holding capacity: 6kg/m²
• Vertical wall panels

OPTION

• There are other types of basement for paint mist collection. Please consult our sales engineers. We will provide you with the ideal solution.

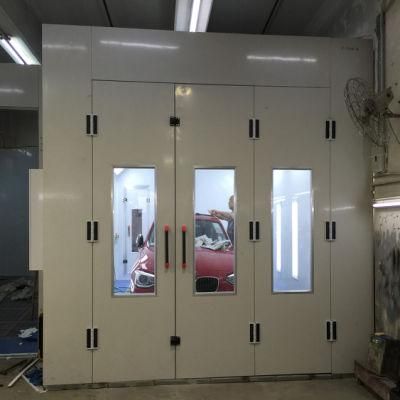

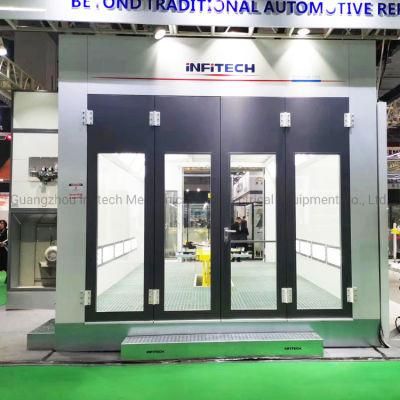

ENTRANCE DOOR

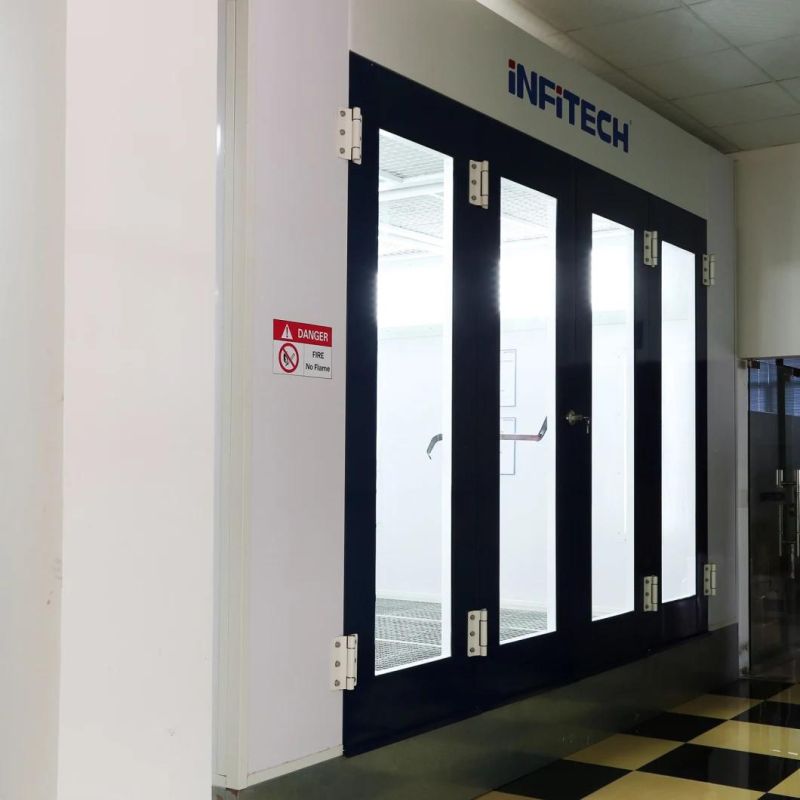

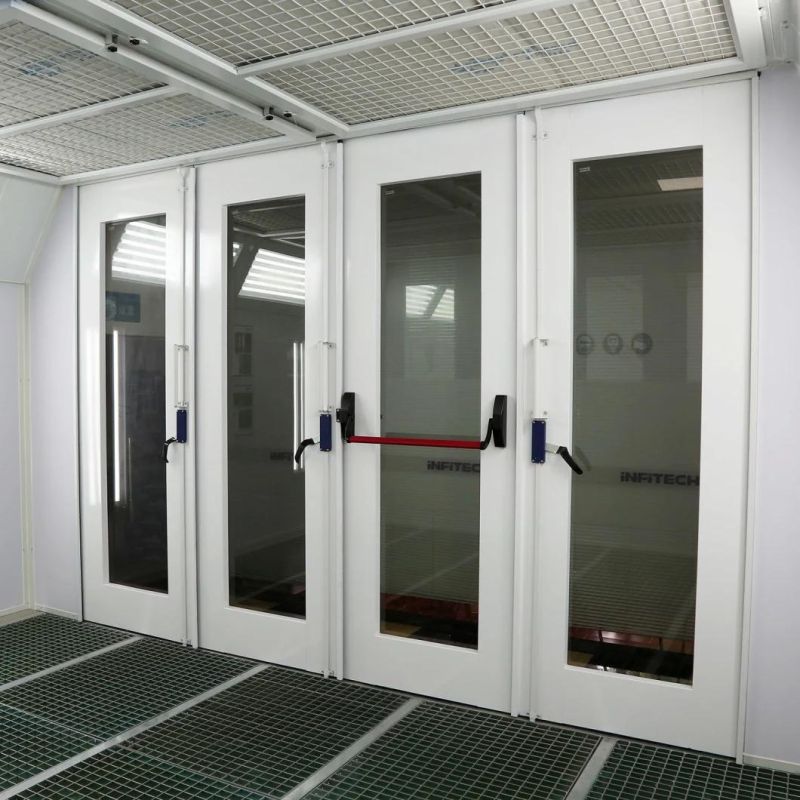

• 3-wing main entry doors, large tempering glass observation window
• With panic latch

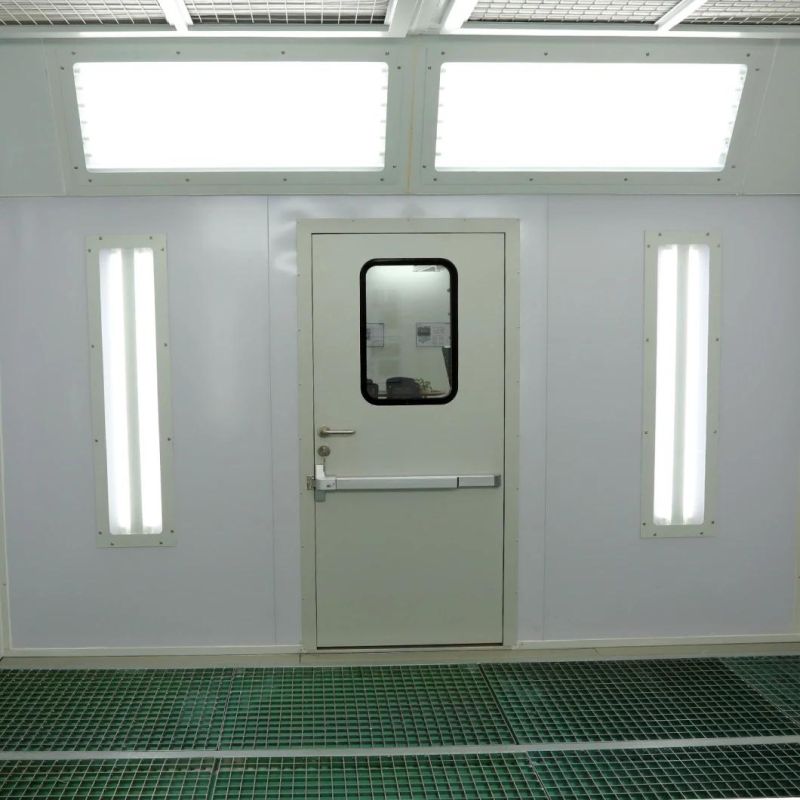

LIGHTS

• LED lamps, lamps serviced from outside the spray booth
• IP55 protection grade lighting fixtures

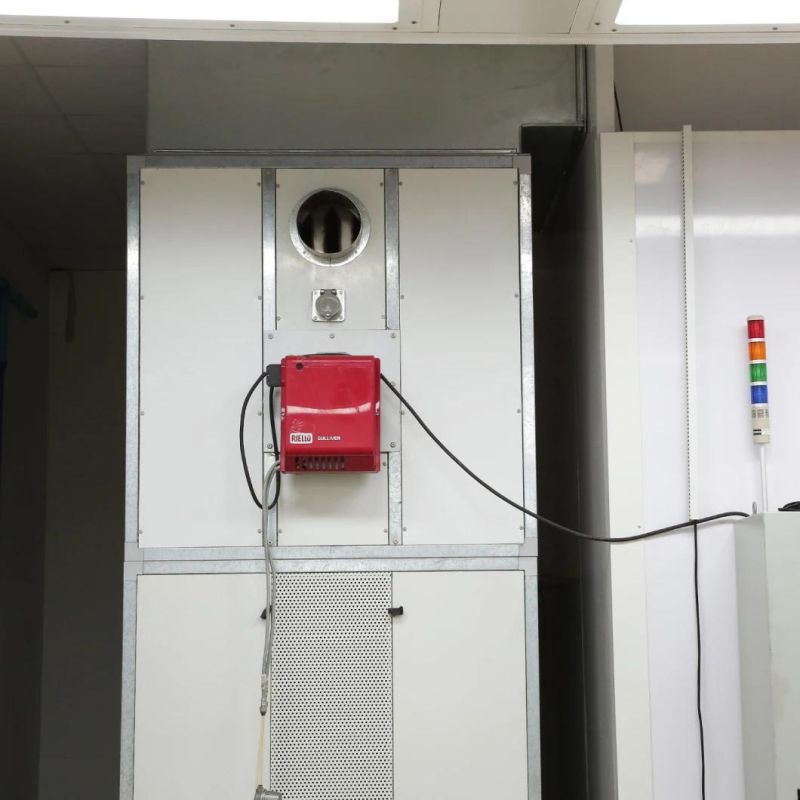

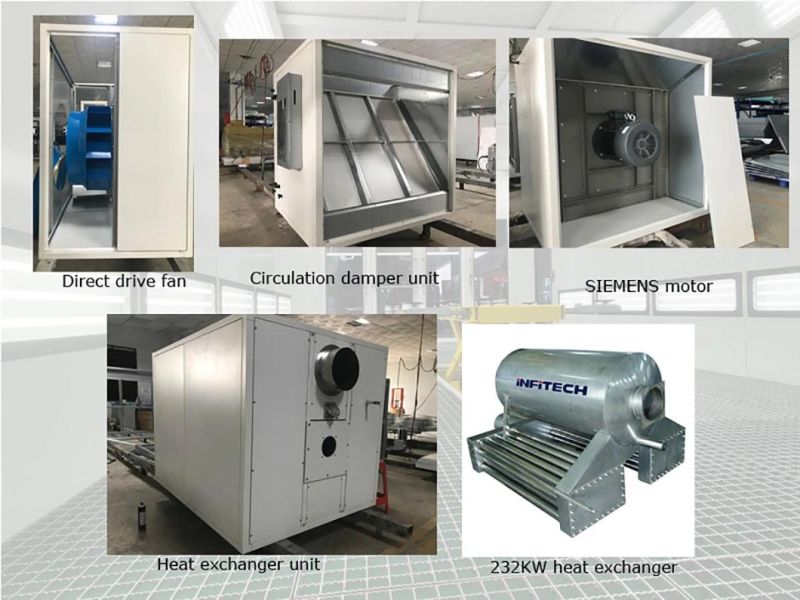

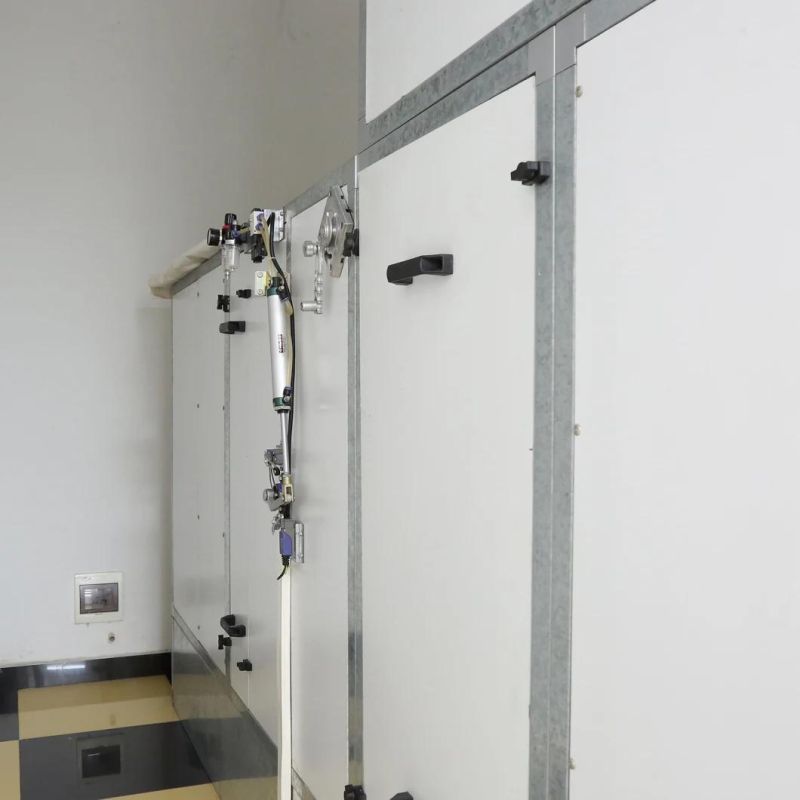

AIR HANDLING UNIT


Intake / Exhaust motor	Intake / Exhaust fan	Air volume	Drying system
7.5kw, ABB motor	IT750 backward centrifugal fan, direct linkage	28,000m³/h	232KW Diesel burner RG5D

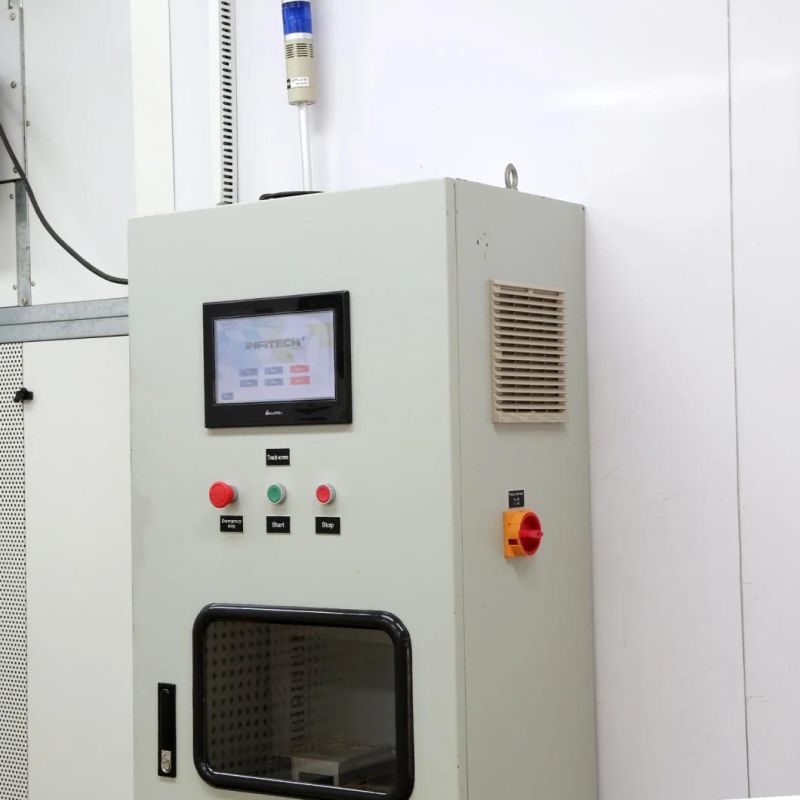

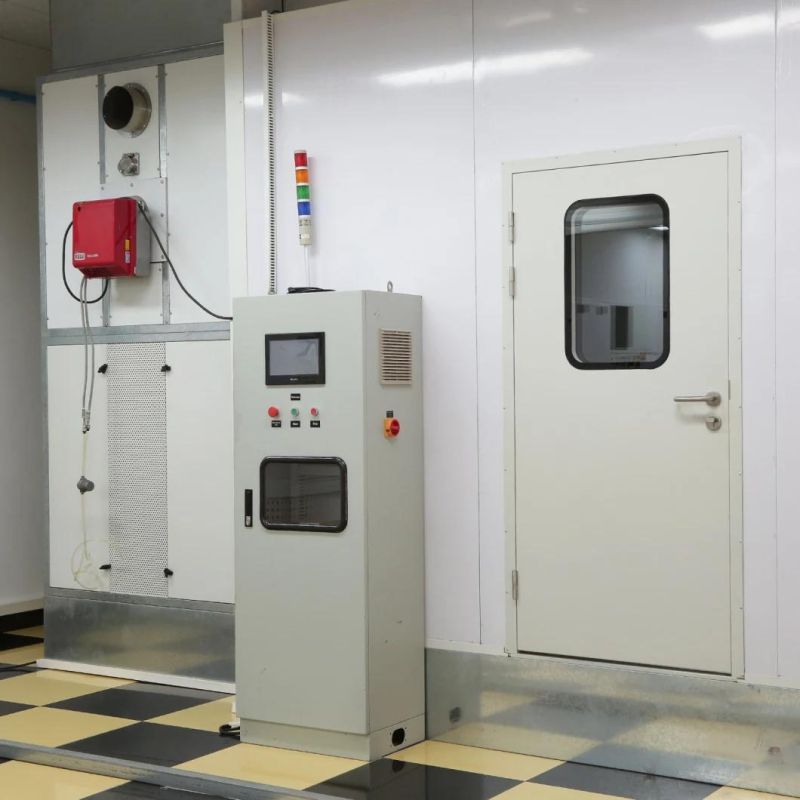

CONTROL

• Spray, bake, and cooling cycle
• SCHNEIDER brand electric components

UPGRADE

• SCHNEIDER inverter

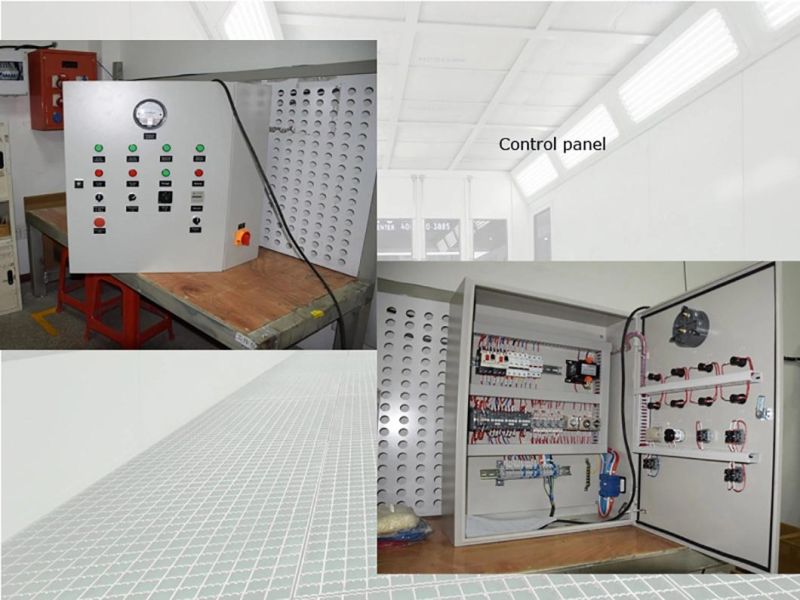

• Touch screen control panel

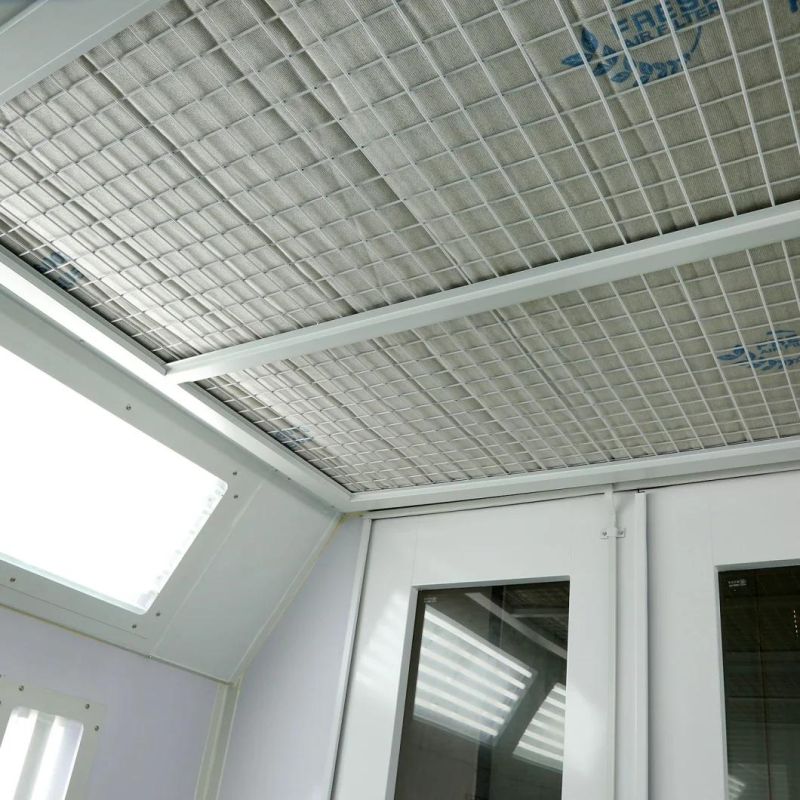

FILTERS

Item	Specification
Inlet filter	Bag filter
Micro-dust filter	High efficiency SP-600G
Floor filter	Fiberglass paint arrestor filter
Exhaust filter	Activated carbon filter mat

FAQQ: Can I order special color for the main entry door?A: No problem. Please advise the requested color. We will discuss more details with you.
 Q: What is the thickness of the substrate of the wall panels?A: The standard substrate thickness of the walls is 0.426mm. 0.6mm, 1.0mm thick substrate is also available.
 Q: What is the temperature increase capacity?A: For spray booth IT-701A, the temperature increase capacity in the spray phase is 25ºC (from -5ºC to 20ºC) based on 232kw heat exchanger, and RG5D diesel burner.
 Q: What is the heat exchanger made of?A: Stainless steel 1Gr18Ni9Ti (SUS304).
 Q: Can you supply spray booth according to the supplied voltage?A: Yes. It is okay. But the schedule for non-standard voltage will be relatively longer than that of standard voltage (380V/3ph/50Hz).
 Q: Is this spray booth suitable for water based paints?A: For IT-701A spray booth, the empty loaded air speed is 0.28m/s. For drying water based paints, we recommend that the no load air speed is at least 0.3m/s. We recommend upgrading the fan unit from 2*7.5kw (28,000m³/h) to 2*11kw (35,000m³/h). Alternatively, we can add air accelerator unit with air nozzles inside the booth to accelerate the drying process. Please contact us for more details.
