Spray Booth/Spray Booths/Garage Equipment/Paint Booth for Car Painting
Hangzhou Mig Packaging Co., Ltd.- After-sales Service：24 Hours After Service
- Warranty：2 Years
- Type：Spray Booth
- Certification：CCC, CE
- Substrate：Steel
- Brand：Infitech
Base Info
- Model NO.：IT-SUPER-L8
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Gas
- Paint Mist Treatment：Dry-type
- Condition：New
- Product Name：Automotive Painting Room
- Keyword：Painting Room
- Usage：Car Painting and Baking
- Walls：Rock Wool Panel
- Plenum：600mm High
- Lights：LED Lamp
- Brightness：>1,500lux
- Filter：High Efficiency Filter
- Fan：Big Impeller Direct Drive Fan
- Motor：Siemens Motor
- Air Volume：35,000m3,H
- Noise：<78dB
- Empty Loaded Air Speed：+,- 0.30m,S
- Burner Model：Riello Gas Burner RS5d
- Transport Package：Polyfoam and Metal Frame
- Specification：8000X4000X3000mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1, 000pieces,Year
Description
Spray Booth/Spray Booths/Garage Equipment/Paint Booth for Car PaintingITEMS SPECIFICATIONS Design standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Internal dimensions 8000 x 4000 x 3000mm (L x W x H) External dimensions 8110 x 5760 x 4010mm (L x W x H) Entrance door 1 set, 3400 X 3250 mm (W X H) Personnel door 1 set, 800 X 2000 mm (W X H) Ceiling lighting (LED) 10 sets, each 6 X18W, 1,080W total Sidewall lighting (LED) 10 sets, each 2 X 18W, 360W total Brightness >1,500LUX Filters Pre-filter, ceiling filter, floor filter, exhaust filter Air intake Direct-type turbine fan, 11KW explosion-proof motor Air exhaust Direct-type turbine fan, 11KW explosion-proof motor Air volume 35,000m3/h Empty loaded air speed +/-0.30m/s Air exchange times 6 times/min Maximum working temperature 80ºC Heat exchanger power 315KW Burner (Max. calorific value) RIELLO gas burner RS5D (two stage) Controls CE standard control box Rated power 30KW

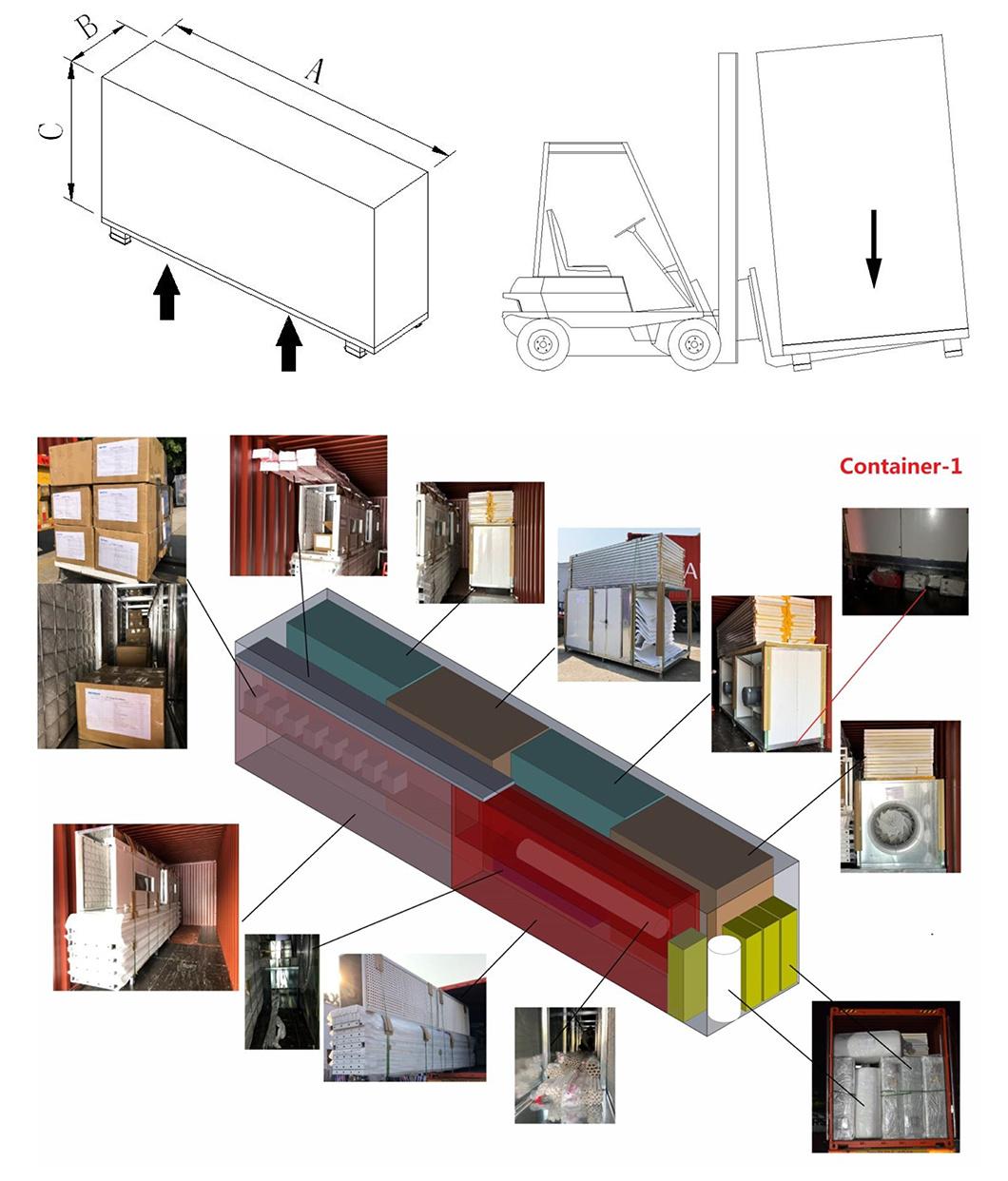

4) Packing and loading details

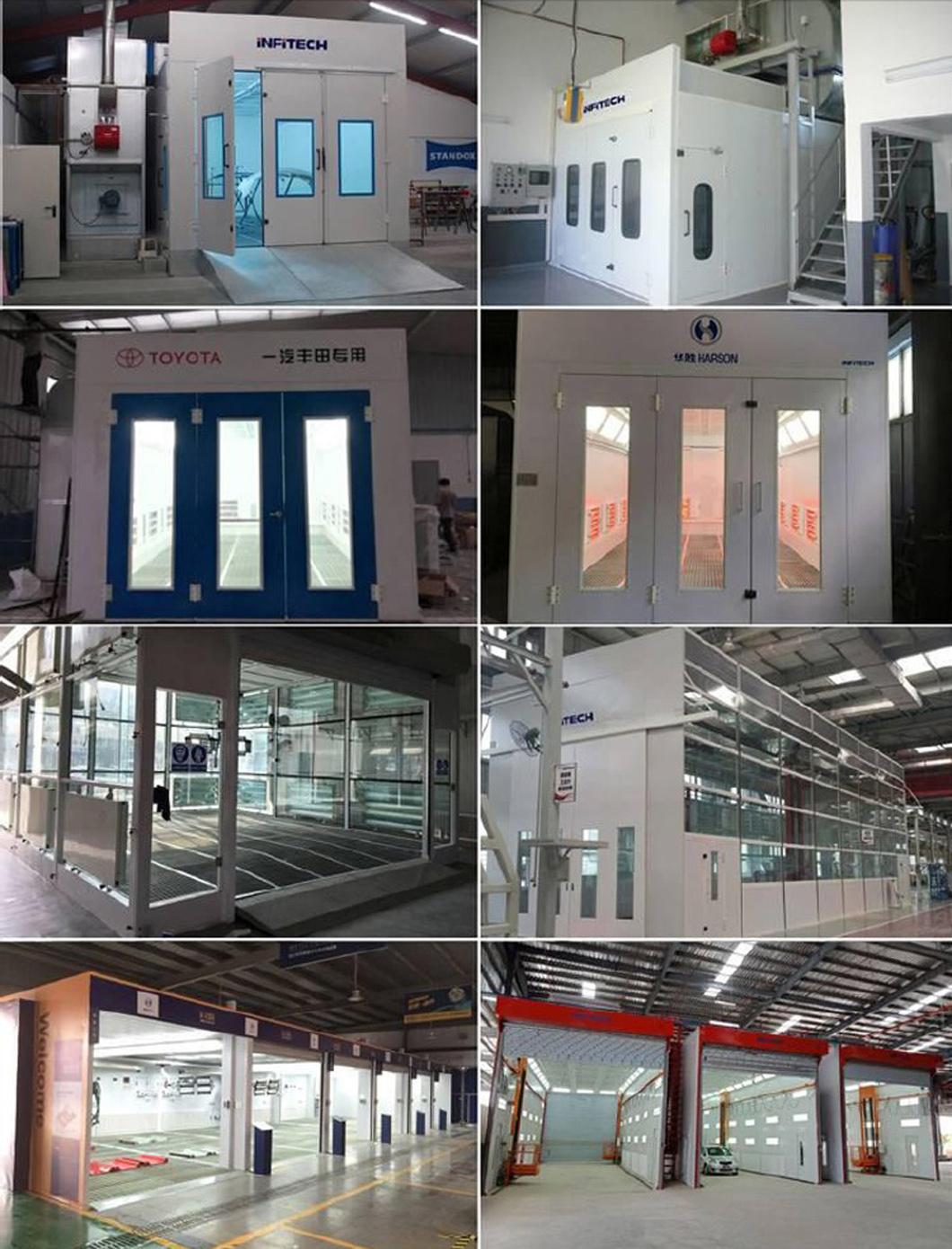

5) Engineering case

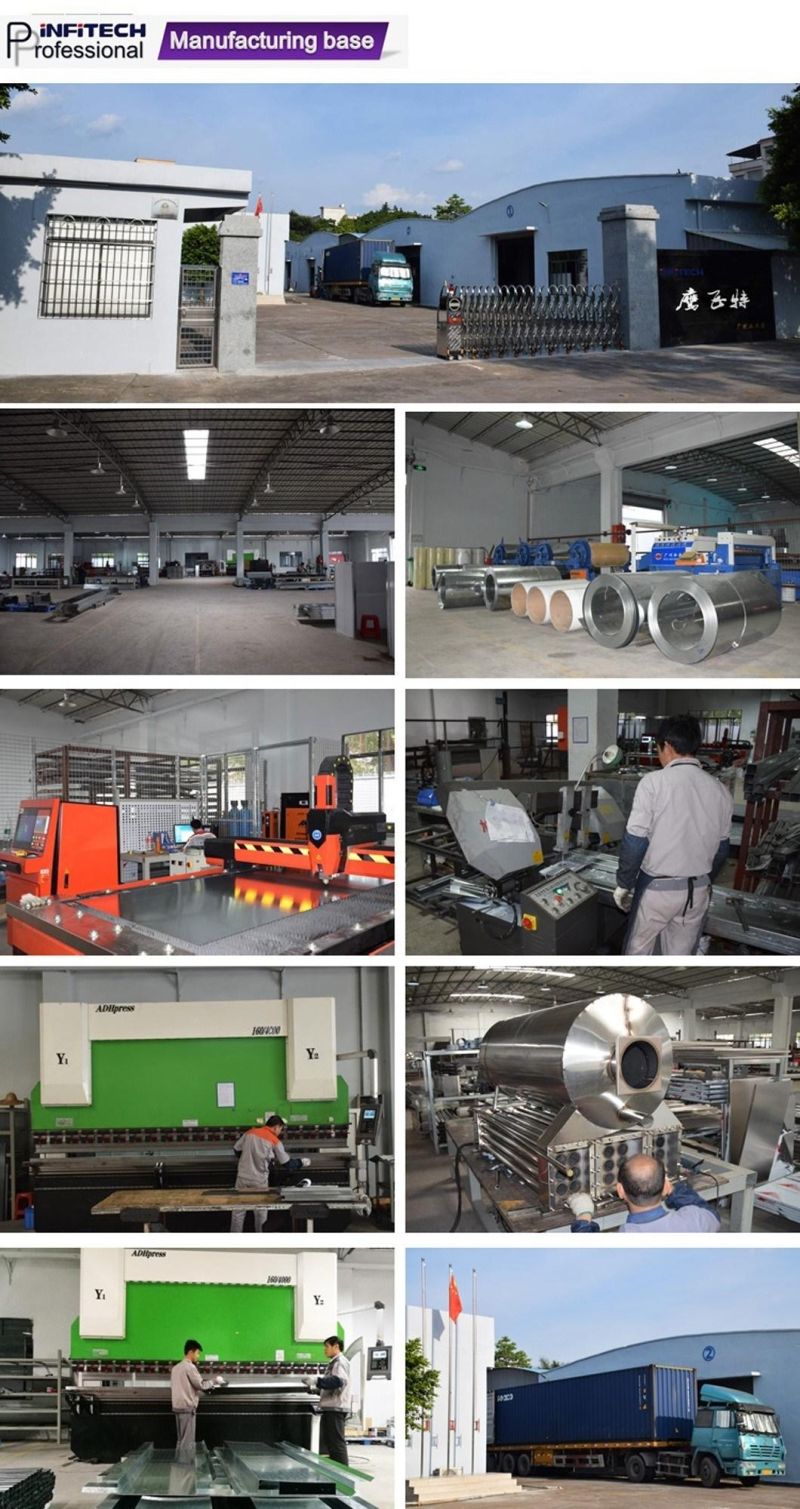

6) Company information
Guangzhou Infitech is professional manufacturer of customized CE certified spray booths in China. We stick to European standard for spray booth since the business started. We offer complete solution from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized solution that suit your individual needs.

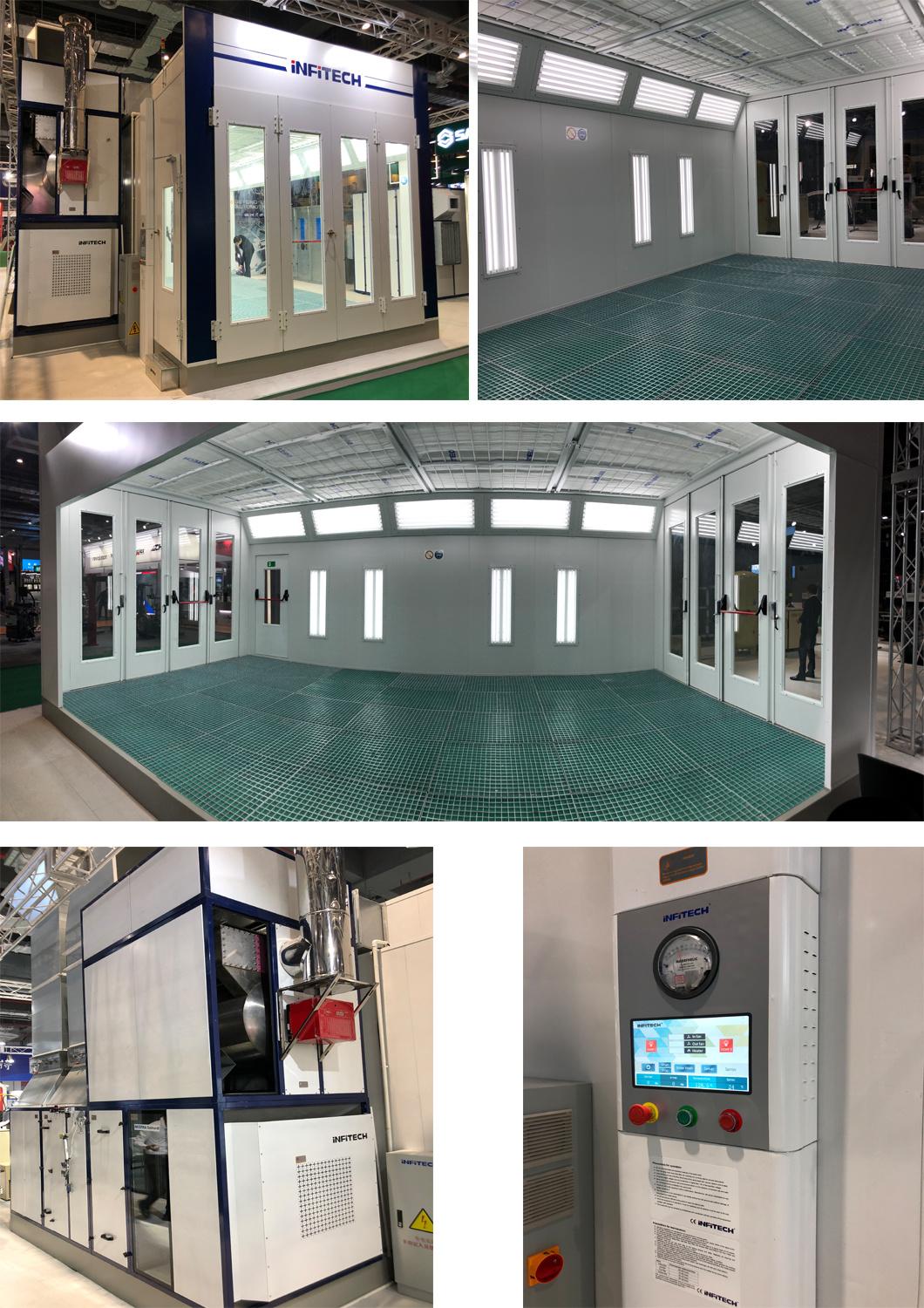

7) INFITECH at exhibition
Welcome to contact us for business!
BS EN 60204: 2006 + A1: 2009
4) Packing and loading details
- Cargo is loaded on metal frame to facilitate convenient loading and unloading by forklifts.
- 1x1.5T forklift & 2 people for loading and unloading.
5) Engineering case
6) Company information
Guangzhou Infitech is professional manufacturer of customized CE certified spray booths in China. We stick to European standard for spray booth since the business started. We offer complete solution from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized solution that suit your individual needs.
7) INFITECH at exhibition
Welcome to contact us for business!
