• Model NO.：2.6mm
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport
• IP Rating：IP33
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：250X250mm
• Module Resolution：96X96dots
• Cabinet Size：500X500mm
• Cabinet Resolution：192X192dots
• Screen Brightness：1500nits
• Refresh Rate：1920Hz-3840Hz
• Compliance：Ce,CCC,FCC,RoHS
• Service：Rear Maintenance, Front Maintenance
• Controller：Novastar, Linsn
• Transport Package：Flight Case
• Specification：500x500mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 2.6mm System Operating Platform Windows Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport IP Rating IP33 Certification CE, RoHS, UL, CCC, ETL Module Size 250X250mm Module Resolution 96X96dots Cabinet Size 500X500mm Cabinet Resolution 192X192dots Screen Brightness 1500nits Refresh Rate 1920Hz-3840Hz Compliance Ce/CCC/FCC/RoHS Service Rear Maintenance/ Front Maintenance Controller Novastar/ Linsn Transport Package Flight Case Specification 500x500mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

V SERIES PRODUCT FEATURES:

· Quiet fan design, excellent heat dissipation.,

· Sidelocks design for better consistency and seamless assembly.

· High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

· High-performance metal plate cabinet, concise cable.

· The sealed-type back cover, effectively prevent wrong operations from the amateur.




PRODUCT SPECIFICATIONS:

NO.	Item	Parameters
1	Model	V02
2	Pixel Pitch (mm)	2.6
3	Physical Density (dot/m2)	147929
4	LED Configuration	1R1G1B
5	LED Type	SMD2020
6	Module Size (mm x mm)	250*250
7	Module Resolution (PX x PX)	96*96
8	Module Power Consumption (W)	26
9	Drive Mode	1/32 Constant Current Drive
10	Horizontal Viewing Angle (Deg)	160
11	Vertical Viewing Angle (Deg)	160
12	Brightness (cd/m2)	1,200
13	Grey Scale	14
14	Refresh Rate (Hz)	≥1920
15	Cabinet Resolution (PX x PX)	192*192
16	Cabinet Max Power Consumption (W)	750
17	Cabinet Average Power Consumption (W)	250
18	Cabinet Size (mm x mm)	500*500
19	Cabinet Weight (Kg)	9.9
20	Cabinet Thickness (mm)	88
21	Cabinet Material	Die-casting aluminum
22	Color (M)	>16.7
23	Input Voltage (V)	AC 110V~220V+/-10%
24	Refresh Frame Frequency (Hz)	60
25	Protection Level	IP33
26	Working Environment	Indoor
27	Working Temperature (ºC)	"-20°- +40°
28	Operation humidity (RH)	10%-90%
29	Certificates	CCC, CE,RoHS

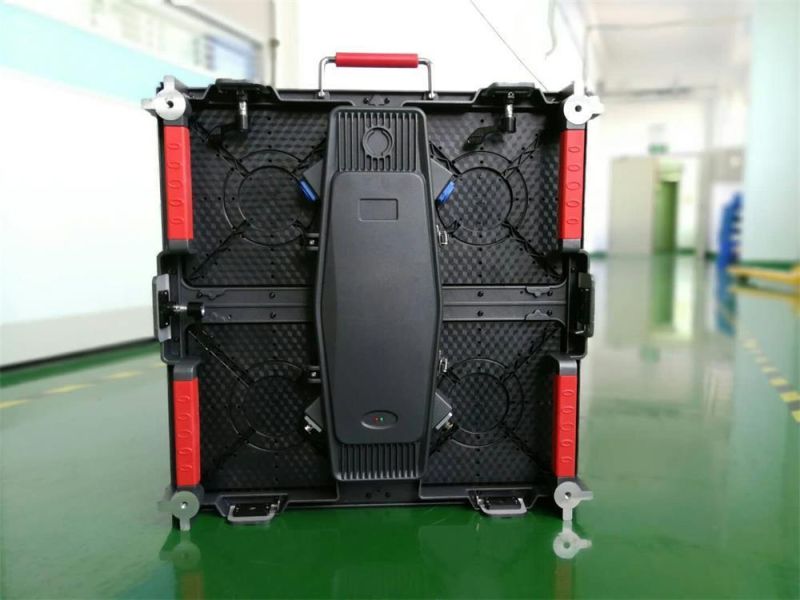

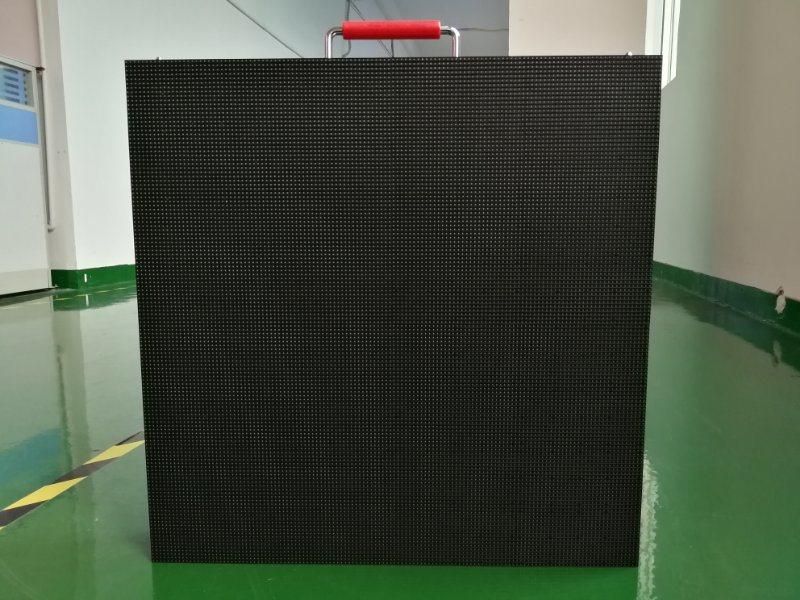

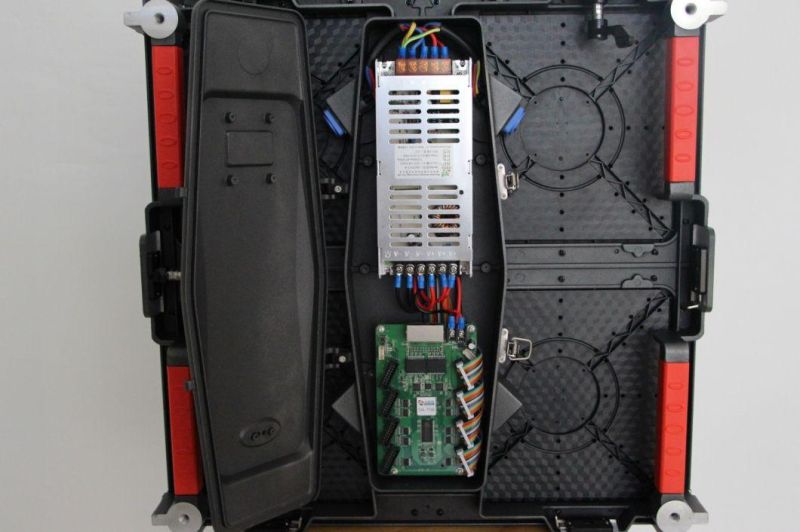

LED Display Panel photos:

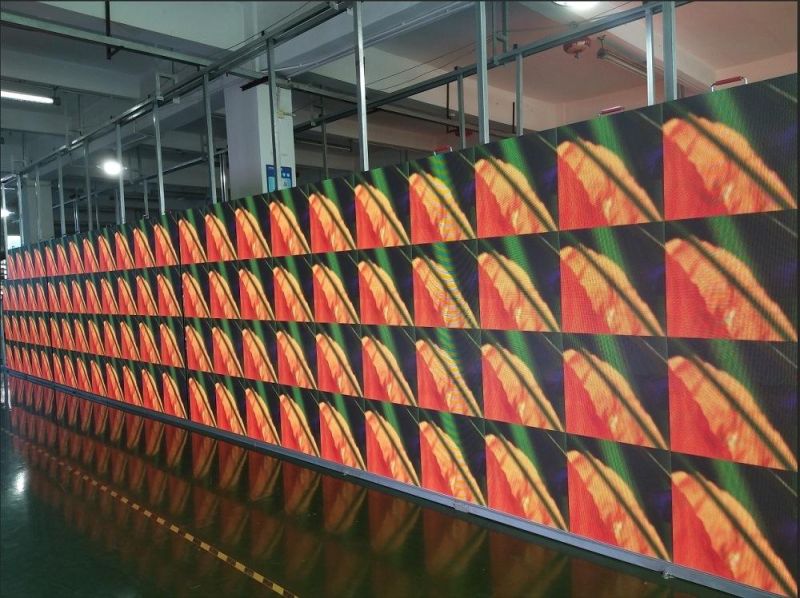

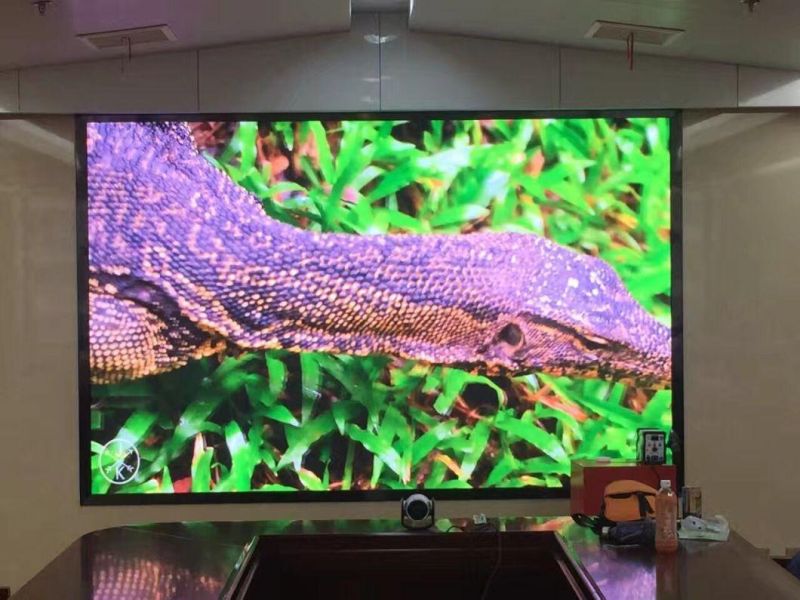

LED display Project With CKGLED Brand:

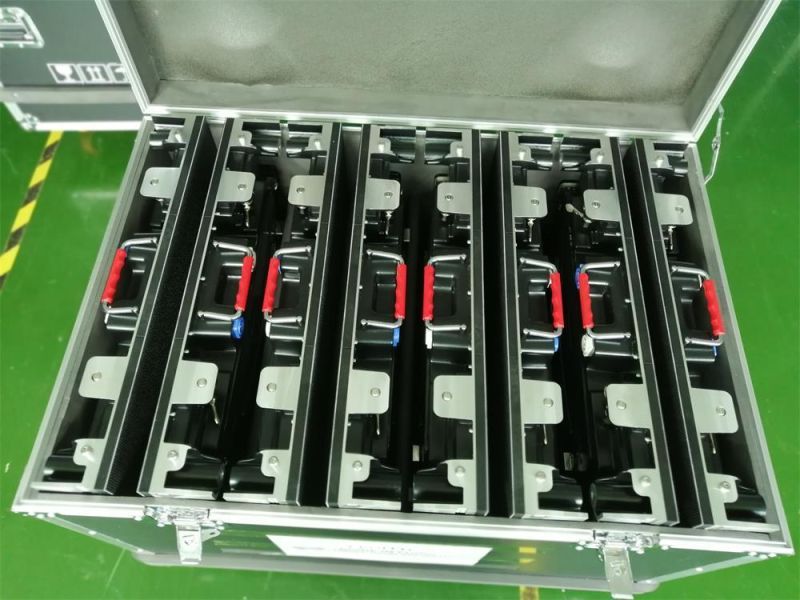

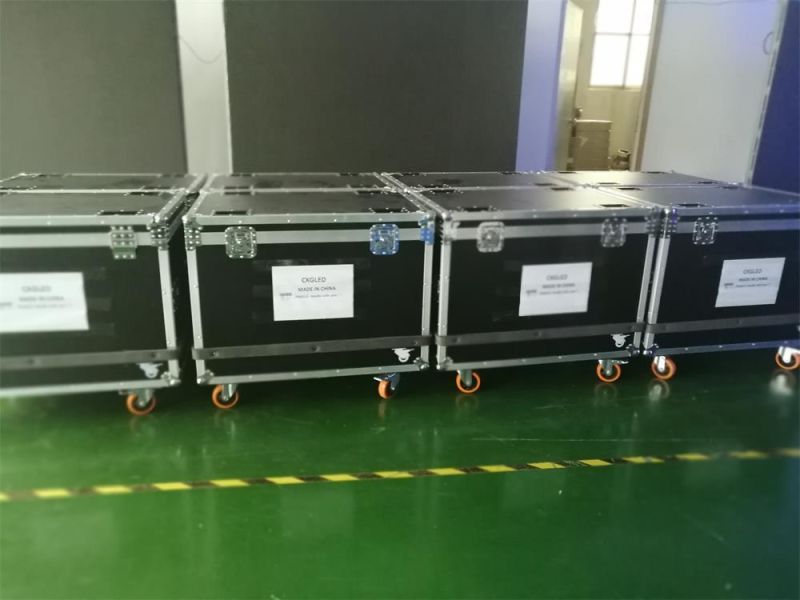

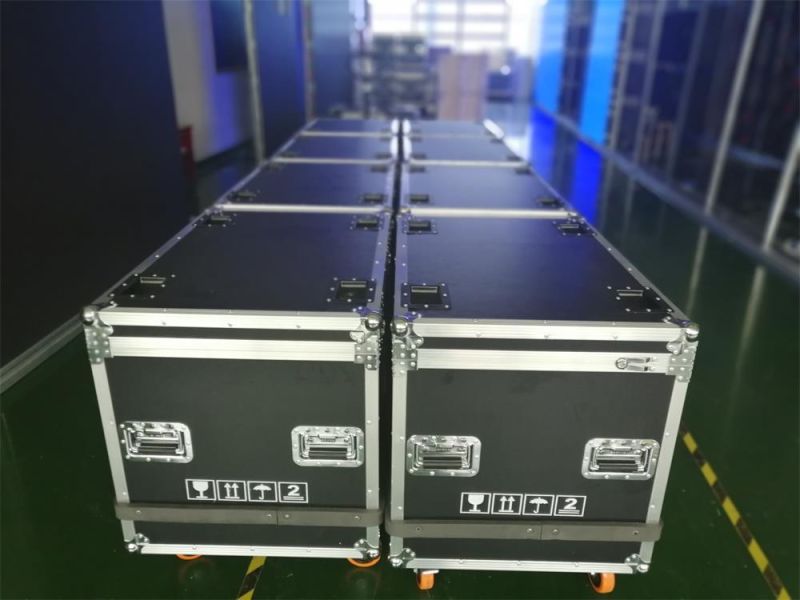

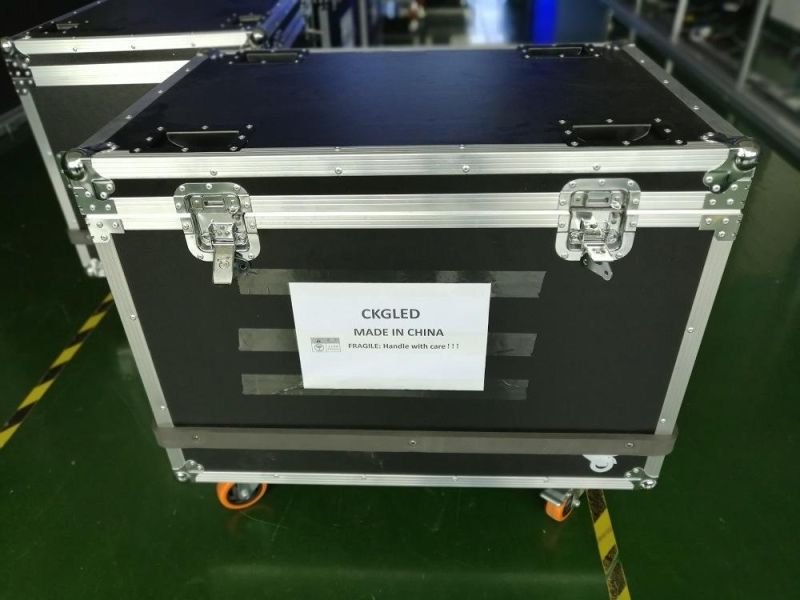

Package:








Certificates:
