• Model NO.：HRE19025
• Separated：Separated
• Transport Package：Wooden Box
• Specification：Customized
• Trademark：HBB
• Origin：Luoyang, China
• Production Capacity：30000 PCS Yearly

Basic Info.

Model NO. HRE19025 Separated Separated Transport Package Wooden Box Specification Customized Trademark HBB Origin Luoyang, China Production Capacity 30000 PCS Yearly

Product Description

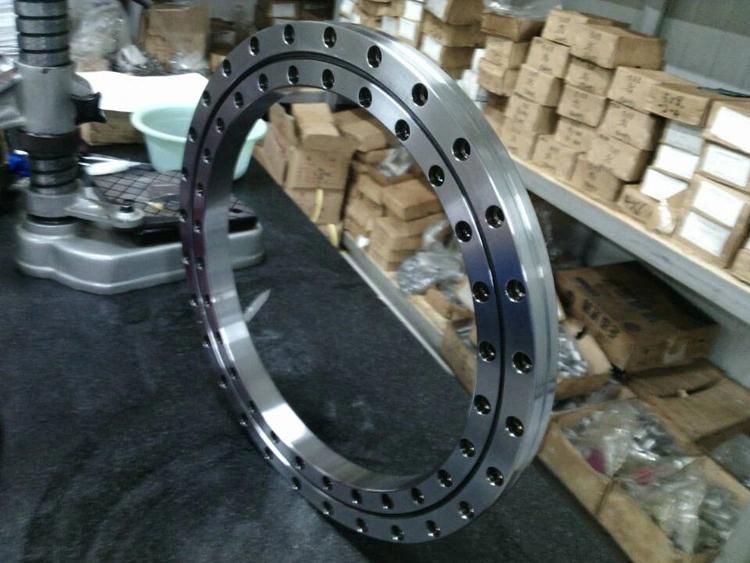

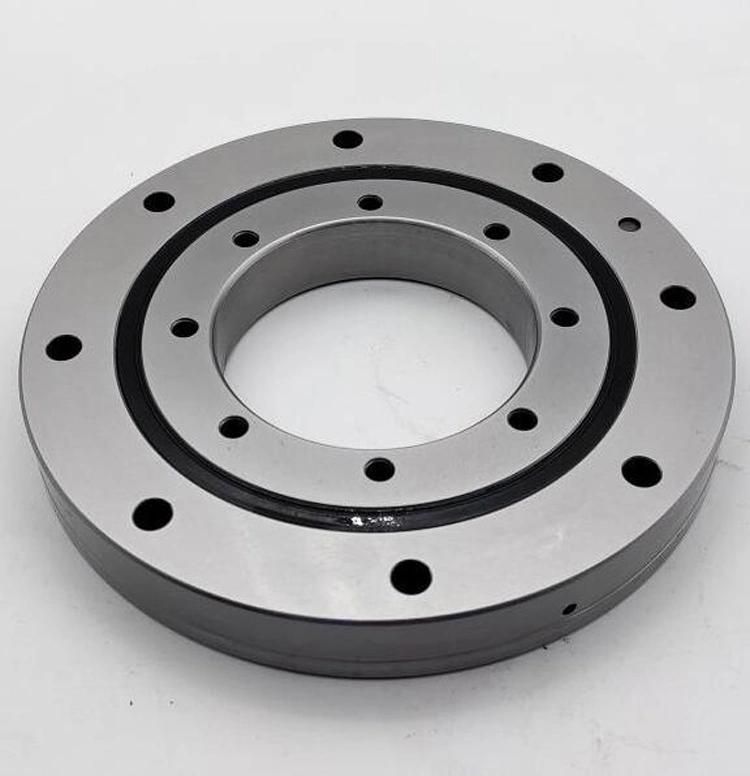

HBB High Accuracy Crossed Cylindrical Roller Bearing


Crossed Roller Bearings consist of an outer ring, an inner ring, and a plurality of rollers and spacers. The roller lies between the inner and outer ring with the spacers placed between the rollers to prevent the mutual friction between them thereby decreasing the torque resistance for rotation.

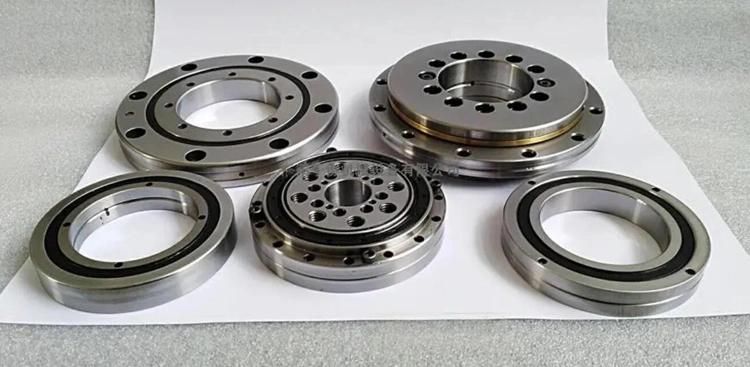

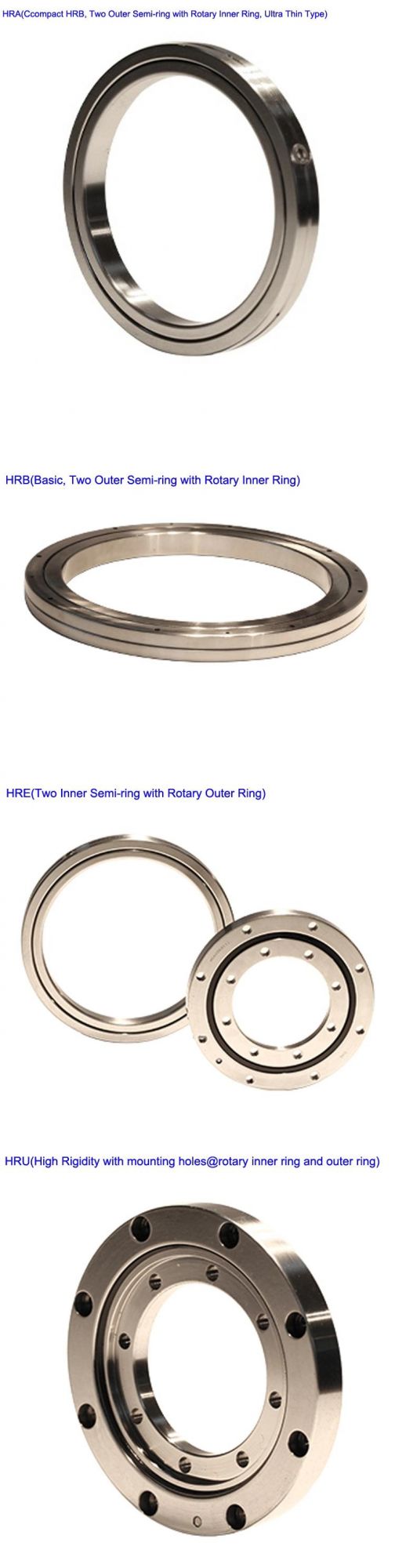

There are 4 types of Crossed Roller Bearings comprising of, the compact split outer ring type (HRA), the basic split outer ring type (HRB), the split inner ring type (HRE), the high rigidity type with mounting holes(HRU).


Typical Applications:
Accuracy rotary indexing tables of machine tool;
Central Shaft of machine tools
Vertical and Horizontal boring machines,
Rotating Bogies
Vertical Grinding Machines.
Welding brackets
Rotary surface grinders
Mooring buoys of large tanker
Large hobbling machines
Slewing assembly angle tools
Gun and radar turrets

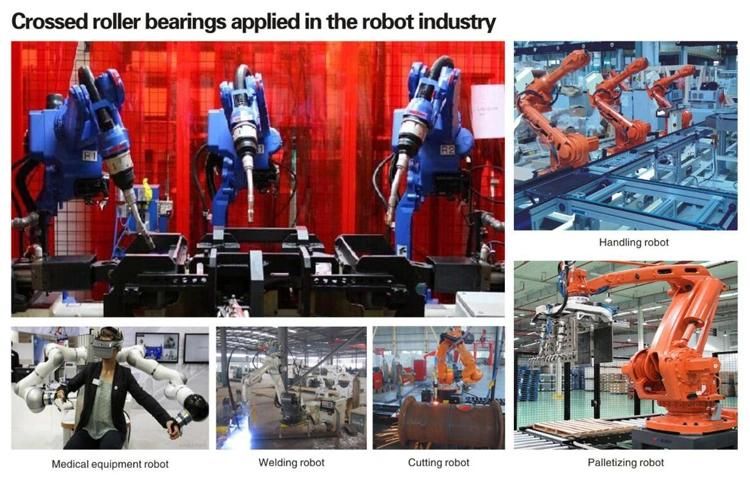

Industrial Robots
Large radio and optical telescopes
Accuracy rotary tables
Rotary cameras
Medical devices
Steering pivots and continuous casting machines
Measuring instruments
Highly restricted pivots
IC manufacturing apparatus
Microscope benches

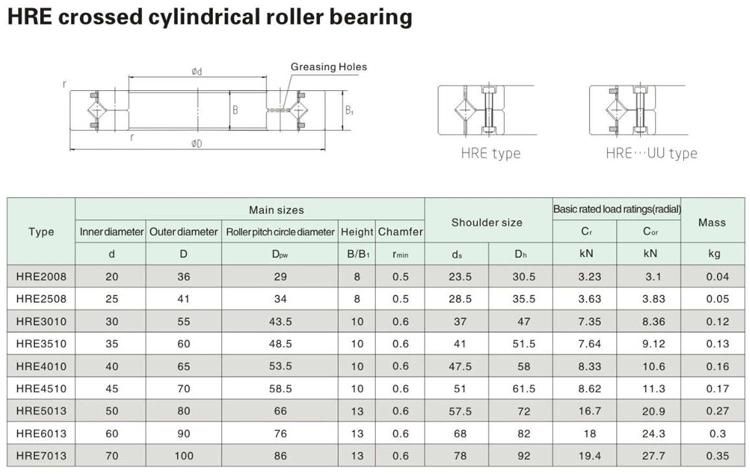

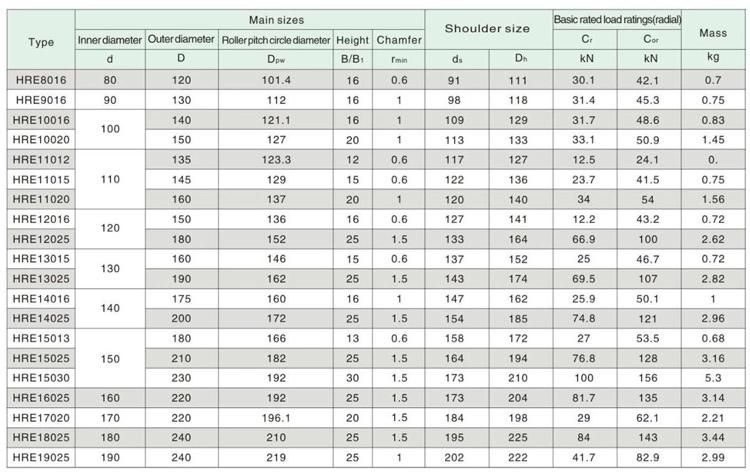

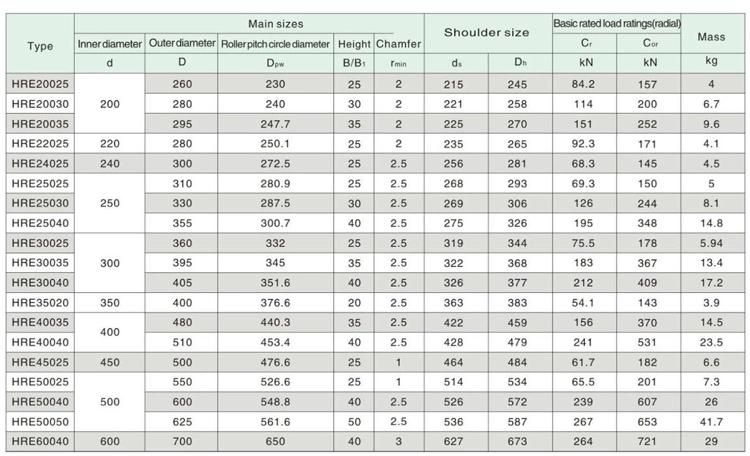

Technical Specifications:

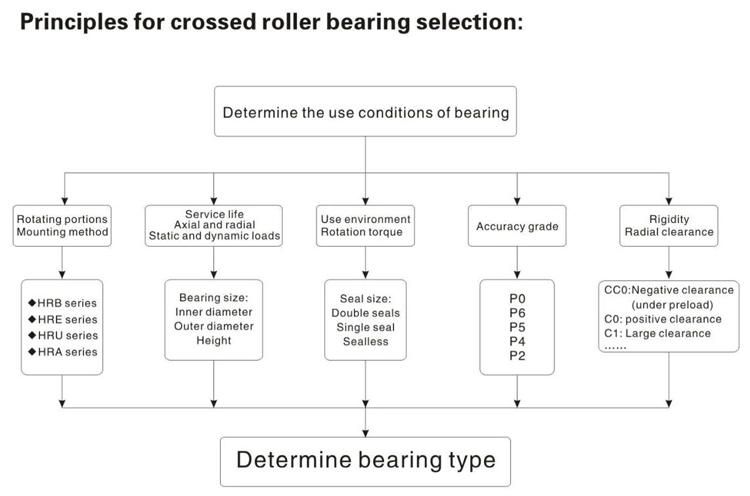

How to Choose a Right Crossed Roller Bearing:
