SMD3528 24V Topview LED Neon Strip Light
Foshan Baoshengyuan Packaging Factory- Certification：UL, EMC, RoHS, CE, IP68
- Power：9,10W,M
- Emitting Color：2200K,3000K,4000K,5000K,6000K
- Voltage：24V DC
- IP Rating：IP68
- Product Name：Topview Neon Flex
Base Info
- Model NO.：F16 Mono color
- Warranty：3 or 5 Years
- Lamp Body Material：Eco PVC
- LED Type：SMD 3528
- LEDs Qty/M：120,144PCS
- Min. Cutting Unit：12LEDs
- CRI：>80
- Max Length：20m
- Min. Cutting Length：8.33,10cm
- Bending Direction：Vertically
- Transport Package：Natural Packing

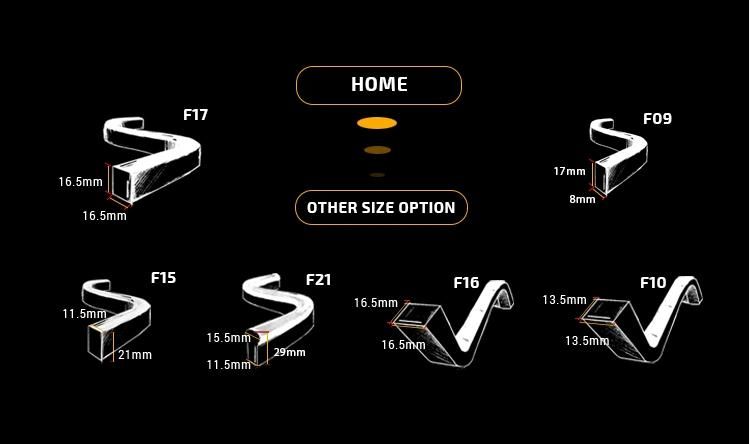

- Specification：16.5mm*16.5mm
- Trademark：OLYMPIA
- Origin：China
- HS Code：9405409000
- Production Capacity：500000m,Years
Description
Model:F16-24V-2835-120-CCF16-24V-3528-144F16-24V-3528-120 Working Voltage: 24V DC24V DC24V DC Power per Meter:10W10W9W Working Mode:CCCVCV LED Type:SMD 2835SMD 3528SMD 3528 LED Qty / meter:120pcs144pcs120pcs Available CCT:2200K-6500K2200K-6500K2200K-6500K Min. Cutting Unit:6LEDs12LEDs12LEDs Min. Cutting Length:5cm8.33cm10cm Max Length Single Feed:98.42'/30m32.8'/10m32.8'/10m Lumen Maintenance:70,000 Hours L70@ 25°C, 50,000 Hours L70@ 50°C Material:Eco PVC or silicone Min. Bending:Dia 12cm Beam Angle:120 Degree Bending Direction: Vertically Installation Temp.:0°C to +55°C Ambient Temp.:-25°C to +55°C Warranty:3 or 5 Years

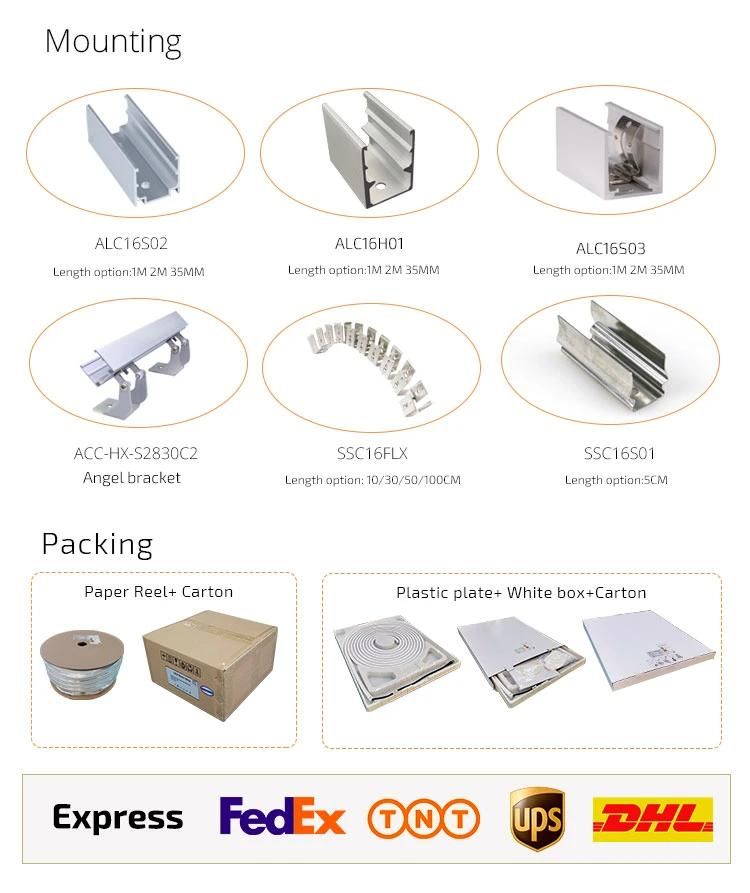

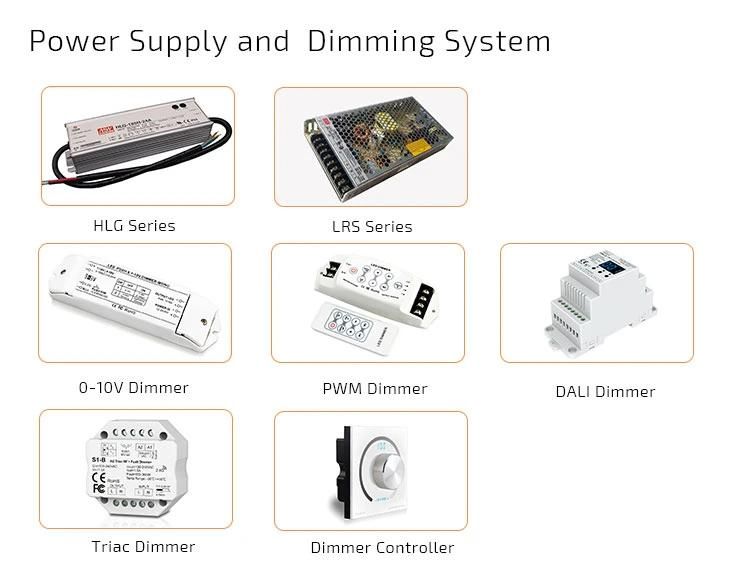

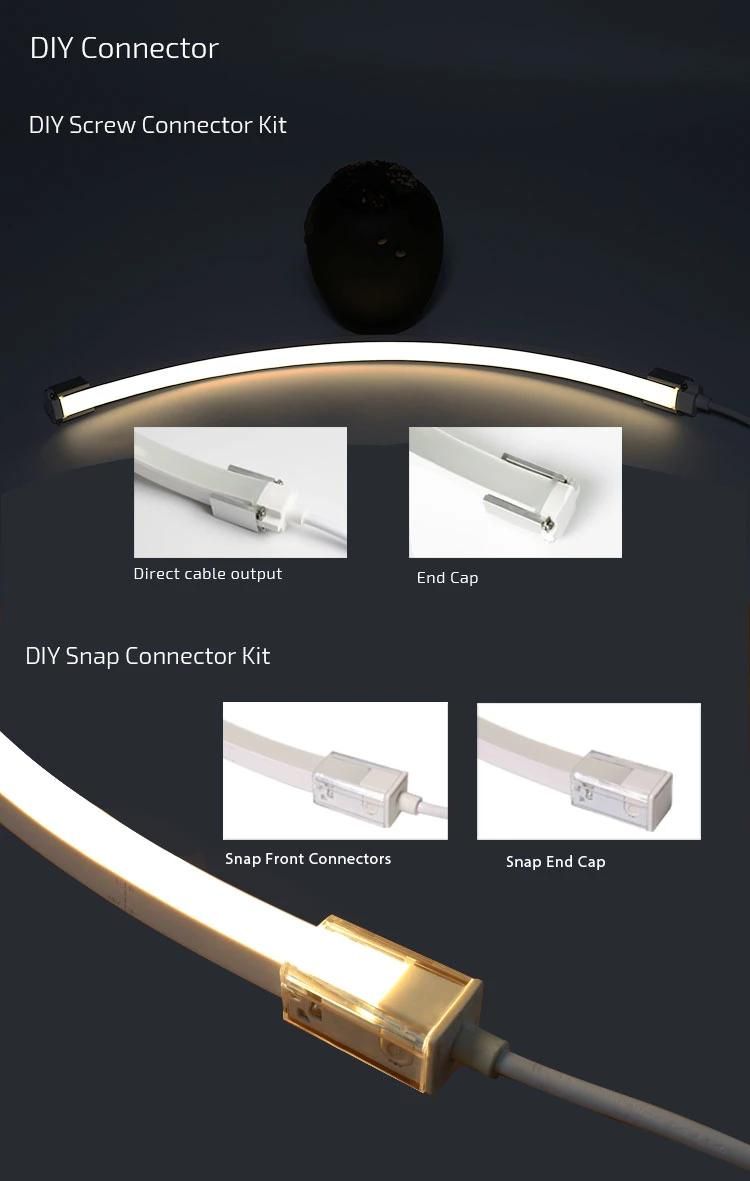

Accessories

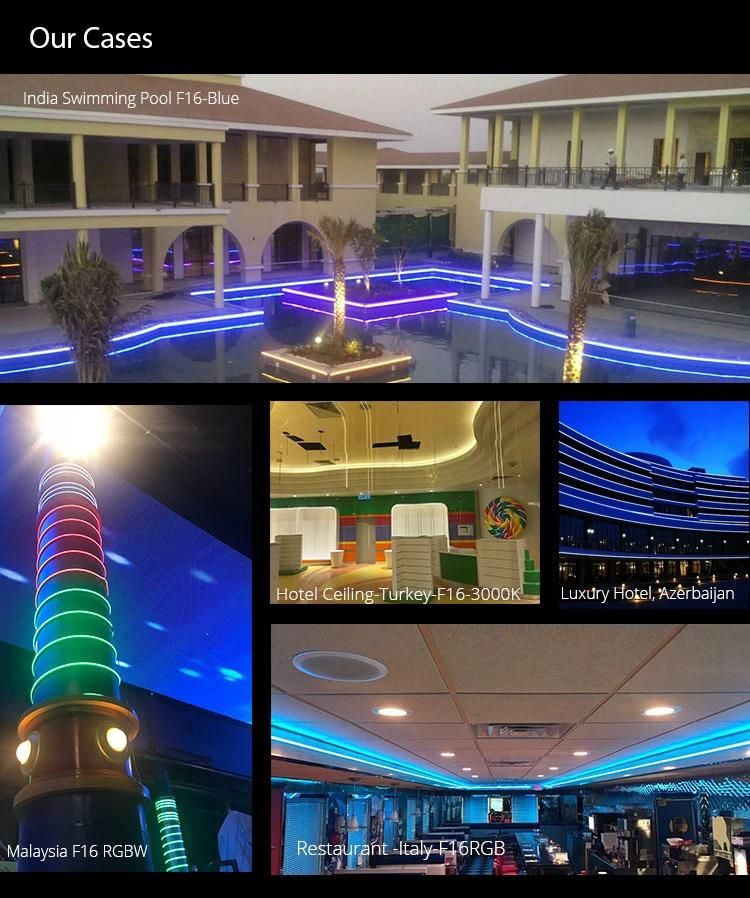

Product Application
Company Information
Our Services
Certificate
More product
