Slim 500 X 500 mm P4.81 LED Screen Display Panel with High Quality Nation Star LEDs
Xuzhou Whuchan Co., Ltd- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：4.81mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：P 4.81
- Pixel Density：43264dots,Sq.M
- Scanning Mode：1,13 Scan
- Display Type：LED Video Display
- Application：Stage Performance, Advertising,Rental
- Certification：CE, RoHS, ETL, FCC
- Type of LEDs：SMD2727 or SMD1921
- Panel Size：500X500mm
- Panel Resolution：104X104 Dots
- Module Size：250 X 250 mm
- Transport Package：Flight Case
- Specification：CE, ROHS, FCC, ETL
- Trademark：PRT
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：3000sq. M,Month
Description

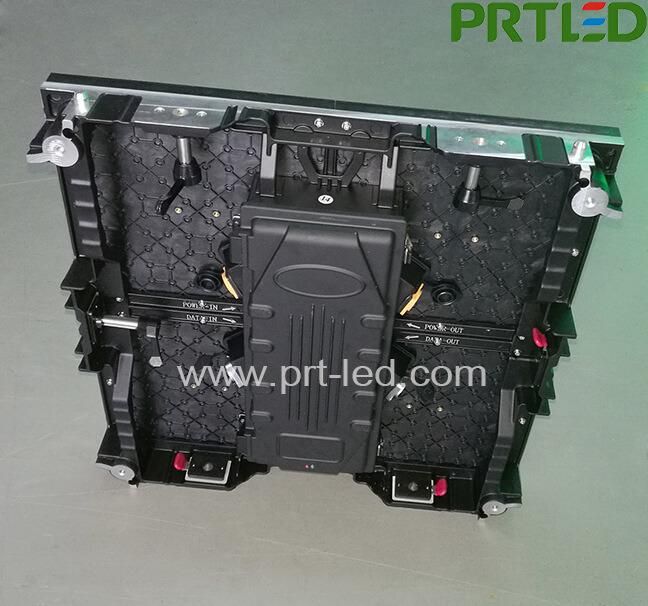

P4.81 Outdoor full Color LED Screen SpecificationPixel pitch 4.81mm Pixel Configuration 1R1G1B LED component SMD2717 black Size of module 250mm x 250mm Resolution of module 52x52 dots Size of cabinet 500mm x 500mm x 75mm Resolution of cabinet 104x104dots Material of Cabinet Die-casting Aluminum Weight of Cabinet 8kgs Brightness >5500cd/sq.m Density 43264dots/sq.m Best viewing angle 160 /140 Pixel Configuration 1R1G1B Best viewing distance 3-60M Maximum power consumption 800W/sq.m Average power consumption 300W/sq.m Driving method 1/13 scan Control method Synchronization Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >2000Hz IP grade IP65 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
also can choose other cabinet outlooking,there will some different material costs for different production craft

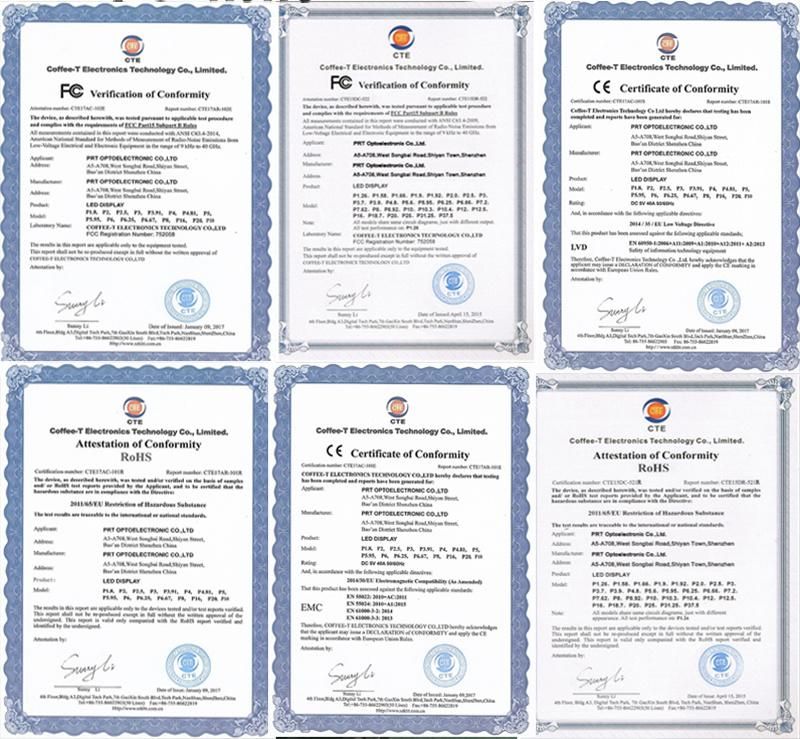

all of our products produced according to the international standards CE,ROHS,FCC,and with strict quality control system to confirm everything is ok at each process,and ensure to provide high quality to customers
