4 Ton Hot Sale Manual Release Two Post Gantry Car Lift
Ningbo Suyou Plastic Co., Ltd.- Type：Double Cylinder Hydraulic Lift
- Lifting Capacity：4T
- Driving Type：Hydraulic
- Certification：CE, ISO
- Driving Motor Number of Mechanical Lift：2
- Double Cylinder Lift Type：Planer-type
Base Info
- Model NO.：BH9S
- Condition：New
- Brand：Baohua
- Design：Two Post
- Lifting Heigh：1980mm
- Lifting Time：50s
- Total Height：3800mm
- Total Width：3510mm
- Column Width：2830mm
- Weight：700kg
- Power Supply：220V,380V
- Minimum Height：100
- Transport Package：Export Packing
- Specification：1.2CBM
- Trademark：BaoHua
- Origin：China(Mainland)
- Production Capacity：1000set,Month
Description
Technical ParameterLocking Mode Manual Release Lifting Capacity 4.T Max Lifting Height 1980mm Min Height 90mm Width between Pillars 2830mm Height of the Post 3550mm Overall Width 3445mm Rise Time <50s Power 2.2kw Power Supply 220V/380V..., 50/60Hz Net Weight 680kg Hydraulic Oil 46#/ 68# Noise <76dB

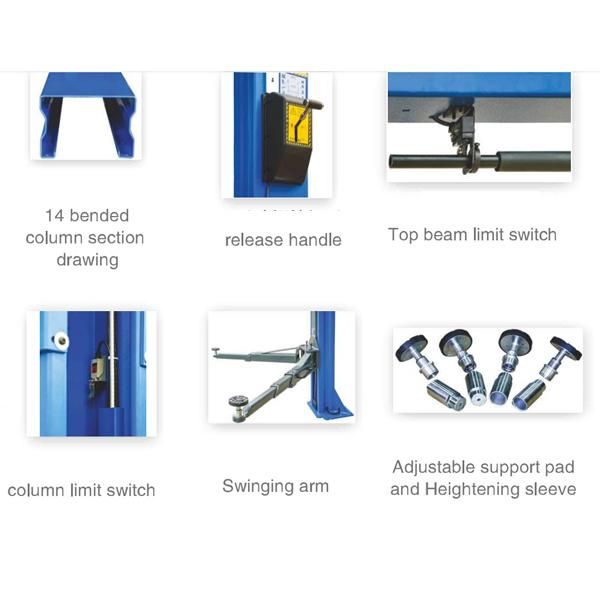

Main Features
1) Manual release
2) Baseless design for easy movement of maintenance equipment under the raised vehicle.

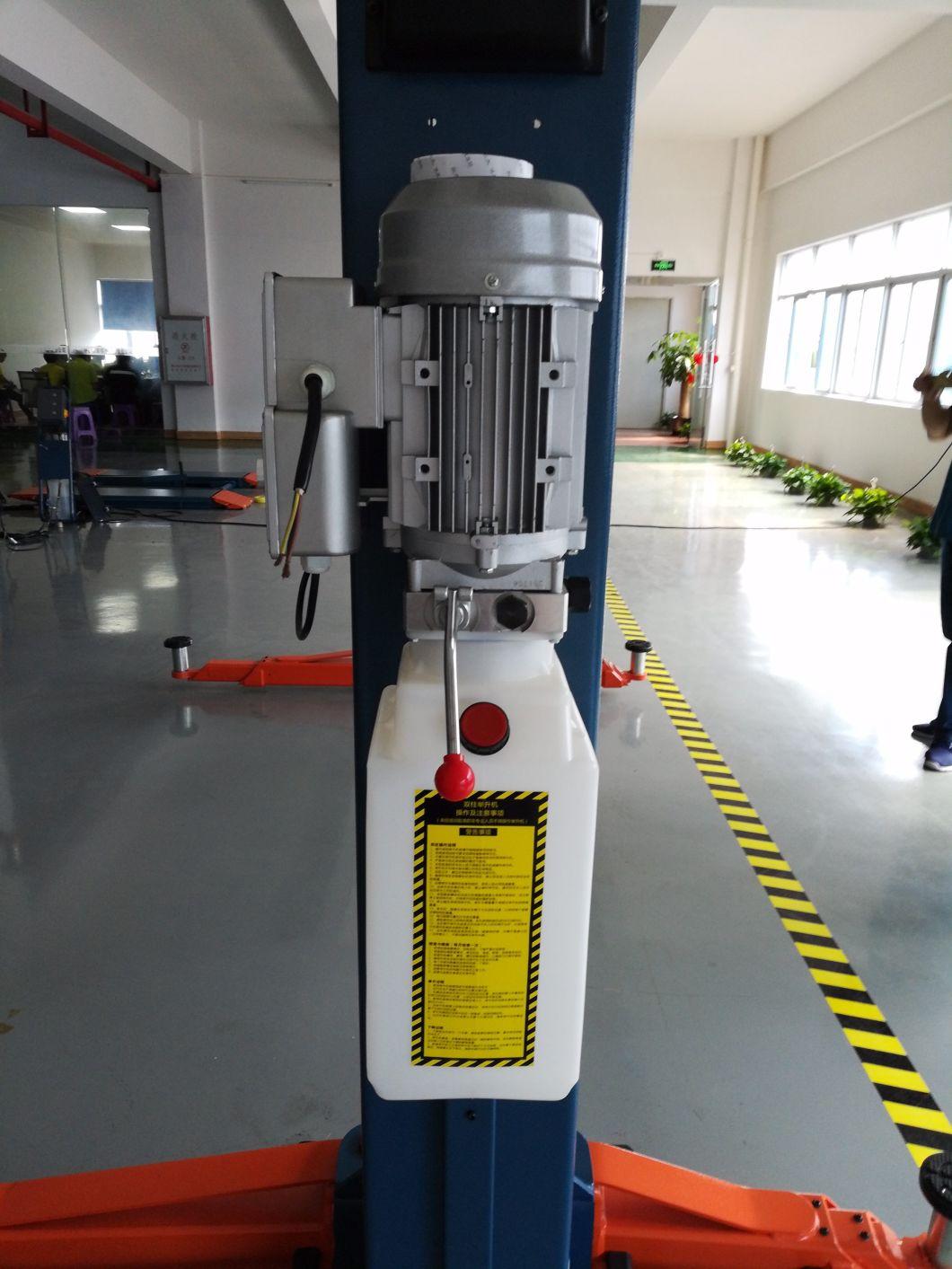

3) Standard aluminum motor avoids overheated and ensures long service life.
4) Dual hydraulic cylinders ensure steady lifting and lowering
5) Italy imports sealing ring.
6) Safety locks in each column.

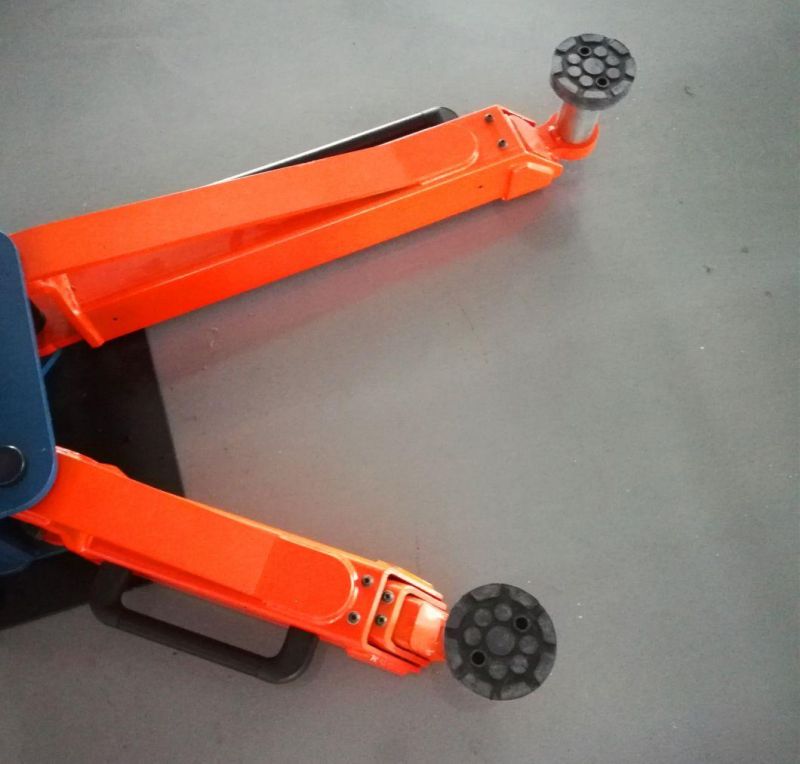

7) Asymmetric arm, suitable for more vehicles.
8) Three-section thread height adjustment tray screws, suitable for different chassis models.
