Worm Gear Slewing Bearing Slewing Ring
Showtime Packing Co., Ltd- Holding Torque：72.3kn.M
- Tilting Moment Torque：135.6kn.M
- Output Torque：12.24kn.M
- Output Speed：1.47rpm
- Gear Ratio：102:1
- IP Class：IP65
Base Info
- Model NO.：SC17-102-25rh-250A-REV. A
- Static Axial Load：970kn
- Static Radial Laod：390kn
- Slewing Bearing：Aerial Platform
- Worm Gear：Mounted Truck Crane
- Slewing Ring：Timber Grab
- Transport Package：Wooden Case
- Specification：SC17-102-25rh-250A-REV. A
- Trademark：Coresun Drive
- Origin：Changzhou
- HS Code：8483409000
- Production Capacity：5000PCS,Month
Description
Coresun High quality Slewing Drive with heavy loading and Strong Torque
Coresun slewing drive SC17 is powered with hourglass worm technology for maximum gear torque and the smoothest rotation. Typical slew drive applications include solar industry, truck cranes, man lifts, and utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger derricks and automotive lifts, but the slew drives are used in many other applications requiring load holding and rotational capability. We offer different slew drive models with different moment load capacities. The standard slew drives are fitted with an open housing and single self-locking hourglass worm shaft. Once the power source input is returned to neutral, the worm shaft will lock the load into position without requiring any external braking device.
The slew drive can be with worm gear, spur gear, bevel gear. And also for the inside slewing ring, it can be single-row ball slewing ring, and also can be double-row ball slewing ring. The one with double-row can take much more load. It can be chosen depended on your application.
Rotary drive is a new type of rotary drive, usually called rotary support, which consists of worm, rotary support, housing, motor and other components. Since the core components are rotary bearings, they can withstand axial forces, radial forces and overturning moments at the same time. Compared with the traditional rotary products, the new rotary drive is convenient to install, maintain and install. Rotary drives are widely used in PV, CPV, STP solar tracking systems and building applications, including truck cranes, lifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications.Slewing drive is a special bearing. And a slewing drive usually consist of slewing bearing, worm shaft, housing, bearing, motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.
Coresun Slewing Drive and rotary products, compared with the ease of installation, ease of maintenance, Installation space savings advantages to a greater extent.

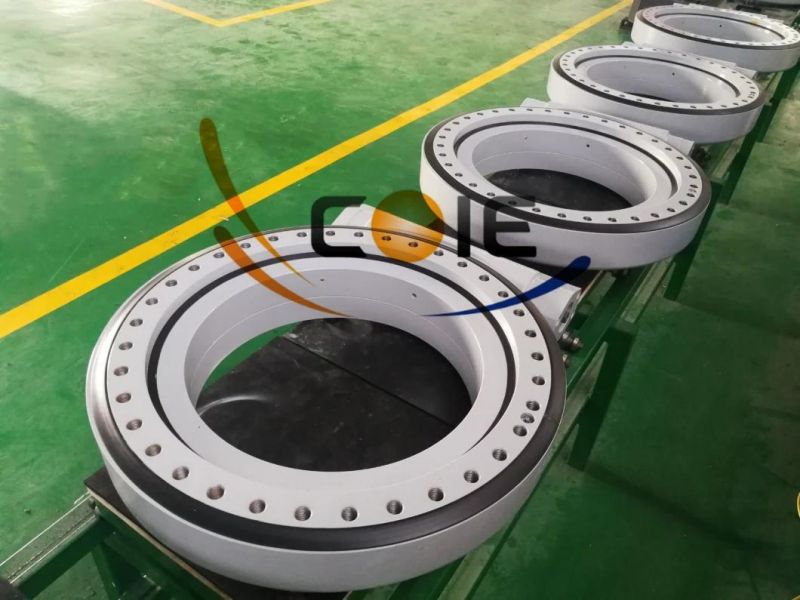

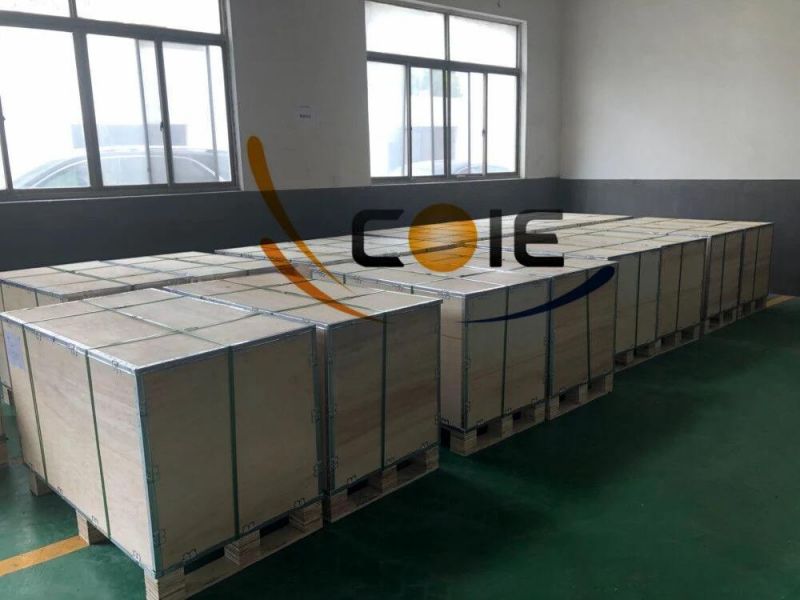

Coresun Drive Slewing Bearing Production Photo and Packing
Coresun Drive Relevant Certification as following
