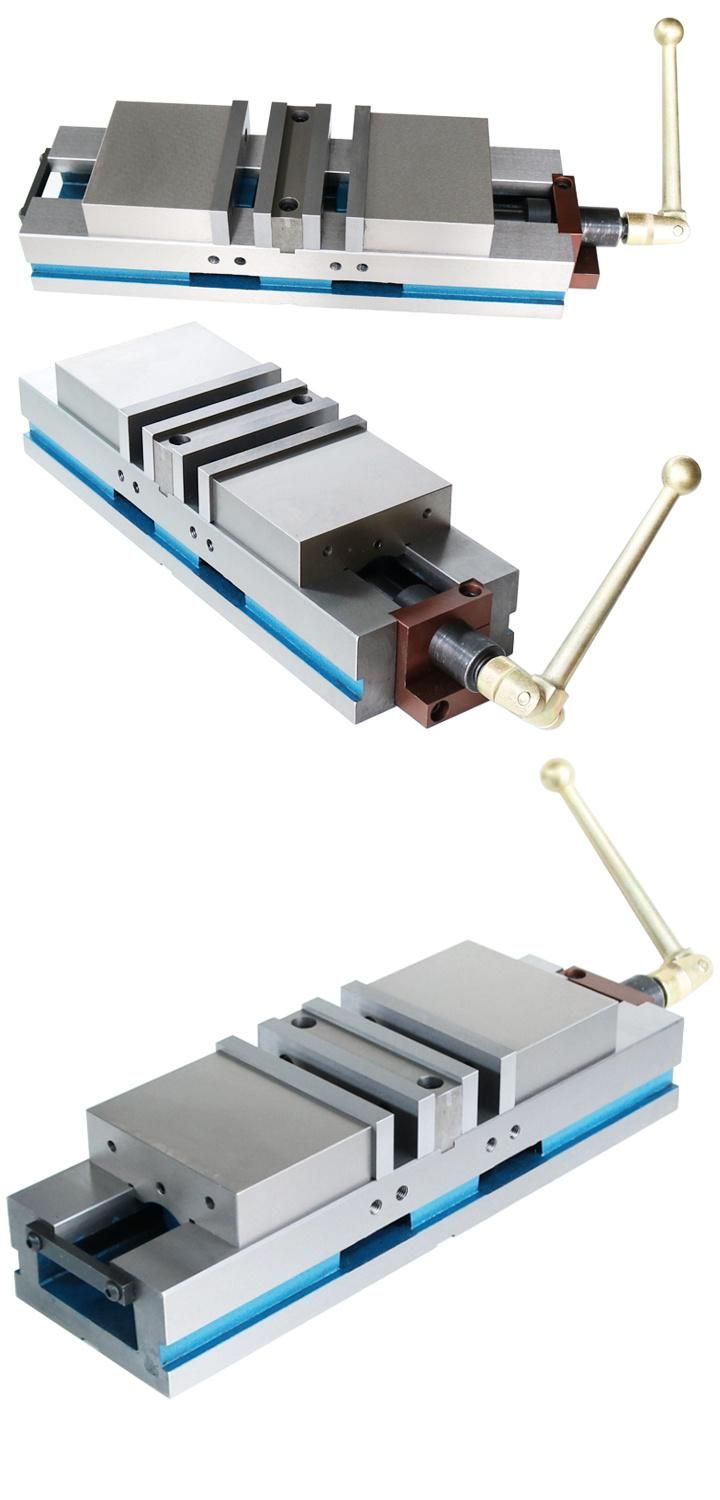

Qm93100 Double Clamp Milling Vise for CNC Machine
Xiamen Aerchs Adhesive Tape Co., Ltd.- Certification:ISO9001:2008, CE
- Application:Milling Machine, Drilling Machine
- Jaw Width:100 mm
- Shape:Without Anvil
- Material:Stainless Steel
- Type:Stationary
Base Info
- Model NO.:QM93100
- Product Name:Double Clamp Milling Vise
- Model No.:Qm93100
- Width of Jaw:100 mm
- Height of Jaw:35 mm
- Total Height:95 mm
- Max Opening:76 mm
- G.W.:18kgs
- N.W.:17kgs
- Qty/CTN:1 PCS
- CTN Size:58X18X17 Cm
- Transport Package:Plywood Case & Cartons
- Specification:CE,ROHS,UL,CSA
- Trademark:HONGZUN
- Origin:Yantai Shandong
- HS Code:8465950000
- Production Capacity:2000PCS,Month
Description
Model NO.Width Of Jaw(mm)Height Of Jaw(mm)Max.Opening(mmG.w./N.w.(kgs)Q'ty/Ctn(pcs)Packing Size(cm)QM93100100357618/17158x18x17QM931601605010049/48173x28x20
• Holds multiple parts for better spindle utilization and reduced tool change time
• Repeatable clamping to ±0.0008" accuracy
• Clamping force equalization and anti-lift mechanism
• Clamps dissimilar sized parts and provides preloading ability in the front or back jaw
• Made in China under strict quality controlProduct packing:
Product feature:
• Increase the efficiency and productivity of CNC machine operations• Holds multiple parts for better spindle utilization and reduced tool change time
• Repeatable clamping to ±0.0008" accuracy
• Clamping force equalization and anti-lift mechanism
• Clamps dissimilar sized parts and provides preloading ability in the front or back jaw
• Made in China under strict quality control
