• Model NO.：NGW
• Type：Planetary Gear Box
• Input Power：0.4-9551kw
• Rated Power：0.4~12934kw
• Input Speed：<1800r,Min
• Output Speed：0.19~60r,Min
• Input Torque：2600000n.M
• Material：Cast Iron
• Manipulate Way：Forced Manipulation
• Toothed Portion Shape：Bevel Wheel
• Changes Way：Stepped
• Manufacturing Method：Forging, Grinding
• Ratio：2.8~2000
• Housing Material：Cast Iron
• Gear Material：20crmntih
• Mounting Position：Foot Mounted. Flange Mounted
• Input Form：Keyed Solid Shaft Input
• Transport Package：Wooden Case,Carton,Pallet
• Specification：ISO, CE, SGS
• Trademark：Aokman
• Origin：China
• HS Code：8483409000
• Production Capacity：50000PCS,Year

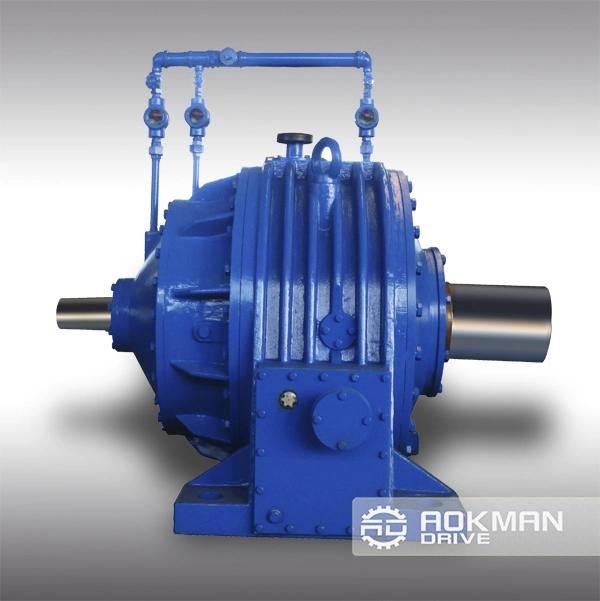

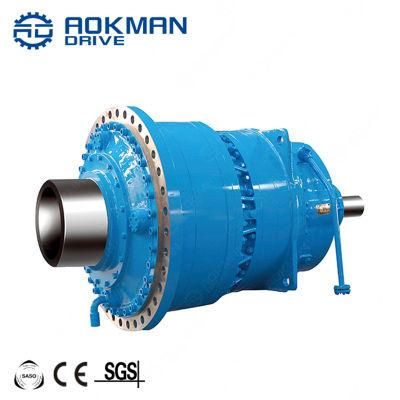

Detailed Photos

3.Product Characteristics
(1) Small volume, light weight, well-knitted structure, big transmission power and high load capacity. Compared with the ordinary cylindrical gear reducers of the same level, its weight is lower 1/2 and volume is only 1/2-1/3 of the former.
(2) High transmission efficiency. 1-stage is up to 97%, 2-stage 94%, 3-stage 91%.
(3) The range of transmission power is very wide, from 1kw to 1300kw.
(4) NGW Planetary Gear Units is designed with hard-tooth-faced, and can be used widely and in long period.
(5) Big transmission ratio

4.Technical Data(NGW)
Original Version NGW Series
Shafts Position: In Line
1 Stage: NGW11~NGW121 Ratio: 2.8~12.5
2 Stage: NGW42~NGW122 Ratio: 14~160
3 Stage: NGW73~NGW123 Ratio: 180~2000

New Design NGW Series
Shafts Position: In Line, Parallel Shaft
NAD(NAF) - 1 Stage, Foot Mounted(Flange Mounted), In Line
NAZD(NAZF) - 1 Stage, Foot Mounted(Flange Mounted), Parallel Shaft
NBD(NBF) - 2 Stage, Foot Mounted(Flange Mounted), In Line

NGW-S Series Planetary Gearboxes
Shafts Position: Right Angle
Gearset: Spiral Bevel Gear Pair Integrated With Planetary Gear Set
2 Stage: NGW-S42~NGW-S122 Ratio: 11.2~80
3 Stage: NGW-S73~NGW-S123 Ratio: 56~500
