No Telescopic Long Cardan Shaft Coupling (SWP-D)

Jiaxing City Qunbang Hardware Co., Ltd.
  • Standard Or Nonstandard：Standard
  • Shaft Hole：as Your Requirement
  • Torque：as Your Requirement
  • Bore Diameter：as Your Requirement
  • Speed：as Your Requirement
  • Structure：Flexible

Base Info

  • Model NO.：SWP-D
  • Material：35CrMo
  • Type：Universal Coupling
  • Size：Standard Size
  • Delivery Time：Depend on Your Quantity
  • Color：Customer Required
  • Transport Package：Wooden Box
  • Specification：as your requirement
  • Trademark：Huading
  • Origin：China
  • HS Code：8483600090
  • Production Capacity：5000pieces,Year

Description

Overview

Product Description

SWP partition profile bearing the cross shaft universal coupling products: replacement of bearings for, SWP type cardan design bearing split shaft bolt, suitable for hoisting and conveying machinery and other heavy machinery, connecting two different axis transmission shaft, axis angle of A~F type not more than 10 degrees, the G type is not greater than 5 degrees.

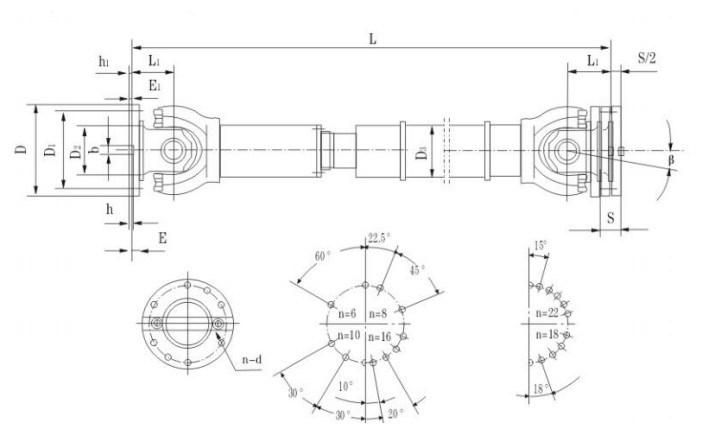

No Telescopic Long Cardan Shaft Coupling (SWP-D)


Product Parameters


Model
    D
   mm
Tn
KN·m
Tf
KN·m
β
S
mm                                      mmD1D2D3EE1b×hh1L1n-d
SWP160D160168≤10501409511415420×126856-13
SWP180D1802010≤106015510512115424×147956-15
SWP200D20031.516≤107017512512717528×1681108-15
SWP225D2254020≤107619613515220532×1891308-17
SWP250D2506331.5≤108021815016825540×2512.51358-19
SWP285D2859045≤1010024517019427740×30151508-12
SWP315D31514063≤1011028018521932740×301517010-23
SWP350D35018090≤1012031021024535850×321618510-23
SWP390D390250112≤1012034523527340870×361820510-25
SWP435D435355160≤10150385255299421080×402023516-28SWP480D480450224≤10170425275351471290×4522.526516-31
SWP550D550710315≤101904923204025012100×4522.529016-31
SWP660D6001000500≤10210544380450551590×5527.536022-34
SWP640D6401250630≤102305753854806015100×603038518-38



Detailed Photos

Company Profile

After Sales Service

FAQ

Q 1: Are you trading company or manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of couplings.

Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.

Q 3:How long is your delivery time?
Generally it is 20-30 days if the goods are not in stock. It is according to quantity.

Q 4: Do you provide samples ? Is it free or extra ?
Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be deducted.

Q 5: How long is your warranty?
A: Our Warranty is 12 month under normal circumstance.

Q 6: What is the MOQ?
A:Usually our MOQ is 1pcs.

Q 7: Do you have inspection procedures for coupling ?
A:100% self-inspection before packing.

Q 8: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.

Q 9: What's your payment?
A:1) T/T. 2) L/C
