Dual Worm Slewing Drive Turntable Slewing Ring
Showtime Packing Co., Ltd- Material：42CrMo
- Holding Torque：72.3kn.M
- Tilting Moment Torque：135.6kn.M
- Output Torque：21kn.M
- Output Speed：1rpm
- Gear Ratio：102:1
Base Info
- Model NO.：SC17-2-RH-250A
- IP Class：IP65
- Static Axial Load：970kn.M
- Static Radial Laod：390kn.M
- Precision：0.15 Degree
- Corrosion Protection：C4
- Mechanical Efficiency：40%
- Transport Package：Standard Exporting Package
- Specification：SC17-2-RH
- Trademark：Coresun Drive
- Origin：Changzhou
- HS Code：8483409000
- Production Capacity：3000PCS,Month
Description
Model
SC17-2
Place of Origin
Changzhou,China
Brand
Coresun Drive
Type
Material
42CrMo,50Mn
Output Torque
21KN.m
Tilting Moment Torque
135.6KN.m
Holding Torque
72.3K N.m
Static Axial Rating
970KN
Static Radial Rating
390KN
Dynamic Axial Rating
235KN
Dynamic Radial Rating
205KN
Gear Ratio
102:1
Efficiency
40%
Rotation drive slewing drive, it is a kind of integration of driving power source of the week rotary reducer drive mechanism, its slewing bearing as transmission follower and adhesion mechanism, through the rotary bearing inner and outer circle a circle on the initiative of the cover, driving source and shell, and the other a circle both as a follower, and the connection of the base as driven working parts, so using the rotary bearing itself is the week characteristics of rotary joints, efficient allocation of driving power source and the main transmission parts, make it become a kind of rotary, slow down and drive function in a body and at the same time, simple structure, manufacture and maintenance convenient universal reduction drive mechanism.
According to the variable speed drive of rotation drive form, can be divided into type rotary gear rotation drive and the worm and worm wheel drive, inherit the characteristics of gear transmission and worm gear and worm drive each, are the two kinds of rotation drive can be adapted to high speed and low speed applications, in terms of bearing capacity, performance is superior to the tooth worm gear and worm type, and when envelope worm drive is used, its bearing capacity, deformation resistance and transmission have further improve rigidity, but the worm gear and worm type rotary drive in efficiency is inferior to tooth rotation drive.
Production Photo and Application
Aerial working platform slewing drive turntable
Truck mounted crane slewing gear motor

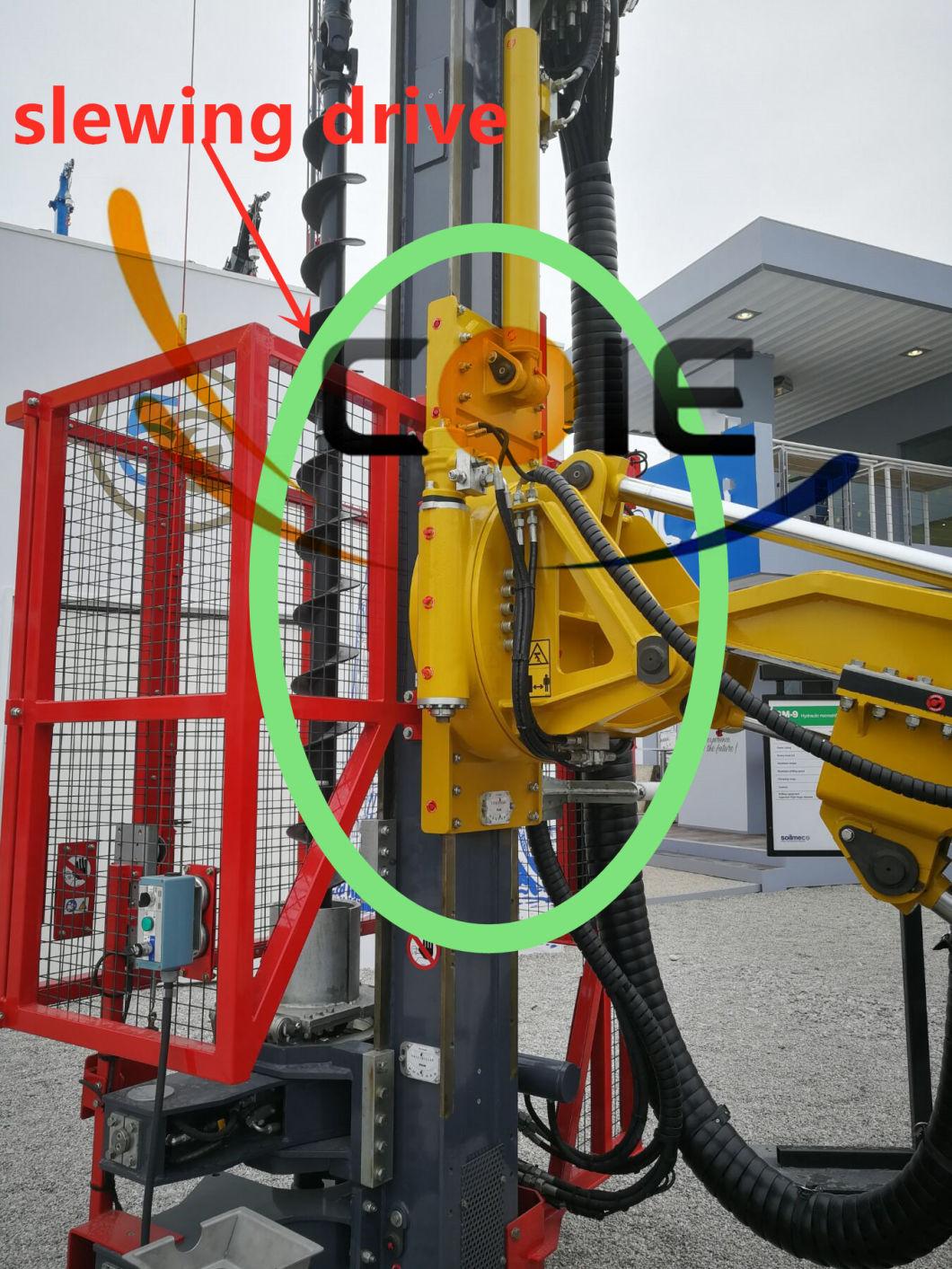

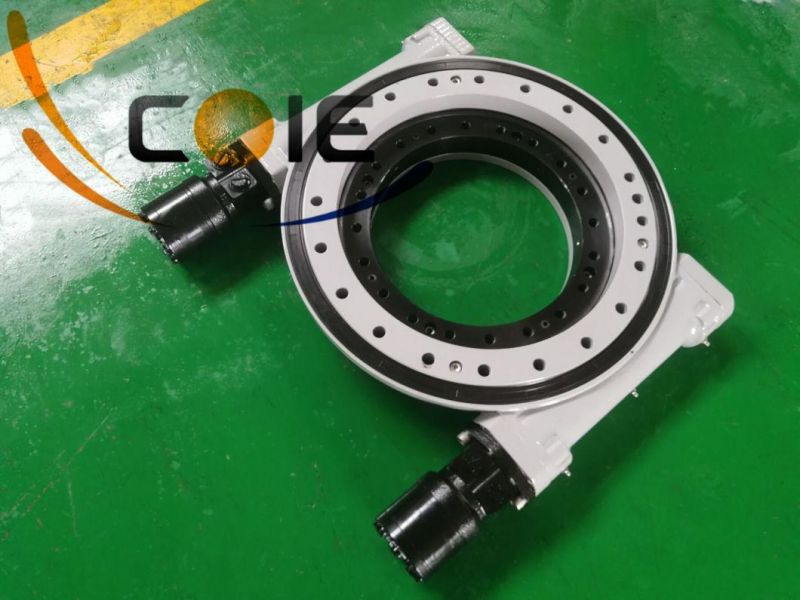

Timber grab worm drive slewing ring Dual worm slewing drive for drilling rig

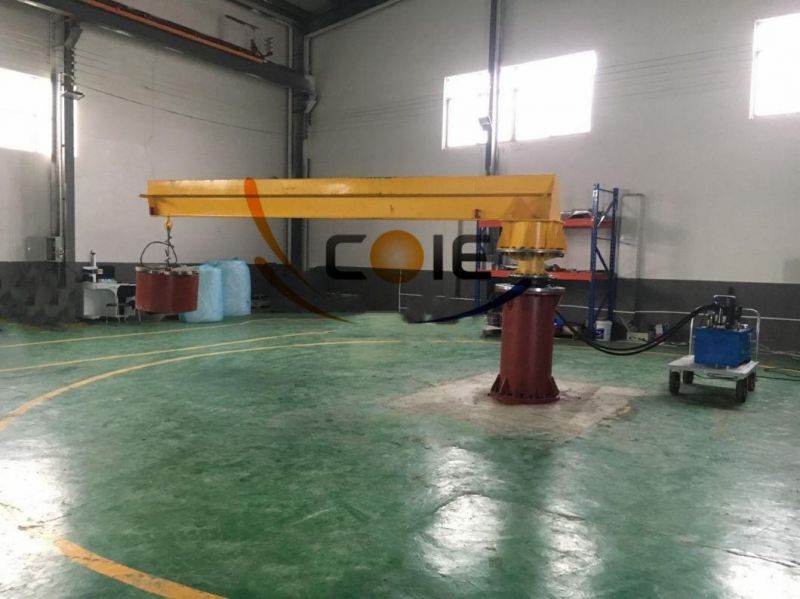

Coresun Drive makes the holding torque testing to ensure the quality and safety factor on our slewing drive and bearing.Quality is our foundation for the long-term development.
