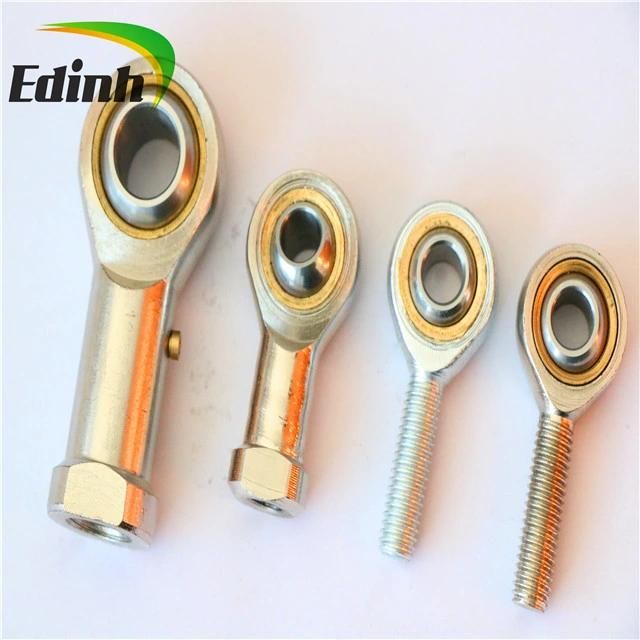

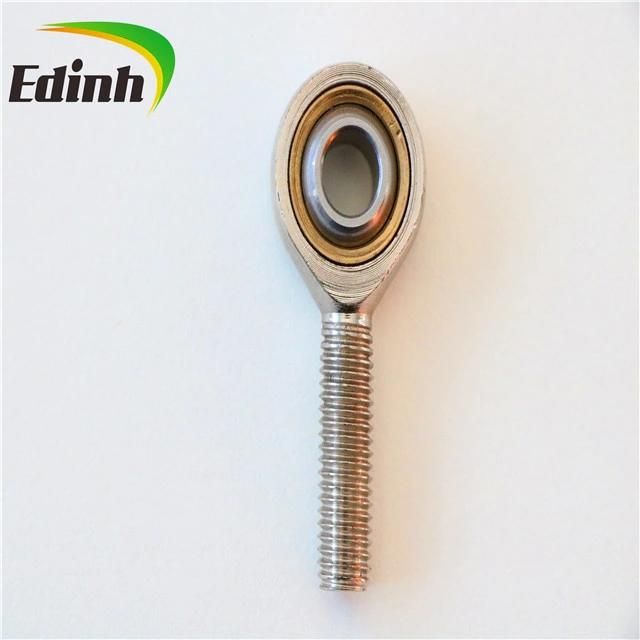

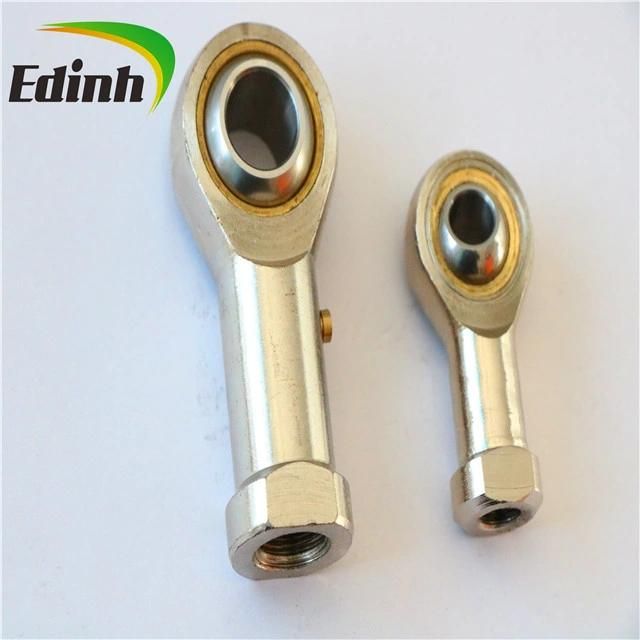

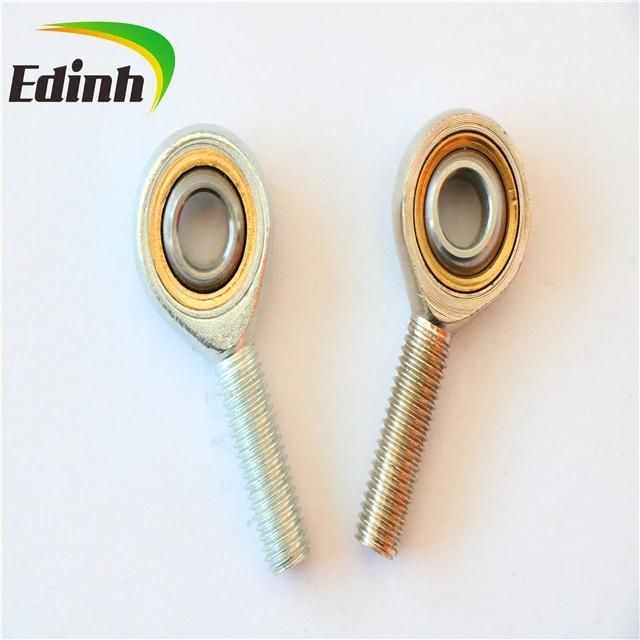

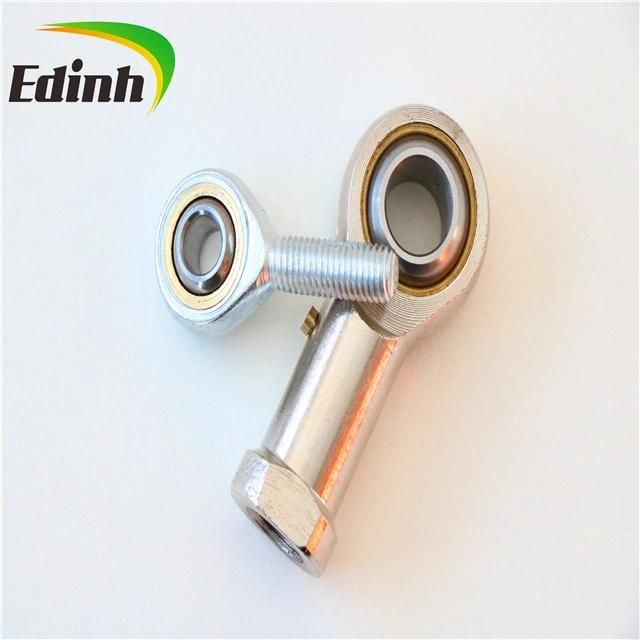

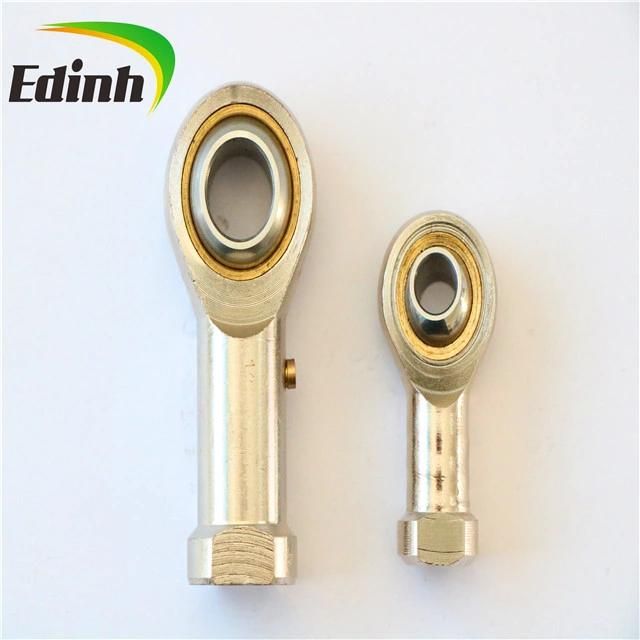

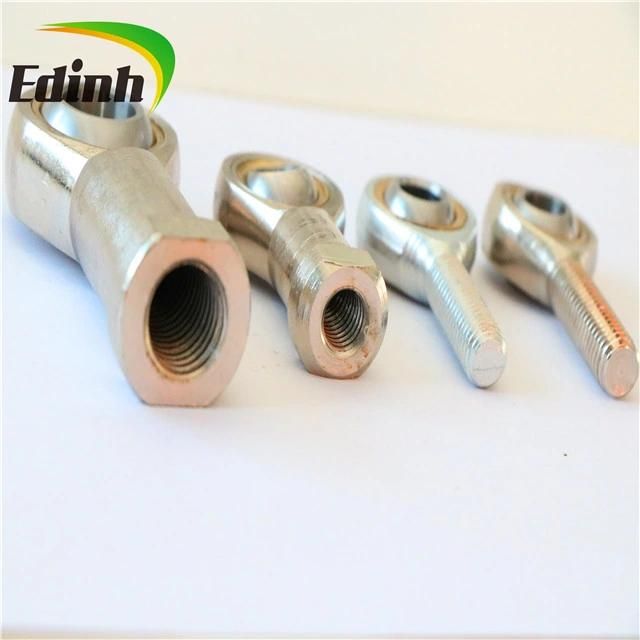

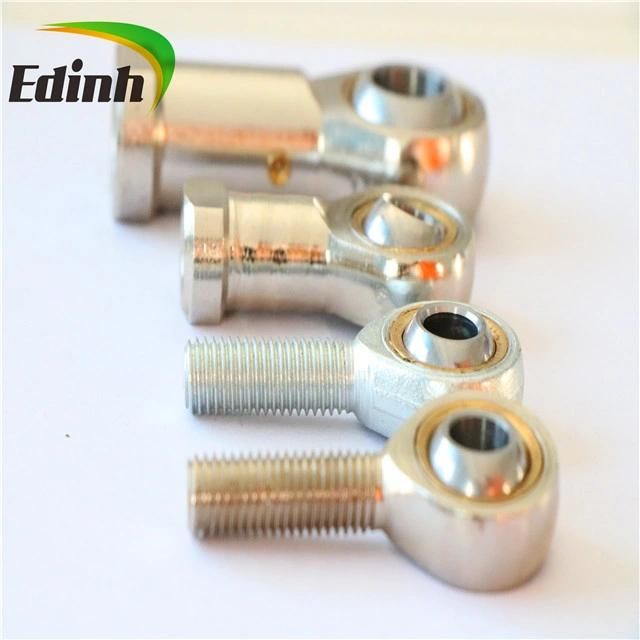

POS Joint Bearings Rod End (POS5/POS6/POS8/POS10/POS12/POS14)
Ruian Sowinpak. Co., Ltd.- Rolling Body:Roller Bearings
- The Number of Rows:Single
- Outer Dimension:Small and Medium-Sized (60-115mm)
- Material:Bearing Steel
- Spherical:Non-Aligning Bearings
- Load Direction:Radial Bearing
Base Info
- Model NO.:POS5
- Separated:Unseparated
- Transport Package:as Per Client′s Requirement
- Origin:Shandong China (Mainland)
- HS Code:8482109000
- Production Capacity:10000 Pieces Per Month
Description
model
dimension mm
KN
weight
d
d3
B
C1
L1
d2
d2
h
L2
dk
R1s
a
kg
if left thread, model will be added "L", for example POSL 8
≈
C
C0
POS5
5
M5x0.8
8
6
20
7.7
16
33
41
11.1
0.3
13
3.25
5.7
0.01
POS6
6
M6x1.0
9
6.75
22
8.96
18
36
45
12.7
0.3
13
4.3
7.2
0.02
POS8
8
M8x1.25
12
9
25
10.4
22
42
53
15.9
0.3
14
7.2
11.6
0.03
POS10
10
M10x1.5
14
10.5
29
12.9
26
48
61
19.1
0.3
13
10
14.5
0.06
POS12
12
M12x1.75
16
12
33
15.4
30
54
69
22.2
0.3
13
13.4
17
0.09
POS14
14
M14x2.0
19
13.5
36
16.9
34
60
77
25.4
0.3
16
17
24
0.14
POS16
16
M16x2.0
21
15
40
19.4
40
66
86
28.6
0.3
15
21.6
28.5
0.21
POS18
18
M18x1.5
23
16.5
44
21.9
44
72
94
31.8
0.3
15
26
42.5
0.28
POS20
20
M20x1.5
25
18
47
24.4
50
78
103
34.9
0.3
14
31.5
52.5
0.38
POS22
22
M22x1.5
28
20
51
25.8
54
84
111
38.1
0.3
15
38
57
0.48
POS25
25
M24x2.0
31
22
57
29.6
60
94
124
42.9
0.3
15
47.5
68
0.64
POS28
28
M27x2.0
35
24
62
213
66
103
136
47.6
0.3
15
58
75.5
0.96
POS30
30
M30x2.0
37
25
66
34.8
70
110
145
50.8
0.3
17
64
88
1.1
