Outdoor P14 Fixed Full Colour LED Display for Advertising Screen
Emoer Industry Limited- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：14mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：25W
Base Info
- Model NO.：p14
- Pixel Density：6944 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, CCC
- Drive Type：Constant Drive
- Warranty Period：2years
- Deliver Time：15-20 Days
- Modle Size：224mm*112mm
- Package Mode：546
- Life Span：100000 Hours
- Brightnees：6500
- Transport Package：Iron Case
- Specification：1120*896mm
- Trademark：FWS
- Origin：Shenzhen China
- HS Code：9405409000
- Production Capacity：25000sqm, Month
Description
P14 Outdoor full Color LED Screen SpecificationPixel pitch 14mm Pixel Configuration 1R1G1B LED component DIP 546(Epsitar chips) Size of module 224mm x 112mm Resolution of module 16x8 Size of cabinet 1120mmx 896mm x150mm Resolution of cabinet 96x80 Material of Cabinet Iron with back doors Weight of Cabinet <70KGS Brightness >6500cd/sq.m Density 5102dots/sq.m Best viewing angle 110 /50 Best viewing distance 10-150M Maximum power consumption <800W/sq.m Average power consumption <300W/sq.m Driving method 1/4 scan Control method Synchronization/Asynchronization Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >1200Hz IP grade IP65 Life Span 100,000 hours Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

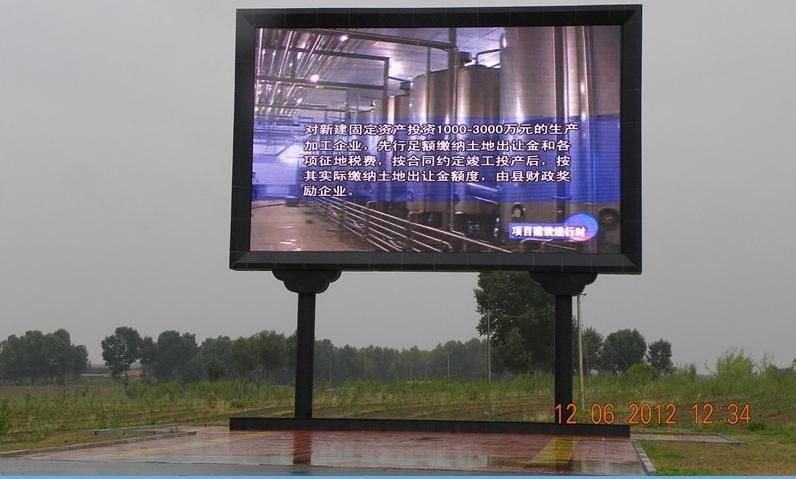

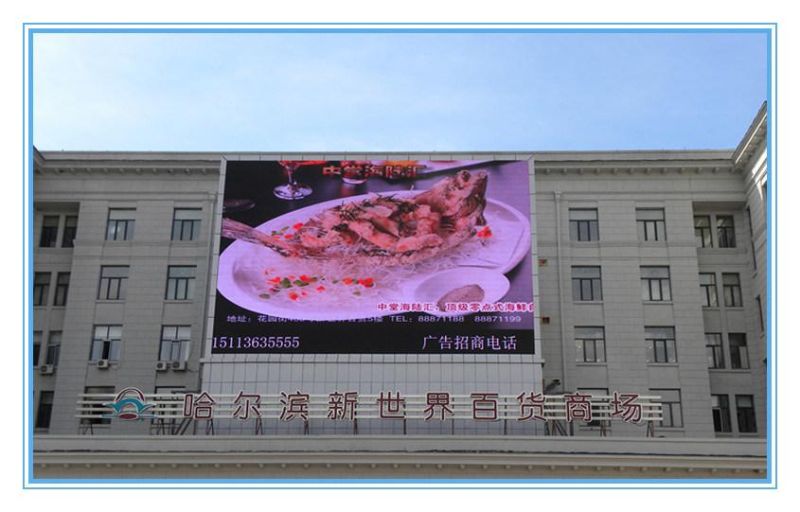

Product pictures

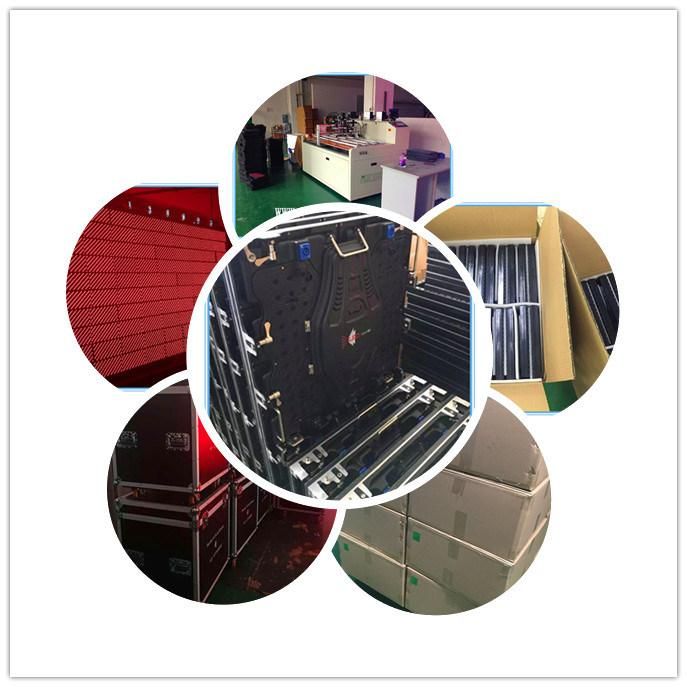

Packaging
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
