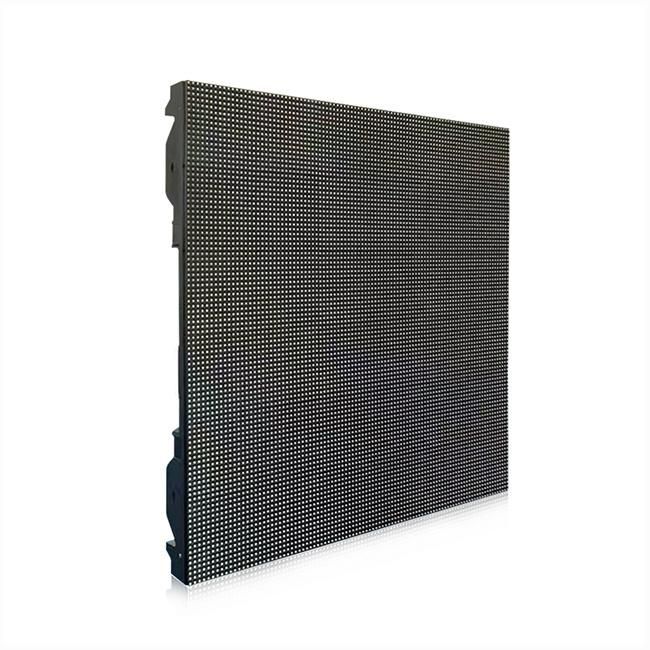

Portable and Good-Looking Cabinet Design P6 Outdoor Display Screen

Shenzhen New Arts Import and Export Trade Co, . Ltd

Tube Chip Color：Full Color
IP Rating：IP65
Pixel Pitch：6.67 mm
Pixel Configuration：1R, 1G, 1B
Display Function：Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption：260W,M2

Base Info

Model NO.：SF06
Pixel Density：22545 DOT,M2
Scanning Mode：1,6 Scan
Display Type：LED Video Display
Application：Advertising
Certification：CE, FCC
Cabinet Color：Black,Yellow
Cabinet Material：Die Cast Aluminum
Best Viewing Distance：>10m
Module Size：320*160 mm
Cabinet Size：960mm*960mm*110mm
LED：Nationstar SMD3535
IC：Mbi5124
Power Supply：G-Energy
Install Type：Outdoor Fixed
Transport Package：Plywood Case or Flight Case
Specification：Cabinet size 960*960*110mm
Trademark：None
Origin：Shenzhen, China
HS Code：8528591090
Production Capacity：4000 M2,Month

Description

Pixel PitchP8 (1R1G1B)LEDs TypeSMD2727LEDs Parameter Portable and Good-Looking Cabinet Design P6 Outdoor Display Screen

ItemBrandLuminous IntensityWavelengthRed LED ChipNationStar470 mcd622 nmGreen LED ChipNationStar750 mcd525 nmBlue LED ChipNationStar120 mcd470 nm

DimensionDefinitionShellWorking Voltagemm(dots)Hi-quality &anti-fire PCV320*16064*325
LED Cabinet ParameterImage
DimensionDefinitionMaterialProtection LevelWeightmm(dots)Die Cast AluminumFront/backKG960*960192*192IP65/IP6530
Control system ParameterGrey Scale14 bitDriving MethodStatic constant current 1/8 scanFrame Rate>60HzRefresh Rate>1920 HzBrightness ControlManual Control (by PC); Automatic Control (by senor)Control ModeTo be synchronized with computer monitorControl DistanceWithin 100m adopts UTP net cable; 100m~500m adopts Multimode Fiber; 500m~10000m adopts Single-mode Fiber (distance between PC and screen)Data transmission interfaceDVI and VGAInput signal modeTXT, DOC, RTF, AVI, JPEG, MOV, MPEG, DAT, VOB, BMP, JPG, TIFF, GIF, FLI, FLC, RMVBScreen working parameterInput VoltageAC110V-220V/50Hz or 60HzDefects Rate≤0.0001Life span≥100,000 hoursTemperature-operating-20ºC~50ºC (other request can be meet with different material)Humidity-operating10%~90%
Packing for fixed installation typePacking for rental and movable type
7. Aftersale service:
1) Two years warranty.
2) 24 hours online service, lifetime, free.
3) Depot repair service: during warranty, the Buyer only bear shipping cost back to factory. Out off warranty, the Buyer bear all shipping cost+raw material cost, free labor cost.
4) Experienced engineer service: during warranty, Buyer bear flight cost+accommodation. Out off warranty, Buyer bear flight cost+accommotation+engineer labor cost($200.00/day)+raw material cost.

8. About us:
We are a trade factory in Shenzhen with 6 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.

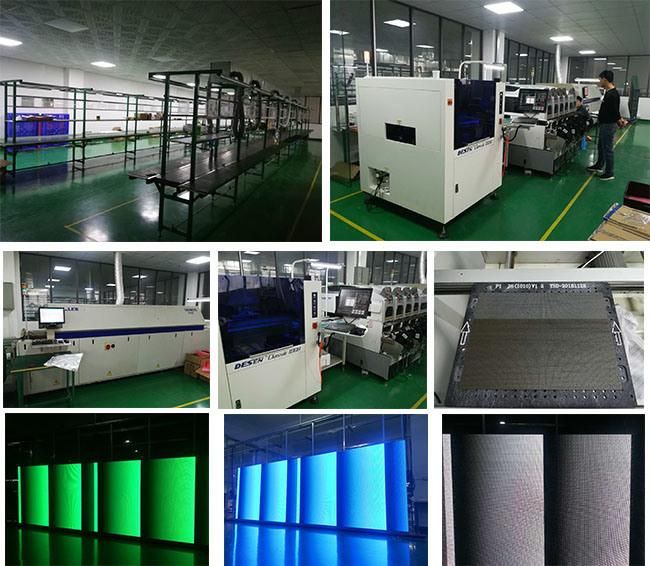

9. Factory:
(The pictures below were taken during night, after most of the workers off work)
1. Skillful workers who have worked more than 6 years in our factory.
2. High technology auntomatic machines.
3. Aging test + Grayscale test for each module.

10. Delivery and payment:
1. Production time for 1-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: EXW, FOB Shenzhen, CIF, DDU, DDP.

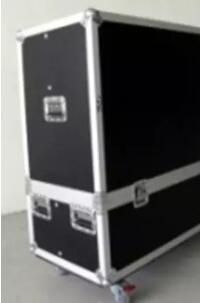

4. Plywood case or flight case provided.
