• Model NO.：KM
• Type：Hypoid Gearbox
• Rated Power：0.12kw-5.5kw
• Input Speed：1400r,Min
• Output Speed：4.7-187.0r,Min
• Ratio：7.48-296.10
• Output Torque：5.9-874n.M
• Material：Cast Iron
• Changes Way：Stepped
• Manufacturing Method：Forging Gear
• Toothed Portion Shape：Helical
• Transport Package：Wooden Case
• Specification：ISO
• Trademark：AOKMAN DRIVE
• Origin：China
• HS Code：8483409000
• Production Capacity：5000PCS,Year

Models

Stage

Nominal Ratio

Output Speed (n2)*

Max. Torque

Input Shaft Dia.

Output Hole Dia.

Output Shaft Dia.

KM050

3 Stage

50~300

4.8~27

130N.m

Φ11

Φ20, Φ24

Φ25

2 Stage

7.5~60

24~181

130N.m

Φ11

KM063

3 Stage

50~300

4.6~27

200N.m

Φ11

Φ25, Φ28

Φ25

2 Stage

7.5~60

23~184

200N.m

Φ14

KM075

3 Stage

50~300

4.7~28

350N.m

Φ14

Φ28, Φ30, Φ35

Φ28

2 Stage

7.5~60

24~187

350N.m

Φ16

KM090

3 Stage

50~300

4.7~28

500N.m

Φ14

Φ35, Φ38

Φ35

2 Stage

7.5~60

24~187

500N.m

Φ19

KM110

3 Stage

50~300

4.7~27

750N.m

Φ19

Φ40, Φ42

Φ42

2 Stage

7.5~60

24~187

750N.m

Φ24

*Input Speed: n1=1400r/min

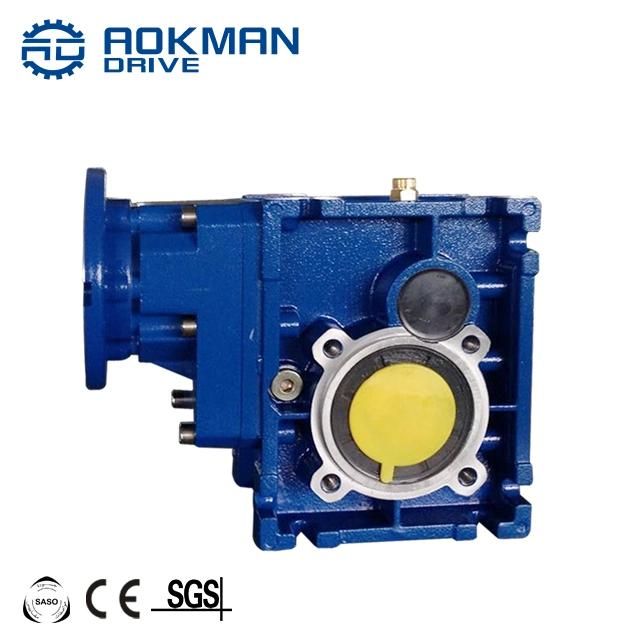

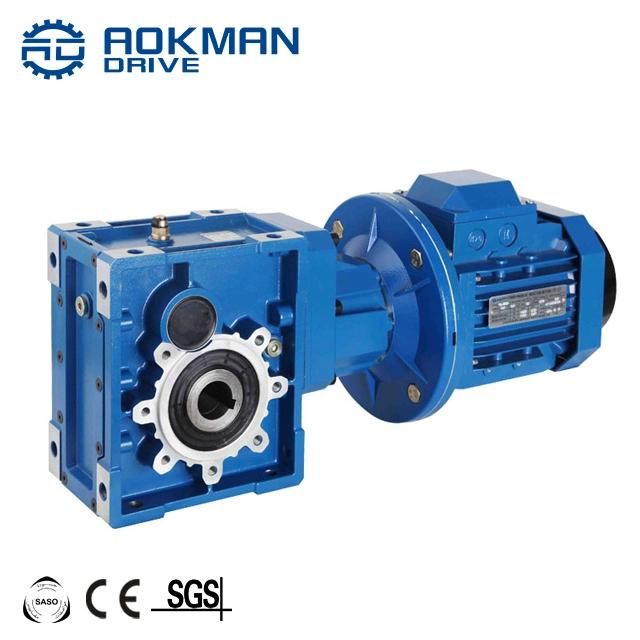

Product pictures:

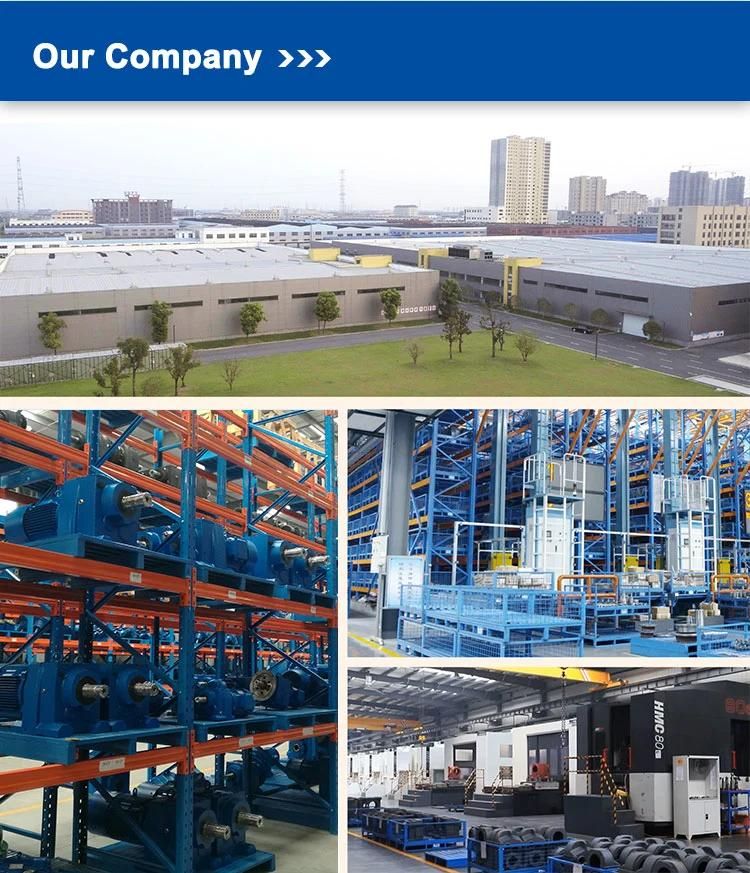

Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.


Customer visiting:


FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set

Our ServicesPre-sale services1. Select equipment model.2.Design and manufacture products according to clients' special requirement.3.Train technical personal for clientsServices during selling1.Pre-check and accept products ahead of delivery.2. Help clients to draft solving plans.After-sale services1.Assist clients to prepare for the first construction scheme.2. Train the first-line operators.3.Take initiative to eliminate the trouble rapidly.4. Provide technical exchanging.
If you have any demand for our products please feel free to contact me.
