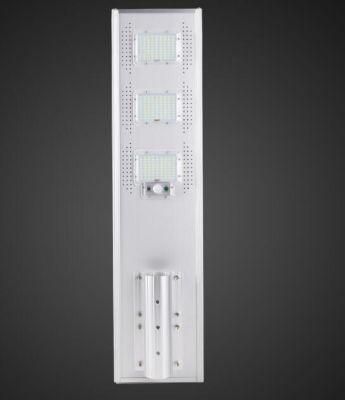

Wind Solar Hybrid Street Light System for Outdoor Highway Pathway Parking Lot
YONGSHUNHE PAPER INDUSTRY (SUZHOU) CO., LTD.- Light Source：LED Lamp
- Lamp Body Material：Aluminum Alloy
- Light Type：Solar
- Color Temperature：Cool White
- Power：80W
- Technics：Electroplating
Base Info
- Model NO.：SW-80W
- Illumination Time：3days-4days
- Cell Type：Lithium-Ion LiFePO4
- Charging Time (H)：6
- Usage：Garden, Street
- IP Rating：IP65
- Certification：CE, RoHS
- Voltage：12,24V
- With Light Source：With Light Source
- Model：Sw-80W
- LED Light：80W (Bridgelux,USA)
- Battery：48ah,12V, Lithium Battery

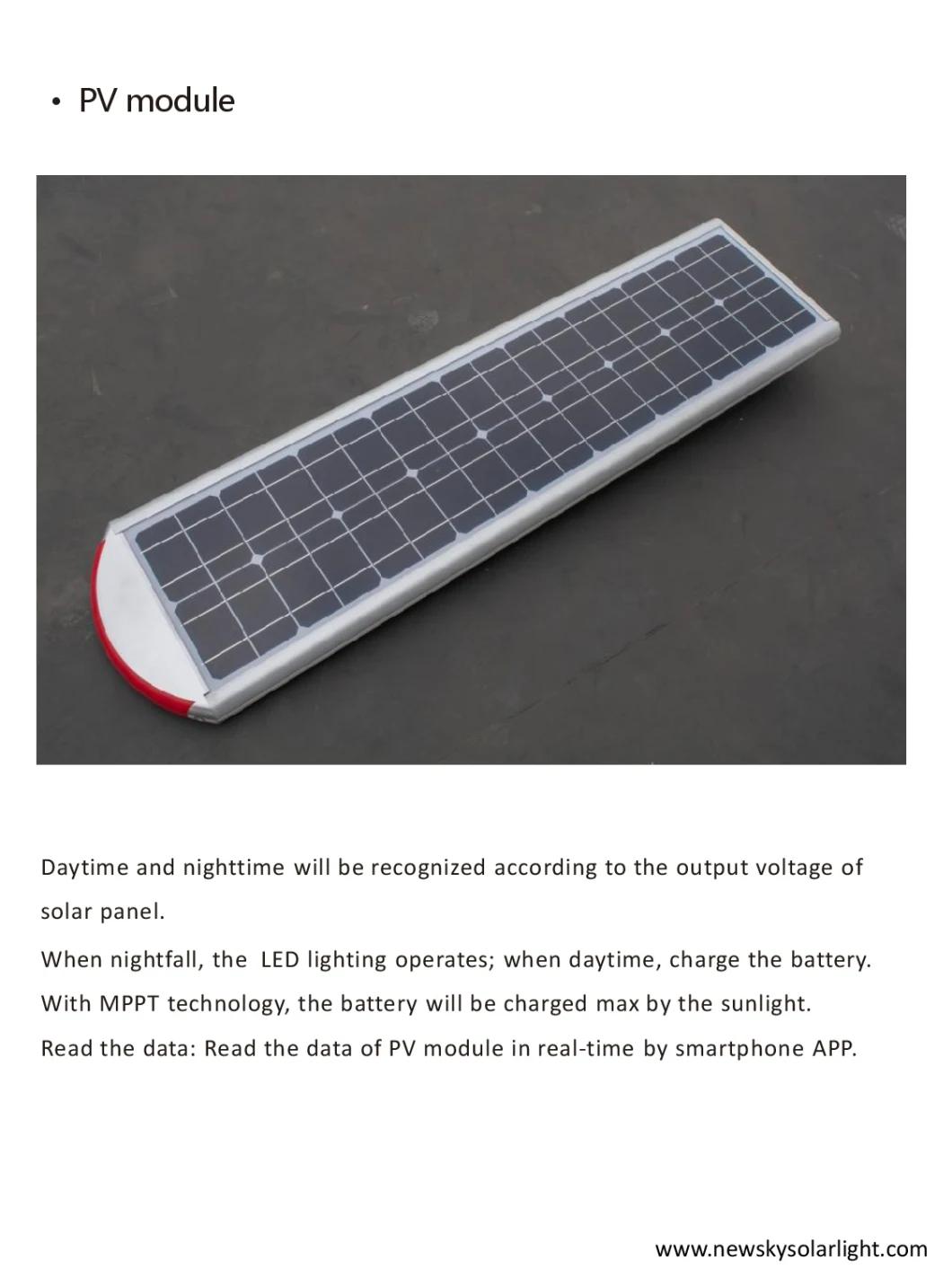

- Solar Panel：65W,18V,Mono
- Controller：MPPT
- Work Mode：Motion Sensor+Dim Light or Constant
- Wind Turbine：300W
- Lumen：10400lm
- Warranty Time：5years
- Material：Aluminium Alloy
- Installation Height：8-10m
- Spacing：30-35m
- Transport Package：Carton for Export
- Specification：CE ROHS
- Trademark：NEWSKY POWER
- Origin：Guangdong Shenzhen
- HS Code：94055000
- Production Capacity：10000 Per Month
Description
300W (see below spec of wind turbine)
6500K
12M
-20ºC ~ +60ºC
70-80mm
IP65
>70
6-8H
Light on at dusk, Light off at dawn atuo. 12 hours lighting time per day, brightness and on&off time can be adjusted by mobilephone APP. Max 10 rainy days backup.
Model

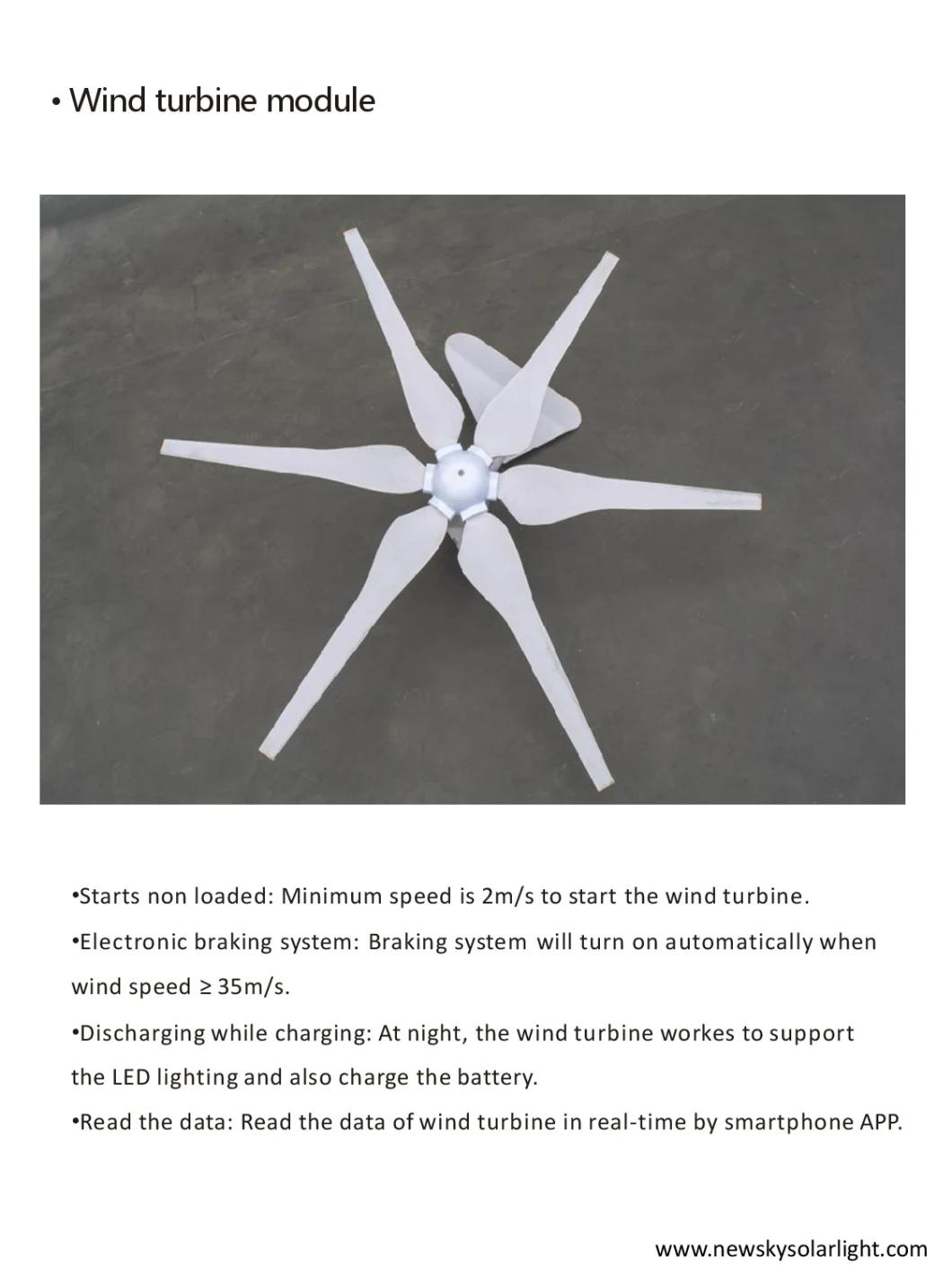

300W Wind turbine
Rated power
300W
Start-up wind speed
3m/s
Rated wind speed
12m/s
Survival Wind Speed
40m/s
Rotor Diameter
1140mm
Rated Rpm
900r/m
Blades
6pcs

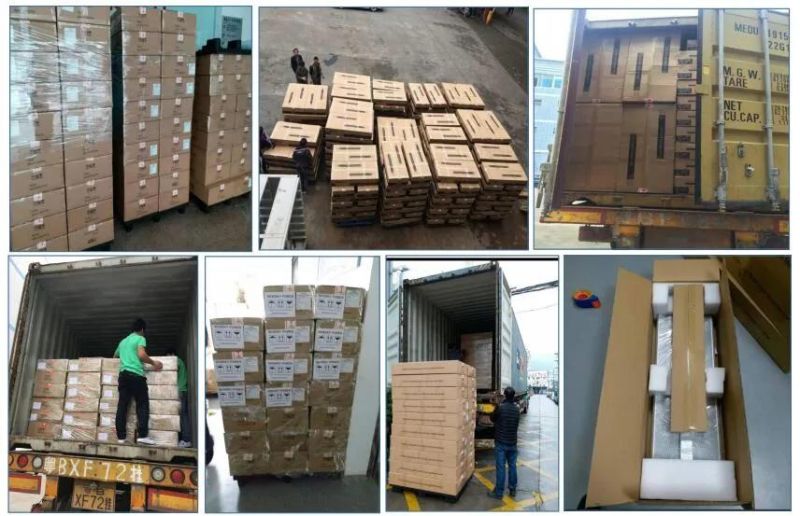

Packing and loading

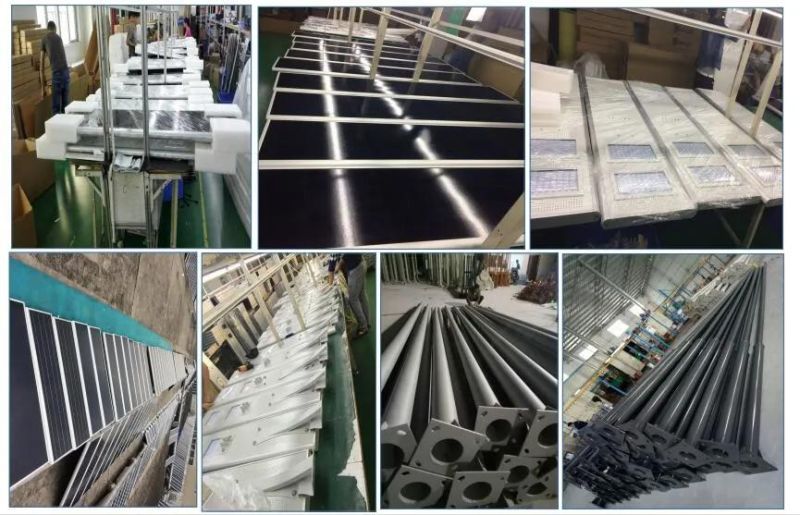

Factory show
Exhibition
