• Model NO.：4mm
• Pixel Density：62500dots,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：256X128mm
• Module Resolution：64X32dots
• Cabinet Size：512X512mm
• Cabinet Resolution：128X128dots
• Screen Brightness：7000nits
• Refresh Rate：1920Hz-3840Hz
• Compliance：Ce , RoHS ,CCC,FCC
• Maintenance：Rear Service
• Controller：Nova
• Frame Frequency：60Hz
• Waterproof Grade：IP65
• Cabinet Material：Die-Casting Aluminum
• Screen Resolution：62500dots,Sqm
• Avg.Power Comsumption：160W,Sqm
• Max.Power Consumption：472W,Sqm
• Transport Package：Plywood Case
• Specification：512x512mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 4mm Pixel Density 62500dots/Sqm Scanning Mode 1/8 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, UL, CCC, ETL Module Size 256X128mm Module Resolution 64X32dots Cabinet Size 512X512mm Cabinet Resolution 128X128dots Screen Brightness 7000nits Refresh Rate 1920Hz-3840Hz Compliance Ce / RoHS /CCC/FCC Maintenance Rear Service Controller Nova Frame Frequency 60Hz Waterproof Grade IP65 Cabinet Material Die-Casting Aluminum Screen Resolution 62500dots/Sqm Avg.Power Comsumption 160W/Sqm Max.Power Consumption 472W/Sqm Transport Package Plywood Case Specification 512x512mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

PRODUCT FEATURES:

· Quiet fan design, excellent heat dissipation.,

· Sidelocks design for better consistency and seamless assembly.

· High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

· High-performance metal plate cabinet, concise cable.

· The sealed-type back cover, effectively prevent wrong operations from the amateur.


PRODUCT SPECIFICATIONS:


NO.	Item	Parameters
1	Pixel Pitch (mm)	4
2	Physical Density (dot/m2)	62500
3	LED Configuration	1R1G1B
4	LED Type	SMD2525
5	Module Size (mm x mm)	256*128
6	Module Resolution (PX x PX)	64*32
7	Module Power Consumption (W)	26
8	Drive Mode	1/8 Constant Current Drive
9	Horizontal Viewing Angle (Deg)	140
10	Vertical Viewing Angle (Deg)	140
11	Brightness (cd/m2)	7000
12	Grey Scale	14
13	Refresh Rate (Hz)	≥1920
14	Cabinet Resolution (PX x PX)	192*192
15	Cabinet Max Power Consumption (W)	472
16	Cabinet Average Power Consumption (W)	160
17	Cabinet Size (mm x mm)	512*512
18	Cabinet Weight (Kg)	7.5
19	Cabinet Thickness (mm)	88
20	Cabinet Material	Die-Casting Aluminum
21	Color (M)	>16.7
22	Input Voltage (V)	AC 110V~220V+/-10%
23	Refresh Frame Frequency (Hz)	60
24	Protection Level	IP65
25	Working Environment	Outdoor
26	Working Temperature (ºC)	"-20°- +40°
27	Operation humidity (RH)	10%-90%
28	Certificates	CCC, CE,RoHS

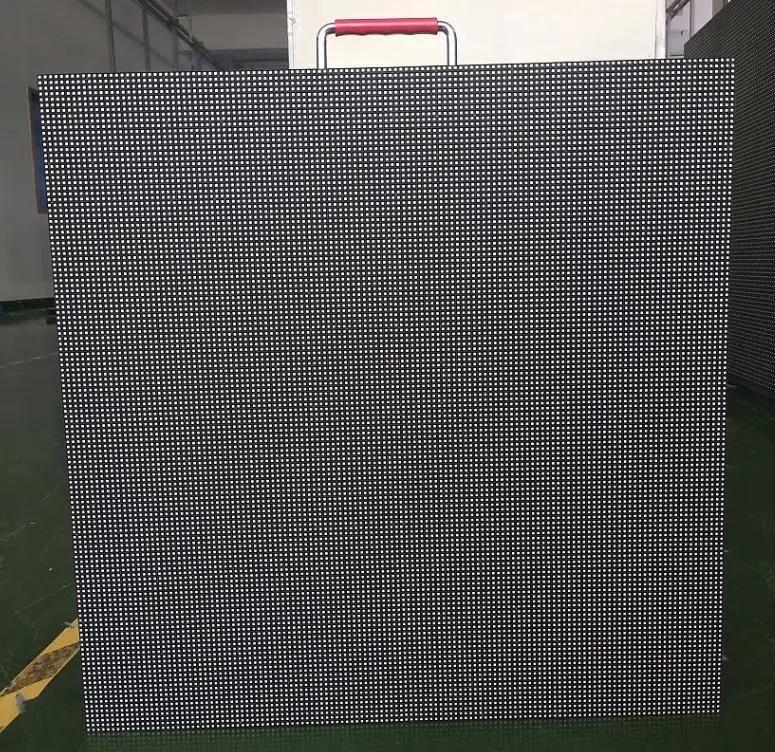

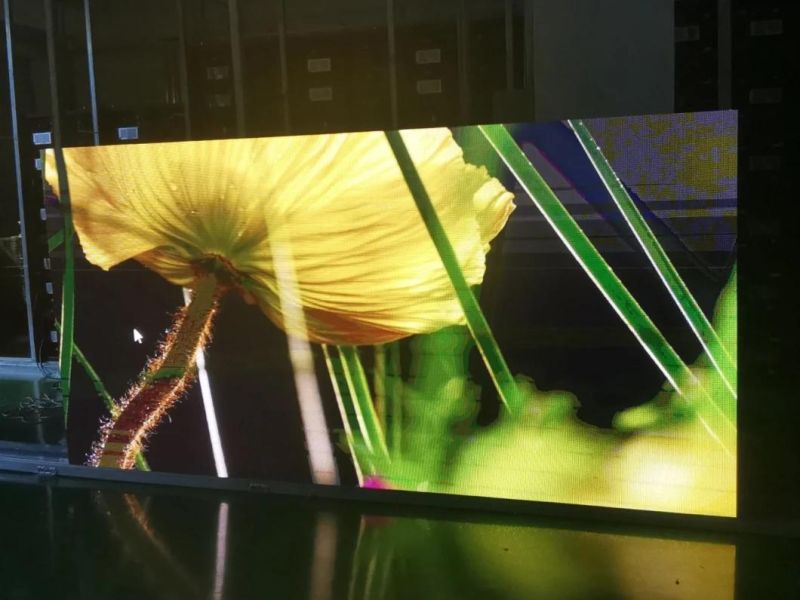

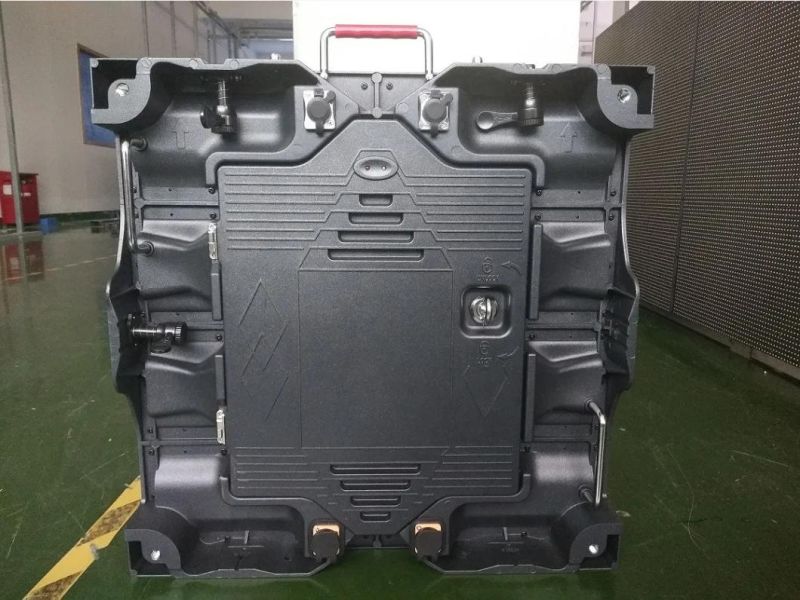

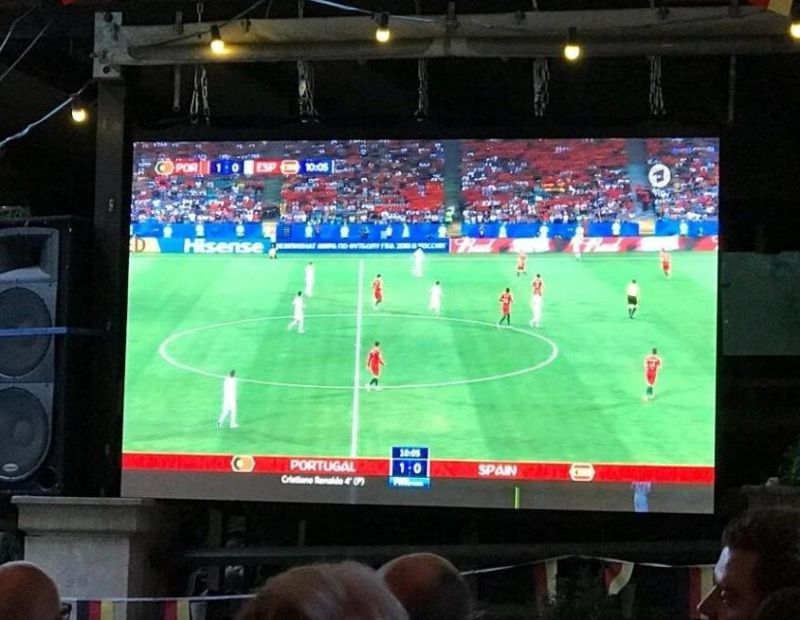

PRODUCT PHOTOS :

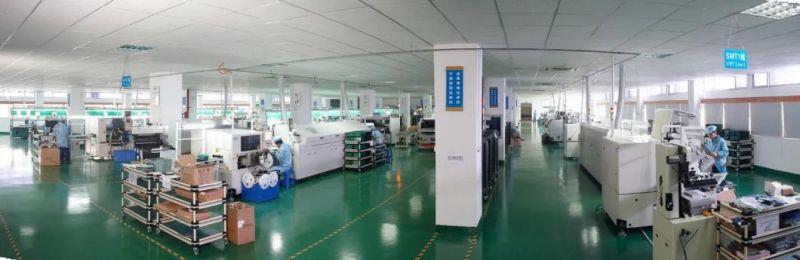

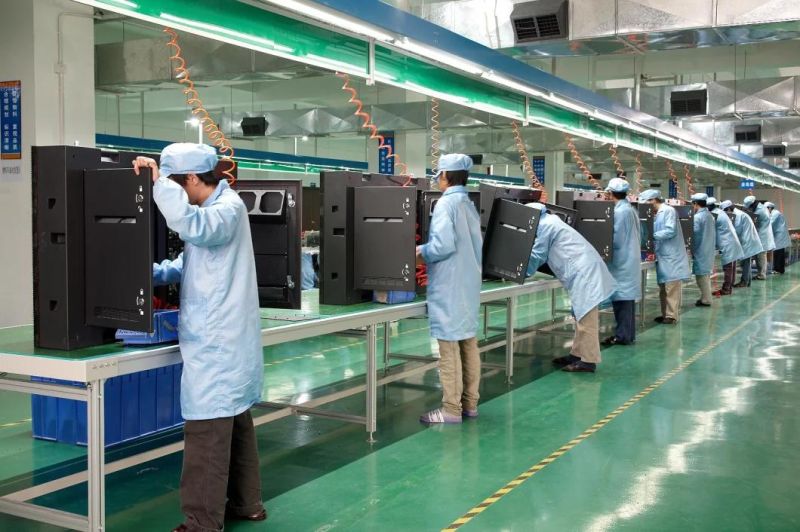

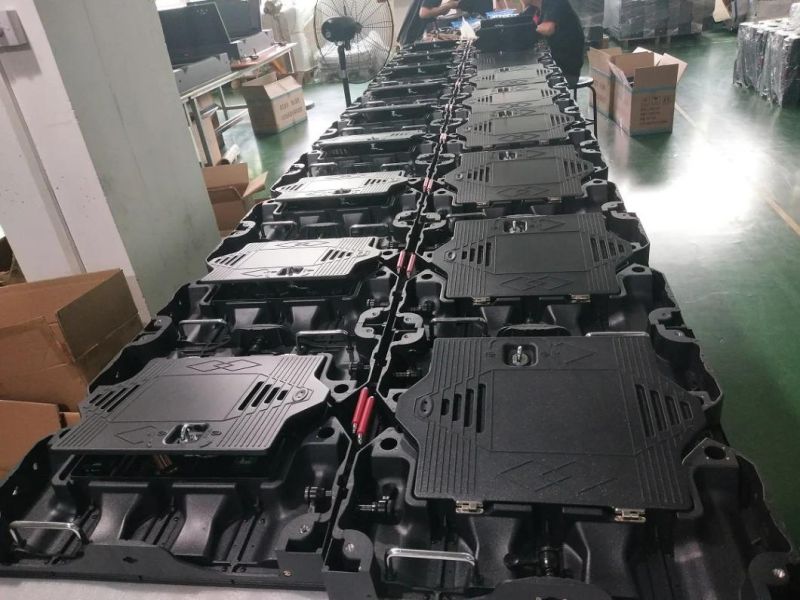

CKGLED FACTORY WORKSHOP:

In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.

(1) Every batch of LED will get a strict testing to exam its performance and quality.

Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance

(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.

Baking environment:
130ºC
2 hours

(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality

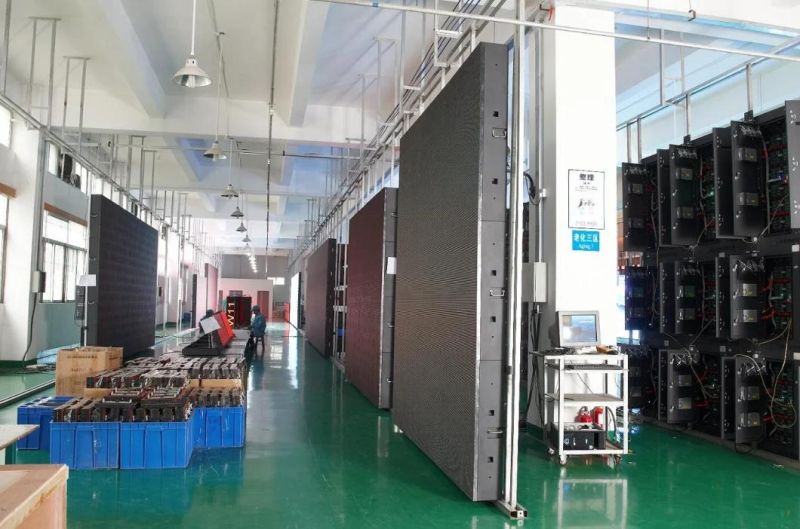

48 hours high brightness aging for the LED module and 72 hours aging  for finished displays,
in order to guarantee the final products steady performance and long MTBF.

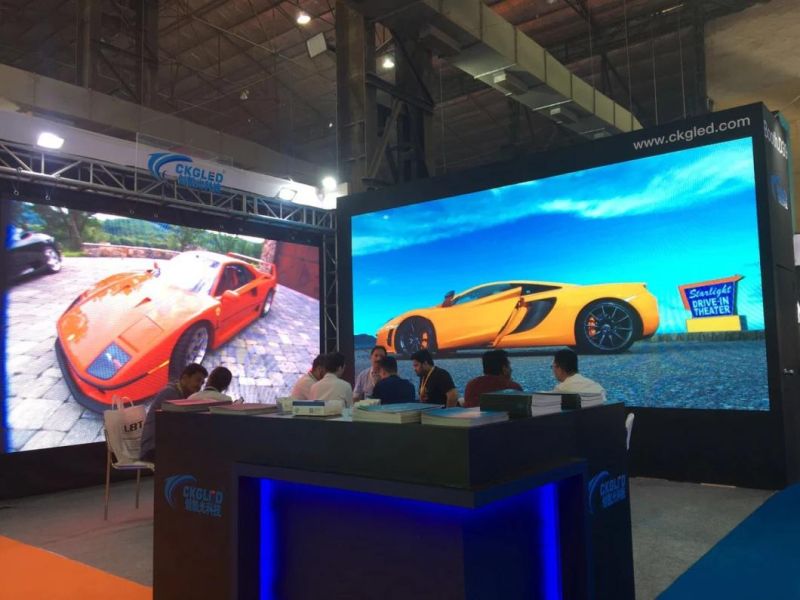

FORIGN EXHIBITION:


Our Service:
1. Your inquiry related to our products or price will be replied in 24hrs;

2. OEM&ODM, any your customized ideas we can help you to design and put into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.

Trade Terms:

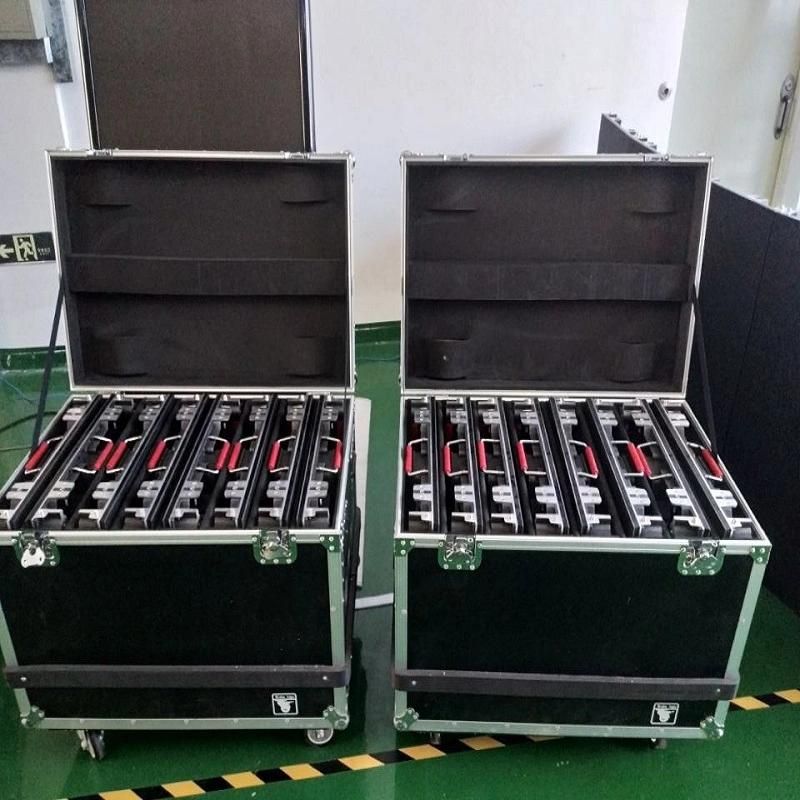

1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years

6. Delivery time: 3-15 working days
