231.20.0600.013 Light Type Slewing Ring Bearing
Right Team Holding Ltd.- Standard or Nonstandard：Standard
- Feature：Heat-Resistant
- Sealing Gland：Sealed On Both Sides
- Rolling-Element Number：Single-Row
- Roller Type：Four Point Contact Ball
- Material：Bearing Steel
Base Info
- Model NO.：231.20.0600.013
- Type：External Gear
- Warranty Period：1 Year
- Production Time：30 Days
- Transport Package：Wooden Box
- Specification：ISO9001: 2008
- Trademark：LYHY
- Origin：China
- HS Code：8482109000
- Production Capacity：100PCS,Month
Description
mmE.505.20.00.C 504 304 56 455 332 10 12 M12 φ18 E.505.20.C 504 304 56 455 332 10 12 M12 φ18 E.650.20.C 640.8 434 56 585 462 14 14 M12 φ18 E.750.20.00.C 742.8 534 56 685 562 16 16 M12 φ18 E.850.20.00.C 838.8 634 56 785 662 18 16 M12 φ18 E.950.20.00.C 950.4 734 56 885 762 18 18 M12 φ18 E.1100.32.00.C 1098 805 90 1016 845 30 30 M20 φ22 E.1050.20.00.C 1046.4 834 56 985 862 20 20 M12 φ18 E.1200.32.00.C 1200 905 90 1116 945 30 30 M20 φ22 E.1200.20.00.C 1198.4 984 56 1135 1012 22 20 M12 φ18 E.1300.32.00.C 1300 1005 90 1216 1045 36 36 M20 φ22 E.1400.32.00.C 1400 1105 90 1316 1145 42 42 M20 φ22 E.1500.32.00.C 1500 1205 90 1416 1245 42 42 M20 φ22 E.1600.32.00.C 1600 1305 90 1516 1345 48 48 M20 φ22
Why choose LYHY slewing bearings
A pioneer in slewing bearing field, rich experience, can do design, produce, mounting guide
Small order accepted
SO certified company
Variorum models
7*24hours hotline to help you with your cranes
Strict quality control system to ensure quality for slewing bearing

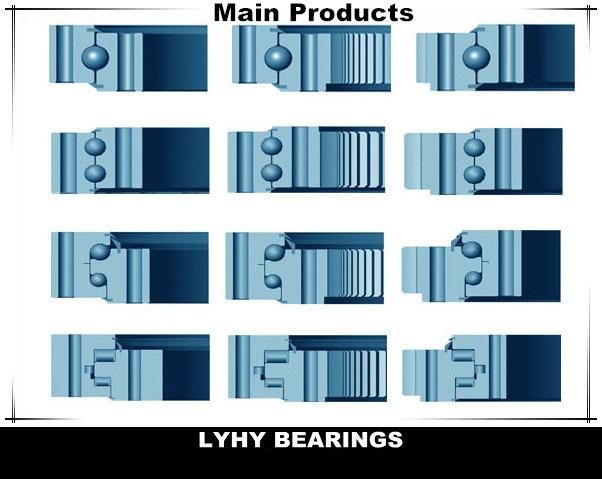

LYHY Slewing Bearing Types
LYHY slewing bearings can be divided into the following types as per their structures:
single row four point contact ball slewing bearing,
single row cross roller slewing bearing,
double row different ball diameter slewing bearing,
three row cylindrical roller slewing bearing and roller/ball combination slewing bearing.
And all these types of slewing bearings can be further divided into bearings without gears, bearings with external gears and bearings with internal gears.
Detailed description of these types slewing bearings
Single row four point contact ball slewing bearings
This kind of slewing bearings can support high dynamic loads, transmitting axial and radial forces simultaneously as well as the resulting tilting moments. Applications of this kind of bearings are hoisting, mechanical handling and general mechanical engineering etc.
Single row cross roller slewing bearings
This kind of bearings can support combinations of large radial force, medium axial force and tilting moment with small or zero clearance. Main applications of this kind of bearings are hoisting and mechanical handling and general mechanical engineering etc.
Double row different ball diameter slewing bearings
This kind of bearings can support high static loads with simple structures. They are mainly used in situations with variation load position and direction and continuously rotating. Main applications of this kind of bearings are deck hoisting, mining and material handling etc.
Triple row cylindrical roller slewing bearings
This kind of bearings has high load carrying capacity. Under same loads, this kind of bearings has much smaller diameters which can make the installation much compact, as different kinds of loads are supported by different races and rollers. Main applications of this kind of bearings are hoisting, mechanical handling, mining and materials handling, offshore technology and general mechanical engineering etc.
Roller/ball combination slewing bearings
This kind of bearings can support high axial load and low tilting moments. Usually they are large diameter slewing bearings. Applications of this kind of bearings are mining and materials handling etc.
About LYHY bearings

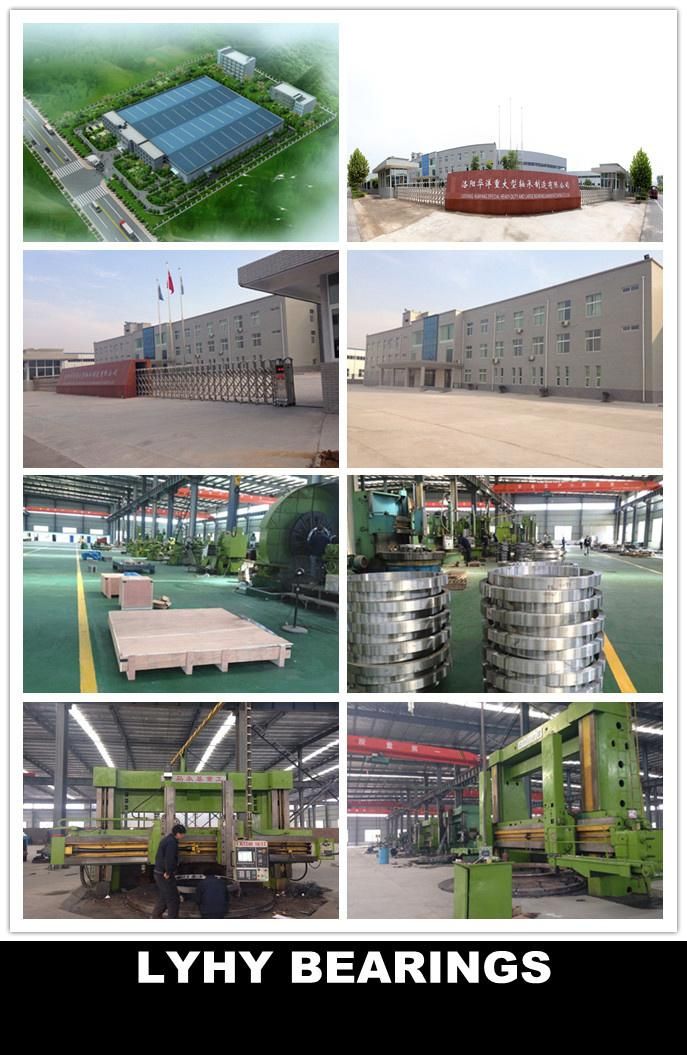

1.introduction:we are a manufacturer of slewing bearing since 1993, our factory occupies a area of 30000square meters with 4 workshop and 1 office building.
2. Featured products: slewing bearing and slewing drive
3. Capital: Current is 1 million RMB, but we are increasing the capital to 10 million RMB
4. Workers: 40
5. Certificate: ISO9001:2008, 3.1 certificate, CCS certificate, Science and Technology Progress Award
6. Annual Exportation: 8million USD
7. Exported countries: (39)
Asia: India, Pakistan, Iran, Signore, Georgia, Malaysia, Vietnam, Thailand, Philippines, Israel, Korea, UAE, Sri Lanka, Saudi Arabia,
Europe: Turkey, Russia, Spain, Czech Republic, Italy, Poland, Slovakia, Bosnia and Herzegovina, Austria, France, Germany, Switzerland, Finland, Ukraine, UK
America: USA, Canada, Mexico, Brazil, Puerto Rico, Peru, Chile
Africa: South Africa, Egypt
Oceania: Australia

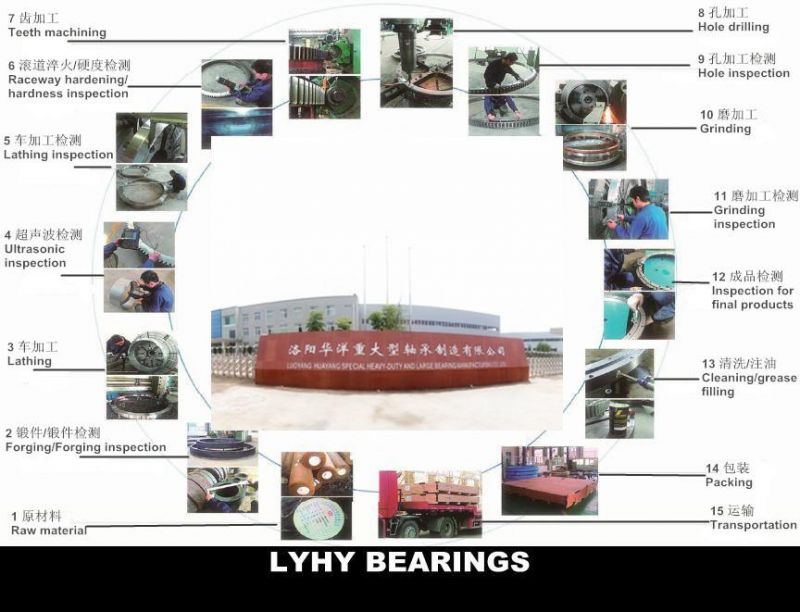

Production Process of LYHY slewing bearings

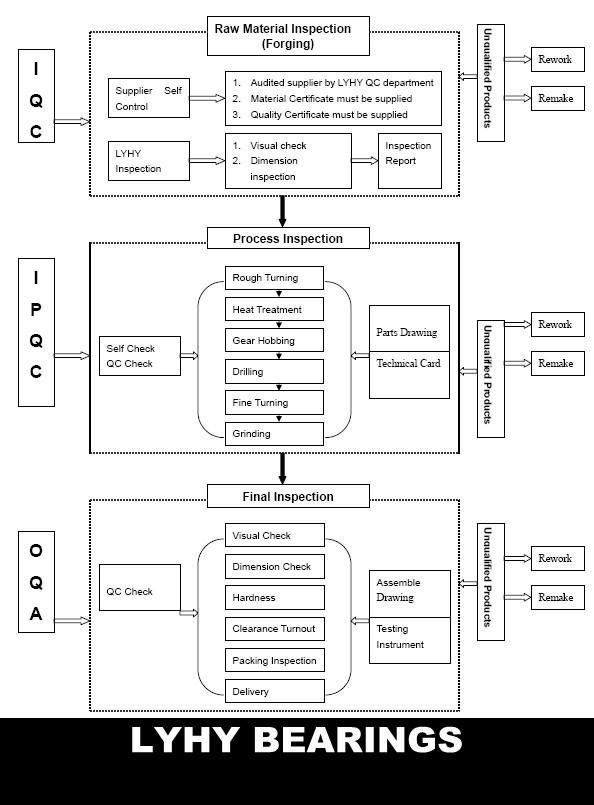

Quality Control Process of LYHY slewing bearings

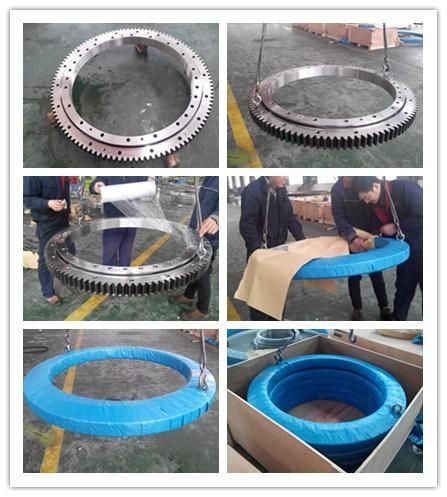

LYHY Slewing Bearing Packing
Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;
And then packed with kraft paper and professional belts;
At last, with wooden box totally at the outer packing to invoid the rust or the moist;
We can depend on the customers demand to be packed;
