Crossed Roller Slewing Ring Bearing Roller Bearing Xsa140544
Right Team Holding Ltd.- Standard or Nonstandard：Standard
- Sealing Gland：Sealed On Both Sides
- Rolling-Element Number：Single-Row
- Roller Type：Deep Groove Raceway
- Material：50mn and 42CrMo
- Type：External Gear
Base Info
- Model NO.：XSA140544
- Gear：Internal Gear
- Inspection：in House or Third Party
- Transport Package：Wooden Box for Slewing Ring Bearing
- Specification：ISO9001: 2008
- Trademark：LYHY
- Origin：Luoyang Bearing Production Base, China
- HS Code：848210900
- Production Capacity：600PCS of Slewing Ring Bearing Per Year
Description
N.W.(KG)Da di H Cr XA 120235N 318.8 171 40 280 13 XA 180307N 408.4 235 55 450 29 XA 160407N 503.3 335 50 600 33 XSA140414N 503.3 344 56 520 31.4 XA 260475N 598.2 382 65 1060 64 XA 280560N 708 464 87 1245 110 XA 140540N 640.3 471 48 770 39 XSA140544N 640.3 474 56 680 42 XA 160596N 712.3 510 55 880 63 XA 140640N 742.3 571 50 910 50 XSA140644N 742.3 574 56 520 50.1 XA 240685N 830.1 577 68 1380 115 XA 200720N 844.3 630 59 1180 87 XA 140753N 862.3 674 50 1060 65 XSA 140744N 838.1 674 56 930 59 XA 200818N 940.1 728 60 1460 100 XA 280845N 1008 730 87 1830 200 XSA 140844N 950.1 774 56 1050 71 XA 220895N 1038.1 790 68 1860 145 XSA 20 0955N 1096 855 80 2030 154 XSA140944N 1046.1 874 56 1340 75.5 XA 280995N 1158 882 80 2550 210 XA 220978N 1110.1 883 68 2100 140 XA 140969N 1086.1 890 60 1400 105 XSA 141094N 1198.1 924 56 1360 91 XSA 20 1055N 1198 955 80 2250 171 XA 341117N 1293.6 995 100 3600 310 XSA 20 1155N 1298.6 1055 80 2460 186 XA 301213N 1389.6 1095 92 3800 300 XSA 20 1255N 1398.6 1155 80 2687 201 XA 261320N 1485.6 1210 85 3800 285 XSA 20 1355N 1498.6 1255 80 2936 218 XA 341455N 1653.6 1317 95 5100 430 XSA 20 1455N 1598.6 1355 80 3060 233 XA 301600N 1803.5 1470 92 4200 460 XA 501790N 2027.5 1621 130 8200 890 XA 401765N 1971.5 1622 110 6100 640 XA 401832N 2041.5 1687 110 6400 680 XA 221821N 2013.1 1714 100 3900 500 XA 401985N 2229.1 1826 110 6900 810 XA 402130N 2381.4 1965 118 7600 980 XA 342253N 2457.6 2112 118 5600 850 XA 282304N 2493.4 2190 110 5350 680 XA 402355N 2605.1 2190 118 7000 1070 XA 402638N 2861.1 2492 118 7300 1050 XA 452815N 3096.8 2640 127 9500 1490 XA 452935N 3216.8 2760 127 10000 1560 XA 503005N 3272.8 2820 138 12100 1720 XA 453170N 3436.8 2995 127 10600 1610 XA 503365N 3632.8 3180 138 13100 1920 XA 503585N 3866.8 3400 138 14500 2130 XA 503765N 4046.8 3580 138 15200 2240 XA 504175N 4436.8 3970 138 16800 2430
Why choose LYHY slewing bearings
A pioneer in slewing bearing field, rich experience, can do design, produce, mounting guide
Small order accepted
ISO certified company
Variorum models
7*24hours hotline to help you with your cranes
Strict quality control system to ensure quality for slewing bearing

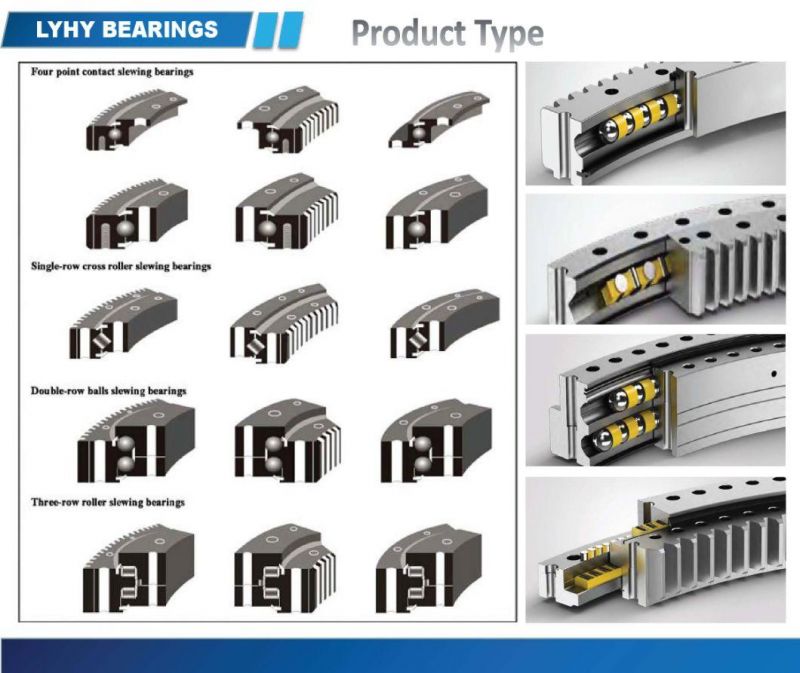

LYHY Slewing Bearing Types
LYHY slewing bearings can be divided into the following types as per their structures:
single row four point contact ball slewing bearing,
single row cross roller slewing bearing,
double row different ball diameter slewing bearing,
three row cylindrical roller slewing bearing and roller/ball combination slewing bearing.
And all these types of slewing bearings can be further divided into bearings without gears, bearings with external gears and bearings with internal gears.
Detailed description of these types slewing bearings
Single row four point contact ball slewing bearings
This kind of slewing bearings can support high dynamic loads, transmitting axial and radial forces simultaneously as well as the resulting tilting moments. Applications of this kind of bearings are hoisting, mechanical handling and general mechanical engineering etc.
Single row cross roller slewing bearings
This kind of bearings can support combinations of large radial force, medium axial force and tilting moment with small or zero clearance. Main applications of this kind of bearings are hoisting and mechanical handling and general mechanical engineering etc.
Double row different ball diameter slewing bearings
This kind of bearings can support high static loads with simple structures. They are mainly used in situations with variation load position and direction and continuously rotating. Main applications of this kind of bearings are deck hoisting, mining and material handling etc.
Triple row cylindrical roller slewing bearings
This kind of bearings has high load carrying capacity. Under same loads, this kind of bearings has much smaller diameters which can make the installation much compact, as different kinds of loads are supported by different races and rollers. Main applications of this kind of bearings are hoisting, mechanical handling, mining and materials handling, offshore technology and general mechanical engineering etc.
Roller/ball combination slewing bearings
This kind of bearings can support high axial load and low tilting moments. Usually they are large diameter slewing bearings. Applications of this kind of bearings are mining and materials handling etc.

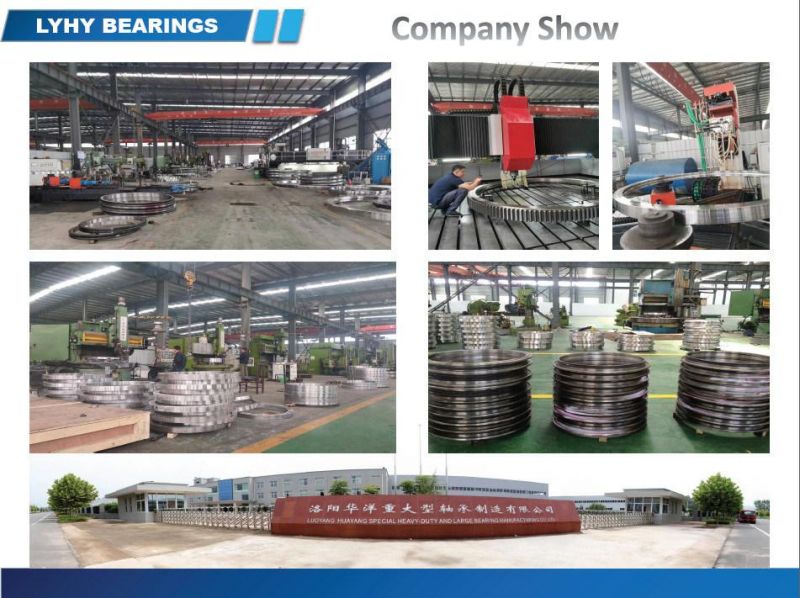

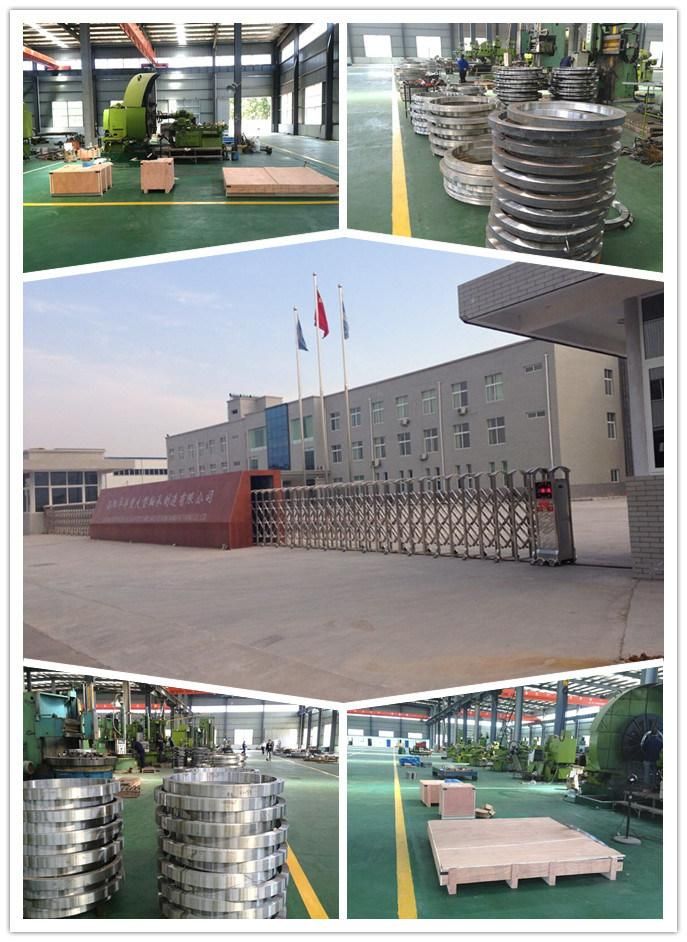

About LYHY bearings
1.introduction:we are a manufacturer of slewing bearing since 1993, our factory occupies a area of 30000square meters with 4 workshop and 1 office building.
2. Featured products: slewing bearing and slewing drive
3. Capital: Current is 1 million RMB, but we are increasing the capital to 10 million RMB
4. Workers: 40
5. Certificate: ISO9001:2008, 3.1 certificate, CCS certificate, Science and Technology Progress Award
6. Annual Exportation: 8million USD
7. Exported countries: (39)
Asia: India, Pakistan, Iran, Signore, Georgia, Malaysia, Vietnam, Thailand, Philippines, Israel, Korea, UAE, Sri Lanka, Saudi Arabia,
Europe: Turkey, Russia, Spain, Czech Republic, Italy, Poland, Slovakia, Bosnia and Herzegovina, Austria, France, Germany, Switzerland, Finland, Ukraine, UK
America: USA, Canada, Mexico, Brazil, Puerto Rico, Peru, Chile
Africa: South Africa, Egypt
Oceania: Australia

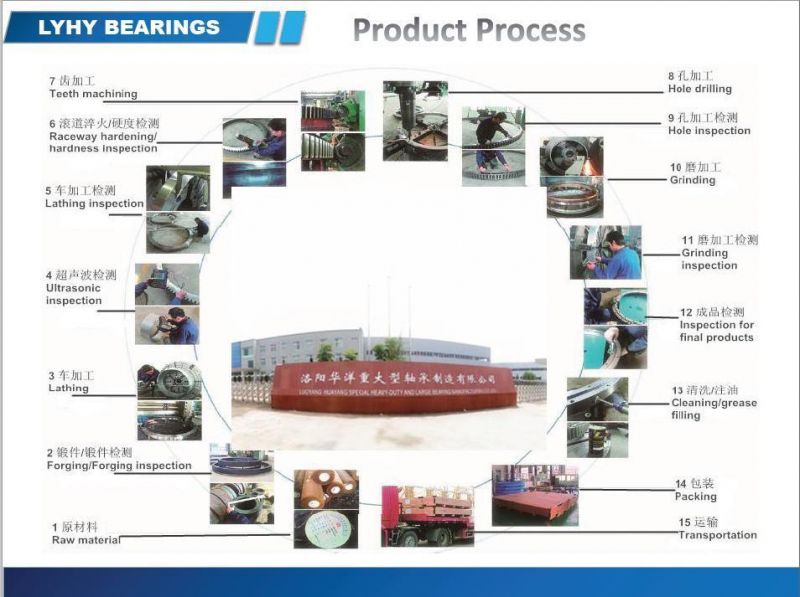

Production Process of LYHY slewing bearings

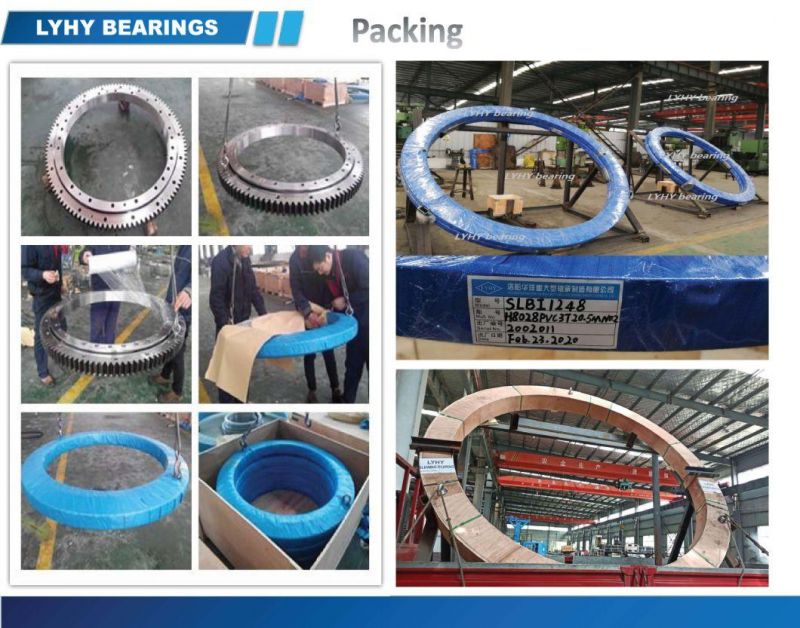

LYHY Slewing Bearing Packing
Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;
And then packed with kraft paper and professional belts;
At last, with wooden box totally at the outer packing to invoid the rust or the moist;
We can depend on the customers demand to be packed;
FAQ:
Q: Are LYHY BEARINGS trading company or manufacturer?
A: LYHY BEARINGS is a professional manufacturer for slewing bearings, thin section bearings, ball bearings and rolling bearings
Q: How do LYHY BEARINGS control quality of their bearing?
A: LYHY BEARINGS has established strict quality control systems, all the products and services has passed ISO9001-2008 Quality Certificate and third party such as CCS, LR,ABS,BV
Q: What is the MOQ?
A: MOQ is 1pc, pls message us for detailed information.
Q: How about the package for LYHY bearings?
A: Standard Industrial packing in general condition (Plastic tube+ professional plastic belts+ plywood case). Accept design package when OEM.
Q: How long is the production time?
A: It takes about 7-40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have your own forwarder.
Q: Is sample available?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable for LYHY BEARINGS. We can design as per your requirements and use your own LOGO and package design.
