Outdoor Quality Electronic LED P8 Advertising Fixed Installation Display Screen
Shenzhen New Arts Import and Export Trade Co, . Ltd- Tube Chip Color:Full Color
- IP Rating:IP65
- Pixel Pitch:8mm
- Pixel Configuration:1R, 1G, 1B
- Display Function:Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption:300W , m²
Base Info
- Model NO.:LA-SF08
- Pixel Density:15625 DOT,M2
- Scanning Mode:1,4 Scan
- Display Type:LED Video Display
- Application:Advertising
- Certification:CE, FCC
- Cabinet Color:Black
- Cabinet Material:Die Cast Aluminum
- Best Viewing Distance:>16m
- Module Size:320*160
- Cabinet Size:960mm*960mm
- LED:Nationstar SMD2727
- IC:Mbi5124
- Power Supply:G-Energy
- Install Type:Outdoor Fixed
- Transport Package:Plywood Case or Flight Case
- Specification:Cabinet size 960*960*110mm
- Trademark:None
- Origin:Shenzhen, China
- HS Code:8528591090
- Production Capacity:4000 M2,Month
Description
Basic Info.
Model NO. LA-SF08 Pixel Density 15625 DOT/M2 Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, FCC Cabinet Color Black Cabinet Material Die Cast Aluminum Best Viewing Distance >16m Module Size 320*160 Cabinet Size 960mm*960mm LED Nationstar SMD2727 IC Mbi5124 Power Supply G-Energy Install Type Outdoor Fixed Transport Package Plywood Case or Flight Case Specification Cabinet size 960*960*110mm Trademark None Origin Shenzhen, China HS Code 8528591090 Production Capacity 4000 M2/MonthProduct Description

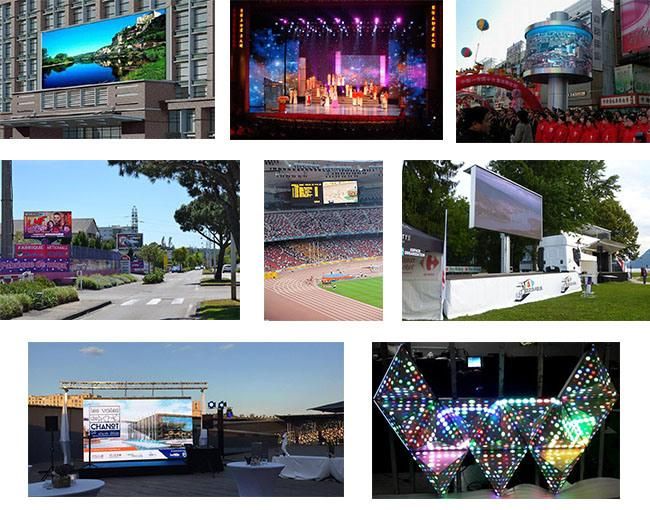

Application:1. It's a kinds of advanced LED screen for outdoor fixed installation.
2. It is slim and light weight cabinet design.

Product feature:
1. Slim and light weight cabinet design, nice cabinet outlook.
2. High brightness.
3. High quality.
4. High waterproof and protection grade.

Specification:
1 | Model No. | SF08 |
2 | Pixel Pitch (mm) | 8 |
3 | Module Size (mm) | 320*160 |
4 | Module Resolution (pixels) | 40*20 |

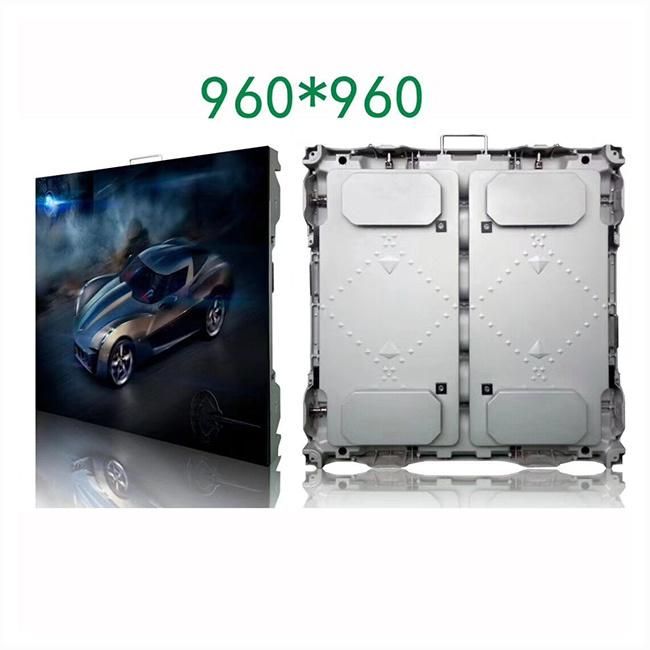

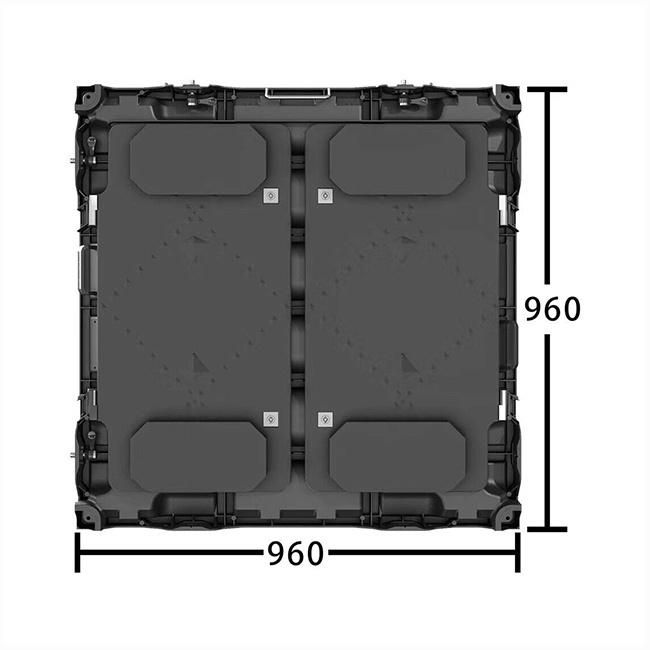

5 | Cabinet Size (mm) | 960*960*110 |
6 | Cabinet Resolution (pixels) | 120*120 |
7 | Pixel configuration | 1RGB |
8 | LED Encapsulation | SMD2727 NationStar |
9 | Work Voltage (DC) | 5V |
10 | Driver Mode (Scan) | 1/4 |
11 | Cabinet Weight (kg) | 30KG |
12 | Physical Density (pixels) | 15625 |
13 | Brightness (NIT) | 6300 |
14 | Gray Scale (BIT) | 14 |
15 | Contrast Ratio | 3000:1 |
16 | Refresh Rate (Hz) | 1920 |
17 | Viewing Angle (H/V) | ±140°/±140° |
18 | Protection Grade | IP65 |
19 | MAX Power Consumption (W/m²) | 1000 |
20 | Average Power Consumption (W/m²) | 300 |
21 | Work Temperature | -20ºC~50ºC |
22 | Work Humidity | 10%RH~90%RH |
23 | Optimal Viewing Distance | ≥16m |
24 | Input AC Power | 110V or 240 V, 50Hz or 60Hz |
The advantages:
1. Light weight.
2. Easy installation.
3. High brightness.
4. Reliable quality grarantee.
5. Superb ingress protection.
6. The color of the cabinet can be chosen.



About us:
We are a trade factory in Shenzhen with 6 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.

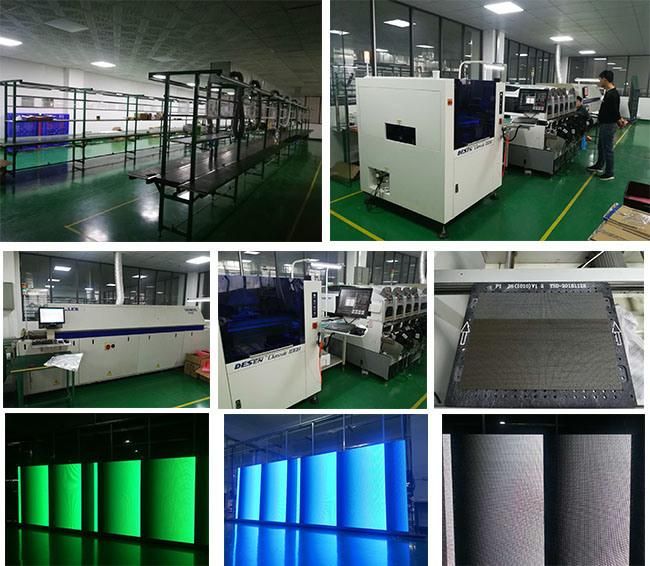

Factory:
(The pictures below were taken during night, after most of the workers off work)
1. Skillful workers who have worked more than 6 years in our factory.
2. High technology auntomatic machines.
3. Aging test + Grayscale test for each module.

Delivery and payment:
1. Production time for 0-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: FOB Shenzhen, CIF, DDU, DDP.
4. Plywood case or flight case provided.
